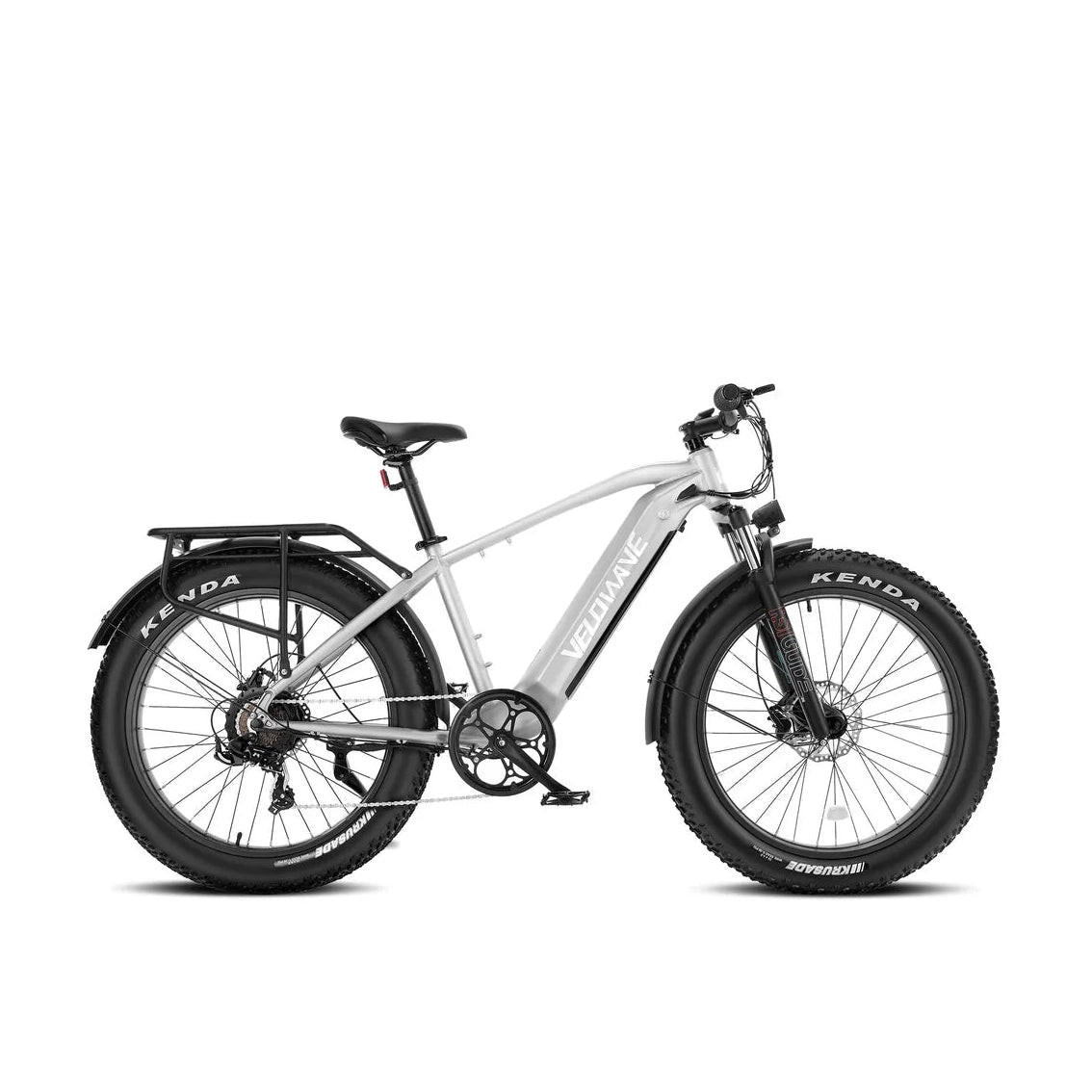

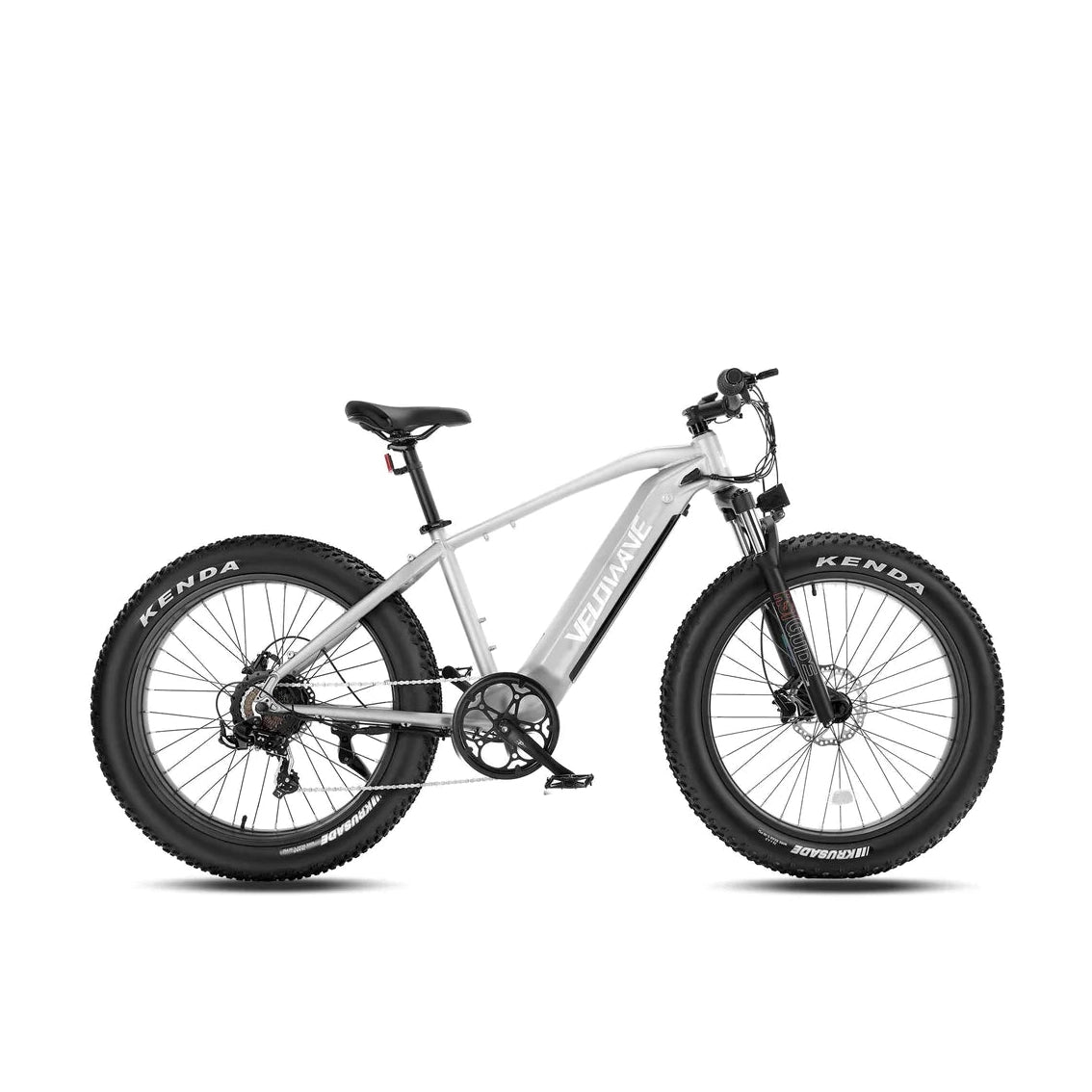

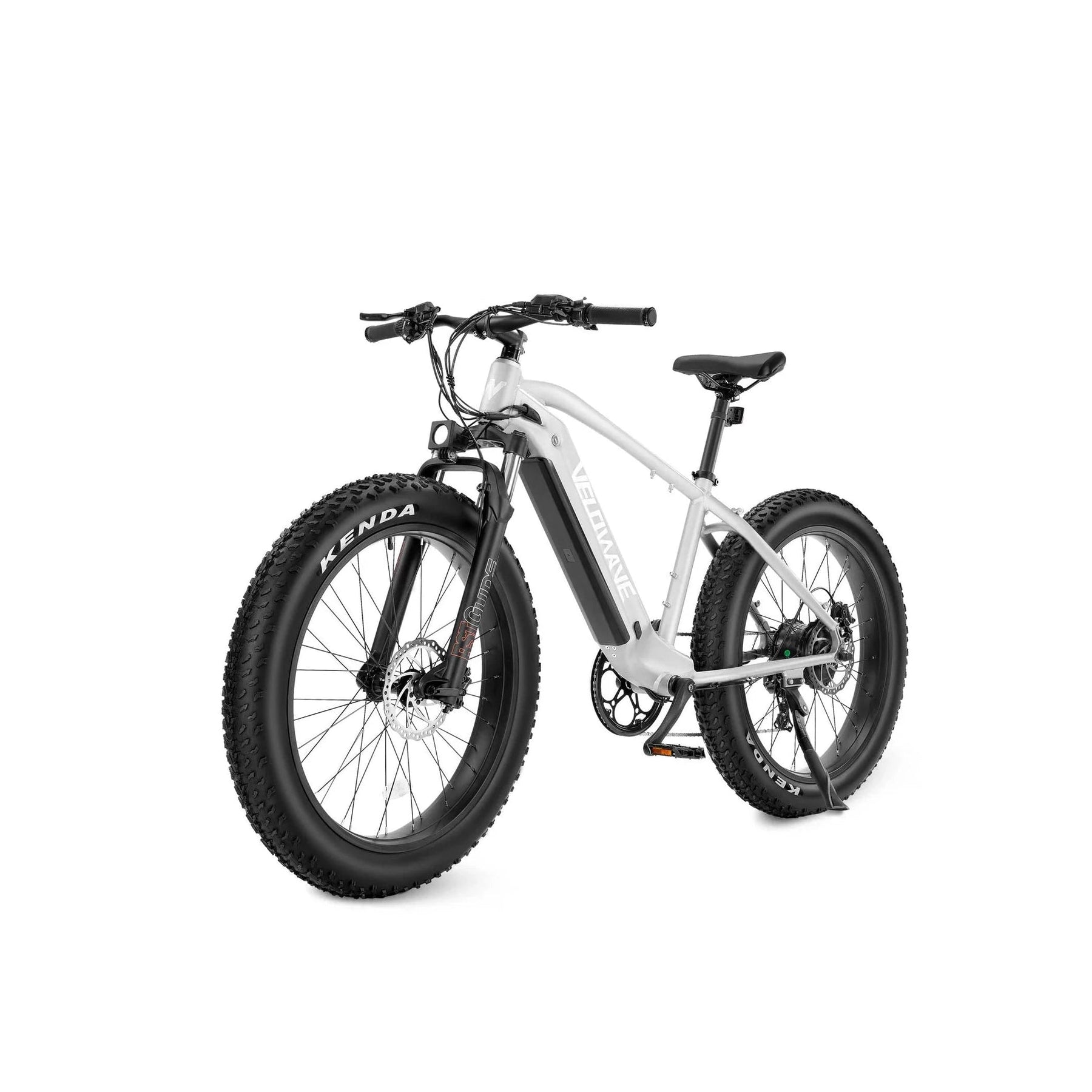

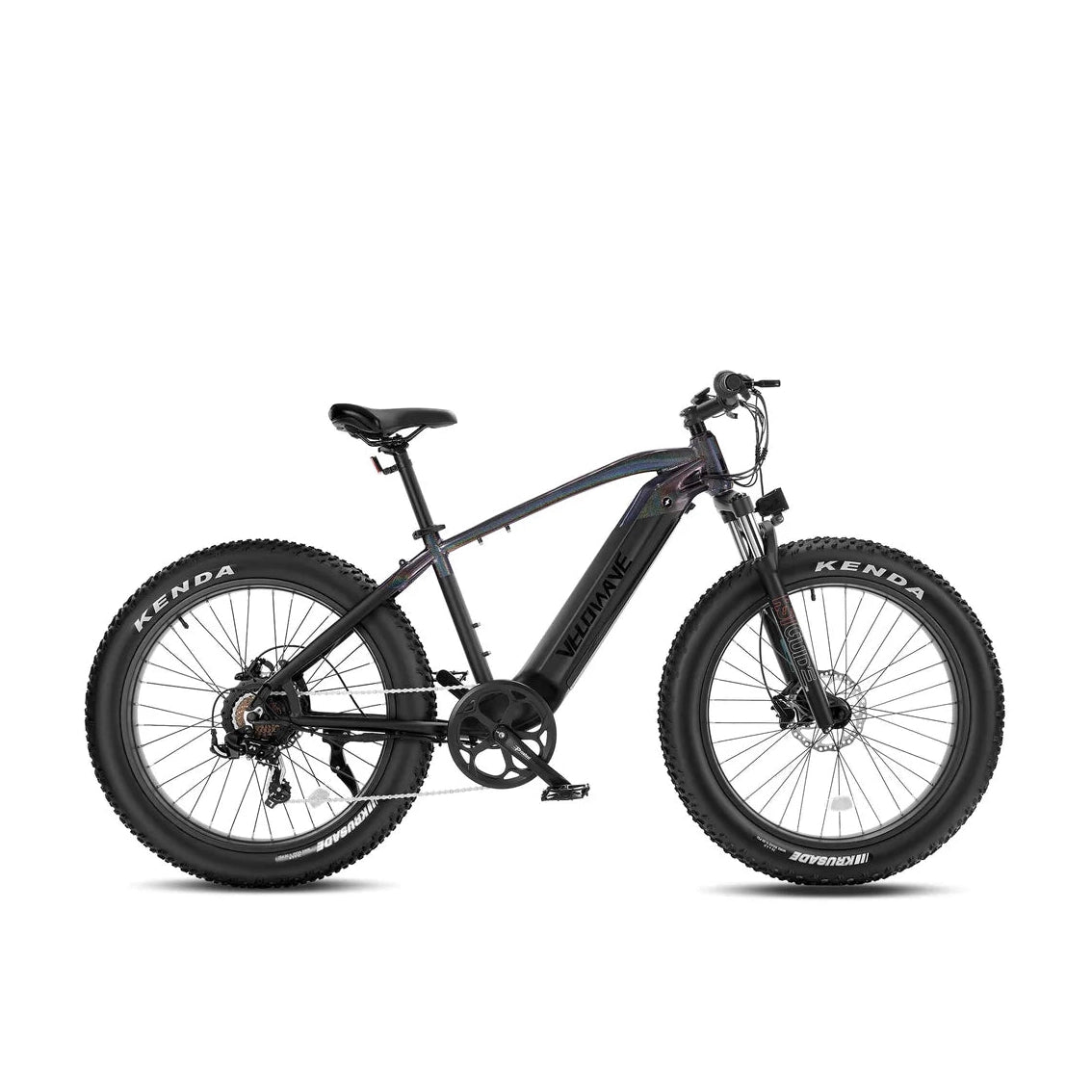

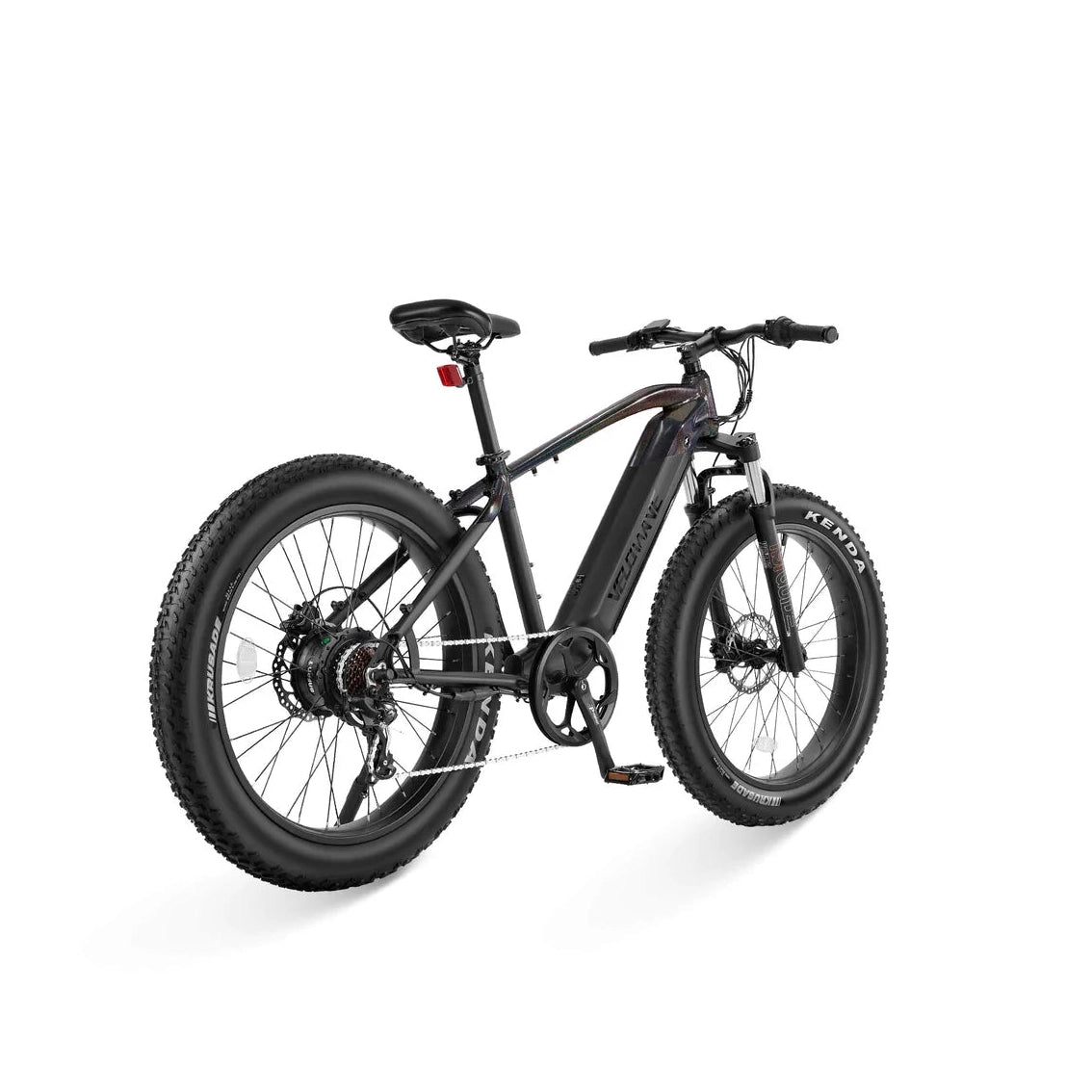

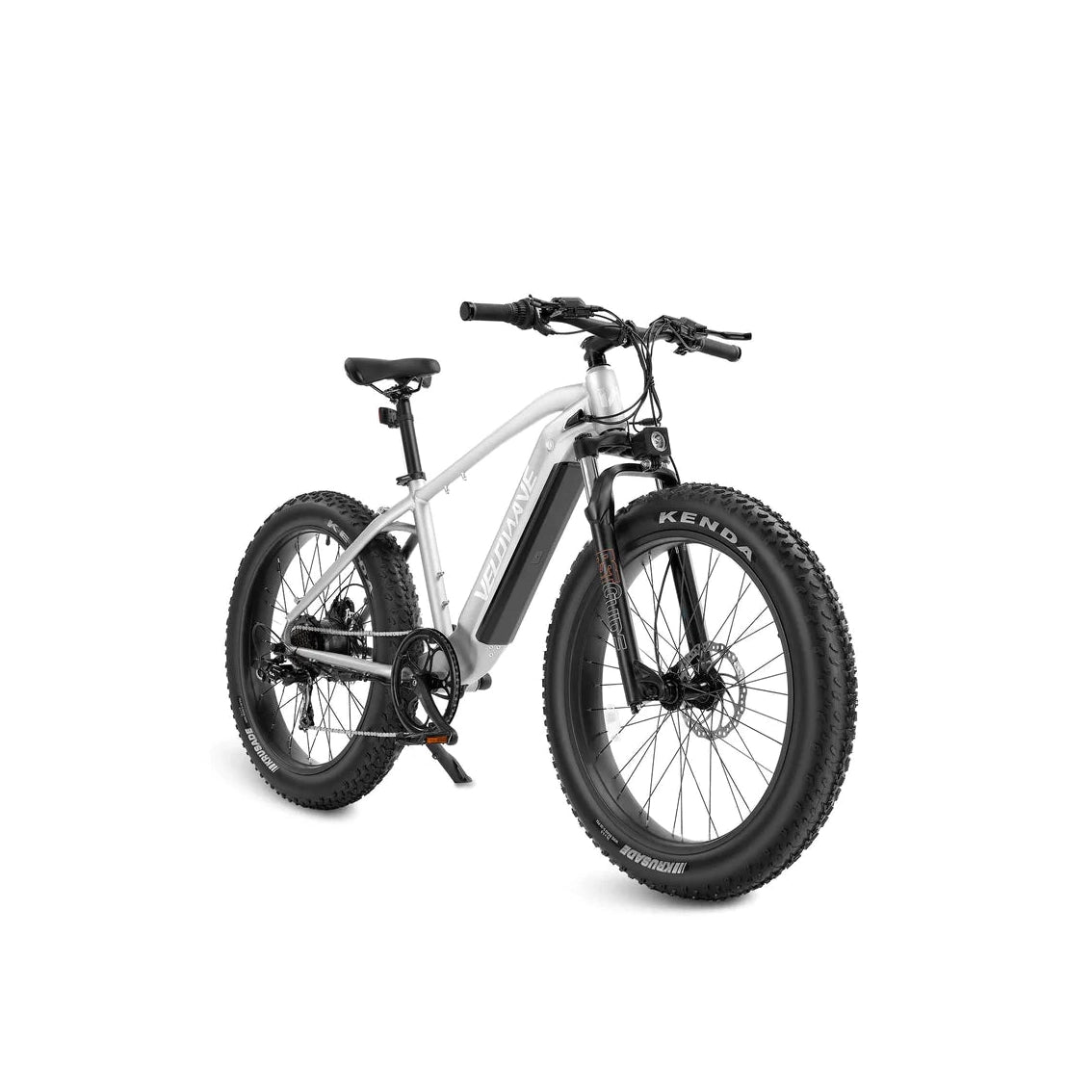

VELOWAVE|RANGER 750W Fat Tire Electric Bike
Overview
Ranger ebike is the sharpest and most versatile among Velowave ebikes. Fat tires, suspension fork, and top tube design can help strengthen the stability of the body while the flat handlebar reduces the air resistance of the rider when riding. So this electric bike is more suitable for off-road/off-country, although it can be used on all terrains.
The color screen provides you with convenient control and a better visual experience. The optional fenders and racks help avoid mud splashing on your body when you are riding off-road.
As a flagship ebike, Ranger has stood the test of time and customers.



Tech Specs
MOTOR
|
750W BAFANG Geared Hub Motor, Rated 750W, Peak 1275W, Max Torque 80NM
|
BATTERY
|
48V 15AH, LG Cells
|
CHARGER
|
48V 2Amp
|
RIDING MODE
|
Cadence Sensor
|
DISPLAY
|
Multifunctional Color-Screen Display
|
DERAILLEUR
|
Shimano 7-Speed Rear Drivetrain ARDTY200GSLD
|
CRANKSET
|
52T, 170mm Alloy Crank
|
QUICK RELEASE
|
Front Tire
|
FRAME MATERIAL
|
6061 Aluminum
|
FORK
|
Front Hydraulic Suspension Fork, Travel: 75mm
|
TIRE
|
Kenda 26"*4.0" Fat Tires
|
BRAKE
|
Front & Rear Hydraulic Disc Brakes
|
THROTTLE
|
Thumb Throttle
|
Thumb Throttle
|
48V 10W LED Light
|
SADDLE
|
Comfortable Wide Saddle
|
PEDALS
|
Platform Pedals
|
KICKSTAND
|
Side kickstand
|
SPEED |
|
Assembly Video & Manual
Geometry

Seat Post Length 18.0'' |
Total Length 76.3'' |
Seat Tube Angle 70° |
Head Tube Length 4.9'' |
Handlebar Height 42.5' |
Head Tube Angel 71° |
Bottom Bracket Height 14.7'' |
Chainstay Length 20.1'' |
Front-Center 26.8'' |
Wheelbase 46.8'' |
Standover Height 30.2'' |
Reach 18.1'' |
Velowave Resources
Important
For better usage and a good riding experience, our technician suggests making a careful check on the dreallieuar part and adjusting it a little bit if it's necessary. Here we are enclosing this sheet of manual for reference.
2022 BEST ADULT ELECTRIC BICYCLES ONLINE FROM VELOWAVE EBIKE
Whether you’re looking for a leisurely ride, exercise or an adventurous ride , there's an electric bike for you. At velowave ebike, we care about the details that matter, like using high-quality components for maximum durability, performance and comfort. That's what makes us the best electric ebike company of 2022. We know how frustrating it can be to find an e-bike that fits, and we want to help. Our E-bikes offer every type of rider an ebike which is perfectly tailored to their needs. How to Choose an The perfect Electric Bike Style? Riding an electric powered bike for the first time feeling like you've just discovered a superpower. that's because there is a mode called pedal assist mode which uses power from the motor resulting a smooth ride and faster pedaling.
If you are heading to an off road trip, the mountain ebike with its electric motor assist and a big battery pack can make you feel like a hero while getting you over tough terrain.
The commuter ebike is an excellent choice for those who want to ride an electric bike as a hobby and ride mostly on the street. electric road bike is lightweight, high-performance E-bike with powerful motors, these bikes are great for commuting to work or riding around town.
Electric fat tire bicycles are one of the most fun categories of e-bikes. Their 4” or greater tires have great traction over loose soil, sand or snow; they absorb bumps and provide great traction on loose surfaces.
