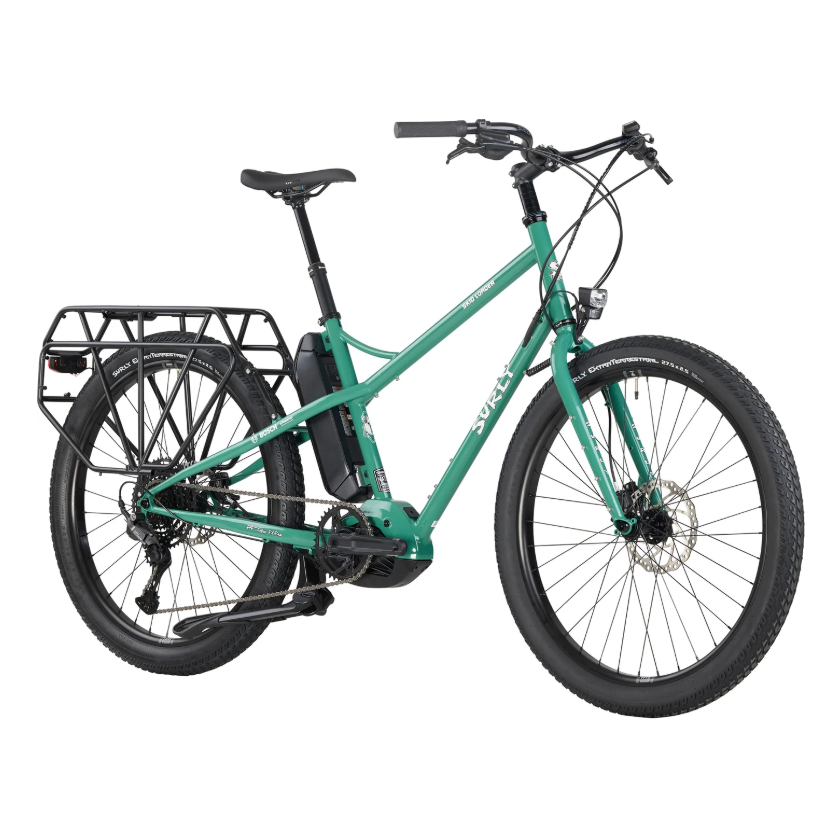

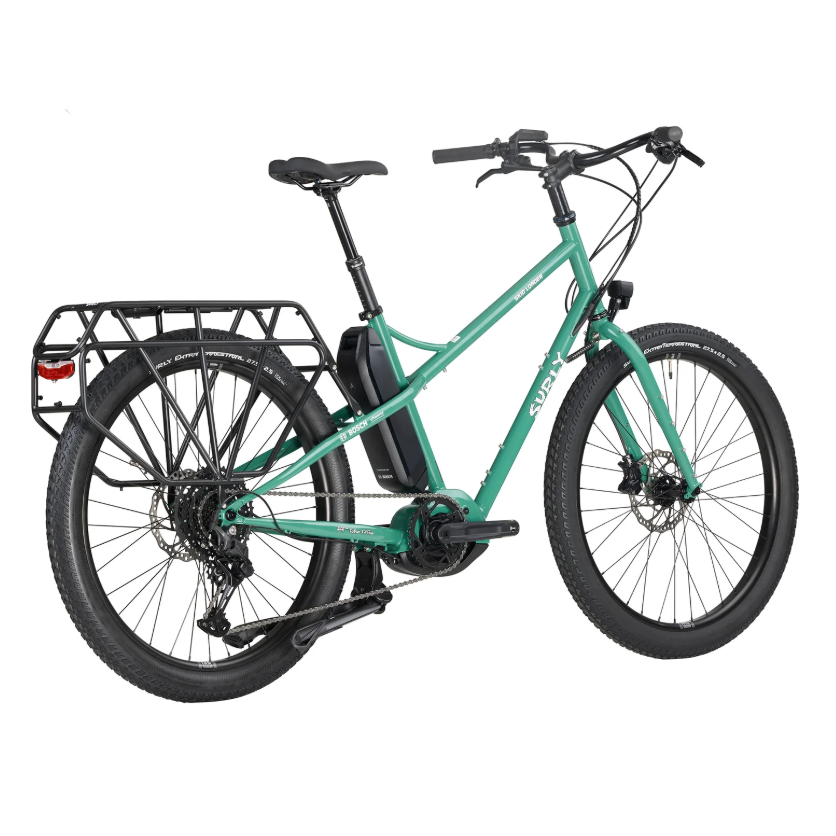

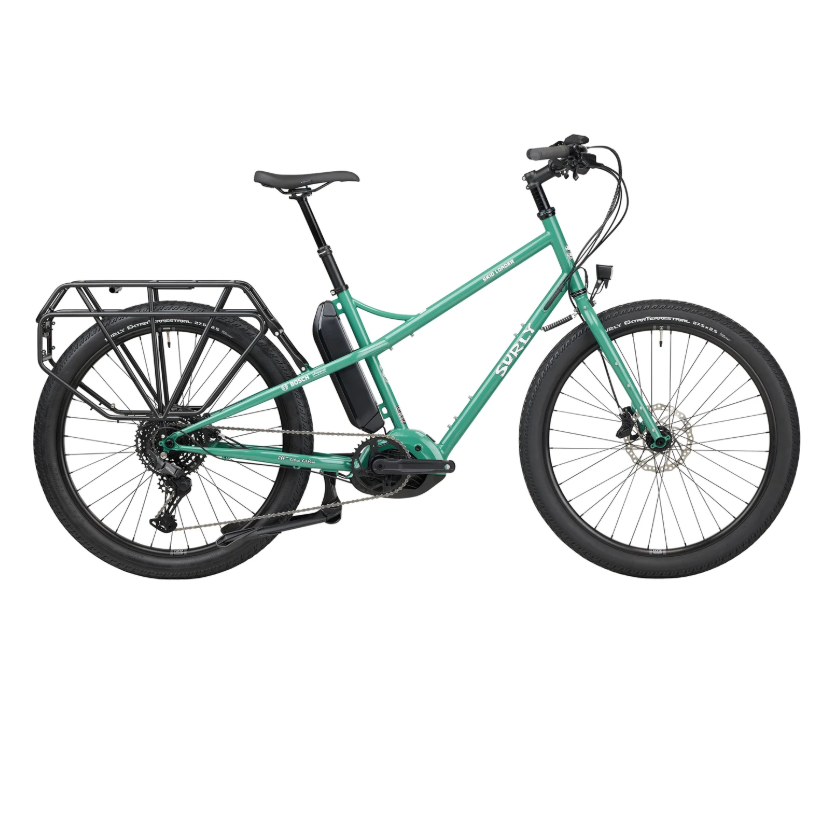

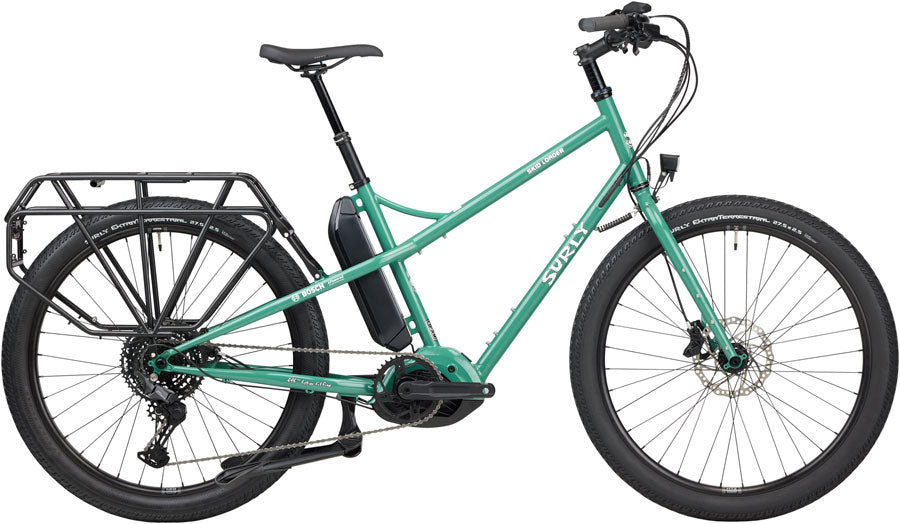

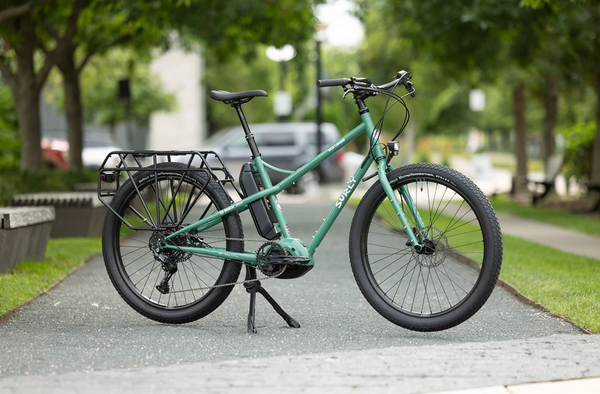

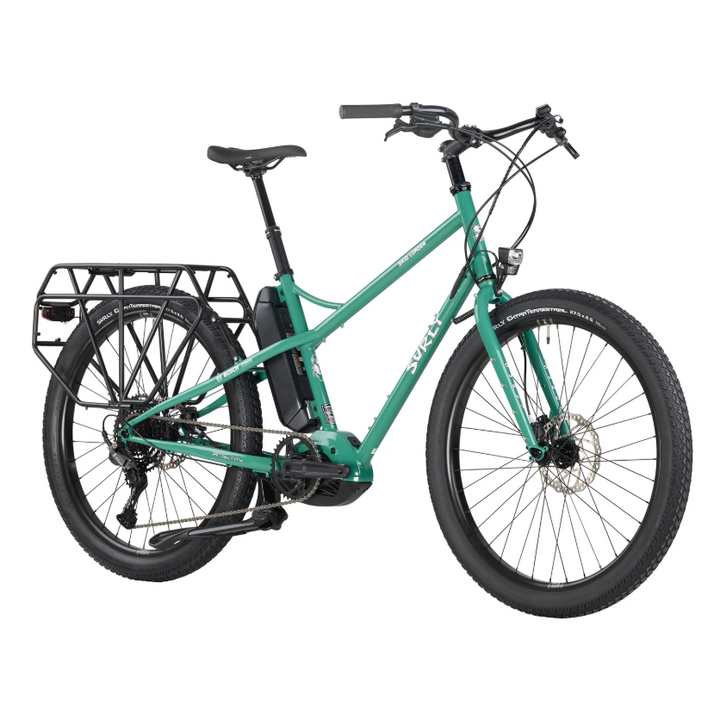

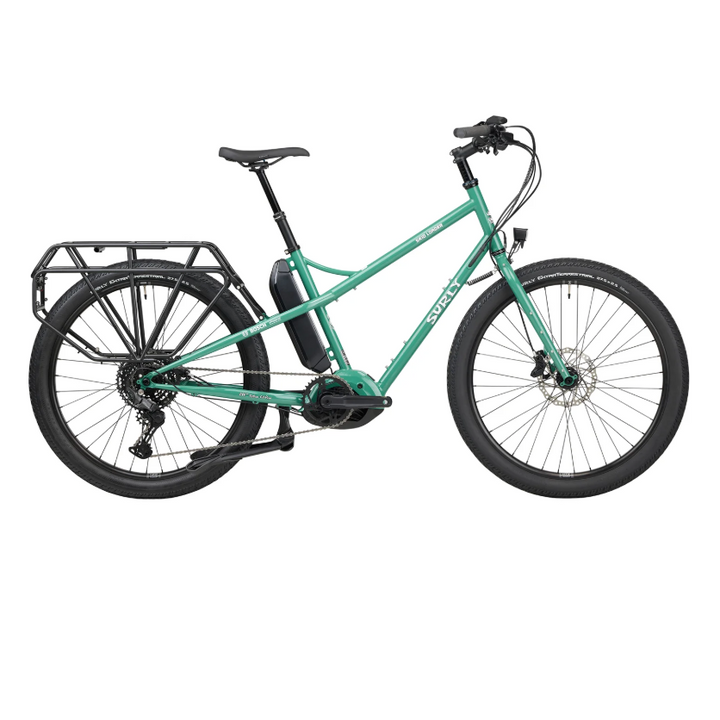

Surly Skid Loader Cargo Ebike - 27.5'' Steel Illegal Smile Green Medium
Just as Easy, Not as Big
Cutting back on car trips is a worthy undertaking, especially in these times of planetary peril. With its electric-assist motor and extreme hauling capabilities, our compact electric cargo bike Skid Loader invites those inclined to throw a leg over and wave their middle digits at downtown gridlock. Built for finding more ways to drive less and ferrying various materials to work, play, or wherever, we gave Skid Loader the utility of a long-tail and a manageable footprint that fits wherever a normal bike does.
Comfortable and compliant under load, Skid Loader also enjoys cutting loose without cargo. Engineered to ride and feel like a regular bike, its 27.5” wheel platform provides abundant tire options you don’t get from cargo bikes rolling on smaller wheels. And because it’s a Surly, we gave it ample tire clearance and built it for commutes that go from bus stop to bandit trail. We also gave all three frame sizes adequate standover and a dropper post to fit riders of assorted shapes and sizes. Furnished with useful accessory barnacles and internal routing for just about everything, Skid Loader’s scaled-down and feature-packed cargo frame removes the roadblocks between you and riding whenever the hell you want.

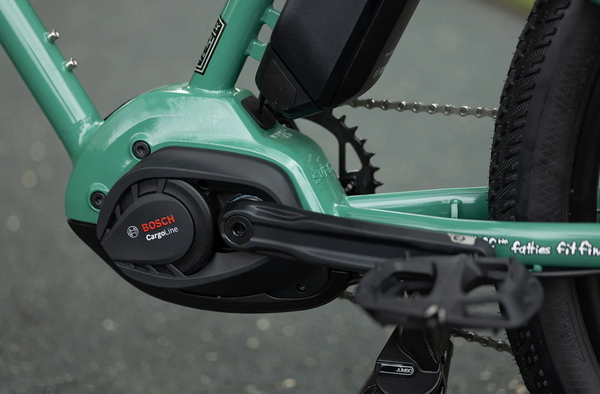

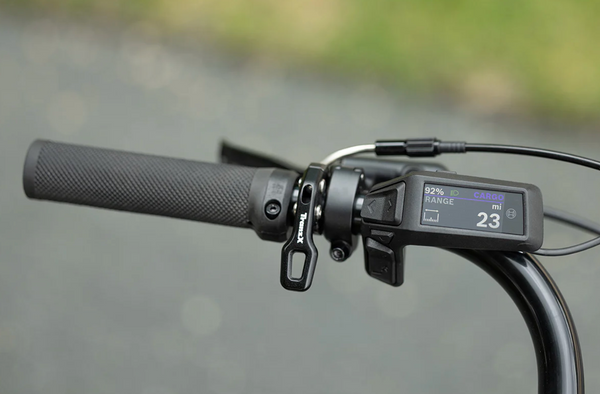

- Equipped with Bosch Performance Line Cargo (Smart System) with Purion 200 Remote, featuring four invigorating levels of ride assist
- Capable of running dual batteries for extended range

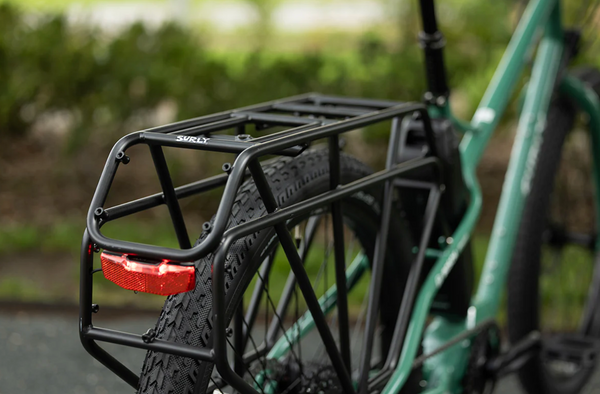

- Dedicated rear rack rated for 100 pounds of potatoes, thanks to beefed-up M6 hardware (The maximum cargo capacity of the deck alone is 59lb (27kg))
- Internal cable routing for dropper post, brake, shifter, and lights
- Mounts for fenders, front rack, and bottle cages (two on Medium and Large, one on Small)
- Stable dual-leg kickstand (Ursus Jumbo 80) and front wheel stabilizer for your loading convenience
- Sturdy, full-size wheels and large-volume 27.5 x 2.5” ExtraTerrestrial tires

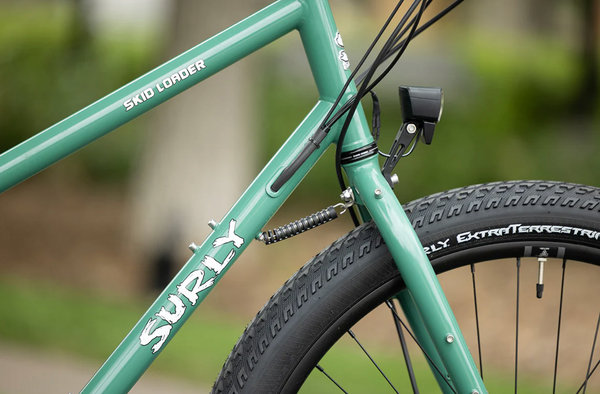

- Integrated headlights and taillights for sunrise and sunset cruises
- Meets UL 2849, and UL 2271 certification
Specifications
Frameset
| Frame |
100% Surly Chromoly Steel, Natch tubing, double-butted main traingle, TIG welded, E.D. coated |
|
Color |
Illegal Smile Green |
|
Fork |
100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated |
|
Headset |
Cane Creek Viscoset Upper / 40 Series Lower 1-1/8" |
|
Seatpost Clamp |
Surly Stainless |
|
Seatpost |
Tranz-X YSP15 Dropper, 120 mm travel |
|
Stem |
Kalloy 31.8 |
|
Grips/Bar Tape |
Velo Black |
|
Saddle |
WTB Volt Medium |
|
Rear Rack |
Surly Skid Loader dedicated rear rack features M6 hardware and 100-lb. capacity. * The maximum cargo capacity of the deck alone is 59lb (27kg). Please see Skid Loader Rack Instructions in documents section below. |
|
Handlebar |
Surly Terminal |
|
Lights Included |
Yes (AXA Nxt 60 Front, AXA Blueline Rear) |
|
Front Derailleur |
N/A |
|
Rear Derailleur |
Shimano CUES U6000 GS |
|
Cassette |
Shimano Linkglide LG300 11-48t 10sp |
|
Drive Type |
Mid-Drive |
|
Chain |
Shimano Linkglide LG500 |
|
Crankset |
FSA CK-763, 38t |
|
Shifter |
Shimano CUES U6000 |
|
Brake Levers |
Tektro HD-M750 |
|
Brake Calipers |
Tektro HD-M750, 4 piston |
|
Assist Levels |
Eco, Tour+, Cargo, Turbo |
|
Rotors |
Tektro 180/180, 6-Bolt |
|
Drive Unit |
Bosch Performance Line Cargo (Smart System) with Purion 200 Remote |
|
Ebike Classification |
Class 1 |
|
Max Assist Speed |
20 mph |
|
Motor Torque |
85Nm |
|
Max Motor Assist |
400% |
|
Battery Capacity Watt Hours |
545Wh |
|
Battery Type |
Frame mounted Lithium-ion, Bosch PowerPack 545 battery |
|
Removable Battery |
Yes |
|
Battery Power Volts |
36V |
|
Battery Capacity Amp Hours
|
14.4Ah |
|
Estimated Charge Time |
50% charge: approx. 1.8 hours
100% charge: approx. 4.9 hours |
|
Charger Included |
Yes, Bosch 4A charger |
|
Range Estimate |
A 15–50 mile range is normal for Skid Loader, but your mileage may vary depending on support mode, rider weight, cargo load, and other variables. |
|
Gross Payload |
400-lb. max weight capacity (rider plus cargo) |
|
Throttle |
No |
|
Walk Assist |
Yes |
|
Front Tire |
Surly ExtraTerrestrial 27.5 x 2.5", 60 tpi, tubeless ready |
|
Rear Tire |
Surly ExtraTerrestrial 27.5 x 2.5", 60 tpi, tubeless ready |
|
Front Hub |
Novatec 15 x 110 mm, 6-bolt, 36h |
|
Rear Hub
|
Novatec 12 x 148 mm, 6-bolt, 36h
|
|
Spoke |
14 Gauge Stainless |
|
Rim |
WTB HTZ Trail i35 27.5", TCS 2.0 |
| Weight |
60 lbs 15 oz for Medium |
*Specifications are subject to change without notice
