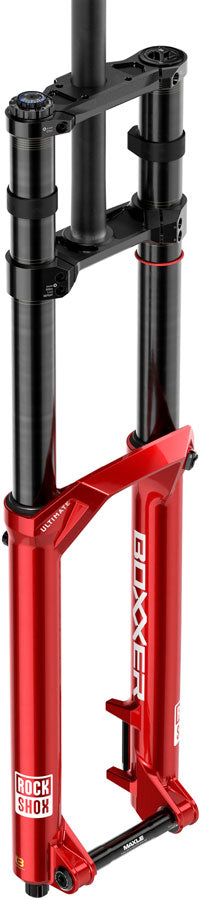

RockShox BoXXer Ultimate Charger 3.2 Suspension Fork - 29" 200mm LinearXL 20 x 110mm 48mm Offset Electric Red D2
RockShox

RockShox BoXXer Ultimate Charger 3.2 Suspension Fork - 29" 200mm LinearXL 20 x 110mm 48mm Offset Electric Red D2

$1,999.00
/
Shipping calculated at checkout.
  • No Tax
  • Low stock - 1 item left
  • Backordered, shipping soon

RockShox Manuals & Documents

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

RockShox BoXXer Ultimate Charger 3.2 Suspension Fork - 29" 200mm LinearXL 20 x 110mm 48mm Offset Electric Red D2

Born from racing BoXXer Ulitimate promises one thing above all—composure. By eliminating chaos before it reaches the rider every run delivers predictable speed traction and control. The all-new LinearXL air spring provides a coil-like ride—supple off the top supportive through the mid-stroke and backed by a jounce bottom-out bumper for confident end-stroke control—giving you unwavering consistency and predictability. Found only in our Ultimate forks ButterWagonTech ensures a constant supply of oil to the bushings reducing friction and maintaining smooth performance throughout the entire service interval. Intuitive HSC/LSC controls on the Charger 3.2 damper with ButterCups technology make setup fast understandable and easy to communicate. You’re so composed you don’t realize you’re going faster. But the clock says it all.

  • LinearXL air spring delivers a consistent and predictable ride feel backed by a jounce bottom-out bumper for end-stroke control
  • ButterWagonTech ensures a constant supply of oil to the bushings reducing friction and maintaining smooth performance throughout the entire service interval
  • Charger 3.2 damper with new Rebound/Compression tunes that match LinearXL air spring achieves virtually silent performance keeping riders focused on the trail
  • Control bezel with numbered Compression adjuster for intuitive adjustments—start at “0” and easily add or decrease damping
  • ButterCups technology block 20% of high-frequency “trail chatter” to reduce hand and arm fatigue while the Low-Grab SKF wiper seals deliver long-lasting fork performance and a smoother ride
  • Maxima 920 blended 15w reduces overall fork friction
  • Bolt-on fender compatibility with front and rear coverage (BoXXer Bolt-On Fender sold separately)
Specifications
  • Steerer Type Straight
    Lockout Switch Crown
    Brake Type Post Mount 200
    Negative Spring Air
    Travel (mm) 200
    Offset 48
    Axle to Crown Length 605
    Front Axle 20mm Thru x 110mm
    Maximum Tire Width 81
    S.H.I.S. Stem Clamp Diameter 28.6
    Color Electric Red
    Crown Race 30
    Wheel Size 29"
    External Adjustments Rebound Damping
    Defined Color Red
    Positive Spring Air
    Stanchion Diameter 38
    Steerer Tube Length (mm) 268

Technology

Discover the latest Technology

ButterCups

Low amplitude, vibration reducing material pucks... but we like to call them ButterCups. ButterCups block 20% of unwanted "trail chatter" before it reaches your hands. The gold housings on the end of the damper and air spring hold two rubber pucks that absorb the high frequency vibrations before they travel through the fork and into the handlebar. ButterCups reduce overall hand and arm fatigue and will leave you feeling fresh with more control over the trail.

DebonAir+

DebonAir+ is built to strike the perfect balance of what riders really want: butter- like small bump feel, increased support throughout the travel, and higher overall ride height for more confidence when things get steep.

Torque Caps

Torque Caps make the bond between hub and fork dropout stronger, with an increased surface area connecting the two. This creates a stronger, stiffer interface, giving you a more responsive front wheel and more control. So you concentrate on the most important connection, the one between your bike and the trail.

BOOST

BOOST is the standard wheel and drivetrain specification that opens the opportunity for improved frame geometry with shorter chain stays, wider and stiffer suspension pivots, wider range of chaining options, as well as more clearance for bigger tires and wider, stiffer wheels.

Maxima Plush Fluid

Developed with the world's fastest racers, on the world's toughest circuits. Maxima Plush Fluid is designed to protect from suspension wear, reduce friction, and silence damper noise while maintaining a consistent feel in all temperatures.

Charger 3

Scrap everything and start from scratch.It took a fresh set of eyes to produce what became the Charger 3 damper. Let'ssee what we can do, where we can go. Theresult gives way to a new era of riding,where the decision between adding moredamping and sacrificing your hands to aharsh ride doesn't exist.

Maxima Plush Dynamic Suspension Lube

Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance ride after ride.

Bottomless Tokens

Bottomless Tokens allow you to easily custom tune your air-spring performance to best match your riding style and suspension preference. Adding the easy- to-install Bottomless Tokens changes the air-spring curve to resist bottom-out after a big hit, giving aggressive riders the power to attack the trail harder. Removing Bottomless Tokens makes the air-spring curve more linear, enhancing suspension feel for certain types of terrain or trail condition and ensuring riders who are less front-end aggressive benefit from 100% of their fork's travel.

SKF Seals

Everyone loves a good collaboration, which is why we've been working with SKF, the world's highest-performance seal manufacturer, for over 5 years. Together we'll provide ultra-low friction wiper seals, less fatigue, and unmatched suspension feel, all while keeping the dirt where it belongs- because no one wants dirt in there.

ButterCups

Low amplitude, vibration reducing material pucks... but we like to call them ButterCups. ButterCups block 20% of unwanted "trail chatter" before it reaches your hands. The gold housings on the end of the damper and air spring hold two rubber pucks that absorb the high frequency vibrations before they travel through the fork and into the handlebar. ButterCups reduce overall hand and arm fatigue and will leave you feeling fresh with more control over the trail.
