| total length | 78.7 |
| handlebar height | 47 |
| handlebar length | 28 |
| wheelbase | 49.2 |
| wheel diameter | 28.7 |
| minimum seat height | 20.9 |
| maximum seat height | 31.4 |
| chain stay length | 19 |
| frame stack | 24.6 |
| frame reach | 17.8 |
| effective top tube length | 24.6 |
| head tube length | 5.5 |
| head angle | 65 |
| standover height | ST 22.4/SO 31.1 |

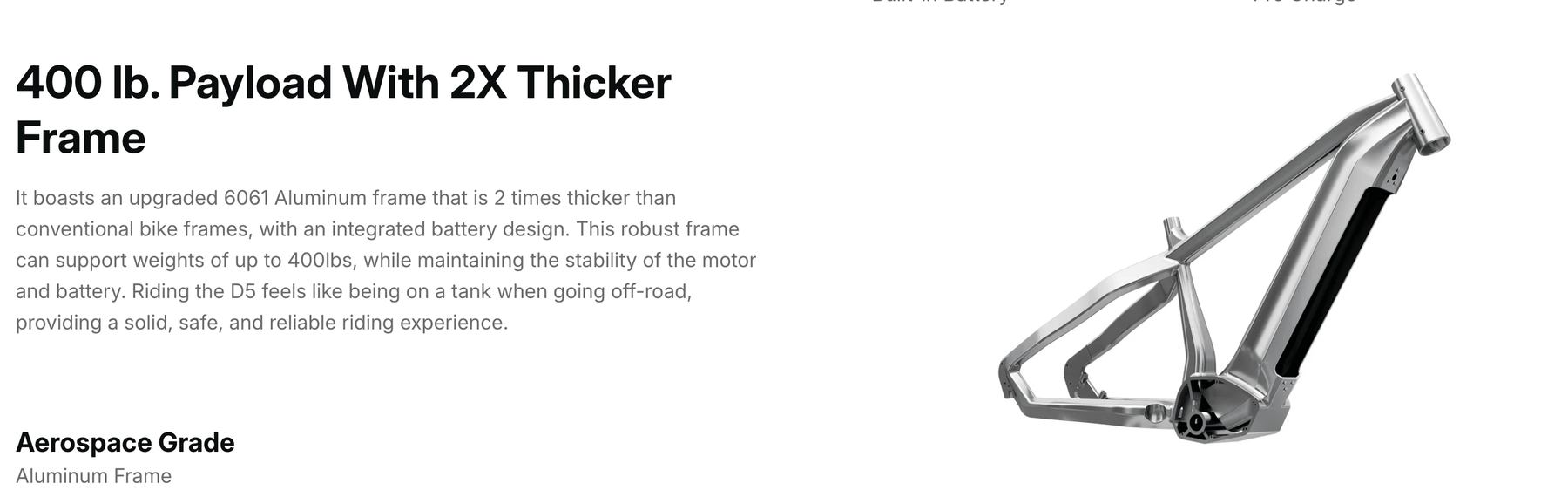

| Frame | 6061 Aluminum frame |
| Headset | Neco H156EM 28.6*44-56*30 |
| Fork | TRAMA 26""FAT34-26-HLO 95mm travel 9*135mm quick release |
| Front wheel | Rim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 255/256L stainless (304M) | Hub: MB015-92 M9*12G*135*145W |
| Rear wheel | Rim: MD-147 26*4.0""*36H*12G A/V Spoke: 12G 214L stainless (304M) Hub: 48v 750w Himiway hub motor |

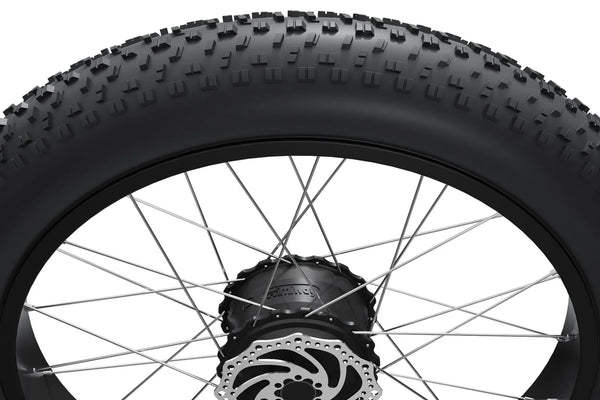

| Tires | Kenda 26*4.0 |

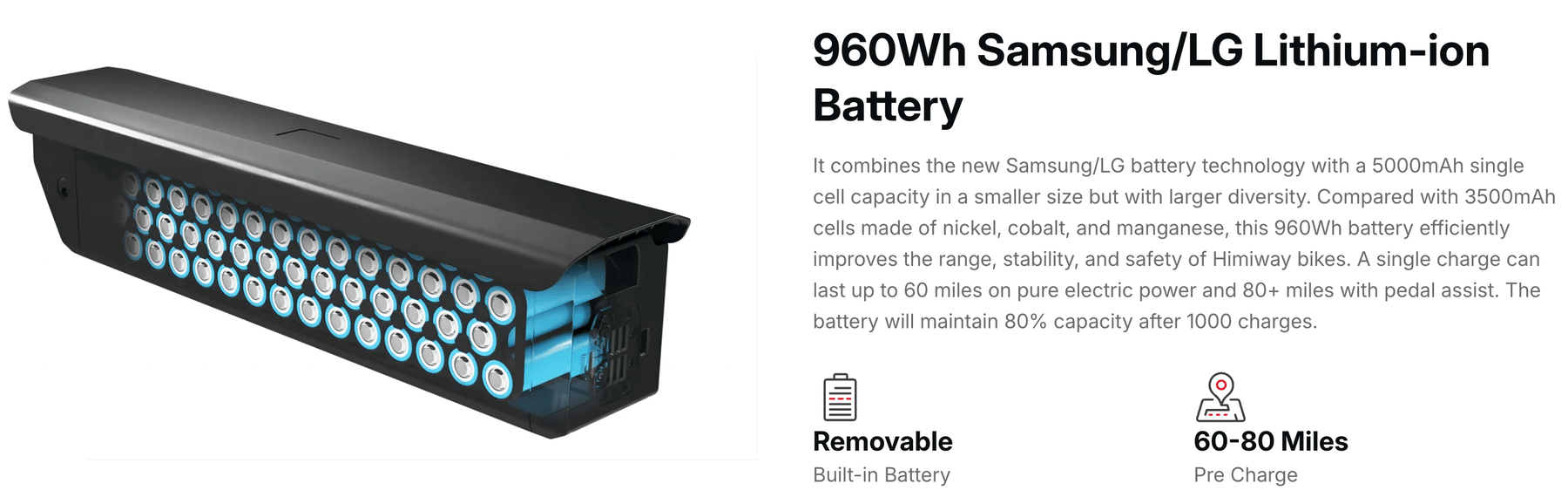

| Battery | Samsung/LG 48V 20Ah |

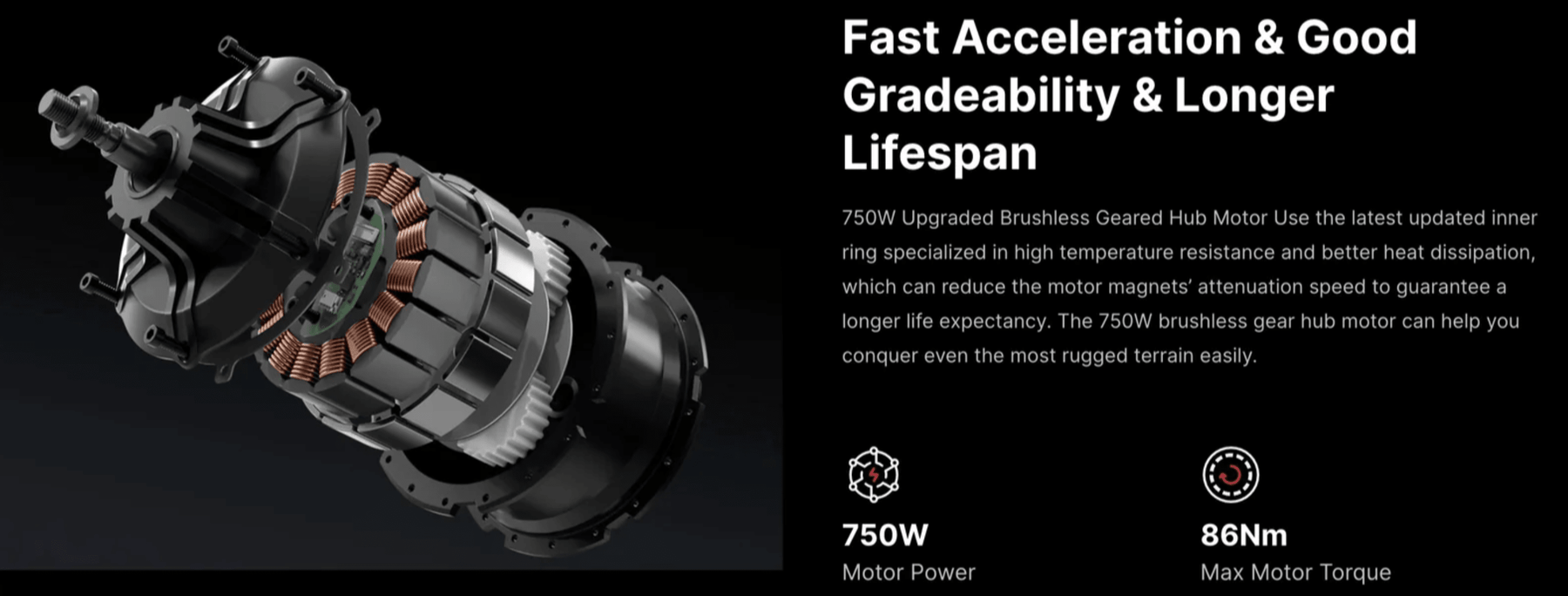

| Motor | 750W brushless gear motor |
| Display | LCD display with USB charger |

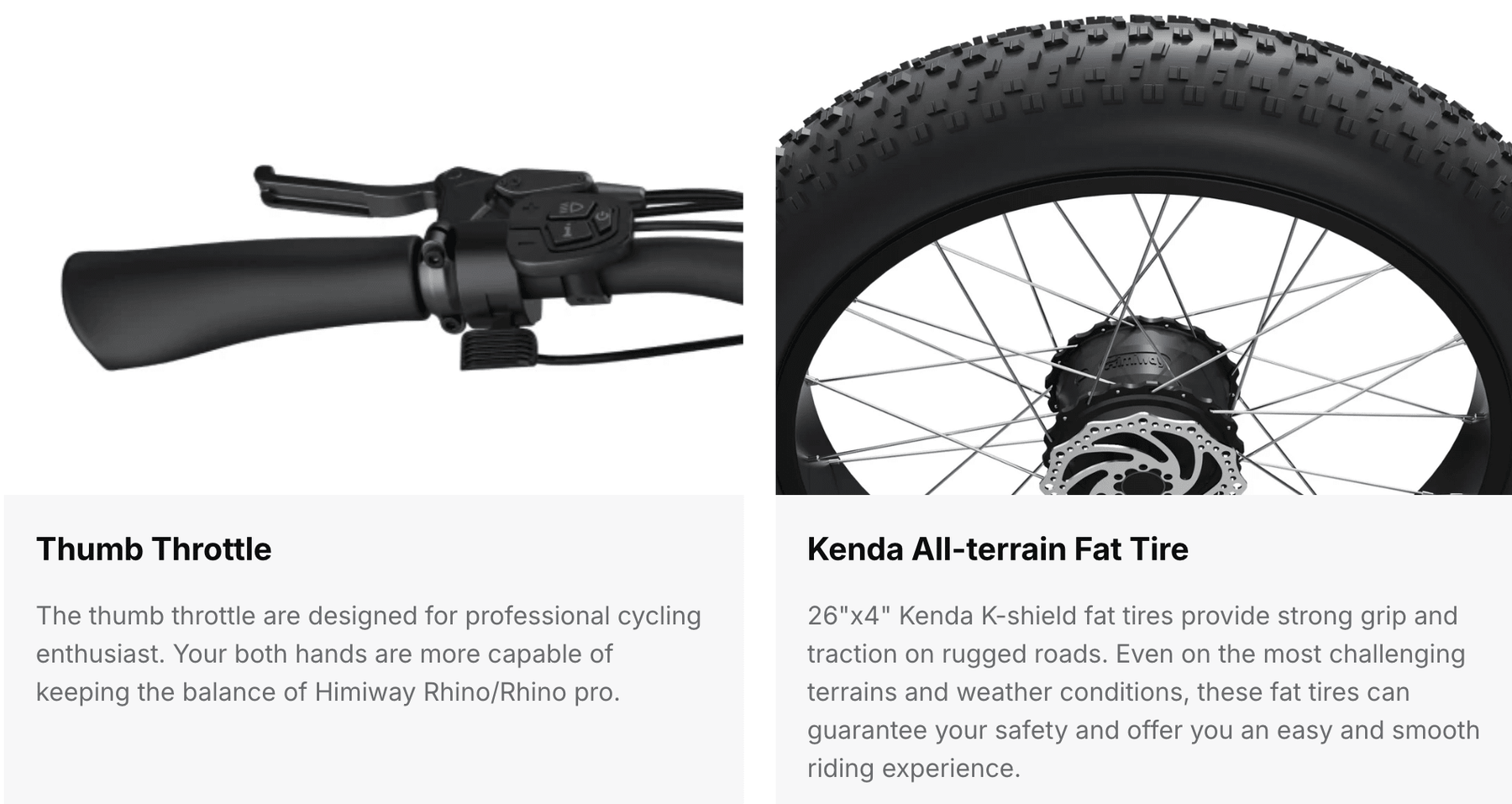

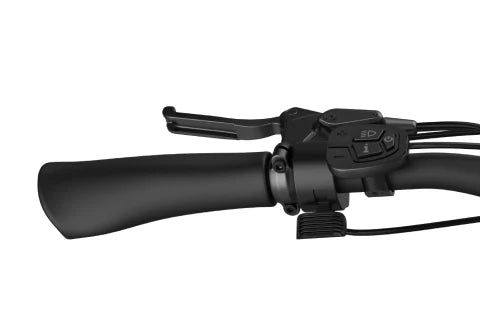

| Throttle | Thumb throttle |

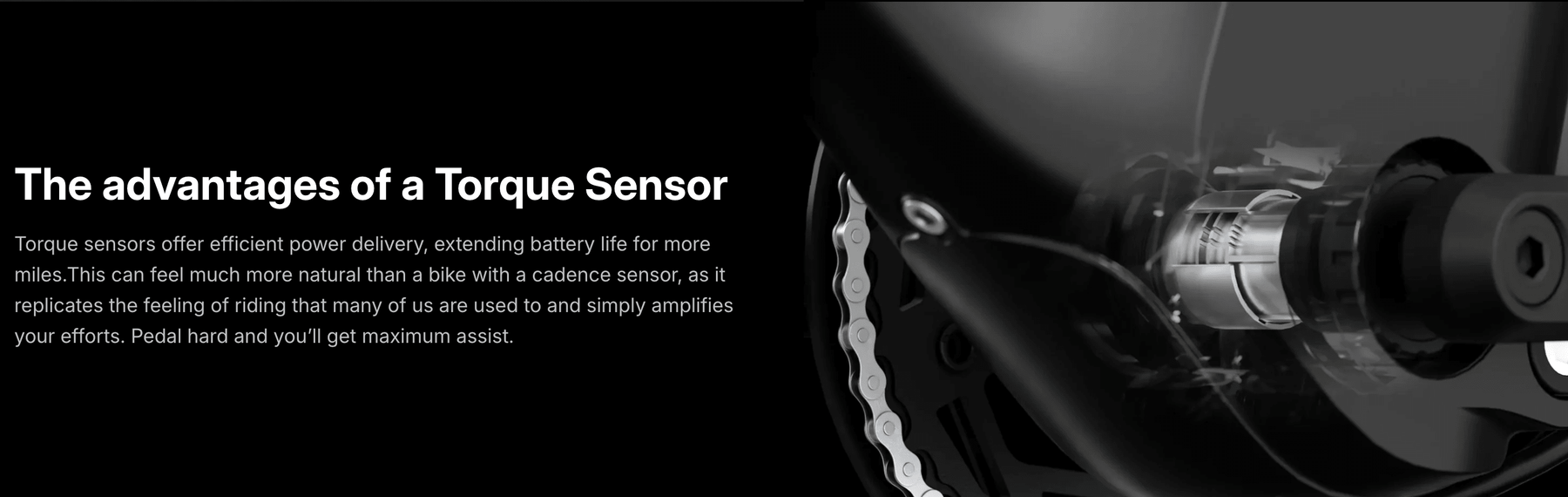

| Sensors | Torque sensor丨speed sensor丨brake sensor |
| Crankset | Crankarm: Prowheel EB-01-242A-S1 170mm | Chain ring: 44T BCD104 |
| Freewheel | Shimano MF-TZ500-7 14-28T |
| Chain | KMC Z8.3 EPT 120L |
| Groupset | Shimano altus M310 7 speed |

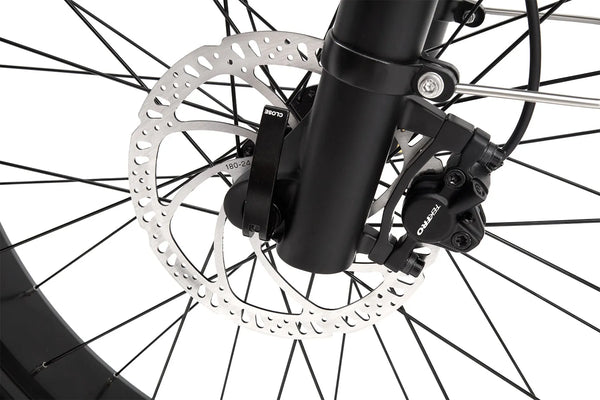

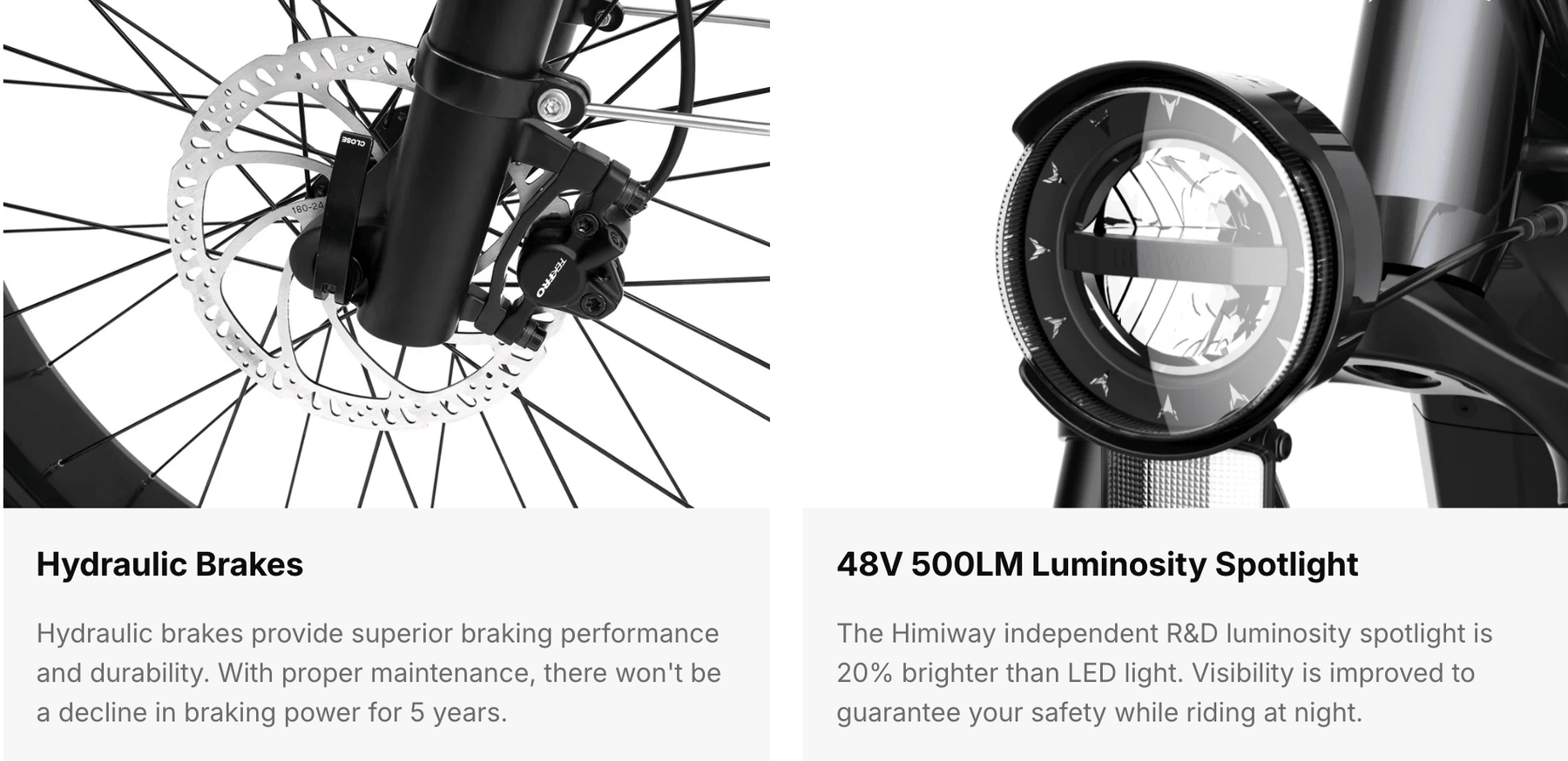

| Front brake | Tektro HD-E3520 hydraulic brake |
| Rear brake | Tektro HD-E3520 hydraulic brake |
| Rotors | Tektro TR180-52 F:180mm R:180mm |
| Stem | Zoom TDS-C269-8FOV 31.8*90mm |
| Handlebar | Promax HB-3188 22.2*31.8*700mm |
|
Seatpost |
Himiway Seatpost |
| Saddle | Himiway Saddle |
| Pedal | Aluminum pedal |

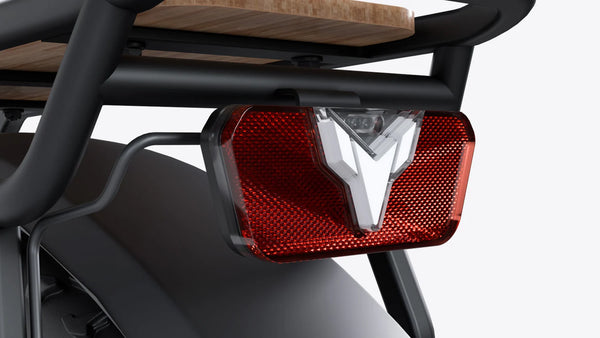

| Lights | 48V LED light |
| Kickstand | Heavy-duty aluminum kickstand |
| Range | 60-80 miles |
| Controller | 48V/ 22A |
| Charger | US standard 3.0 A Smart charger |
| Rider height | 5'3" ~ 6'5" |
| Weight | 79 lb. (with battery) |
| Max. payload capacity | 400 lb. |
