Name: Himiway| Zebra D5-750W Hub Motor, Long Range Fat Tire E-Bike-ST
Brand: Himiway
SKU: Zebra D5-ST-W
Price: 1699.0 USD
Availability: InStock

Himiway| Zebra D5-750W Hub Motor, Long Range Fat Tire E-Bike-ST

$2,299.00 $1,699.00 Save $600.00

Tax included. Shipping calculated at checkout.

Color

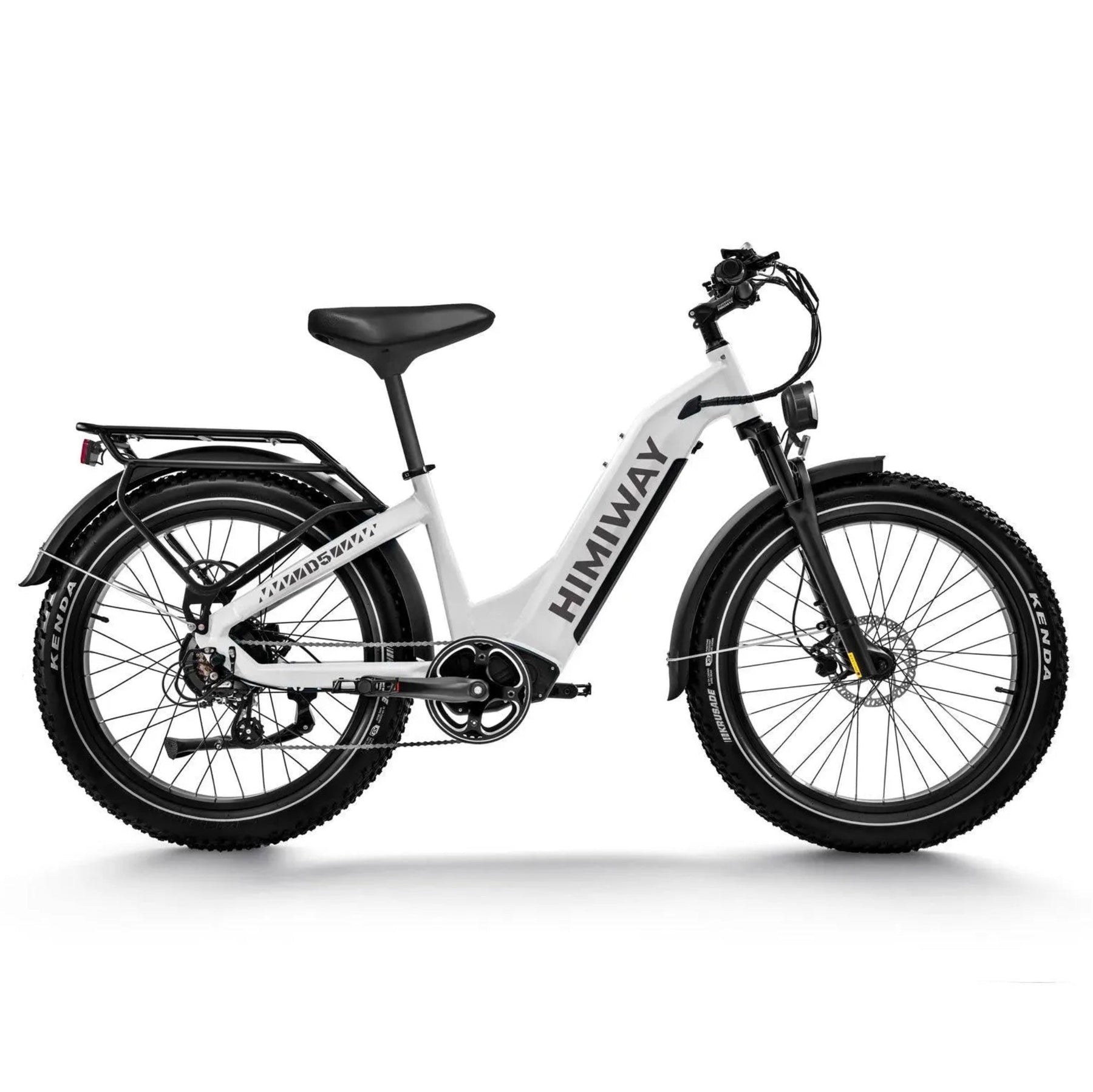

White

Space Grey

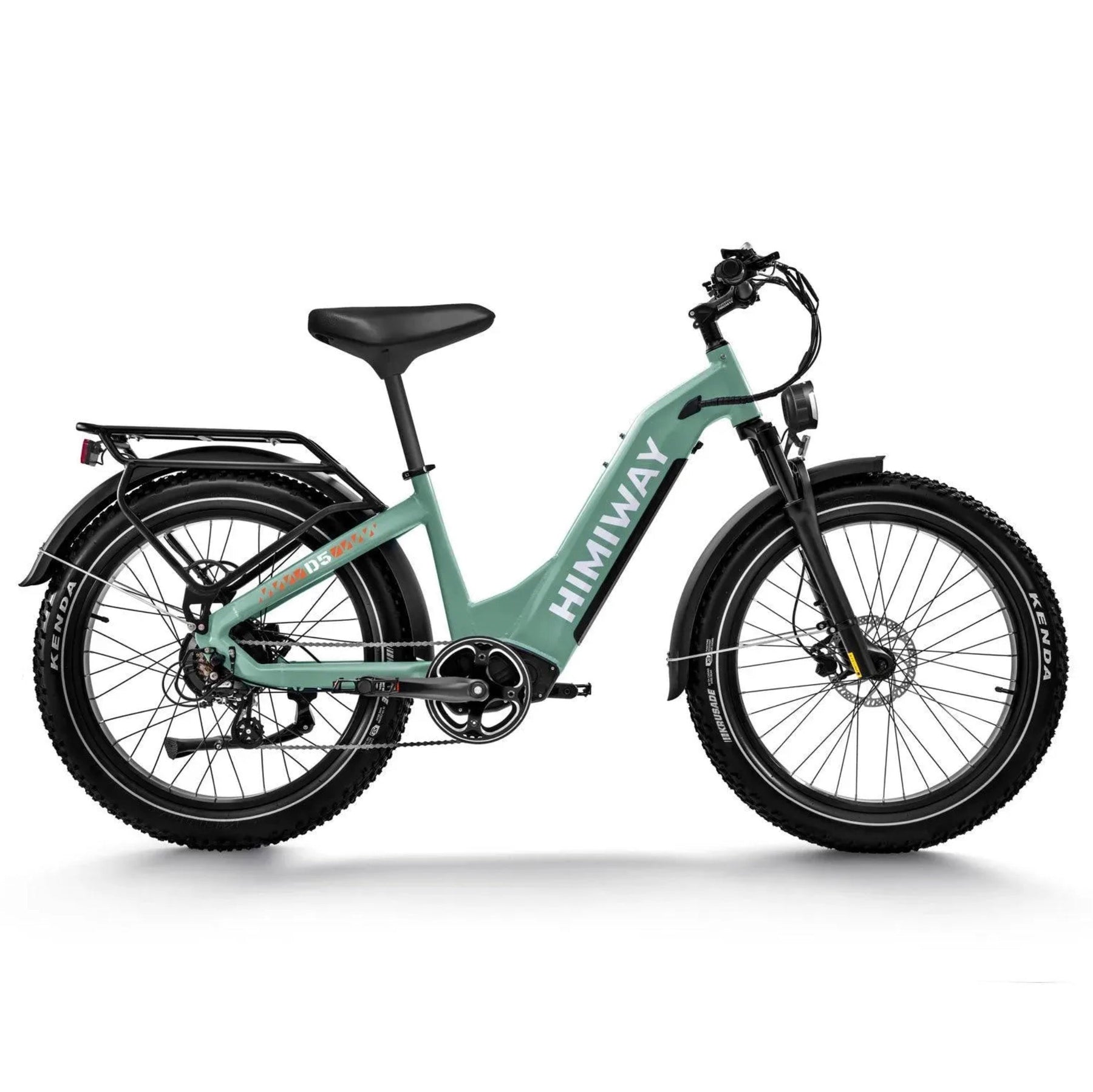

Green

No Tax

Free Shipping

In stock, ready to ship
Backordered, shipping soon

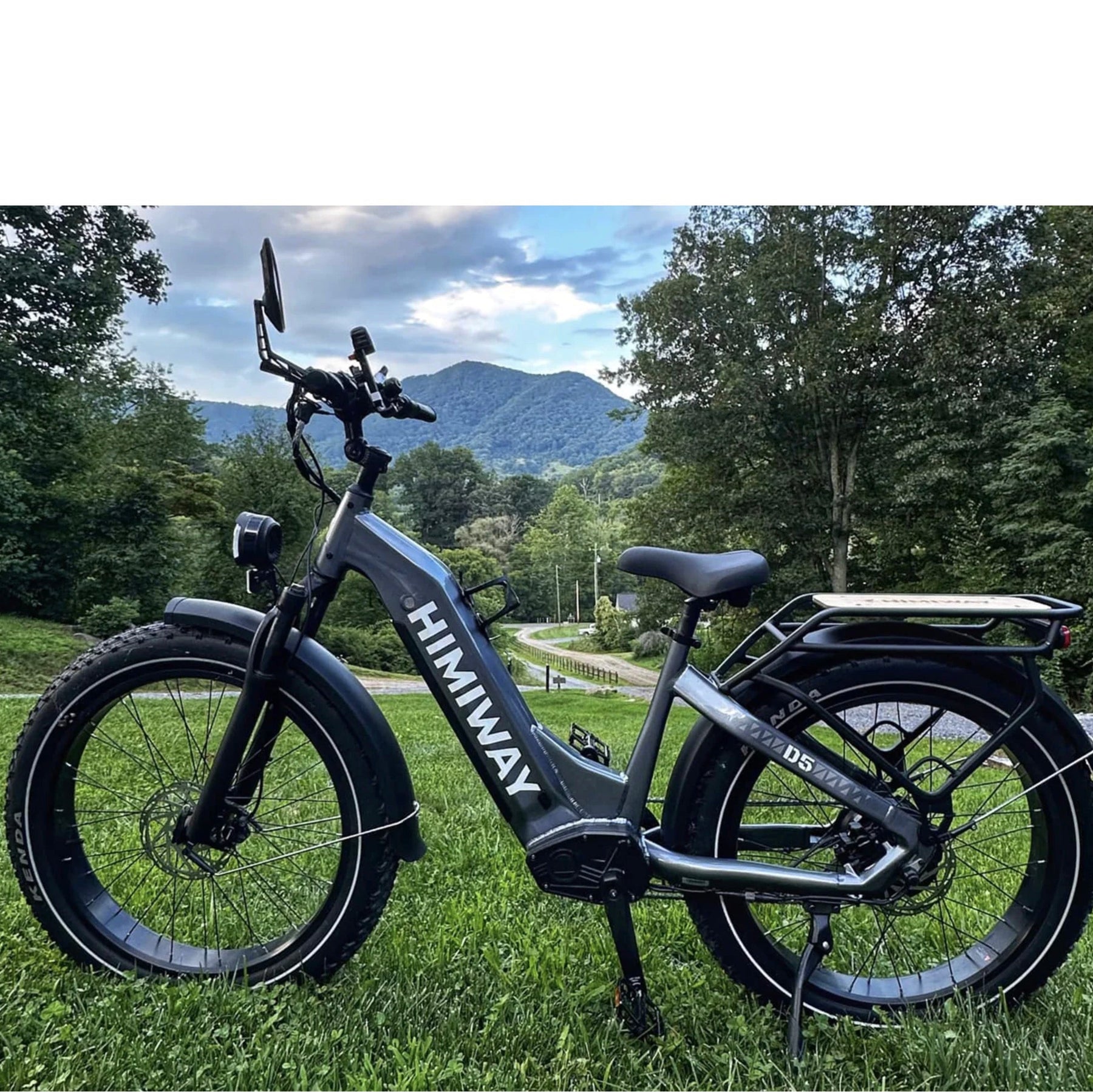

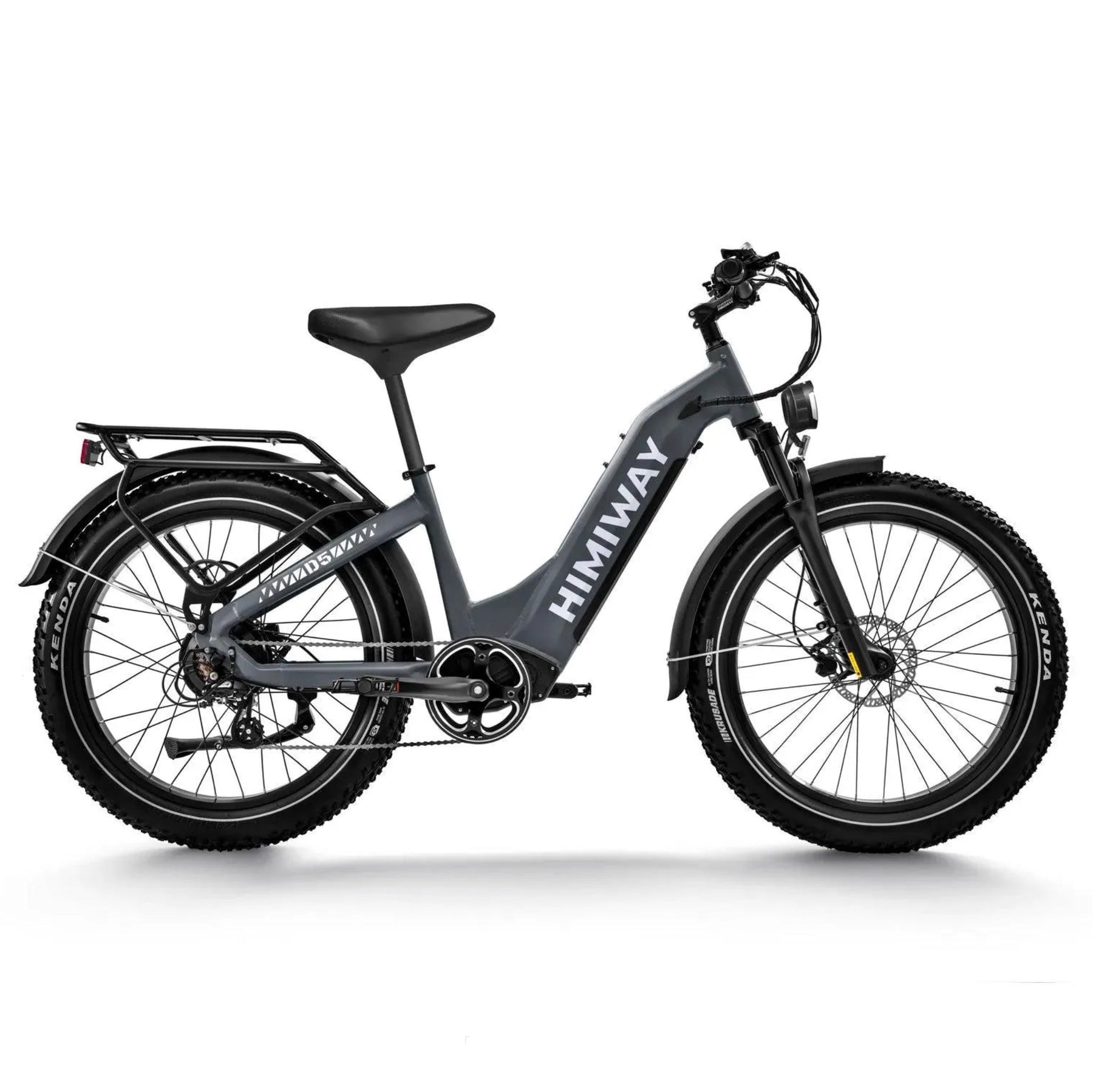

Himiway| Zebra D5-750W Hub Motor, Long Range Fat Tire E-Bike-Step-Thru

Dominate Every Trail with the D5 Electric Fat Tire Mountain Bike

750W Fat ebike Engineered for Mountain Warriors

🏆 "Best Value Mountain ebike 2025" - OutdoorGear Lab

🚚 Free Shipping | 🔧 2-Year Warranty | 🔄 15-Day Returns

Why Mountain Riders Choose D5

⛰️ Conquer Technical Terrain

4.0" Kenda fat tires + 95mm suspension eat rocks for breakfast

🔋 80-Mile Range

48V Samsung battery lasts 3X longer than standard mountain ebikes

Built for Fat ebike Adventures

Winter Warrior Ready

Our 26×4.0" electric fat bike dominates:

❄️ Snow-packed forest trails
🏖️ Deep sand beaches
🌧️ Muddy mountain passes

"D5 handles snow better than my 4X4 truck!" - Mike, Colorado Rider

"Age has been slowing me down but with this HIMI-ebike I'm back in the game" - Over 40 Rider

Mountain ebike Technology

Pro-Grade Components

Shimano Altus 7-Speed: Perfect gear range for 15%+ climbs
Tektro Hydraulic Brakes: 180mm rotors stop on dime
Torque Sensor: Instant 85Nm power when you need it

Your Mountain Awaits

Ready to Ride?

🚴♂️ 10000+ Riders Configured

5'3" to 6'5" Rider Friendly

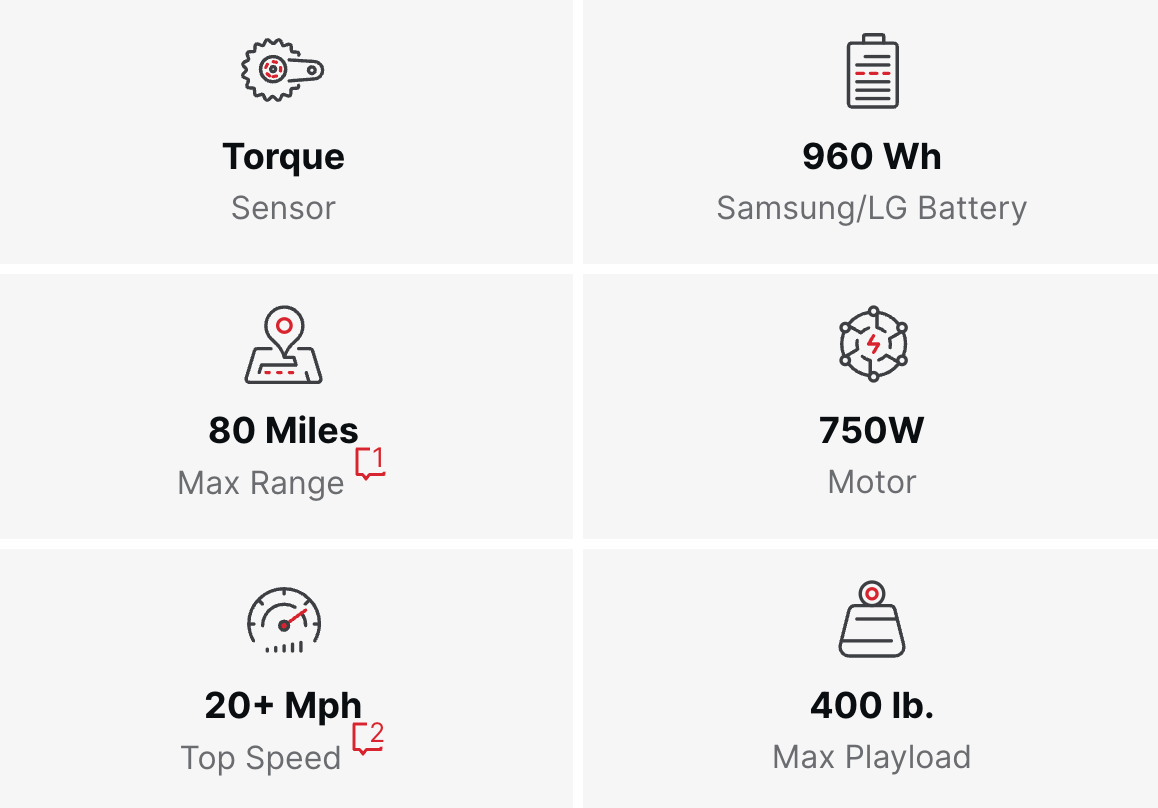

Specs

Geometry

Recommended Height: 5'3" ~ 6'5"

total length	78.7
handlebar height	47
handlebar length	28
wheelbase	49.2
wheel diameter	28.7
minimum seat height	20.9
maximum seat height	31.4
chain stay length	19
frame stack	24.6
frame reach	17.8
effective top tube length	24.6
head tube length	5.5
head angle	65
standover height	ST 22.4/SO 31.1

Frame	6061 Aluminum frame
Headset	Neco H156EM 28.644-5630
Fork	TRAMA 26""FAT34-26-HLO 95mm travel 9*135mm quick release
Front wheel	Rim: MD-147 264.0"36H12G A/V \| Spoke: 12G 255/256L stainless (304M) \| Hub: MB015-92 M912G135145W
Rear wheel	Rim: MD-147 264.0""36H*12G A/V Spoke: 12G 214L stainless (304M) Hub: 48v 750w Himiway hub motor
Tires	Kenda 26*4.0
Battery	Samsung/LG 48V 20Ah

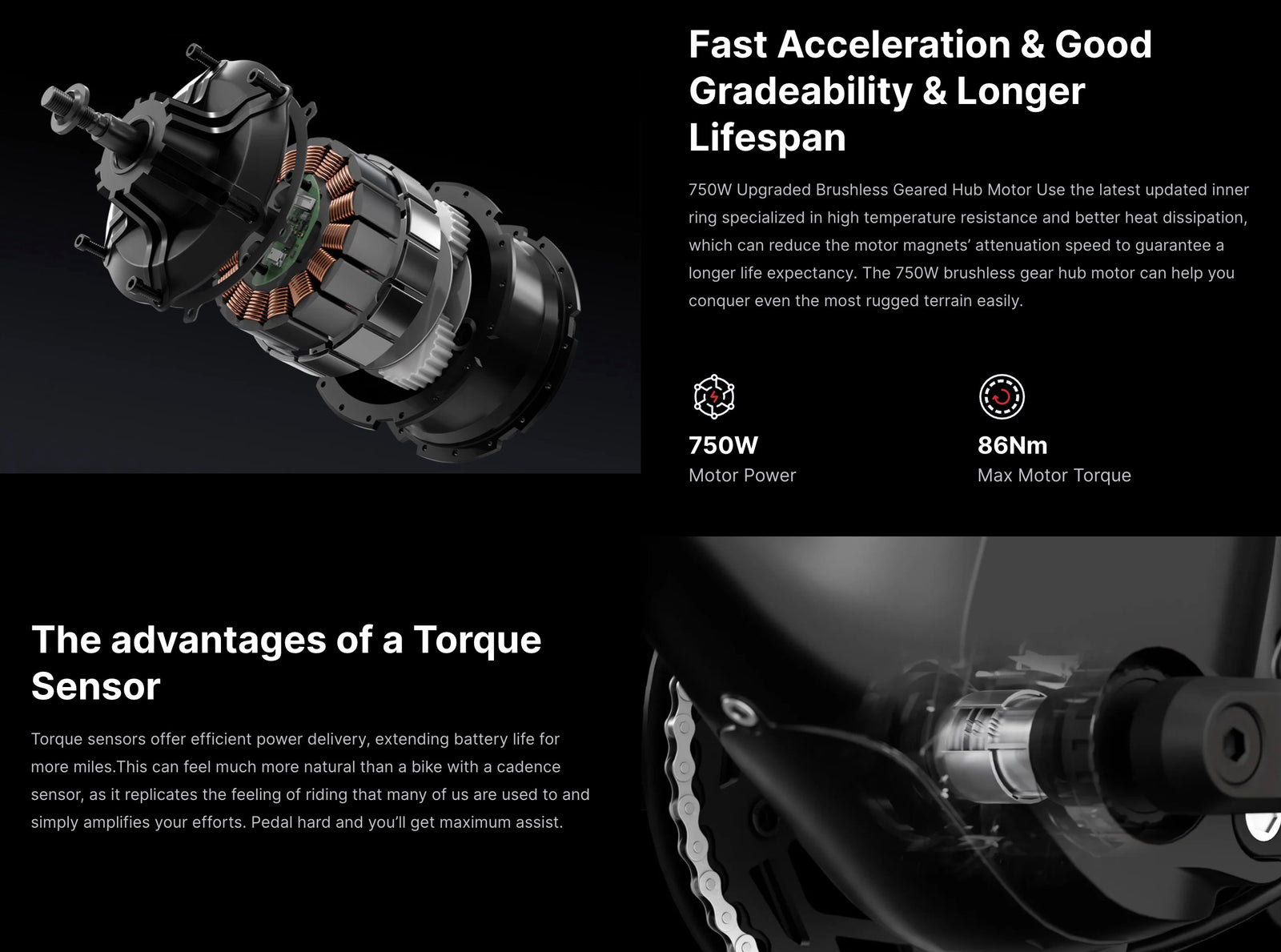

Motor	750W brushless gear motor
Display	LCD display with USB charger
Throttle	Thumb throttle
Sensors	Torque sensor丨speed sensor丨brake sensor
Crankset	Crankarm: Prowheel EB-01-242A-S1 170mm \| Chain ring: 44T BCD104
Freewheel	Shimano MF-TZ500-7 14-28T
Chain	KMC Z8.3 EPT 120L
Groupset	Shimano altus M310 7 speed
Front brake	Tektro HD-E3520 hydraulic brake
Rear brake	Tektro HD-E3520 hydraulic brake
Rotors	Tektro TR180-52 F:180mm R:180mm

Components

Stem	Zoom TDS-C269-8FOV 31.8*90mm
Handlebar	Promax HB-3188 22.231.8700mm
Seatpost	Himiway Seatpost
Saddle	Himiway Saddle
Pedal	Aluminum pedal
Lights	48V LED light
Kickstand	Heavy-duty aluminum kickstand

Others

Range	60-80 miles
Controller	48V/ 22A
Charger	US standard 3.0 A Smart charger
Rider height	5'3" ~ 6'5"
Weight	79 lb. (with battery)
Max. payload capacity	400 lb.

Recommended Height

What is included

[{"id":47189323415722,"title":"White","option1":"White","option2":null,"option3":null,"sku":"Zebra D5-ST-W","requires_shipping":true,"taxable":false,"featured_image":{"id":41019722629290,"product_id":8184345395370,"position":1,"created_at":"2025-07-08T22:52:22-07:00","updated_at":"2025-07-08T22:55:53-07:00","alt":null,"width":2510,"height":2508,"src":"\/\/ebikehaul.com\/cdn\/shop\/files\/Screenshot2025-07-08at10.52.18PM.jpg?v=1752040553","variant_ids":[47189323415722]},"available":true,"name":"Himiway| Zebra D5-750W Hub Motor, Long Range Fat Tire E-Bike-ST - White","public_title":"White","options":["White"],"price":169900,"weight":0,"compare_at_price":229900,"inventory_management":null,"barcode":"","featured_media":{"alt":null,"id":32644702666922,"position":1,"preview_image":{"aspect_ratio":1.001,"height":2508,"width":2510,"src":"\/\/ebikehaul.com\/cdn\/shop\/files\/Screenshot2025-07-08at10.52.18PM.jpg?v=1752040553"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47189323448490,"title":"Space Grey","option1":"Space Grey","option2":null,"option3":null,"sku":"Zebra D5-ST-Grey","requires_shipping":true,"taxable":false,"featured_image":{"id":41019724431530,"product_id":8184345395370,"position":3,"created_at":"2025-07-08T22:52:47-07:00","updated_at":"2025-07-08T22:57:06-07:00","alt":null,"width":2510,"height":2508,"src":"\/\/ebikehaul.com\/cdn\/shop\/files\/Screenshot2025-07-08at10.52.43PM.jpg?v=1752040626","variant_ids":[47189323448490]},"available":true,"name":"Himiway| Zebra D5-750W Hub Motor, Long Range Fat Tire E-Bike-ST - Space Grey","public_title":"Space Grey","options":["Space Grey"],"price":169900,"weight":0,"compare_at_price":229900,"inventory_management":null,"barcode":"","featured_media":{"alt":null,"id":32644704043178,"position":3,"preview_image":{"aspect_ratio":1.001,"height":2508,"width":2510,"src":"\/\/ebikehaul.com\/cdn\/shop\/files\/Screenshot2025-07-08at10.52.43PM.jpg?v=1752040626"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47189323481258,"title":"Green","option1":"Green","option2":null,"option3":null,"sku":"Zebra D5-ST-GR","requires_shipping":true,"taxable":false,"featured_image":{"id":41019724038314,"product_id":8184345395370,"position":2,"created_at":"2025-07-08T22:52:40-07:00","updated_at":"2025-07-08T22:56:16-07:00","alt":null,"width":2510,"height":2508,"src":"\/\/ebikehaul.com\/cdn\/shop\/files\/Screenshot2025-07-08at10.52.36PM.jpg?v=1752040576","variant_ids":[47189323481258]},"available":true,"name":"Himiway| Zebra D5-750W Hub Motor, Long Range Fat Tire E-Bike-ST - Green","public_title":"Green","options":["Green"],"price":169900,"weight":0,"compare_at_price":229900,"inventory_management":null,"barcode":"","featured_media":{"alt":null,"id":32644703649962,"position":2,"preview_image":{"aspect_ratio":1.001,"height":2508,"width":2510,"src":"\/\/ebikehaul.com\/cdn\/shop\/files\/Screenshot2025-07-08at10.52.36PM.jpg?v=1752040576"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

960Wh Samsung/LG Lithium-ion Battery

It combines the new Samsung/LG battery technology with a 5000mAh single cell capacity in a smaller size but with larger diversity. Compared with 3500mAh cells made of nickel, cobalt, and manganese, this 960Wh battery efficiently improves the range, stability, and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and 80+ miles with pedal assist. The battery will maintain 80% capacity after 1000 charges.

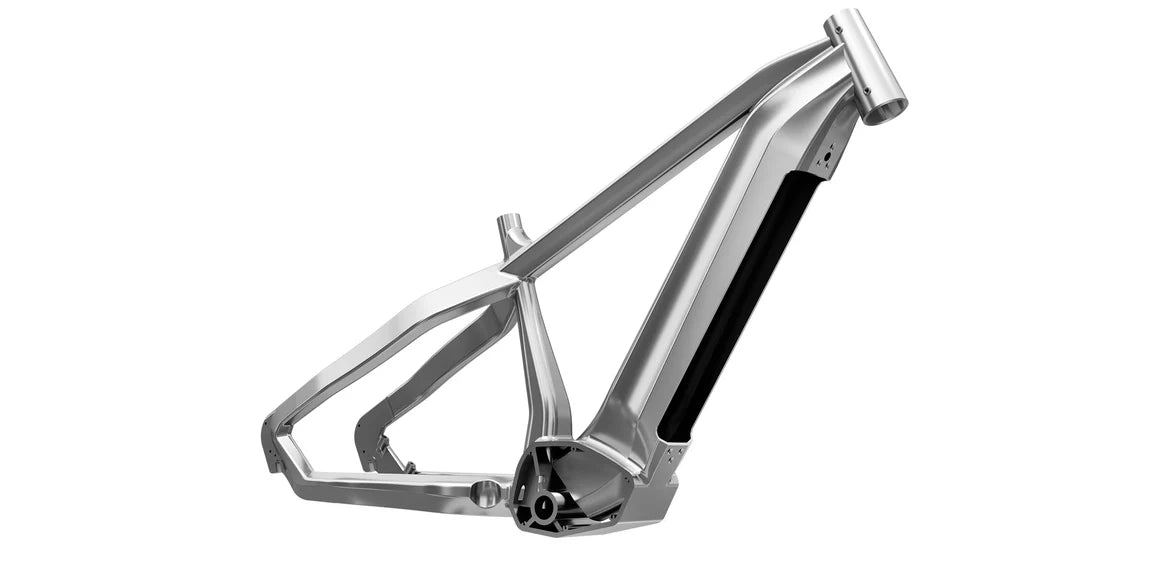

400 lb. Payload With 2X Thicker Frame

It boasts an upgraded 6061 Aluminum frame that is 2 times thicker than conventional bike frames, with an integrated battery design. This robust frame can support weights of up to 400lbs, while maintaining the stability of the motor and battery. Riding the D5 feels like being on a tank when going off-road, providing a solid, safe, and reliable riding experience.

Aerospace Grade Aluminum Frame

Back to Himiway

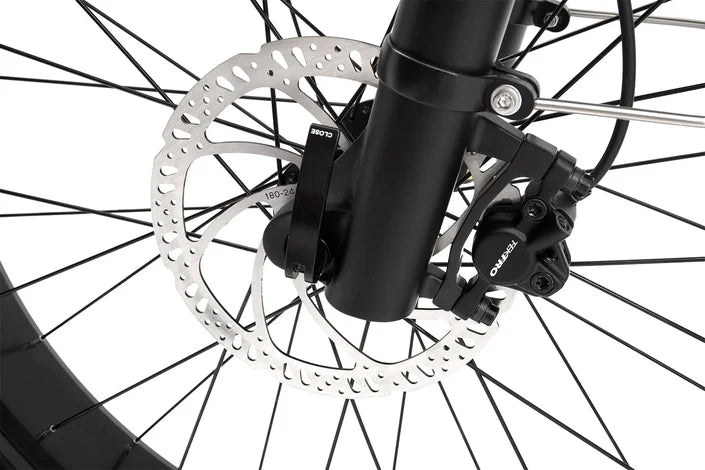

Hydraulic Brakes

Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking power for 5 years.

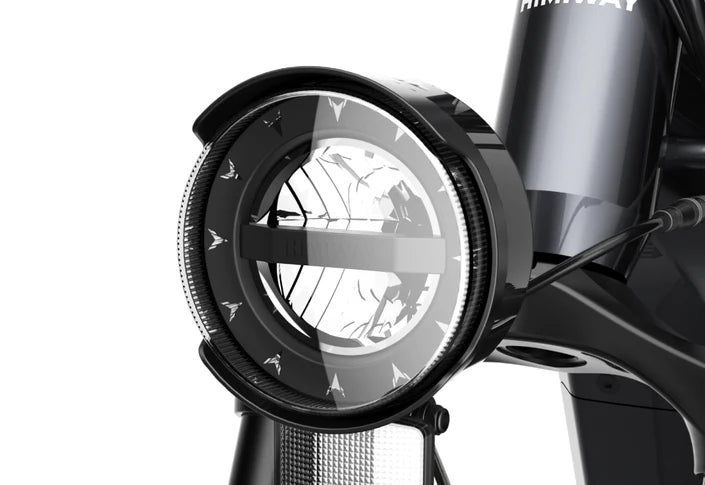

48V 500LM Luminosity Spotlight

The Himiway independent R&D luminosity spotlight is 20% brighter than LED light.

Visibility is improved to guarantee your safety while riding at night.

.

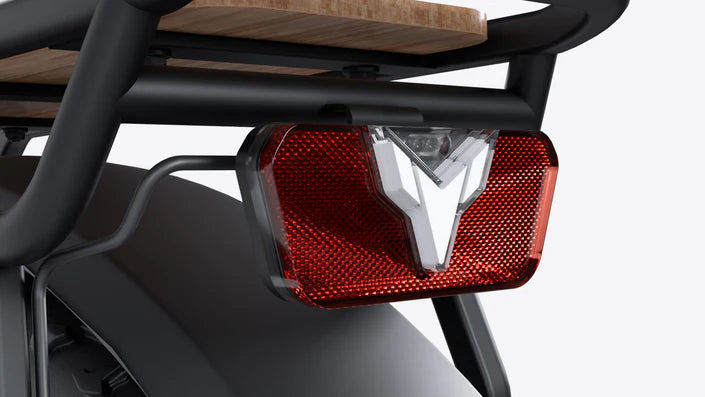

Customized Integrated Brake Light

The automatic brake light with Himiway logo will be activated whenever you use the brake, which can prevent rear-end collisions while riding at night.

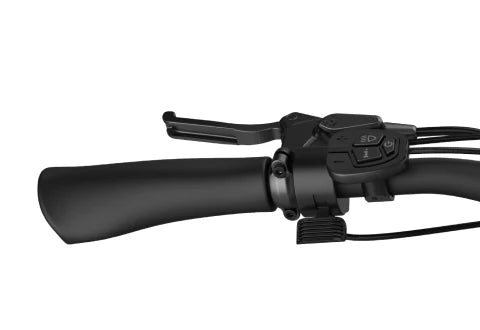

Thumb Throttle

The thumb throttle are designed for professional cycling enthusiast. Your both hands are more capable of keeping the balance of Himiway Rhino/Rhino pro.

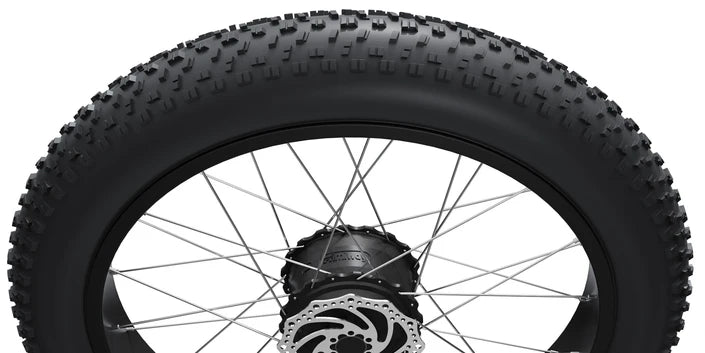

Kenda All-terrain Fat Tire

26"x4" Kenda K-shield fat tires provide strong grip and traction on rugged roads.

Even on the most challenging terrains and weather conditions, these fat tires can guarantee your safety and offer you an easy and smooth riding experience.
