G-FORCE| ZM 750W Fat Tire Moped-Style Electric Bike

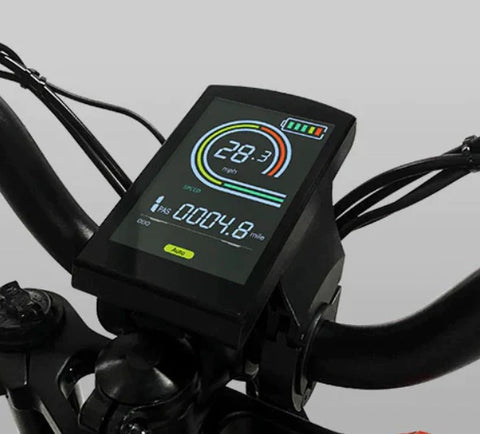

Full Color LCD Display
The G-FORCE ZM comes with a brand-new color LCD display through which you are able to track the current speed, motor power, PAS level, odometer, trip odometer, and much more. Have your phone charged up directly through a USB port on the display to fit your various needs while on the move. The color LCD screens, compared to those black-and-white ones, have a higher resolution and better sunlight readability, which enables you to read precisely in direct sunlight - that’s why we use them on our high-end models.
48V 20Ah/13.5Ah Samsung Lithium-Ion Battery
The ZM model is fitted with the best of all Samsung’s new battery models, offering you two options based upon the battery capacity - the 48V 20 Ah and the 48V 13.5Ah. The introduction of such technology and capacity to the battery pack extends not only the range of your ebike on a single charge but also the service life. The battery of 20Ah allows you to travel around 60-80 miles on a single charge, while the battery of 13.5 Ah has a range of 35-50 miles. Meanwhile, if required, you can recharge any of your electric devices through the USB port on the LCD display.
960 WH: Per Charge| 60-80 Miles: Long Range Battery

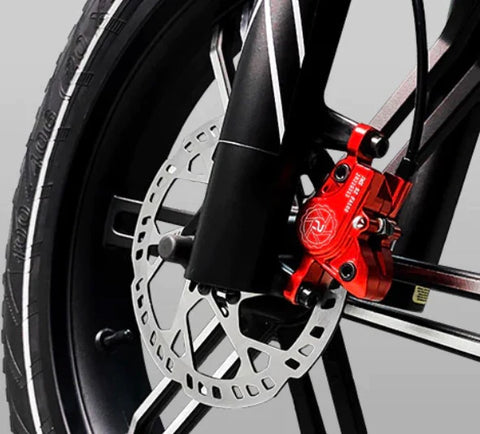

Hydraulic Disc Brakes
To match up with the ZM -one of the most powerful electric bicycles, we’ve used a dual hydraulic braking system, which allows the front and rear disc hydraulic brake to actuate and work together seamlessly, providing great braking power. Beyond that, we integrate the motor cutoff capability into the brakes for extra safety.
160mm: Brake Disc| Anti-Skid Tires: Excellent Braking Power

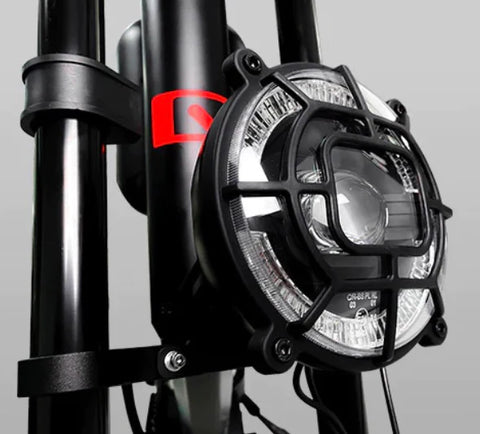

Super Bright LED Headlight and Taillight
When riding in low-visibility conditions at night, you can also turn on the integrated LED headlight to further illuminate the road. Along with the taillights, the ZM assures you of a safer riding experience.
145mm: Headlight Diameter| Safe Travel With G-FORCE ZM

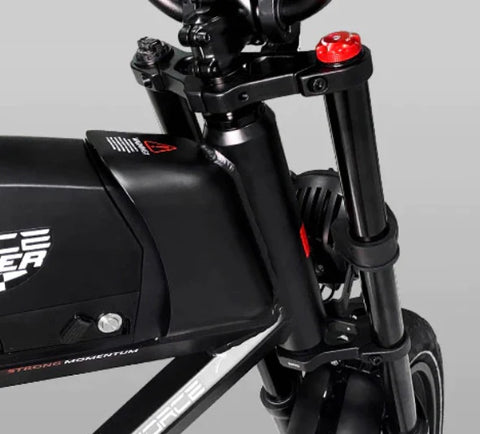

Adjustable Front Suspension
The adjustable front fork suspension on the ZM adopts high-strength aluminum alloy casting and offers a long travel of 110mm.
Rear Suspension
The adjustable front fork suspension together with the rear suspension system to give you the smoothest, supported riding experience like no other..
USB Charging Port
We designed one USB charging port on the display. You can charge your phone that is low on power during the ride, and you can also charge your other devices, such as your camera when you take a break.
2.0A: USB Charger Port| Enjoy Riding With G-FORCE ZM
Tech Specs
-
Battery 48V 20Ah Samsung battery
-

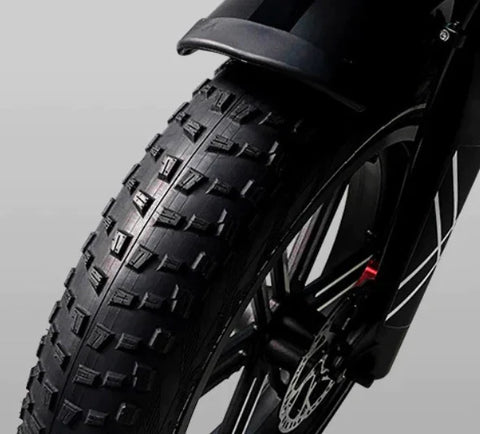

Tires 20" x 4.0"
-
Range 60~80 Miles
-
KD or Not Ebike is 85% pre-assembled
-

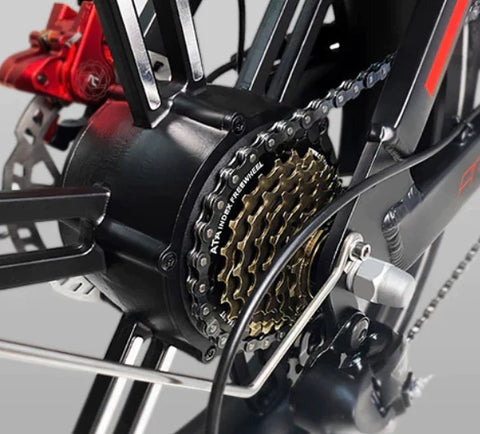

Hub Motor 750W brushless gear motor
-

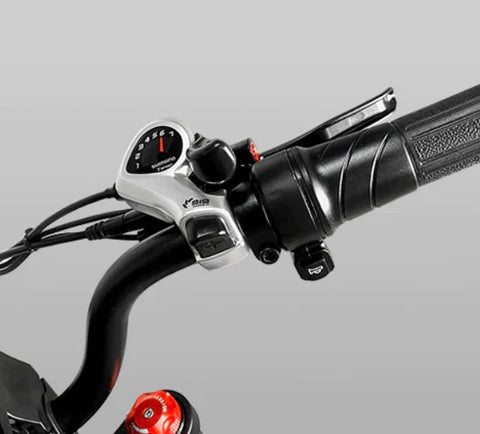

Throttle Half twist throttle
-
Total Payload Capacity 400 lbs
-
Front Light 48V LED light
-
Recommended Rider Heights 5'3" ~ 6'5"
-
Frame 6061 aluminum
-
20Ah Version Charger 3 AMP fast charger
-
Kickstand Heavy duty aluminum
-
13.5Ah Version Charger 2 AMP charger
-
Chain KMC chain
-
Display LCD Display with USB charging
-
Pedal Alloy pedal with reflectors
-
Shifter 7-speed Shifter
-
Rear Light Integrated Taillight
-
Weight 85 pounds
-
Wheels Alloy wheels
-
Recommended Tire Pressure 20 to 28 PSI
-
Brake 160mm hydraulic brakes
Geometry

B -- Handlebar Height44"
C -- Seat Height35"
D -- Wheelbase48"
E -- Chain Stay Length19.7"
F -- Wheel Diameter23"
G -- Distance from the seat to the handlebar24"
H -- The length of the seat22"
I -- Length of the Handlebar26"
What's in the Box
Your ZM * 1
Charger * 1
Full Fenders * 1
Rear Rack * 1
Assembly Tool * 1
Headlight * 1
Brand Brochure * 1
Pedals * 1
E-Bike Keys * 1
Distance Range
* All tests were performed with flat ground, pAS range and speed tested as a Class3 eBikes. there were few starts and stops and total payload was about 180lbs.
KEY FEATURES
FAQs
Your bike will arrive mostly assembled. We'll also provide the tools and a comprehensive assembly video for the rest part.
Yes, totally. An electric bike offers the same benefits of conventional bikes - mobility and a healthy lifestyle. But the power to go faster and further come as significant benefits! E-bikes make cycling more accessible in challenging conditions like uphill riding, front wind, and others. Check out the reasons to join the e-bike community. Read
Owning an electric bike is legal in the United States. Federal regulations limit an electric motor power to 750W. The speed limit is 20 mph on flat terrain by using the throttle mode solely. Bear in mind that these regulations apply to public roads and trails only. You can ride an e-bike that doesn’t conform to federal regulations on private property only. Hit the link to find out more
The two main disadvantages are higher cost and heavier weight. In comparison to conventional bicycles, e-bikes tend to be more expensive due to electric parts and high-end software. Besides, electric bikes are heavier. The electric motor and the battery are the chief sources of extra weight. Heavier weight can be an inconvenience if you have to lift your e-bike onto a rack, for example.
Yes, an e-bike is faster. Most electric bikes allow you to select the level of assistance you prefer for your pedaling. So, you can always count on the power from the electric motor to reach a higher speed if it is necessary.
In the United States, classification of electric bikes varies by local state regulations. If the state classifies e-bikes as motorized vehicles, then licensing and registration are needed. Otherwise, you don’t need a license to ride an e-bike. To avoid any problem with the authorities, you should consult the corresponding state requirements to ride an electric bike.
The prices of electric bikes vary greatly. The price depends on the tech specs, quality of components, warranty, and other factors. Budget-level e-bikes cost between $500 and $1,000. However, if you are after a durable and functional e-bike, be ready to pay $1,000-$2,500 for a mid-level e-bike. Higher-end electric bikes can cost as much as $10,000. Check our ultimate buyer’s guide
The lifespan of an e-bike battery goes from two to five years. The main factor that determines the battery lifespan is the quality of construction. Our high-end battery is designed for 300 charging cycles. However, misuse and lack of care can reduce the lifespan drastically.
Some electric bikes have a throttle mode, which allows riding without pedaling. The throttle mode is useful when you need a break or want to go faster and further without using pedal assist.
The recommended rider height for this model is 5'5" or higher. The best way to know whether it works for you is to take your inseam measurement (inside leg length) and bring the seat height into the reference scope. On the other hand, the ZM model can bear up to 400 lbs (the maximum weight load capacity) so it is not recommended for a rider to go over that weight limit.
The ZF arrives 85% pre-assembled and allows you to get the new bike assembled in a few simple steps after delivery. You'll find specific video that explains how to properly assemble your bike. Basically, it does not require special skills or much professional knowledge so self-assembly at home won’t be a problem even for beginners.
The differences are in the pricing, range, and charger that comes with the bike. The larger of the 2 battery options has a 3A charger (more current capacity) to reduce battery charging time; in the meantime, it delivers a longer riding range under the same operating conditions. The 20Ah battery pack will get you more range up to 60~80 miles on a single full charge.
No, the handlebar on this model cannot be raised or lowered but will give you some adjustment in handlebar angle.
No. On many batteries this is preferred, however our batteries are all high-tech batteries from Samsung and have built-in mechanisms that protect the battery from overcharging.
Put the bike in a stand for cleaning, then start with frame, chain, and derailleur. Clean and keep the bike free of grime and mud with a non-woven cleaning cloth and special cleaners. Do not use a hose or pressure washer to wash the bike.
Charging the battery from empty to full typically takes 6-9 hours. In rare cases, it may take longer to allow the battery management system to balance the battery, particularly when the bike is new or after long periods of storage.
