Eahora ACE 500W Mid-Motor BAFANG All Terrain Electric Bike
- Free worldwide shipping
- In stock, ready to ship
Eahora ACE 500W Mid-Motor BAFANG All Terrain Electric Bike
Eahora ACE is equipped with Bafang M600 mid drive motor, powerful 16Ah lithium-ion battery, clear display, reliable dual hydraulic disc brakes and suitable geometry built on 27.5"wheels. It's perfectly designed for any terrain, just like your trustworthy friend.
500W Mid-Motor (BAFANG)
Featured with a max toque of 120N/m, ACE has an excellent performance on climbing and a longer life expectancy. The mid drive motor can help you conquer any terrain easily. Easily suffice your daily commute and adventures riding.
Torque: 120N.m
Gradeability: 30˚
48V 13Ah Battery
ACE has an embedded removable battery. The built-in 16Ah battery efficiently improves the range, stability and safety, which can last up to 40 miles with PAS mode on a single charge.
Throttle Mode Range: None
PAS Mode Range: 67 - 70 Miles
Electronics
Motor
BAFANG(M600) 500W DC mid-drive motor with torque sensor(SR.SD021.01); Max torque: 120N.M.
Battery
48V 16AH 768WH lithium battery; 18-month warranty; Anti-fall battery dual locks.
Controller
BAFANG(Matching M600) 48V 500W.
Charger
54.6V ~ 3A smart charger, Input 100-240V 50/60HZ.
Display
2.4" Portrait Color Display(BAFANG DPC018), IP65 Waterproof.
Lights
None; rear reflector.
Wiring
Water resistant connectors and wiring harness.
Components
Frame
6061 aluminum; Frame Size: 27.5" * 18".
Brakes
ZOOM 180MM front(right) and 160MM rear(left) hydraulic disc brakes.
Brake Levers
ZOOM(HB-875).
Tires
27.5" * 2.8" Maxxis(M349), tire pressure marked on sidewall.
Fork
Air suspension alloy fork, adjustable.
Rear Suspension
Spring suspension(HLT-100).
Chain
KMC(E9S) Chain for mid-drive motor.
Crank Set
BAFANG(CW B1.21) 38T * 170MM.
Shifters
Shimano(SL-M2010-9R) 9-speed.

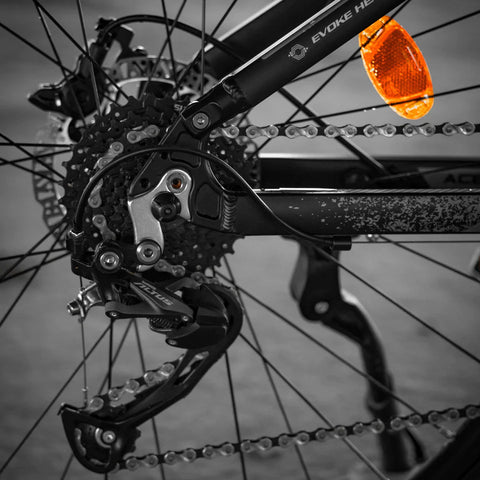

Derailleur
Shimano(RD-M2000) 9-speed.
Freewheel
Shimano(CS-HG200-9) 9-speed, 11-32T.
Grip
Comfort rubber ergo grips.
Handlebar
ZOOM(MTB-AL-320BT)Rise handlebar.
Pedals
Wellgo(B087B) aluminum pedals with reflectors, polymer bearing.
Headset
Intergrated threadless headset.
Rack
None.
Kickstand
Aluminum leg with durable plastic cover, adjustable.
Fenders
None.
Saddle
Comfort leather saddle.
Rims
Aluminum 32H Spoke wheel.
Seatpost
Aluminum seapost with clamp.
Bell
None.
To ensure uninterrupted suppluying and shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.Geometry
Geometry
Recommended Rider Height: 5'9" - 6'4" or 175CM - 195CM
Ⓐ - Total Length: 74.8" or 190CM
Ⓑ - Wheel Base: 46.4" or 118CM
Ⓒ - Seat Height: 36.6" - 41.7" or 93CM - 106CM
Ⓓ - Handlebar Height: 43.3" or 110CM
Ⓔ - Rim Diameter: 23.5" or 60CM
Ⓕ - Standover: 28.0" - 31.5" or 71CM - 80CM
Ⓖ - Reach Distance: 16.1" or 41CM
Ⓗ - Chain Stay Length: 19.7" or 500MM
Ⓘ - Seat Angle: 66.8°
Ⓙ - Seat Tube Length: 15.3" or 39CM
Ⓚ - Bike Width: 28.3" or 72CM
Ⓛ - Top Tube Length: 24.0" or 61CM
