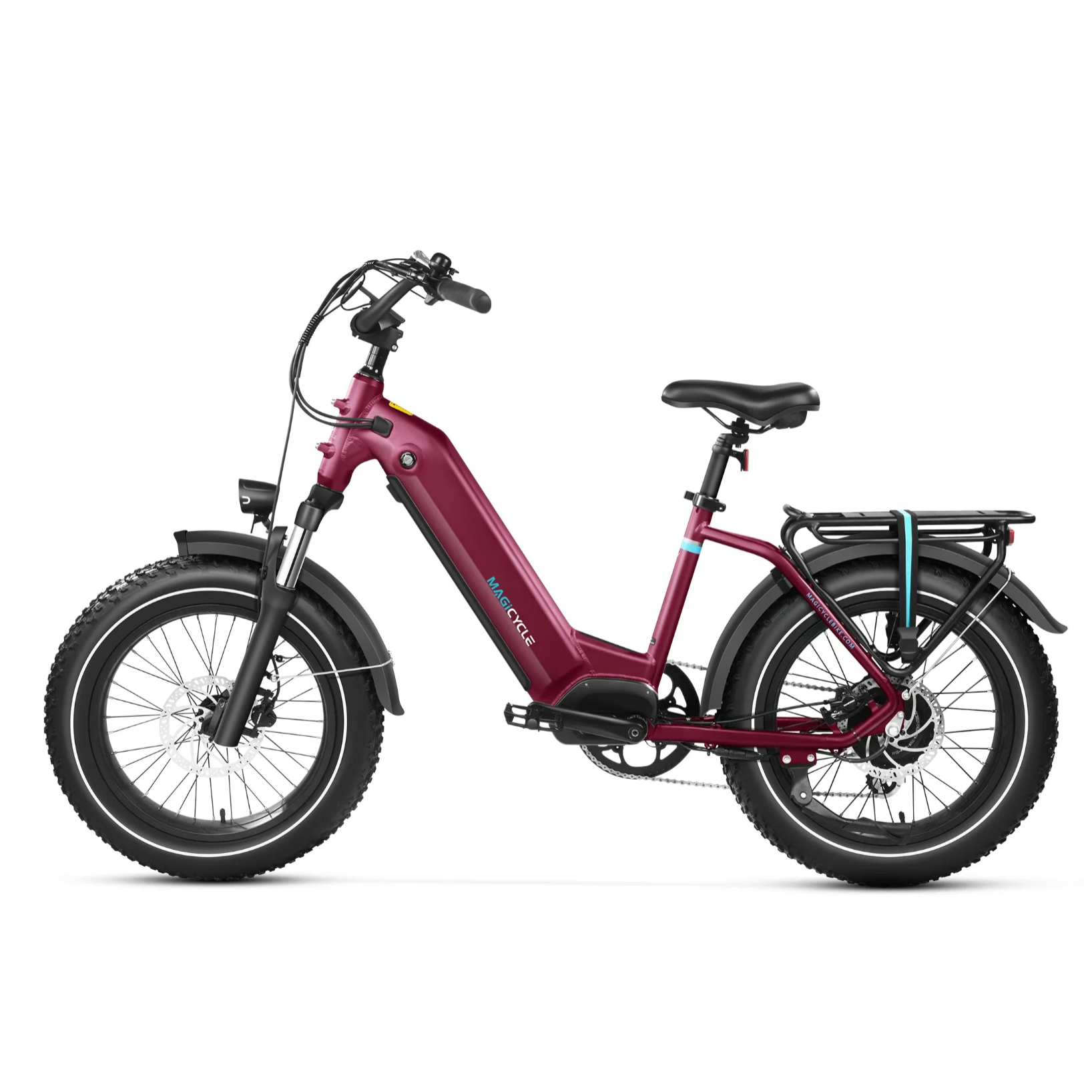

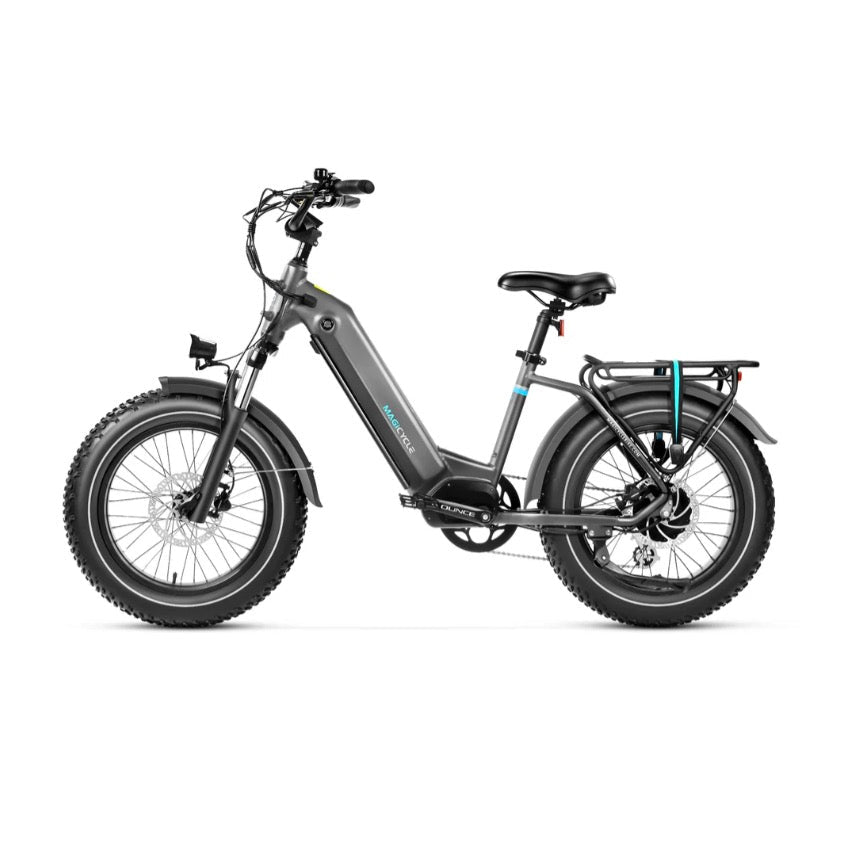

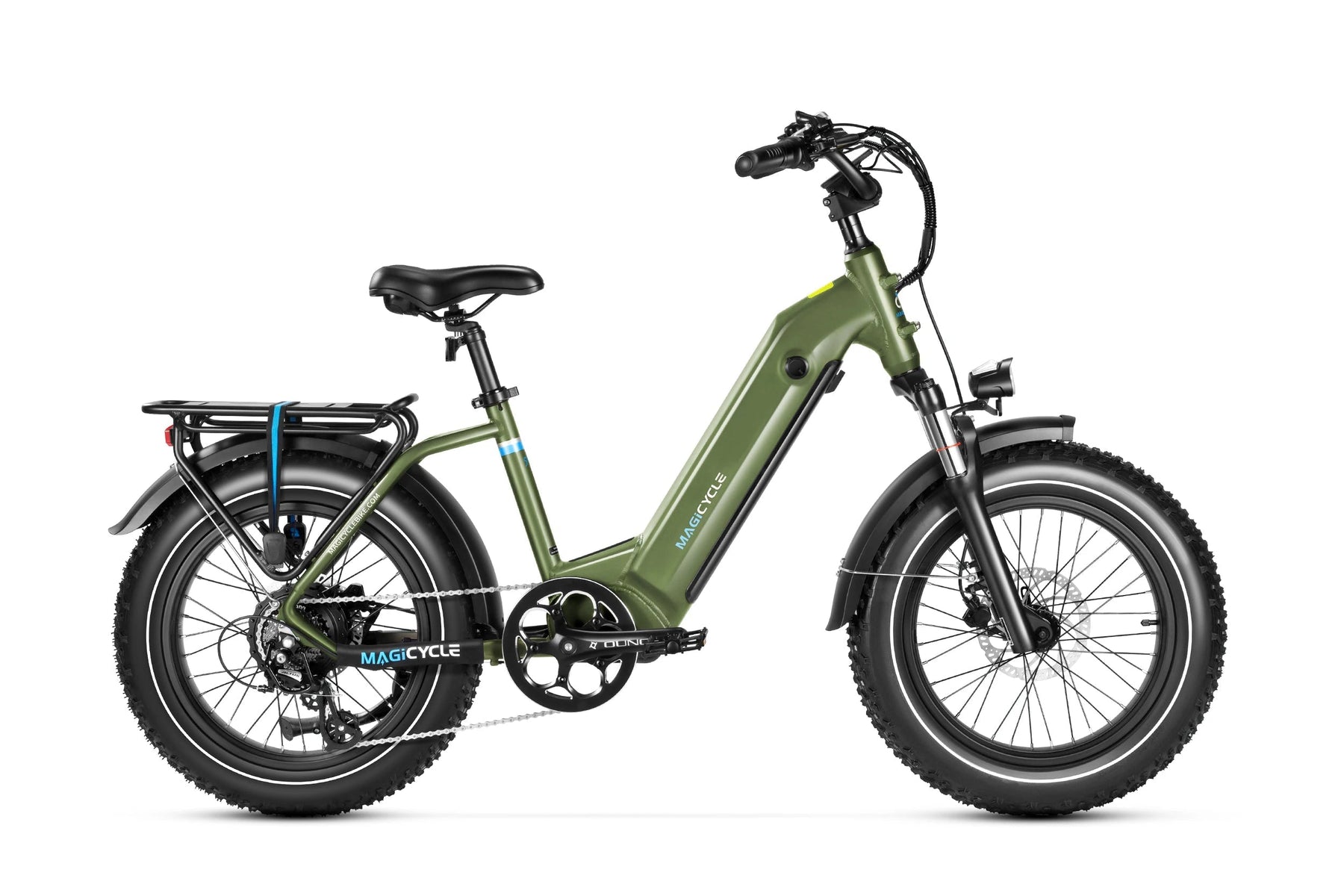

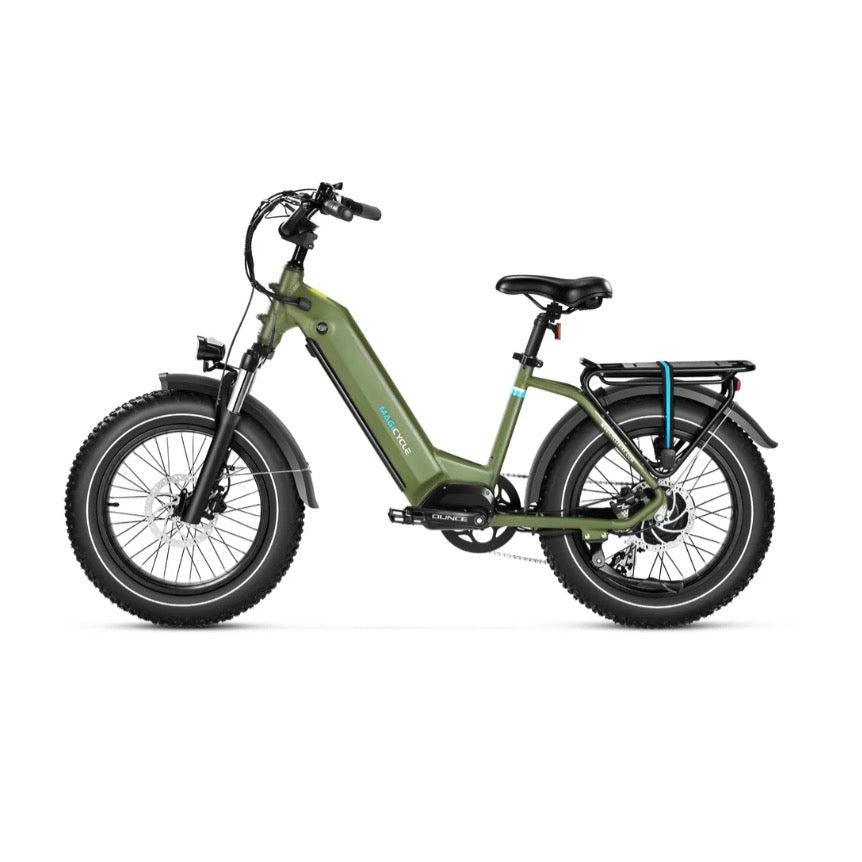

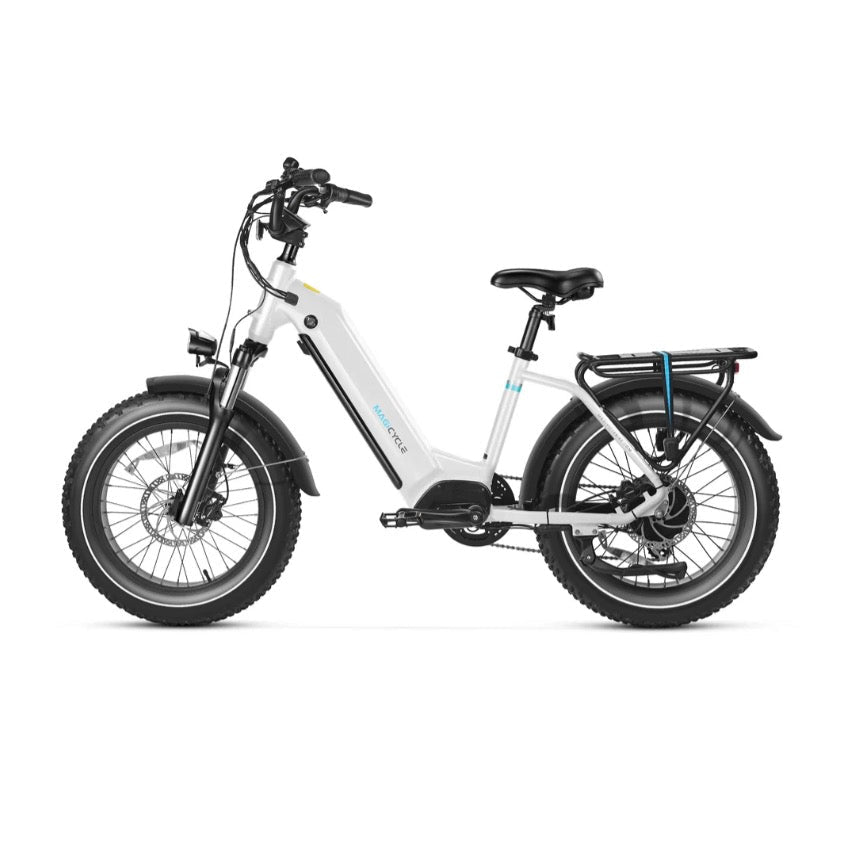

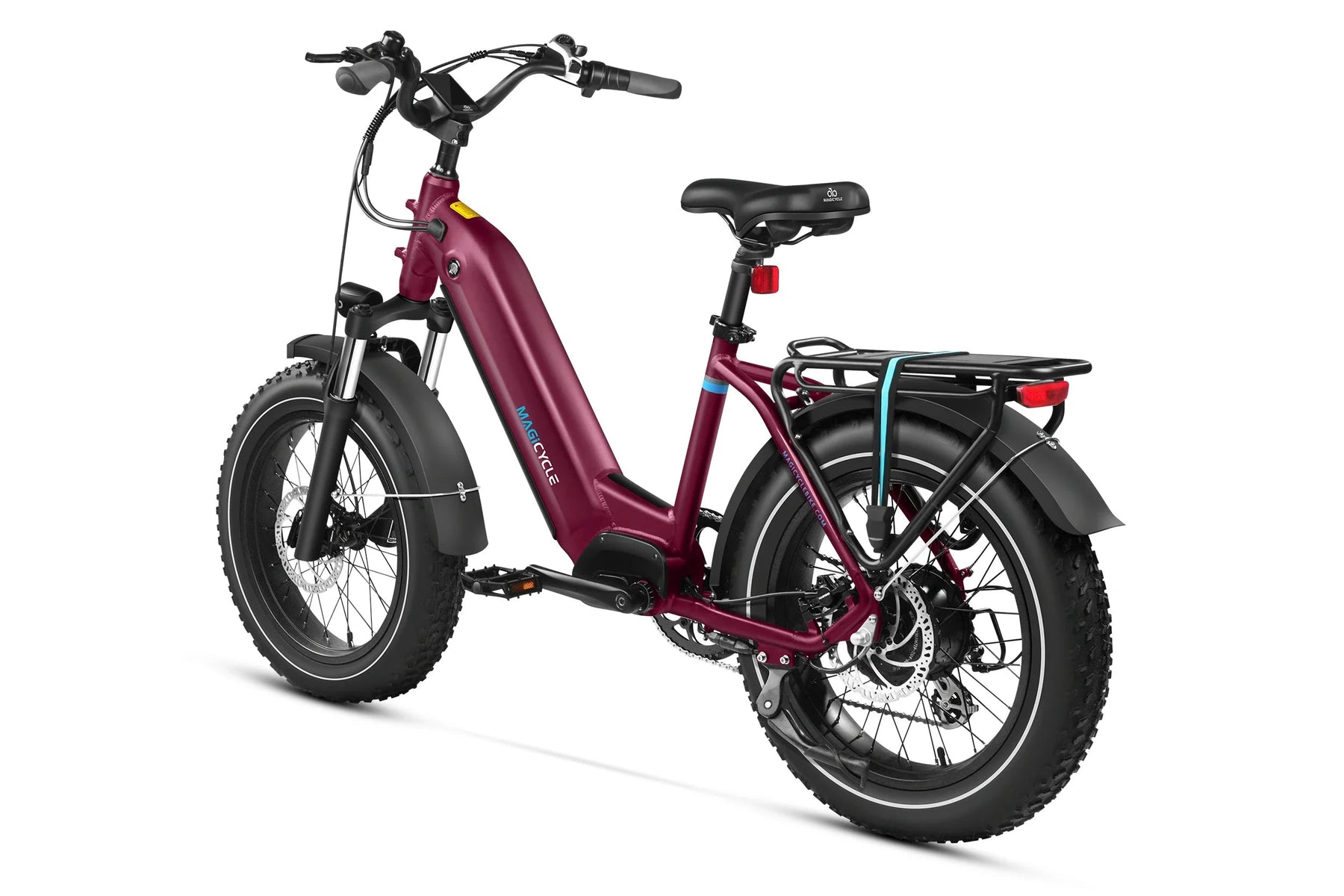

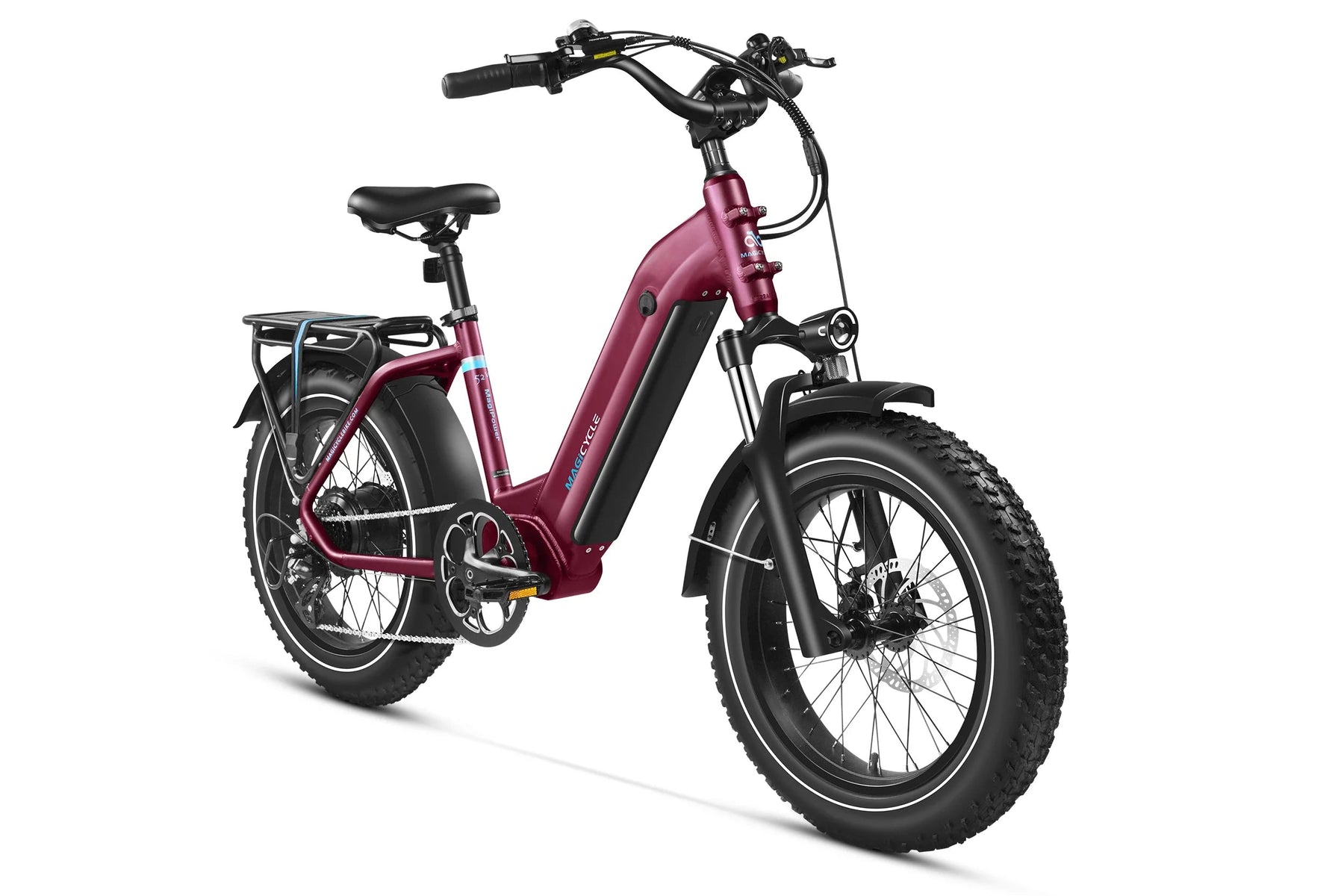

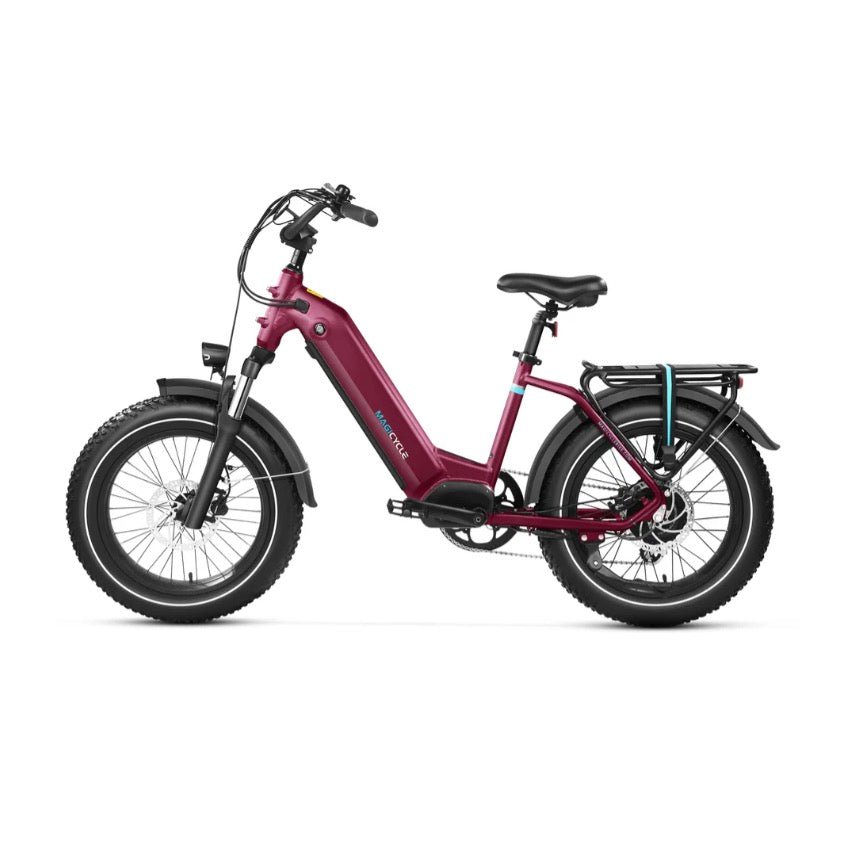

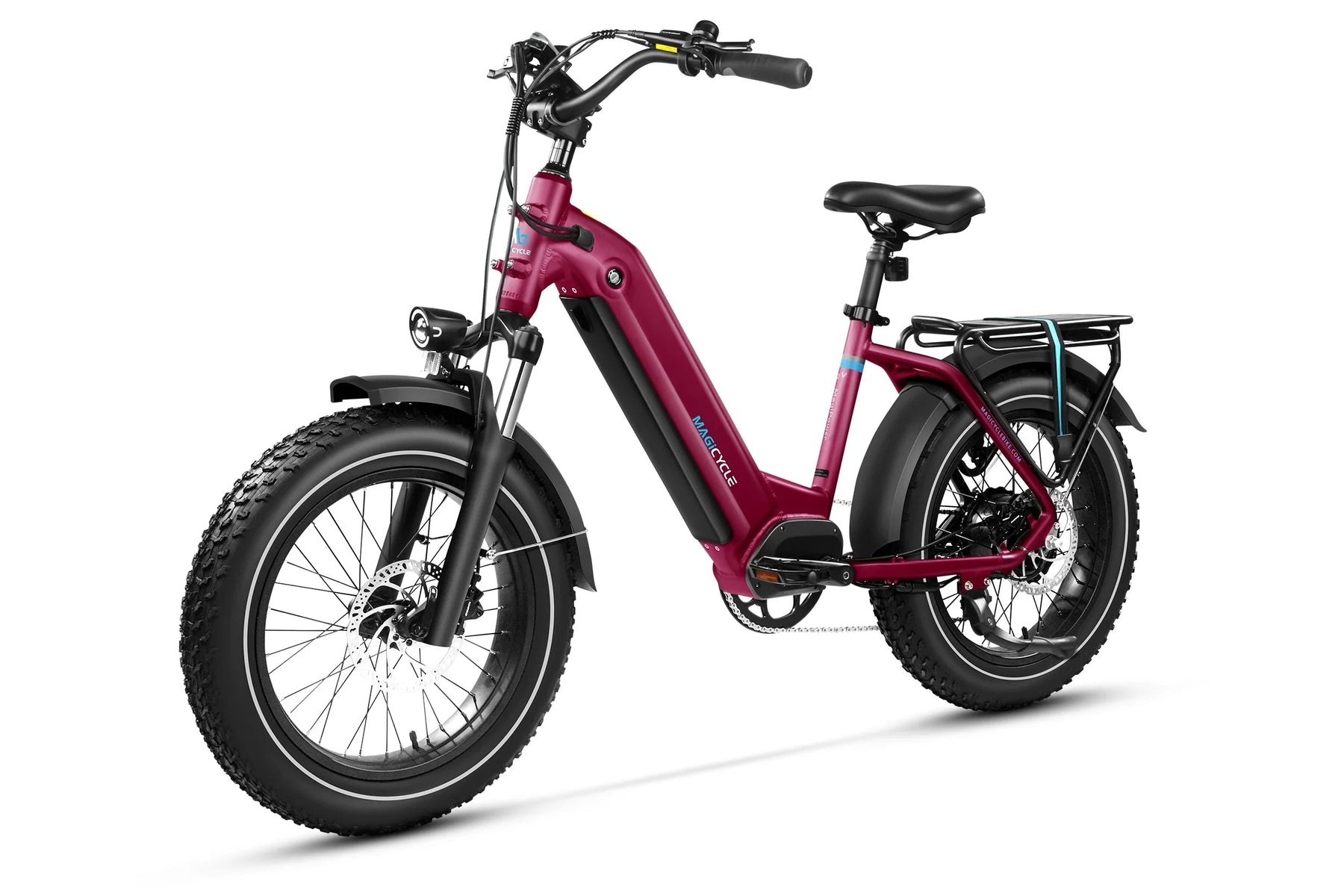

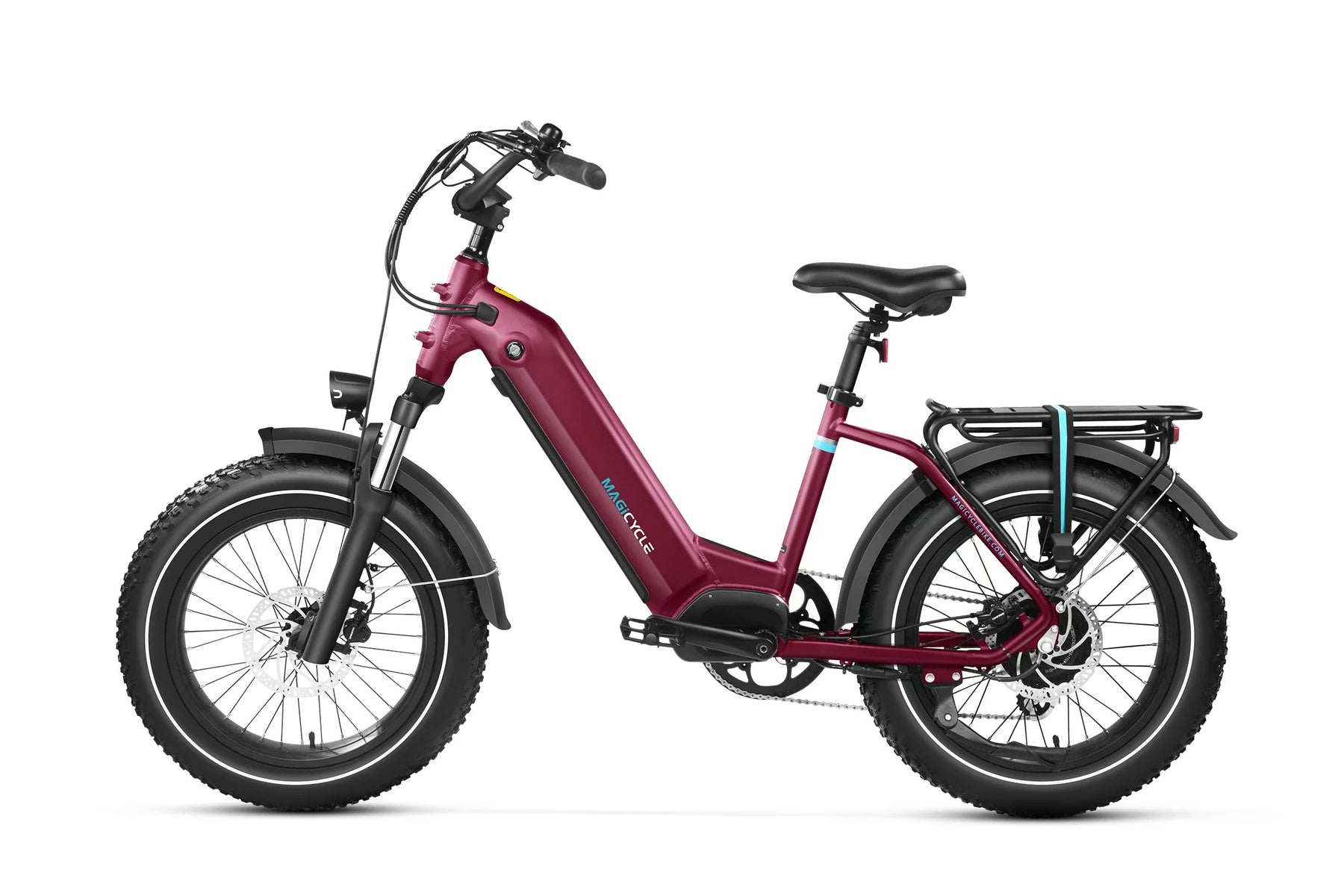

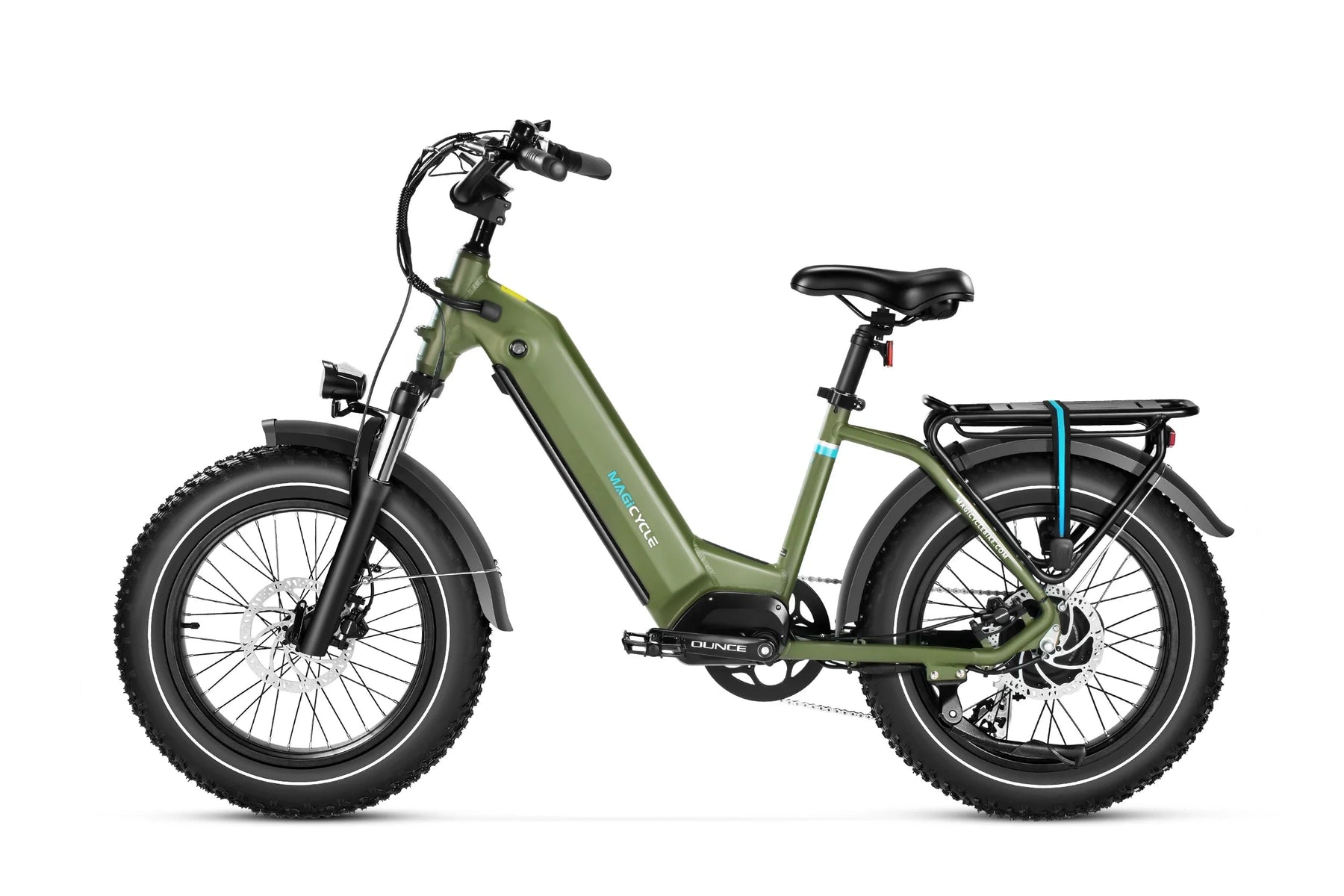

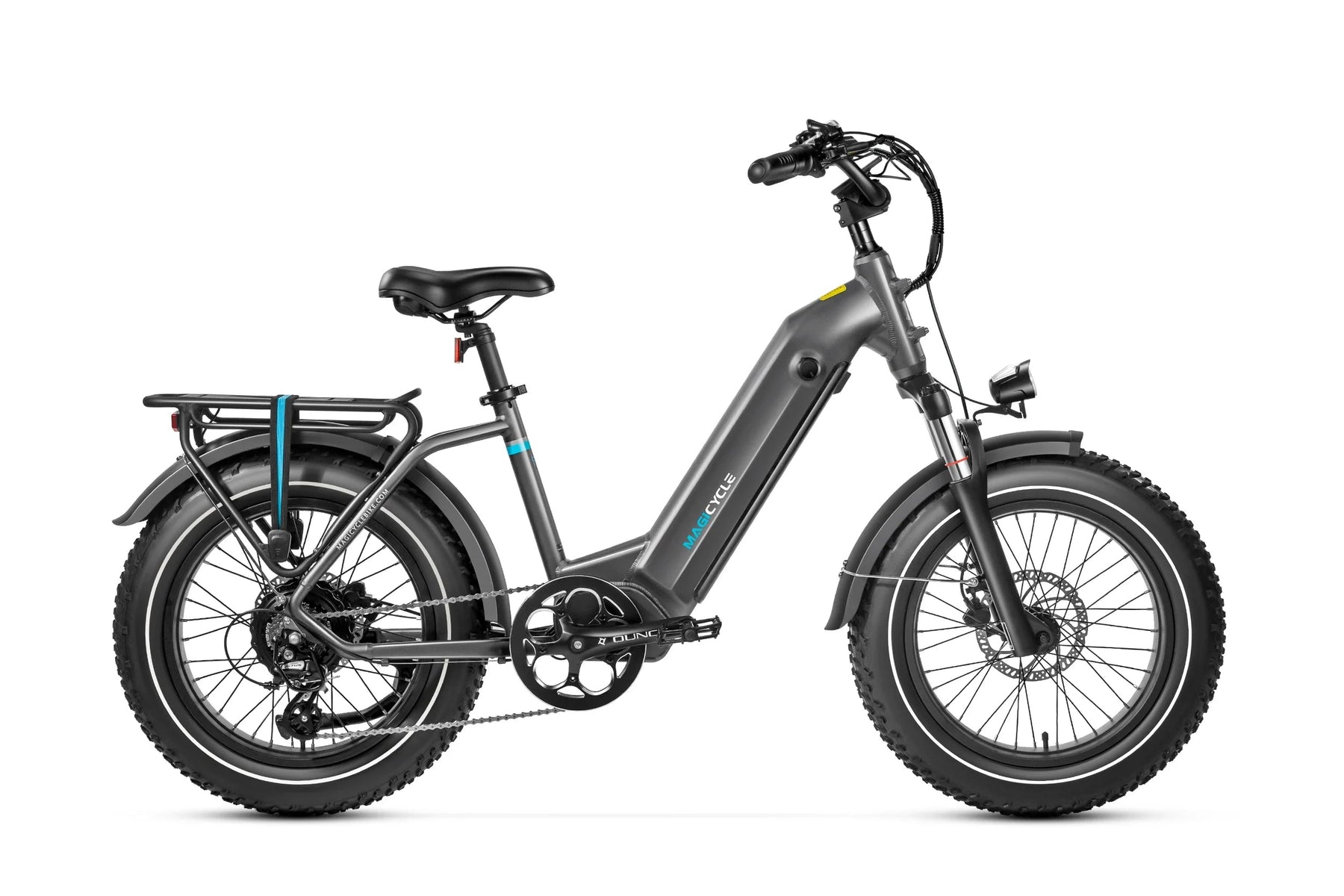

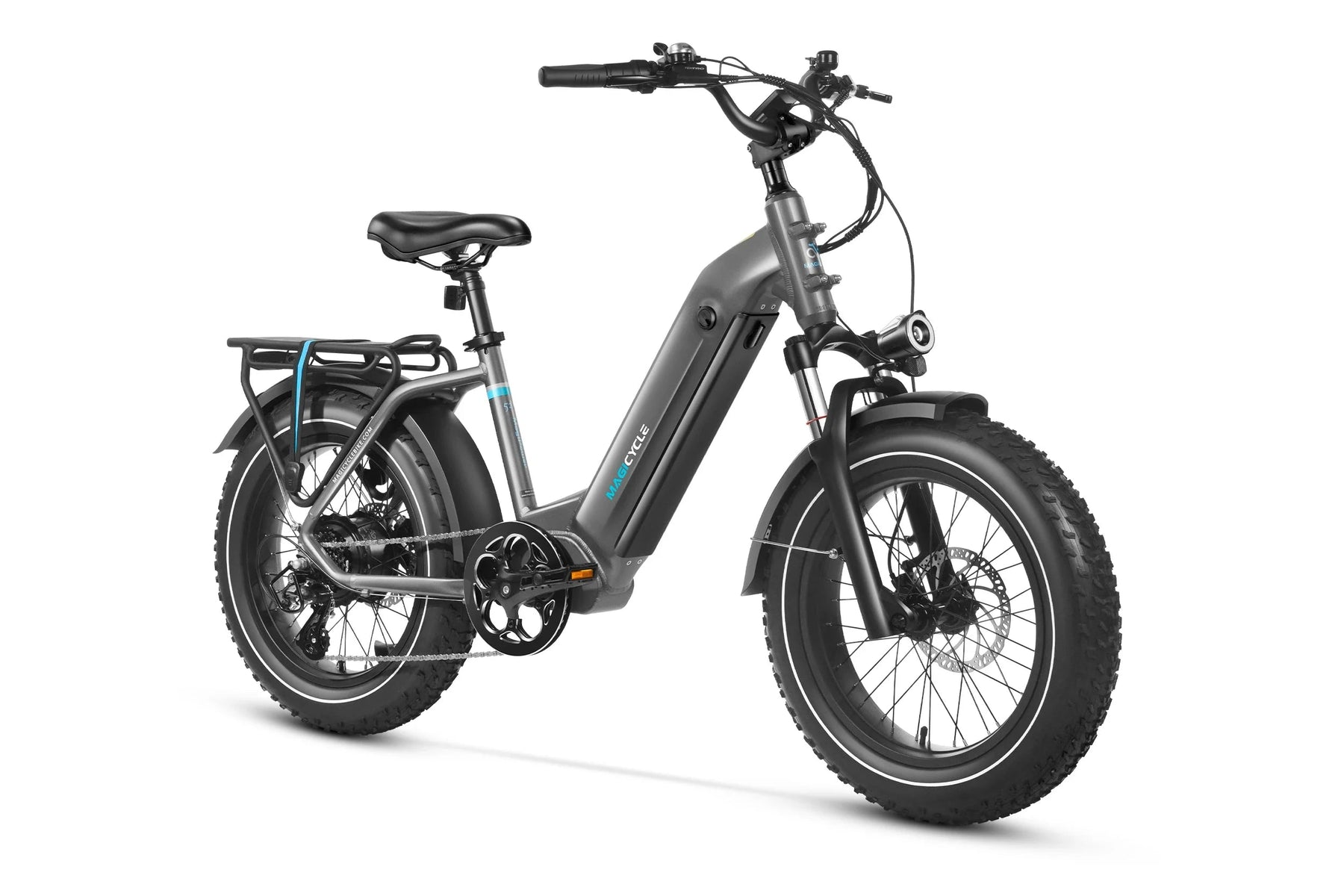

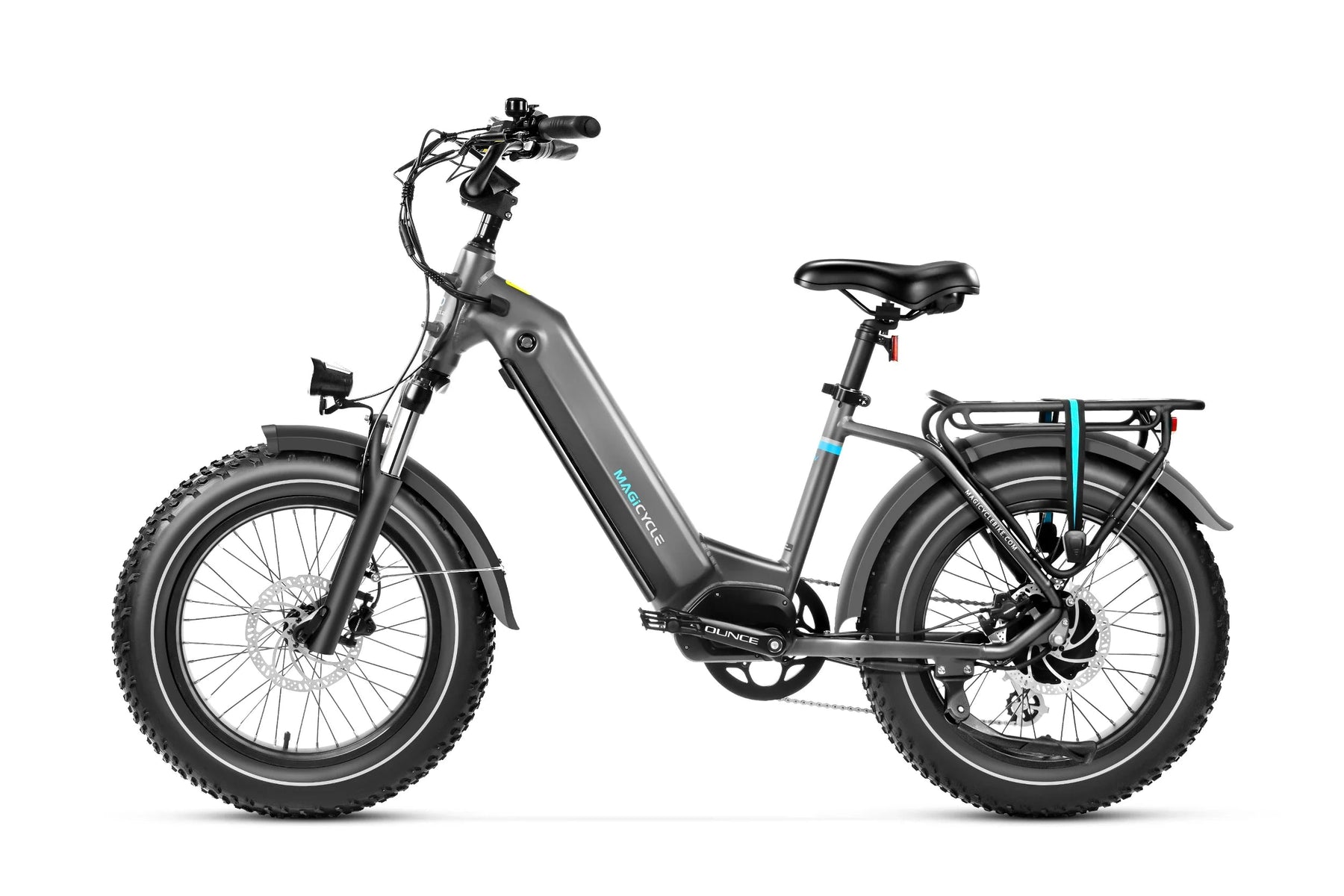

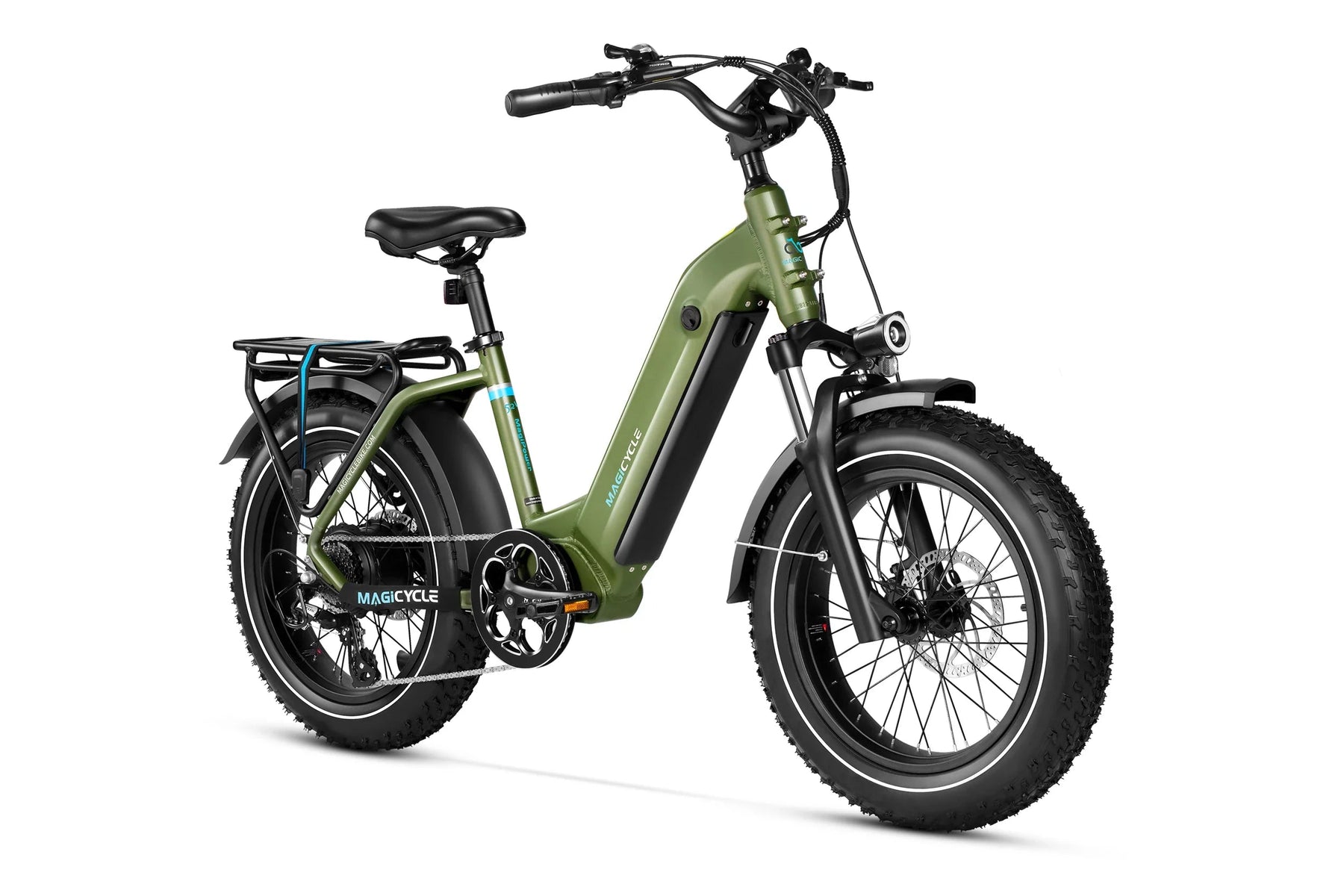

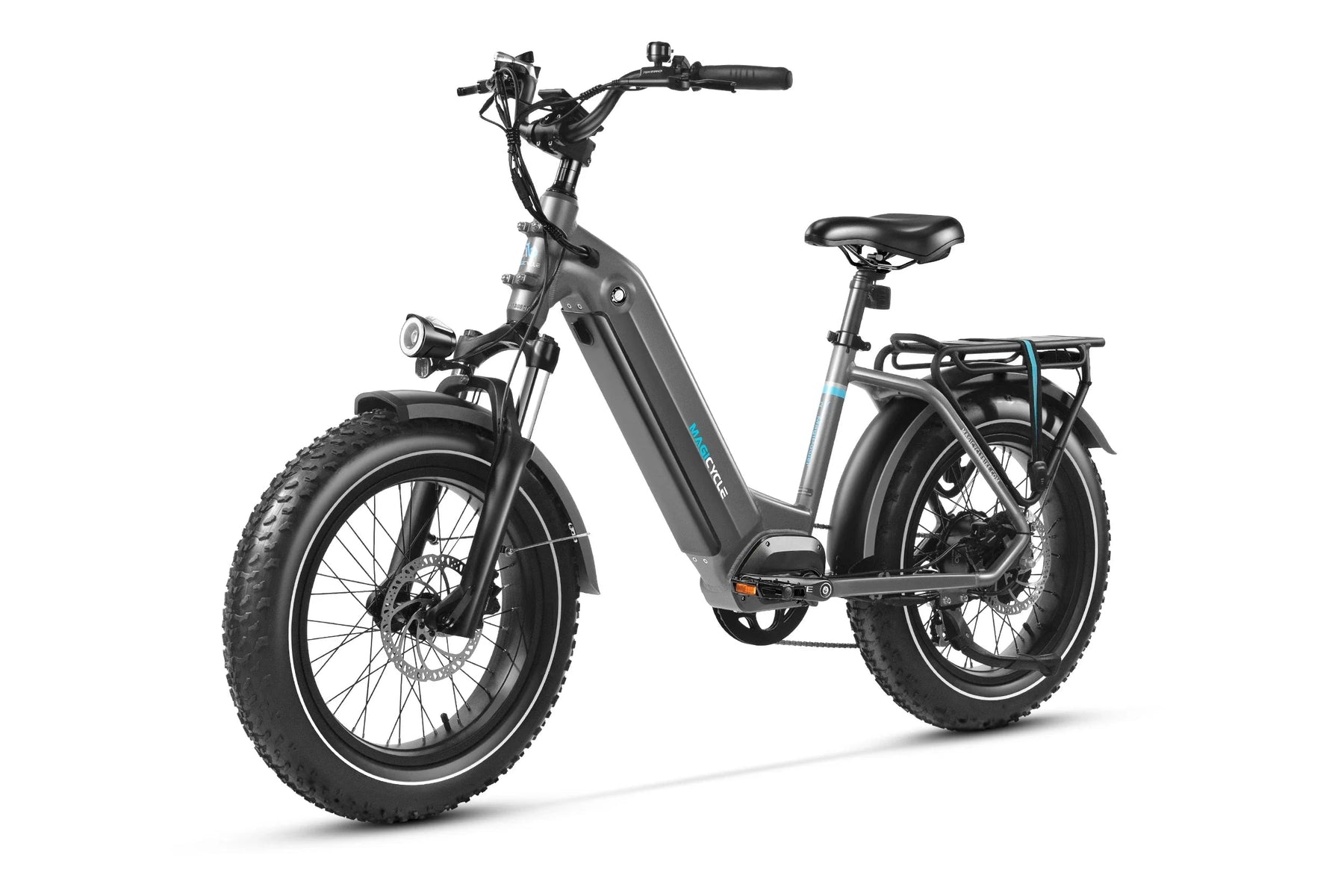

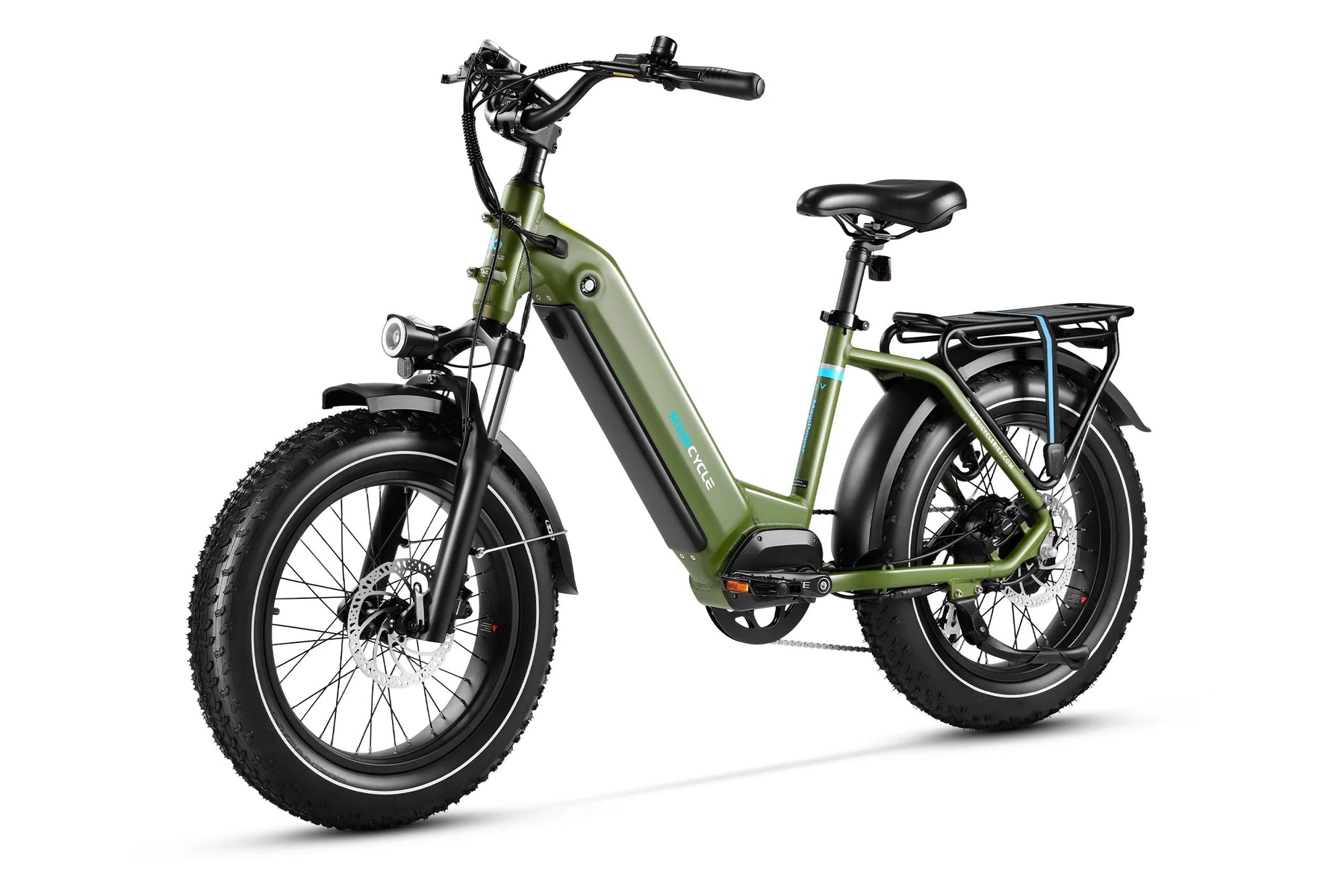

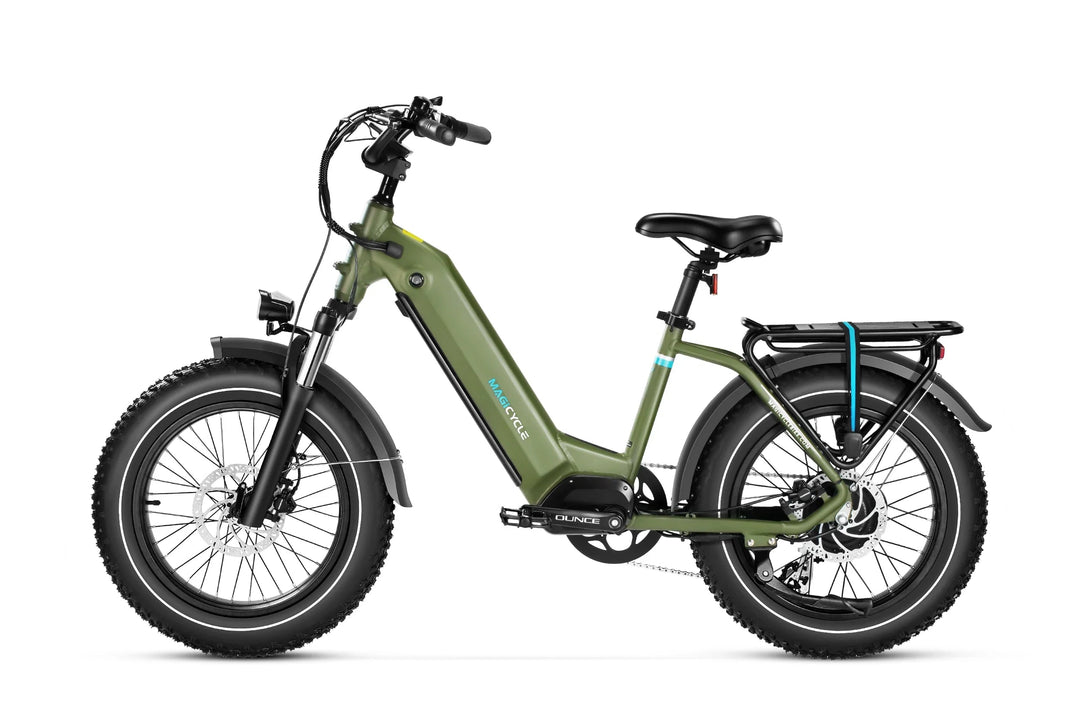

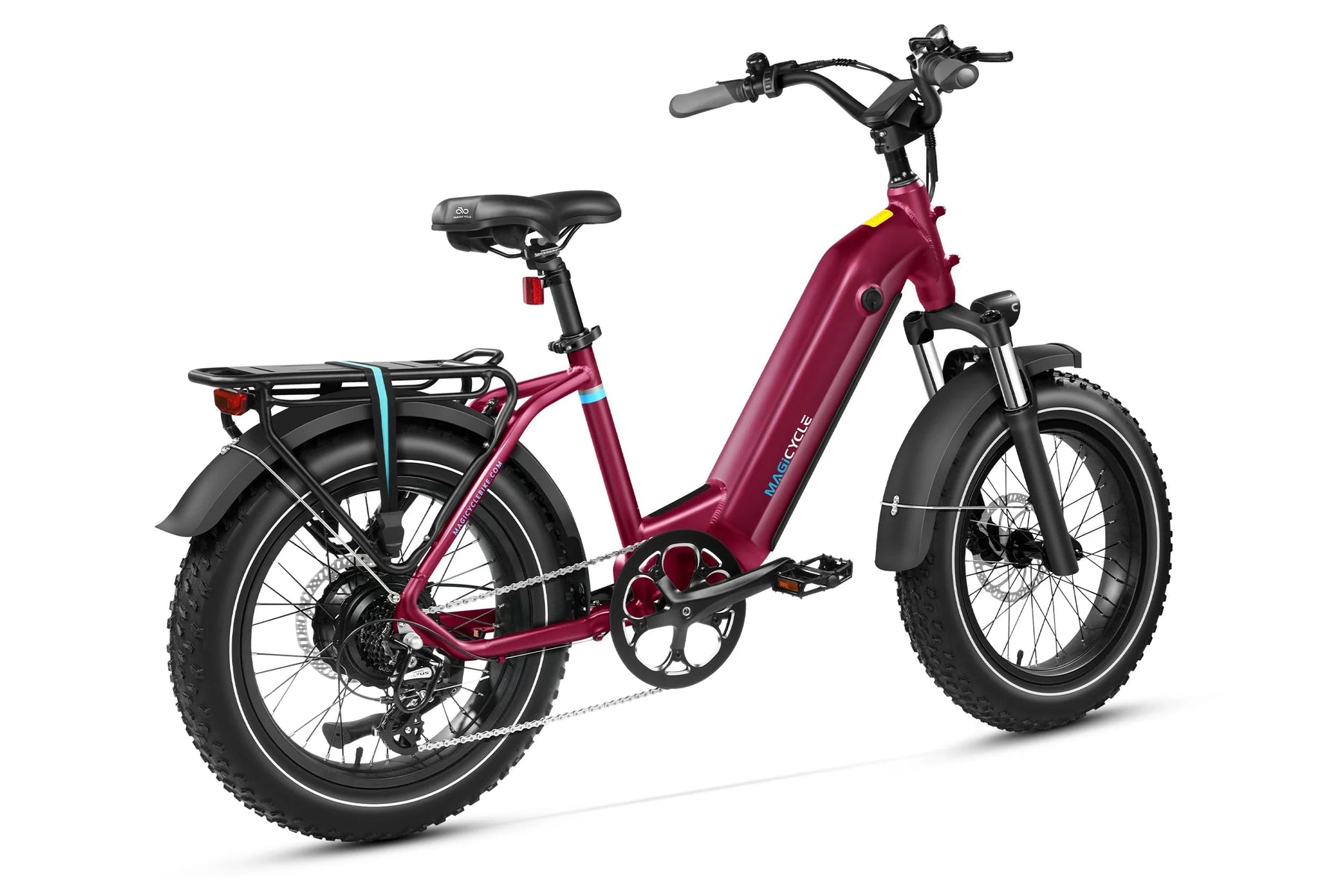

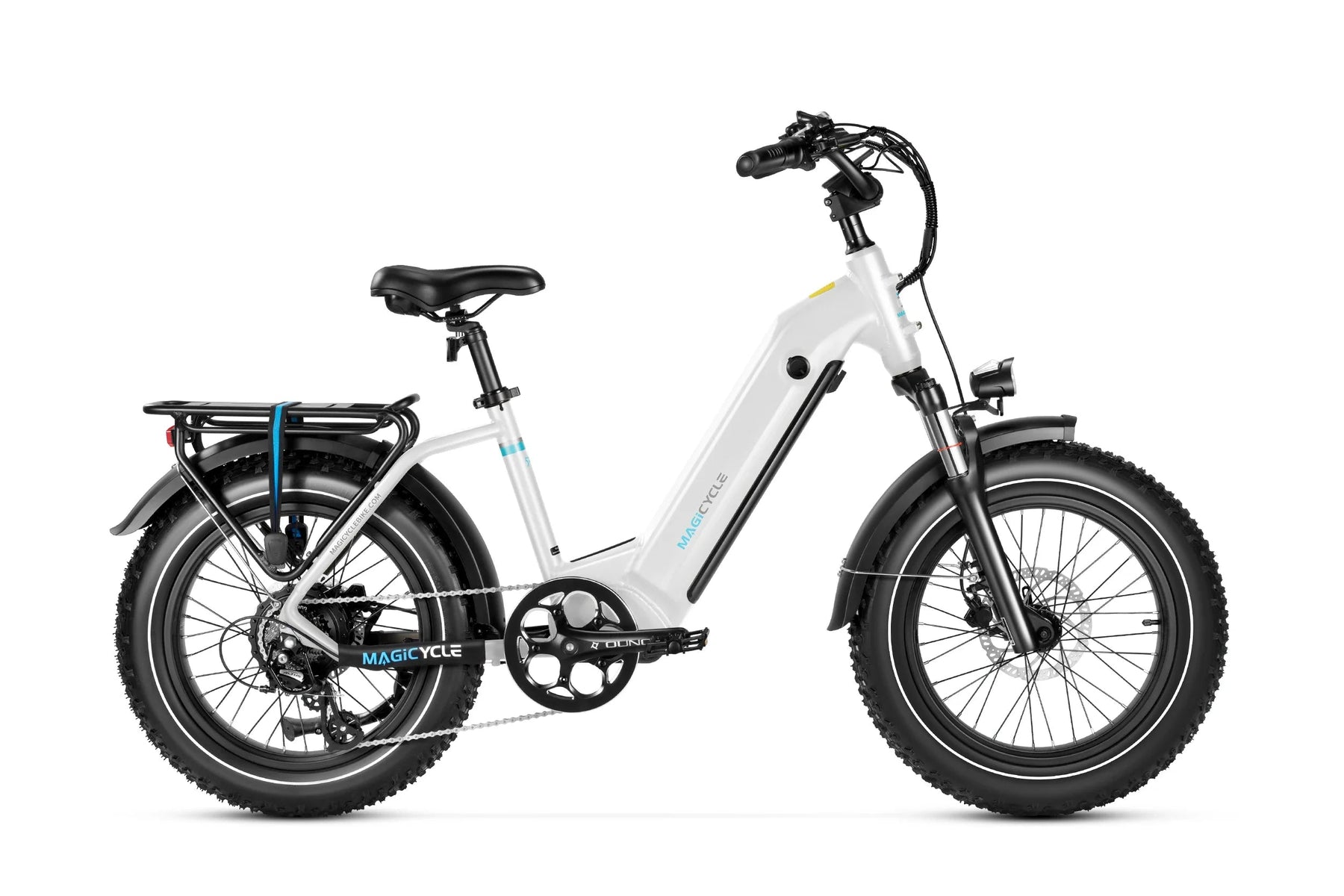

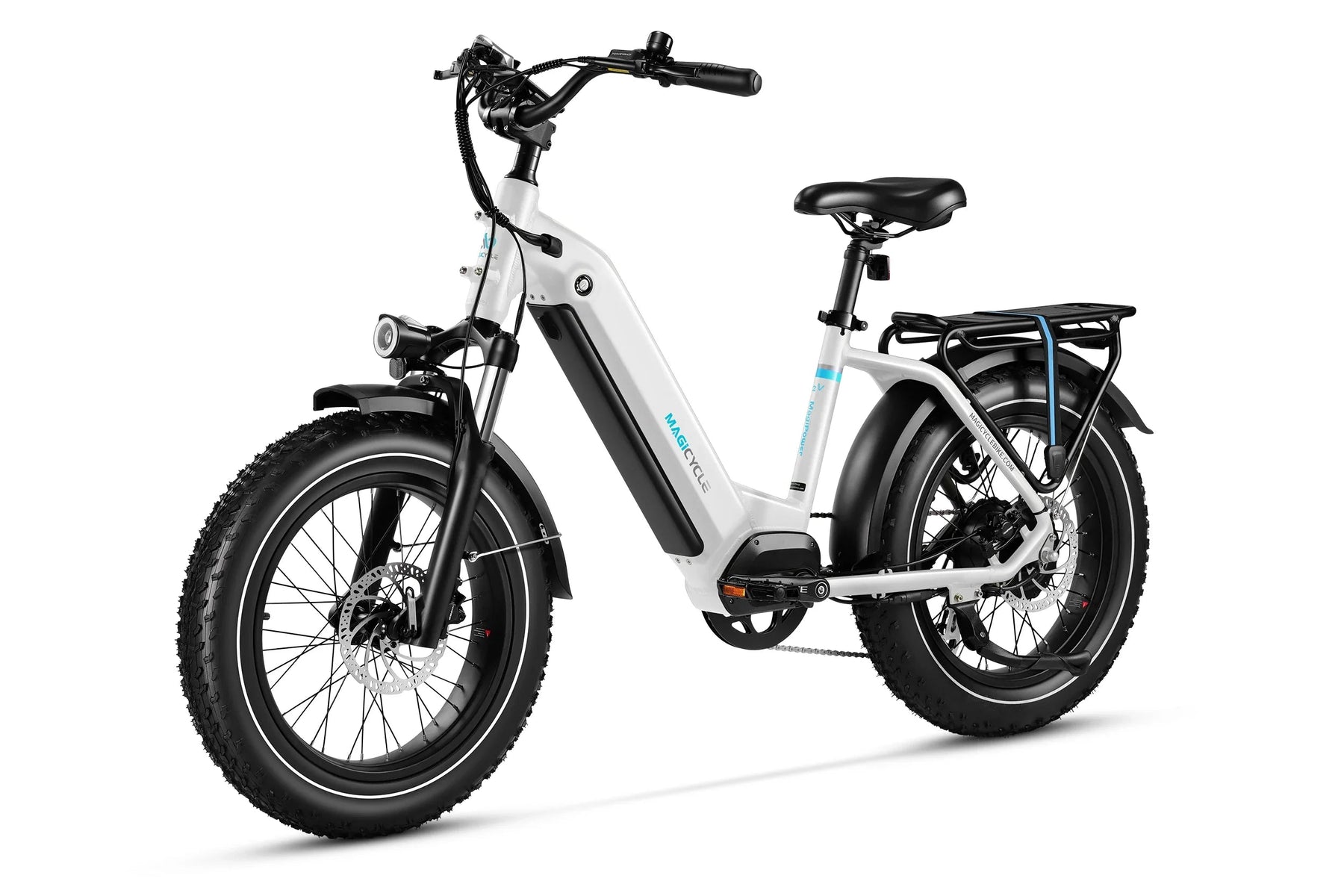

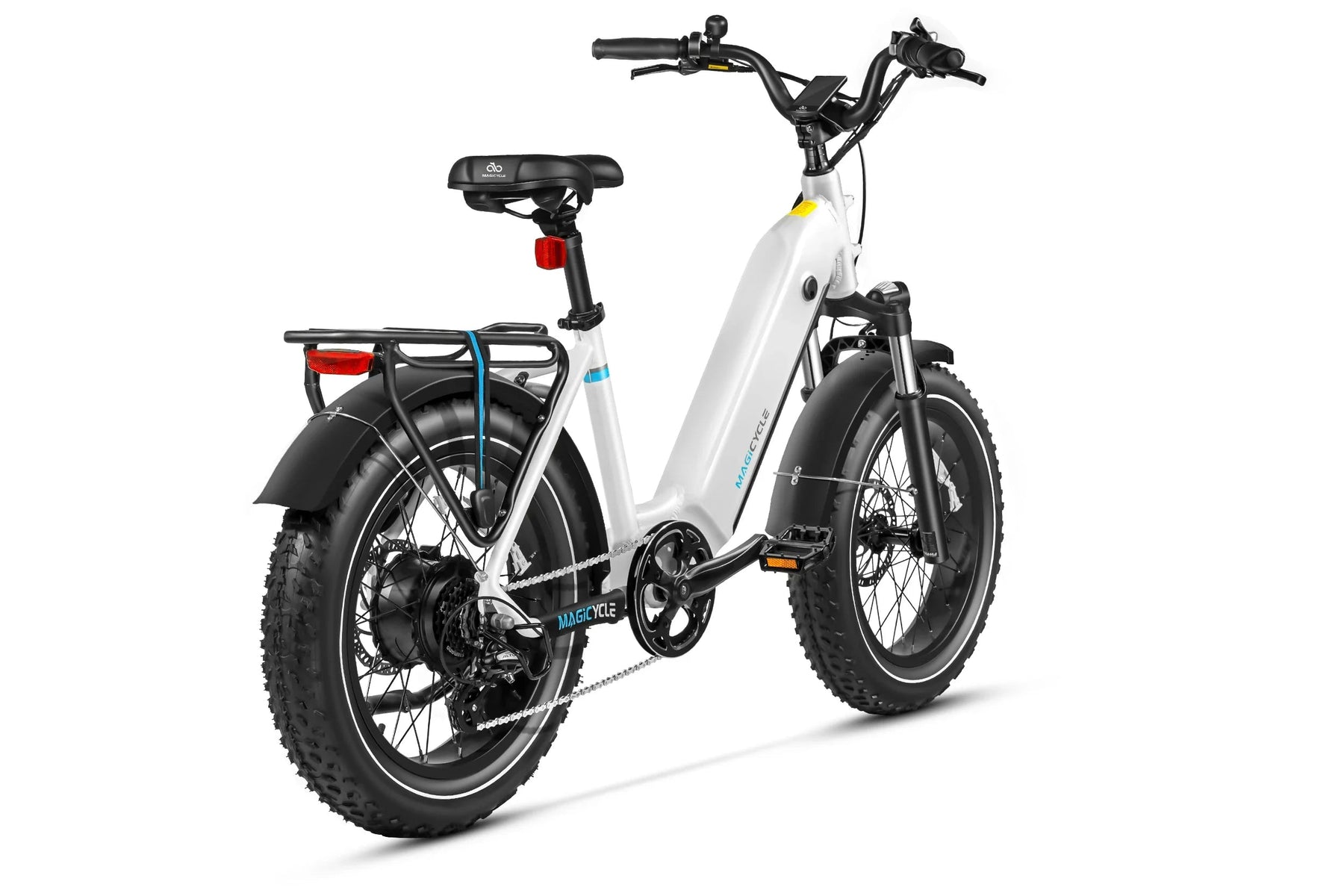

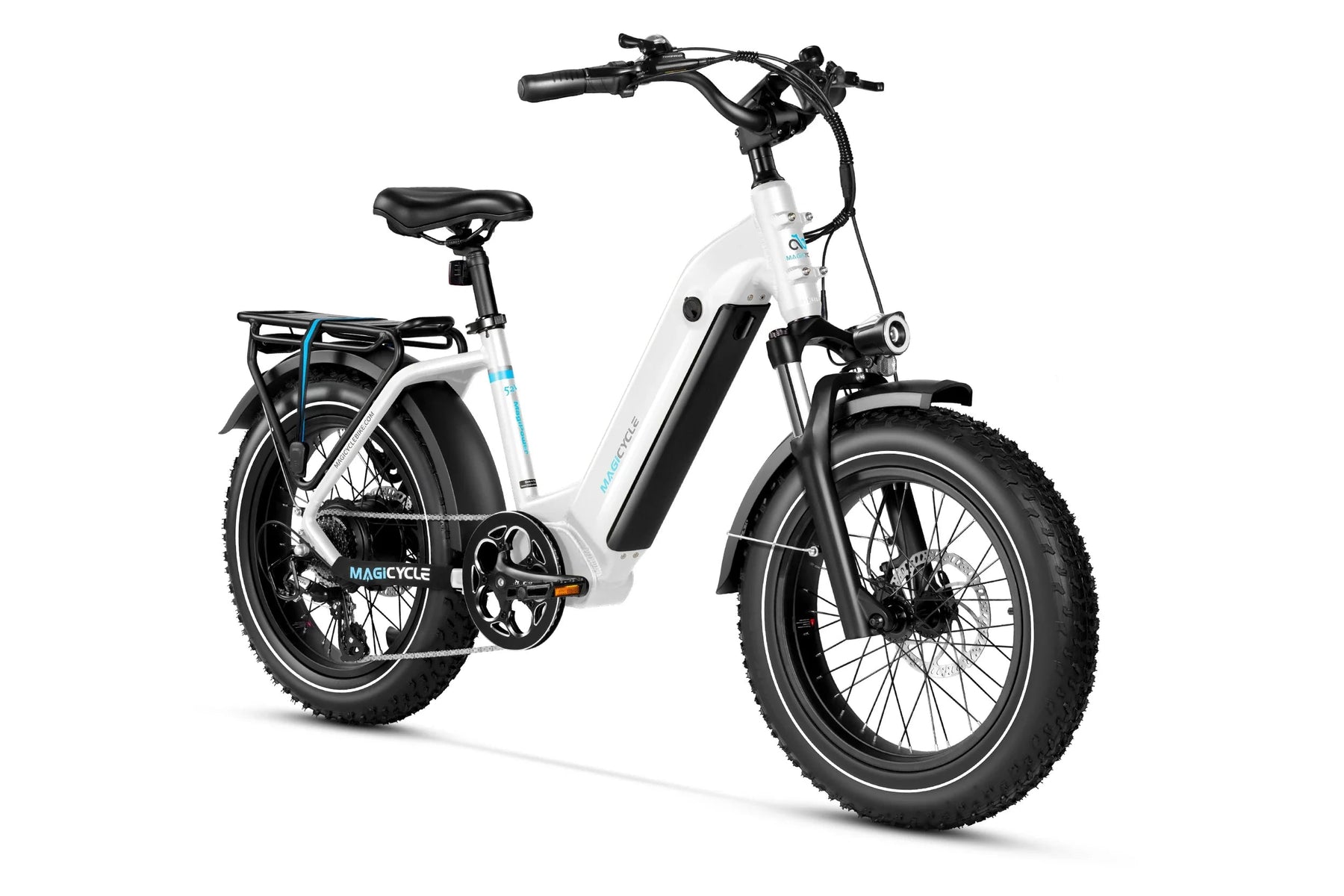

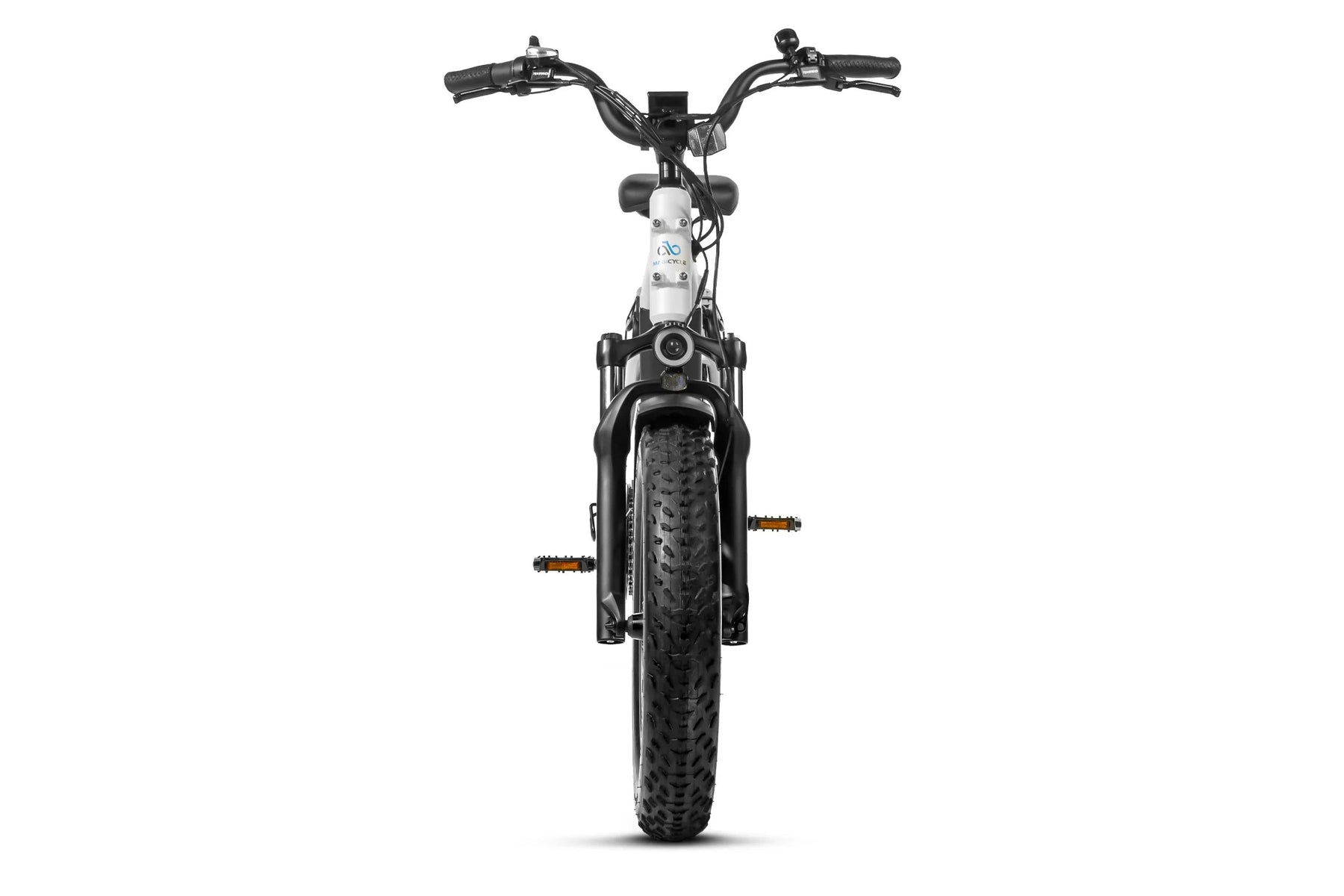

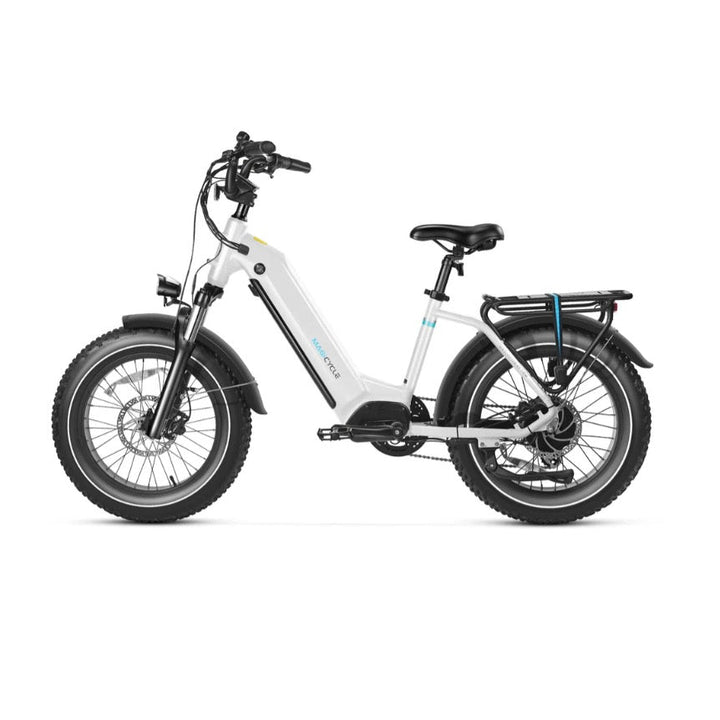

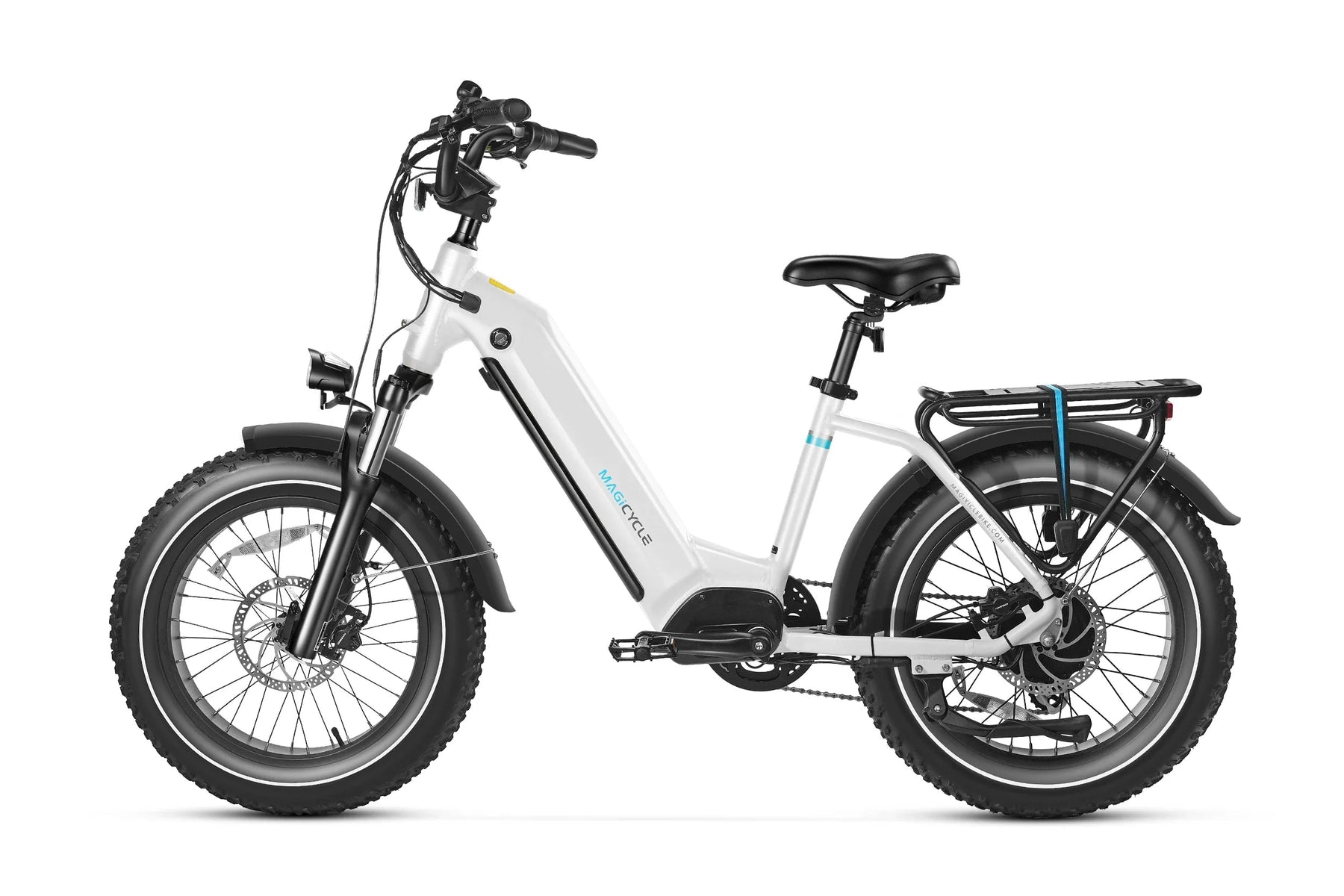

MAGICYCLE Ocelot Pro 2.0 Torque Sensor
Control your power with torque sensor
The Ocelot Pro 2.0 offers the ultimate smart riding experience. With its advanced torque sensor, every pedal stroke is accurately measured to provide the perfect amount of power.
Powered by a high-capacity 52V 20Ah battery, it delivers an impressive range of up to 120+ miles on a single charge. Simply press a button to experience a ride that’s more focused, comfortable, and smooth.
Tech Specs
Specifications
Hub Motor
750W/1500W(peak) 100Nm brushless gear motor
Range
120+ Miles
Sensor
Switchable Torque And Cadence Sensor Modes

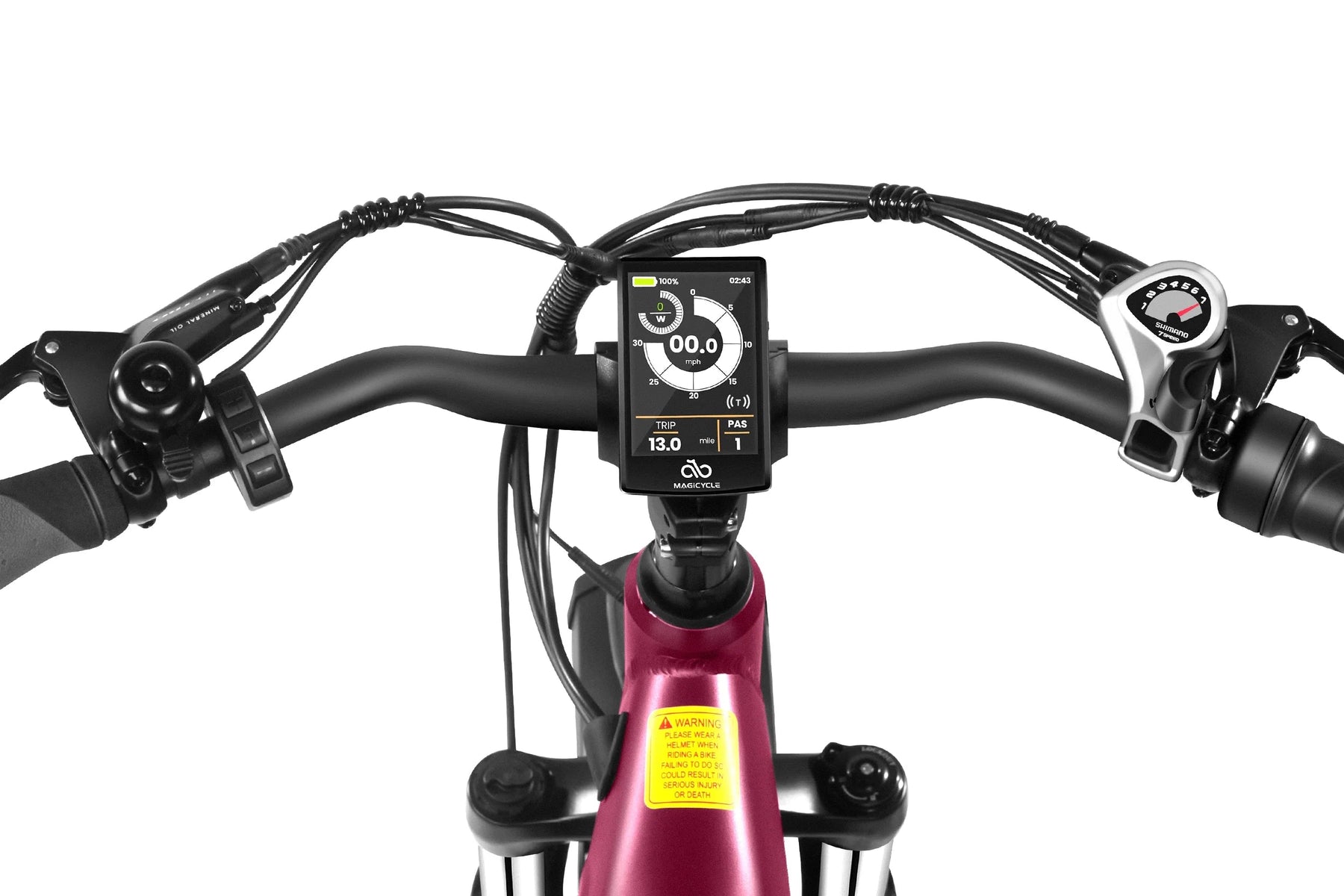

Display
Color LCD Display with USB Charging
Battery
52V 20Ah lithium battery
Charger
Short-circuit proof 3.0A fast smart charger
Charging Time
4 - 6 Hours
Pedal Assist
Intelligent 7 levels pedal assist
Total Payload Capacity
Max: 450lbs
Controller
52V 750W FOC smart controller, Current Range 20~25 Amps (IPX8)
Weight
73lbs/33kg
Frame size
20"
Recommended Rider Heights
4'10" - 6'2"
Components
Tires
20"x4.0" fat tires
Front Light
6V LED light
Front Fork
Alloy Hydraulic lockout suspension fork
Chain
KMC chain
Brake Lever
Aluminum alloy comfort grip levers with motor cutoff switch
Saddle
Super Soft Cushion
Throttle
Half twist throttle
Stem
MA-400 SSABK
Lights
Integrated front and brake lights
Seat Post
Diameter 30.9mm length 300mm
Pedal
Wellgo alloy pedal with reflectors
Crank
48T, 170mm forged alloy, dual-sided bashguard
Freewheel
Shimano-14-28T BROWN/BK
Kickstand
Heavy Duty Aluminum
Bike Frame
20" 6061 Aluminum Frame
Gearing
Shimano 7 Speed Gear Shift System
Brake
180mm Hydraulic Disc Brakes
Spokes
13 Gauge on the Front / 12 Gauge on the Back
Designed for people of various heights, the Ocelot Pro can fit everyone with an adjustable seat. All of you guys can find the best riding position on the Ocelot Pro. The responsive hydraulic disc brakes provide the smoothest braking experience you've ever had. Equipped with a 52V 20Ah battery, the Ocelot Pro offers a range of 100 miles. Let's have the best long trips on this long-range e-bike.
Switch between Torque & Cadence Sensor with One Click
Giving you the flexibility to choose your preferred riding experience for optimal comfort and performance.
Torque Sensor
Torque Sensor makes your riding more smoothly with longer range.
With a torque sensor, the electric bike can instantly detect when you're pedaling harder, such as when going uphill or accelerating.
FEATURES
Ocelot Pro 2.0 Torque Sensor Ebike
Bike Dimension
