| Battery | 48V/20Ah, 960Wh Lithium-ion battery with LG 21700 cells |
| Motor | BAFANG Mid-drive, 1000W rated power, 1100W peak power, 160 Nm of torque, based on CAN6.3 protocol |
| Range | 65 Miles (75kg load, flat road, Cassette set to the smallest gear, and PAS1 level of pedal assist). The actual range varies depending on the weather, load, road conditions, etc. |
| Display | LCD display with Bluetooth, 4" TFT color screen, IP66 |
| Charger | Input: 100-240V AC, 2.0A; Output: 54.6V DC, 3.0A. |
| Charging Time | Approx. 6-8 hours |
| Sensor | Torque sensor |
| Max Speed | 28 MPH both in pedal-assist and throttle modes |
| Pedal Assist Modes | 5 Levels |

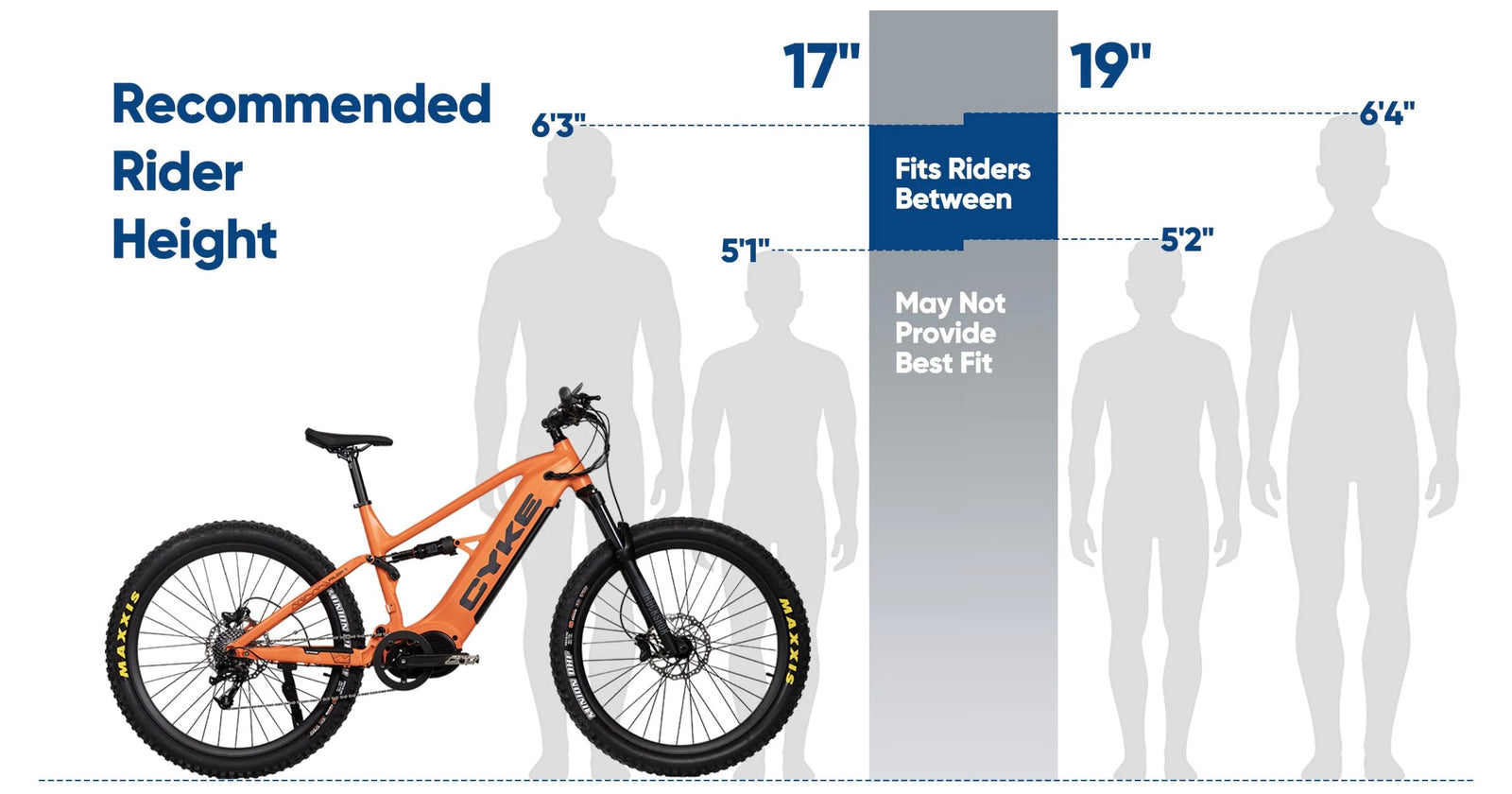

| Frame | Aluminum alloy, 17"/19" Size, 150mm travel |
| Fork | ROCKSHOX FS RCNS RL, 150mm travel, pneumatic bumper, hydraulic lockout |
| Shock | ROCKSHOX RS-DELUXE SELECT-C1, 190mmx45mm, iDebonAir+ air spring, Maxima Plush dynamic suspension lubricant |
| Rim | Aluminum ring, 12G 36H AV, 634*41mm |
| Front Tire | Maxxis Minion DHF, 29x3.0" |
| Rear Tire | Maxxis Minion DHR II, 29x3.0" |
| Front Hub | Aluminum alloy, disc brake, 12G 36H, ID15*110mm |
| Rear Hub | Aluminum alloy, disc brake, 12G 36H, ID12*148mm |
| Spoke | Black stainless, 12G, 267mm |
| Shifter | SRAM SL-X5, 9 speed, optimized for EXACT ACTUATION™ |
| Rear Derailleur | SRAM RD-X5, 9 speed, EXACT ACTUATION™ |
| Cassette | SRAM CS-PG-950, 9 speed |
| Crank arm | BAFANG 170mm length |
| Chainring | BAFANG MM G510, 40T |
| Chain | KMC E10S for e-bikes |
| Pedal | Aluminum alloy |
| Saddle | VELO, boron steel, 160mm width |
| Seat Post | Aluminum alloy, Ø31.6*264mm |
| Stem | Bar bore: Ø31.8mm; Clamp I.D.: Ø28.6mm |
| Handlebar | Flat Bar, Aluminum Alloy Ø31.8mm, Width 780mm |
| Grips | VELO, trail grip |
| Brakes | TEKTRO HD-E730, 4-piston caliper, hydraulic disc, with power cut-off sensor |
| Brake rotor | TEKTRO HD-E730, 3T, 203x2mm |
| Kickstand | Side Kickstand |
| Weight Limit | 300 lbs |
| Net Weight | 66 lbs |
| Gross Weight | 100.3 lbs |

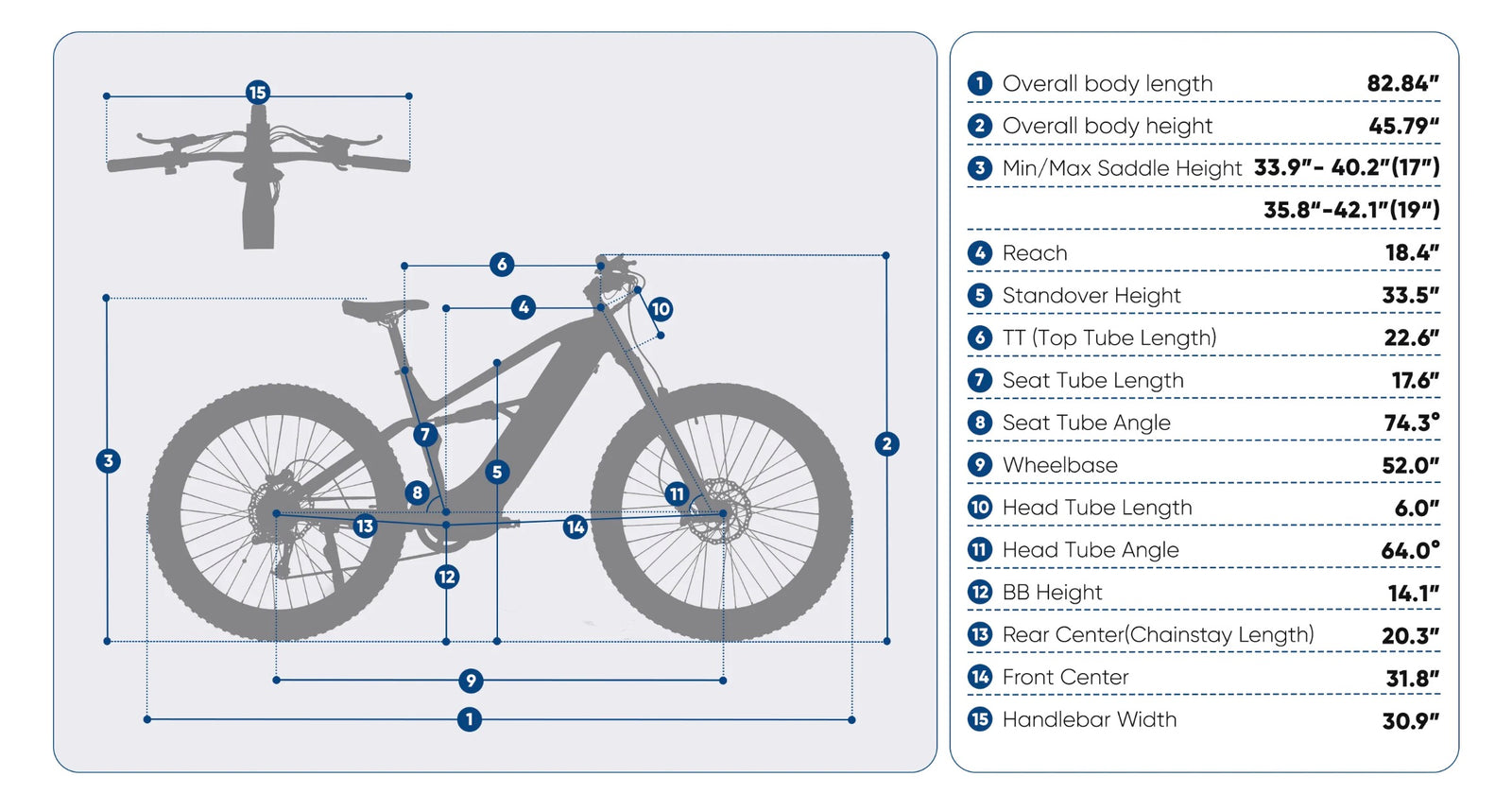

| Bike Size | 82.84 x 30.9 x 45.79 in |
| Box Dimension | 68.7 x 34.1 x 11 in |
Featuring a BAFANG display with an IP66-rated LCD screen and Bluetooth connectivity, the Falcon S integrates with the CYKE App. Monitor ride stats, customize settings, and personalize your experience effortlessly for smarter, more efficient cycling adventures.

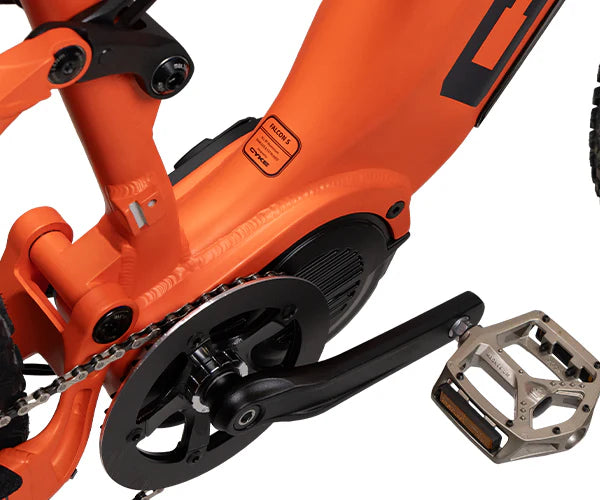

Equipped with a highly responsive torque sensor, the Falcon S adjusts motor output based on your pedaling force. This delivers smooth and natural acceleration, optimizing efficiency and control, making it perfect for conquering tough trails.

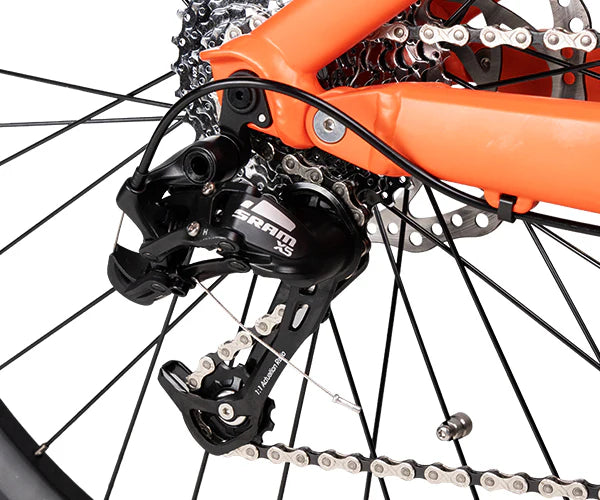

he SRAM 9-speed gear system includes an SL-X5 shifter, RD-X5 derailleur, and CS-PG-950 cassette. With EXACT ACTUATION™ technology, it ensures precise and effortless shifting across terrains, offering smooth transitions for an efficient, enjoyable ride.

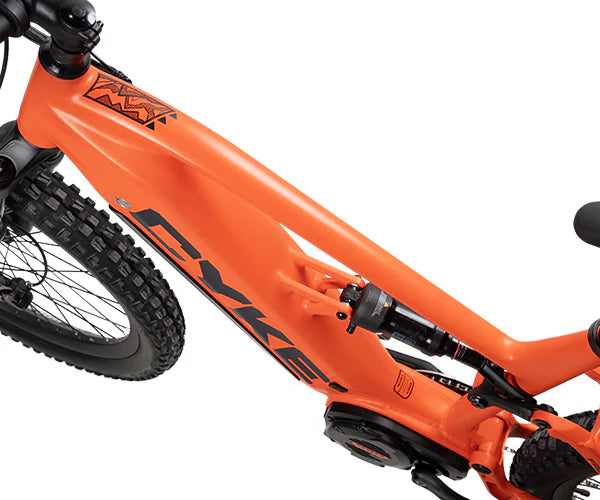

The Falcon S features an aluminum alloy frame crafted with Italian flat welding, hydraulic forming, and baking varnish. Integrated welding and grinding processes enhance durability, blending exceptional strength with sleek aesthetics for a long-lasting, stylish design.

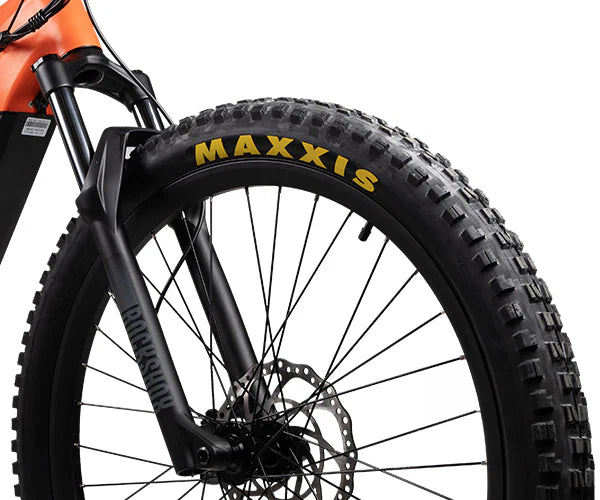

Ride confidently with 29x3" MTB tires that provide superior shock absorption and stability on uneven surfaces. These tires offer excellent grip and comfort, making them ideal for tackling rough terrains with ease and style.

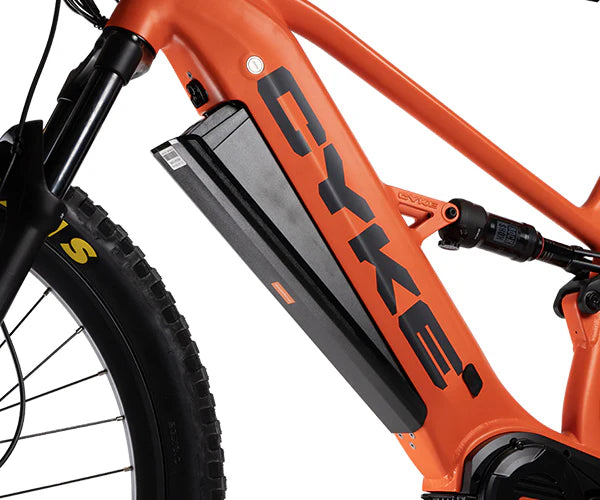

The Falcon S is powered by a 48V/20Ah, 960Wh lithium-ion battery featuring LG 21700 cells, providing a range of up to 65 miles on a single charge. The battery is further enhanced by a customized battery management system that optimizes discharge current for better performance.

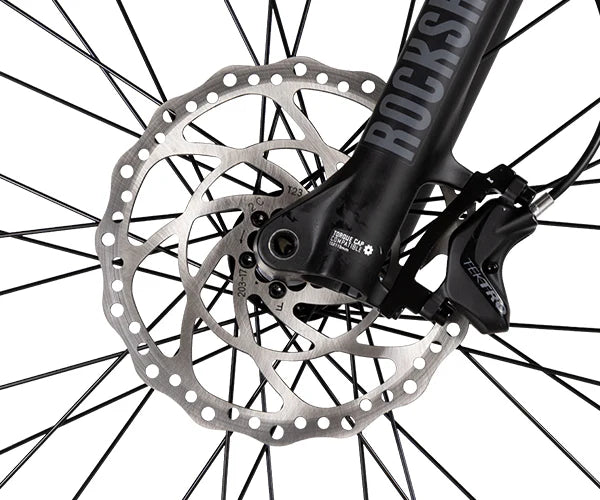

The Falcon S features TEKTRO HD-E730 hydraulic disc brakes with a 4-piston caliper and 3T 203x2mm rotors. This system provides reliable, powerful stopping performance and includes a power cut-off sensor for added safety, ensuring precise control on steep and rugged terrain.
