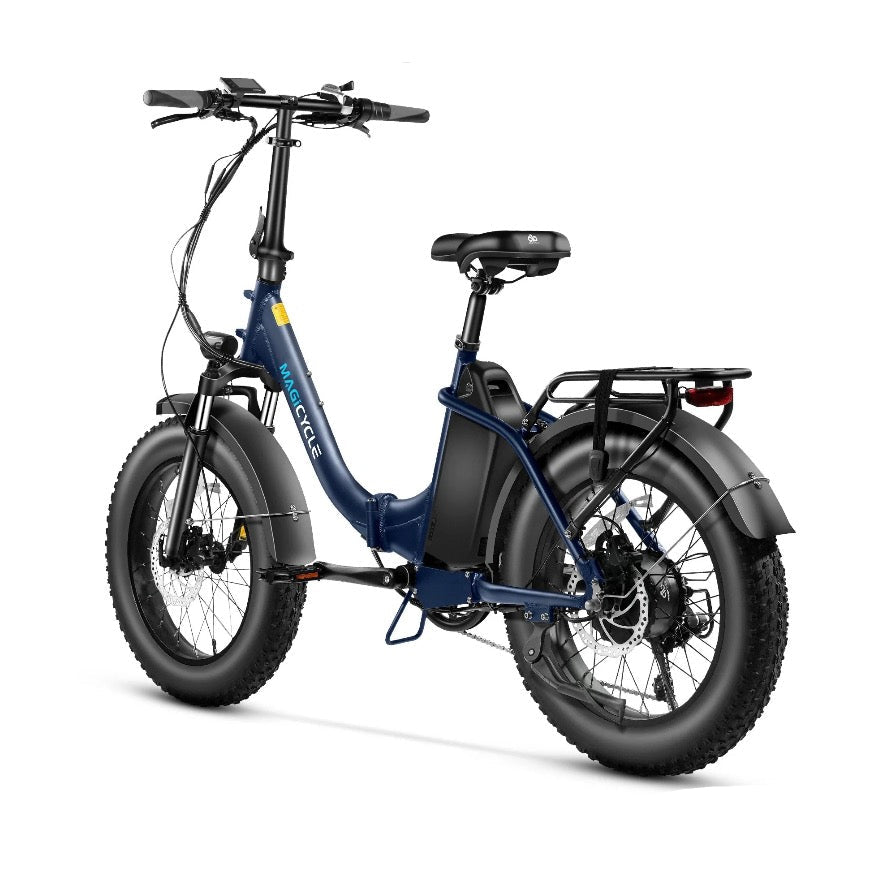

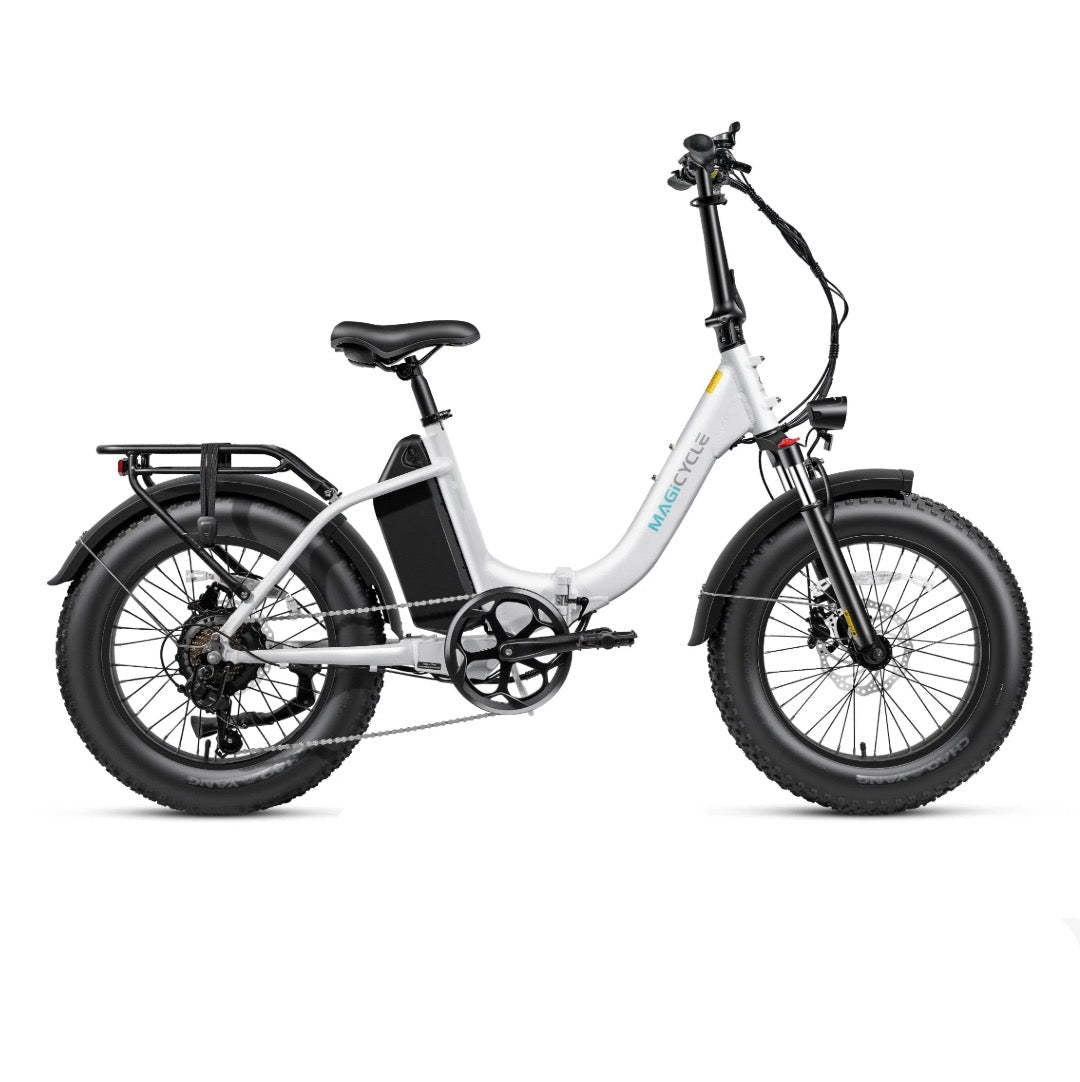

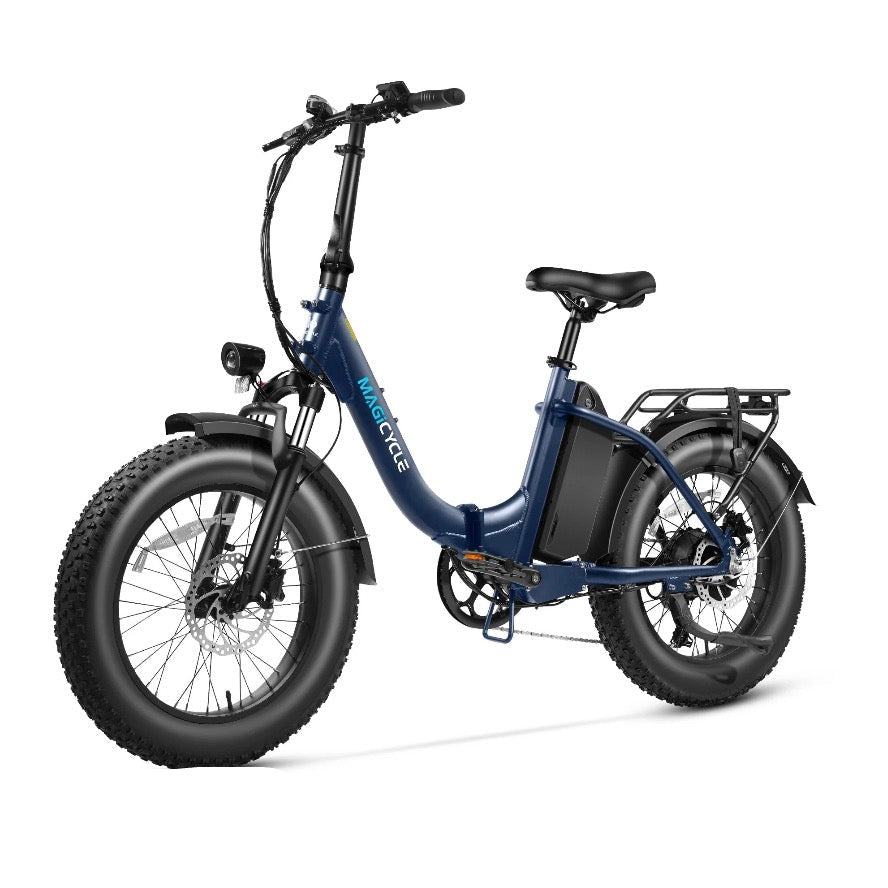

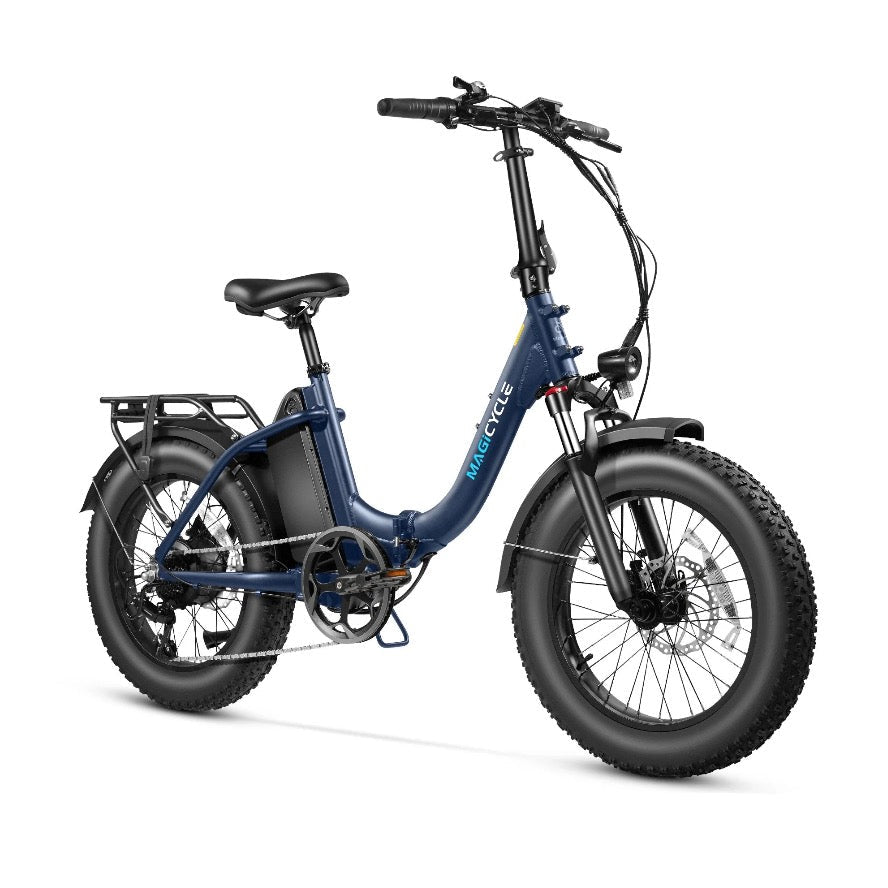

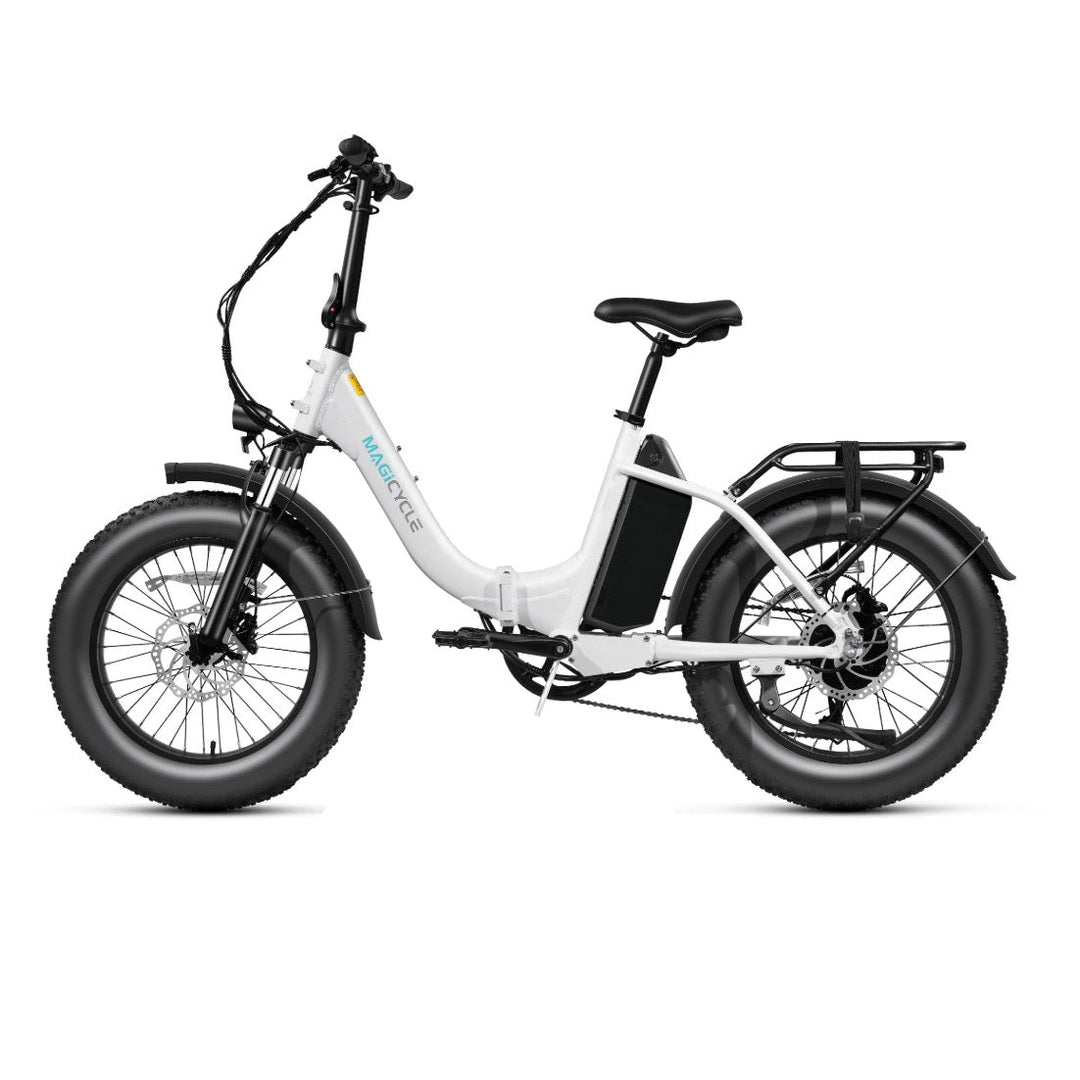

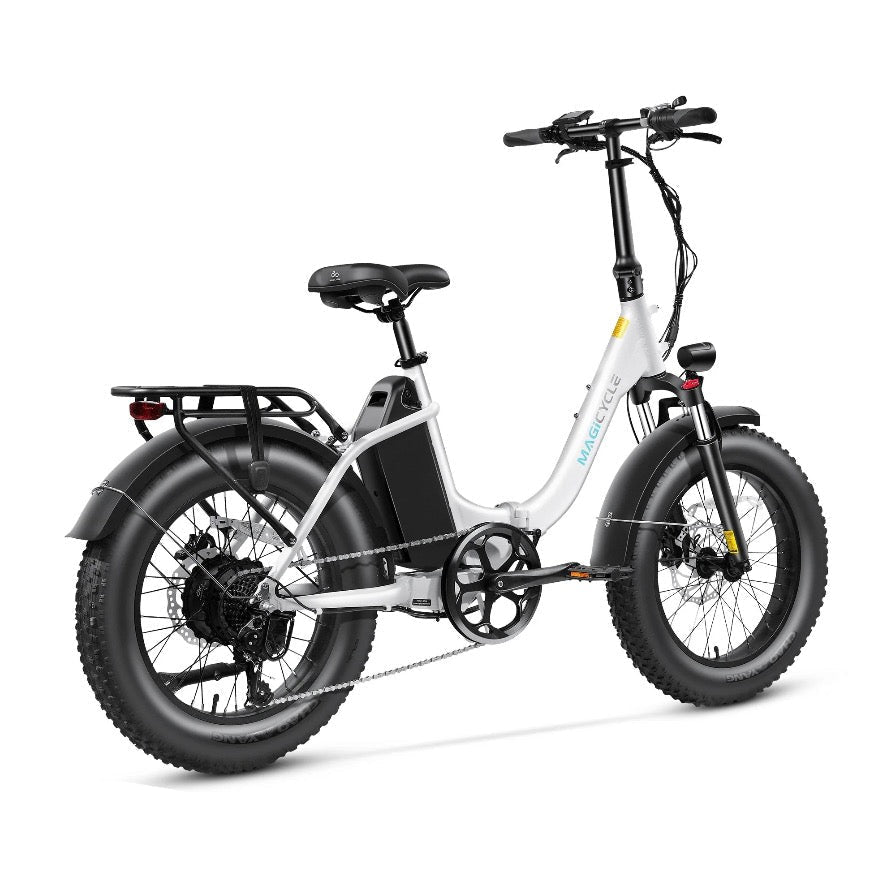

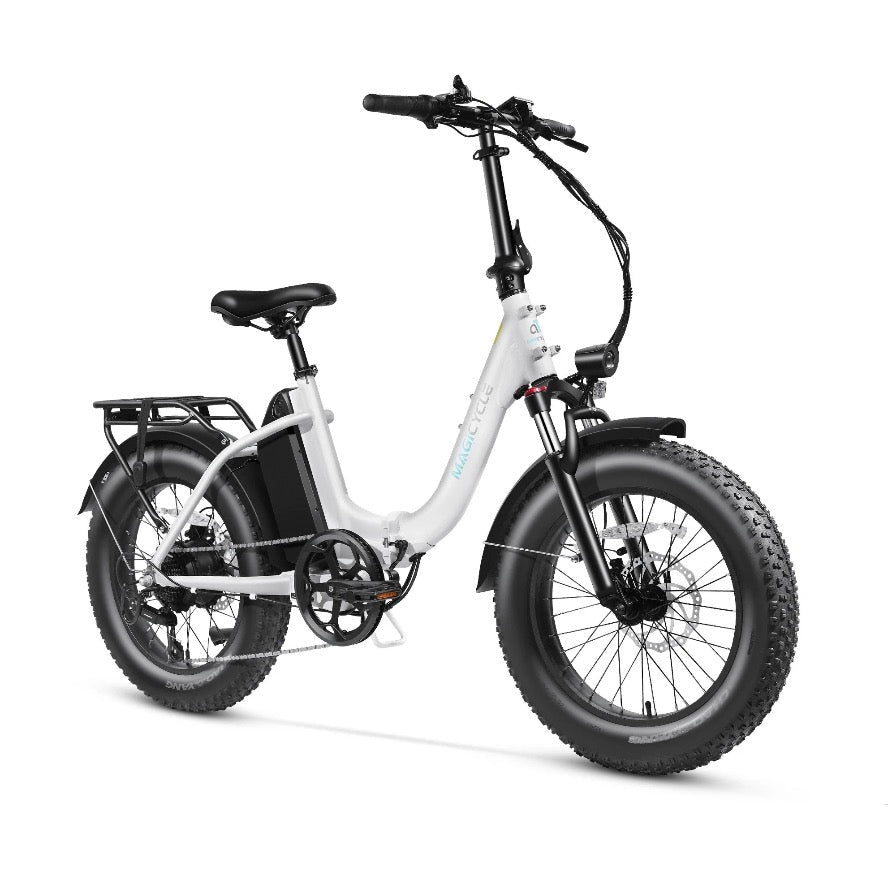

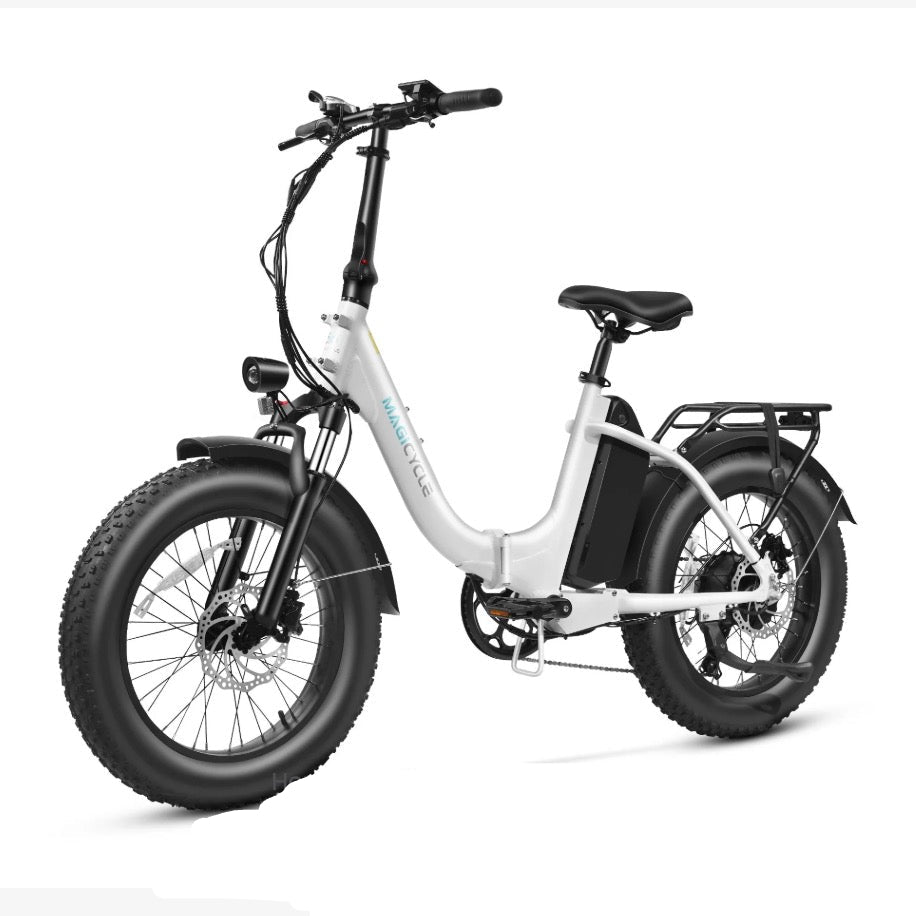

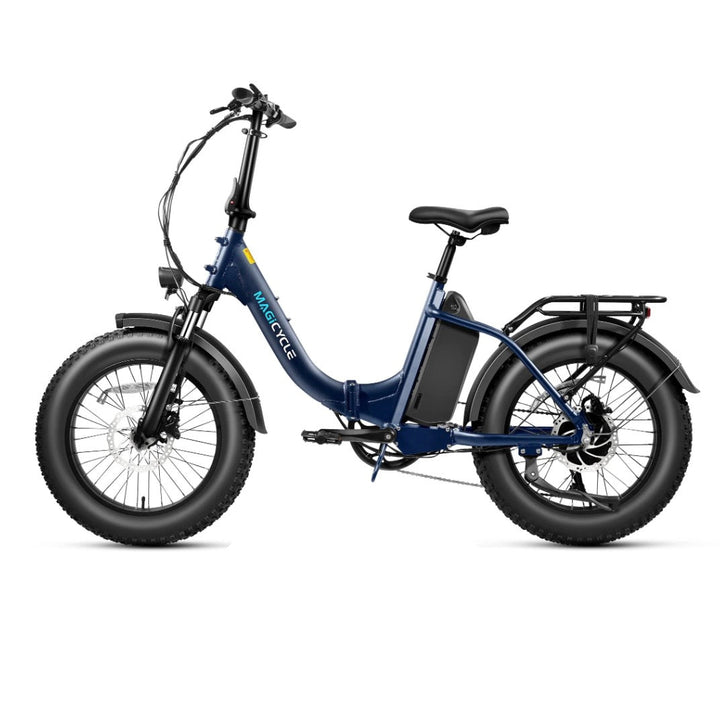

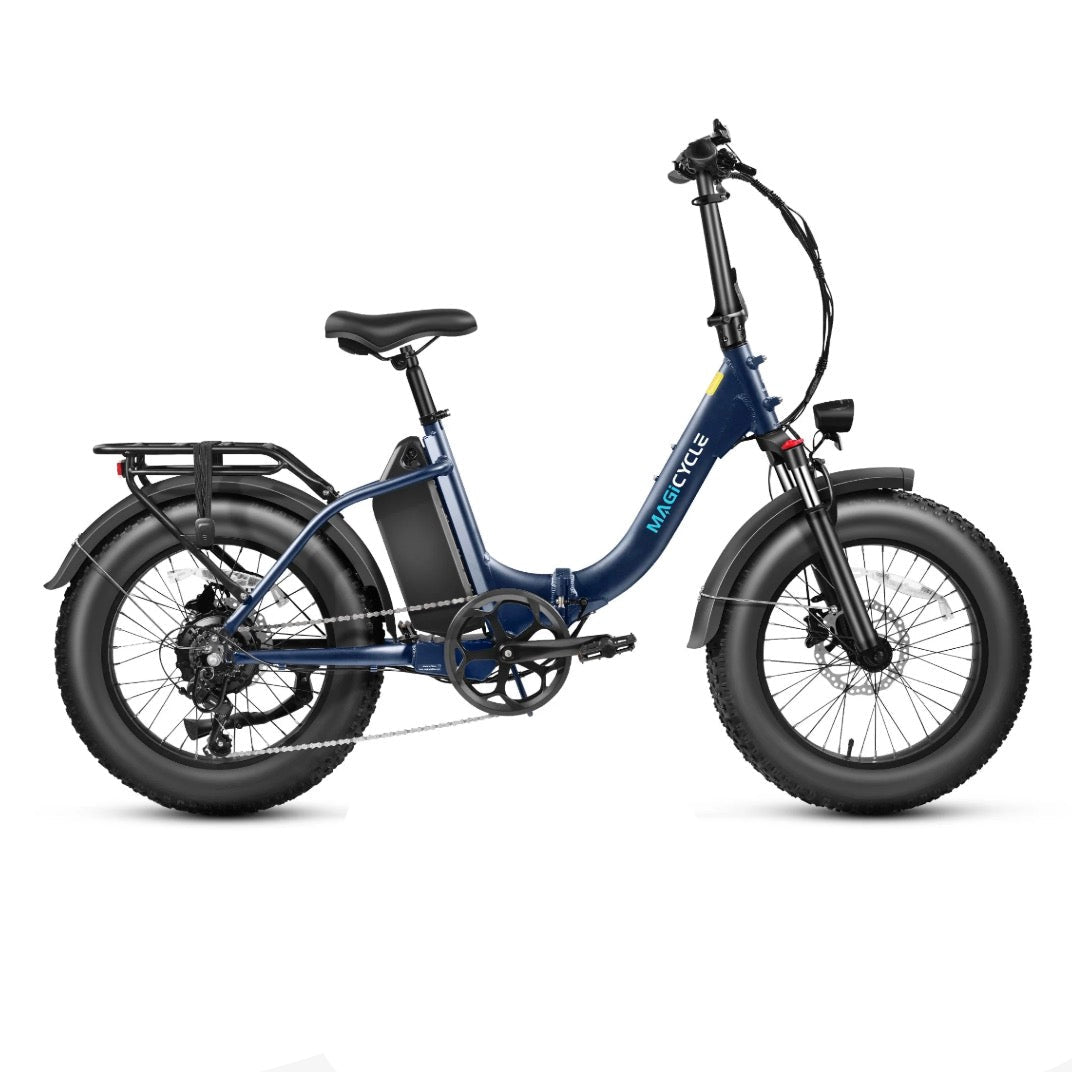

Magicycle Jaguarundi
Overview
What if you can reach every corner with a folding ebike? Magicycle Jaguarundi can not only be folded to save space, but it is always ready for any outdoor activities. Enjoy every trip, every moment with Magicycle Jaguarundi.

52V 15Ah Large- Capacity Lithium Battery
To the End of Your Destination

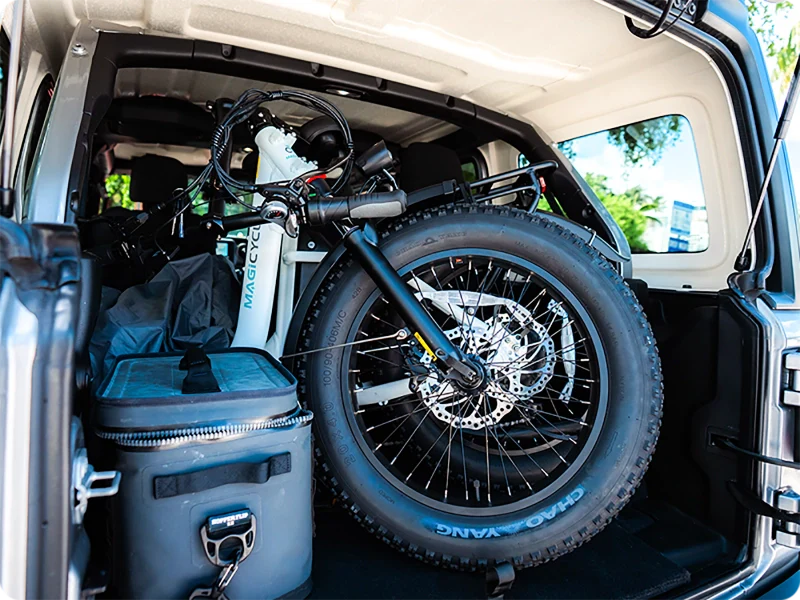

Driving could be a great means of transportation for a long trip, but not only can a car be with you all the way, an Magicycle Jaguarundi can be your lifelong partner as well. Folded in the trunk, unfolded on the road, Jaguarundi is always ready on its way.

Camping Companion

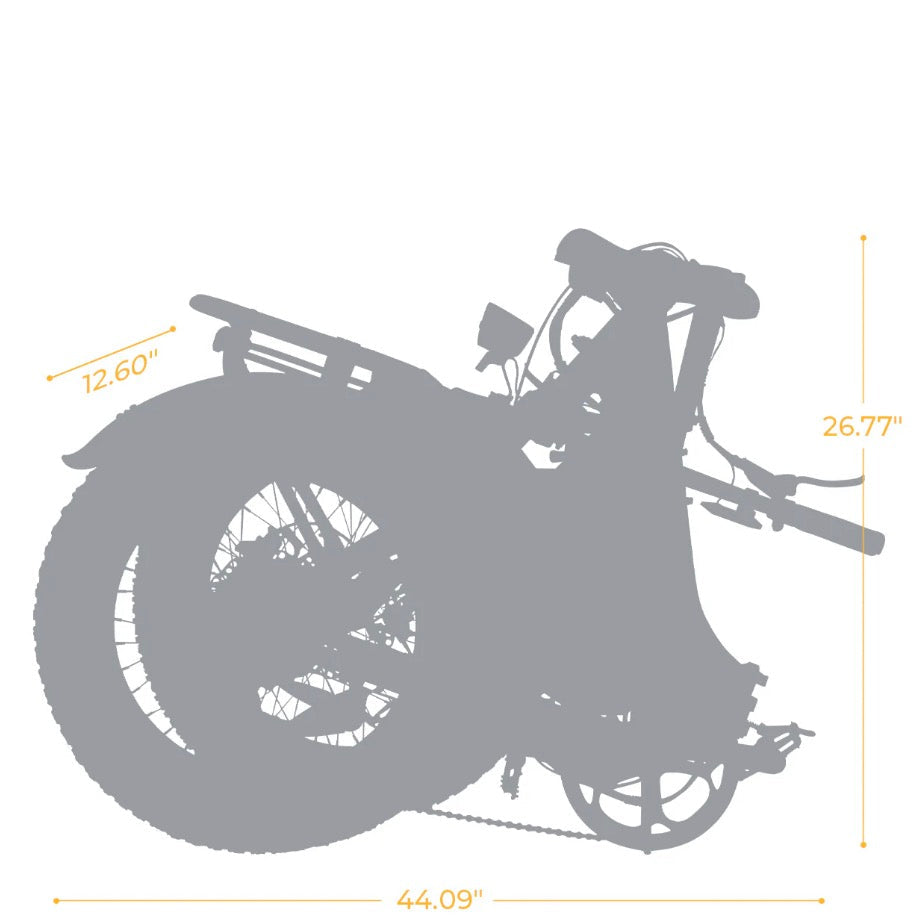

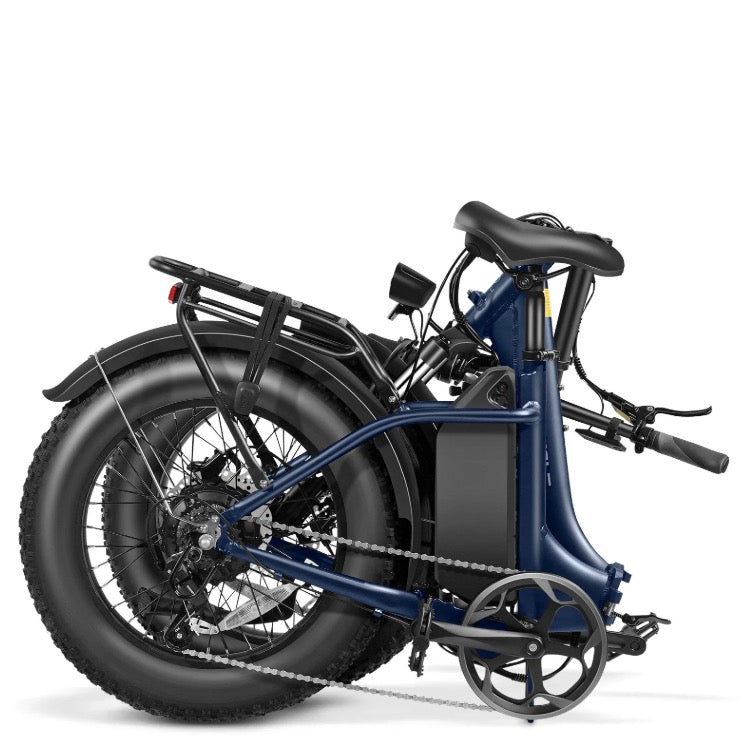

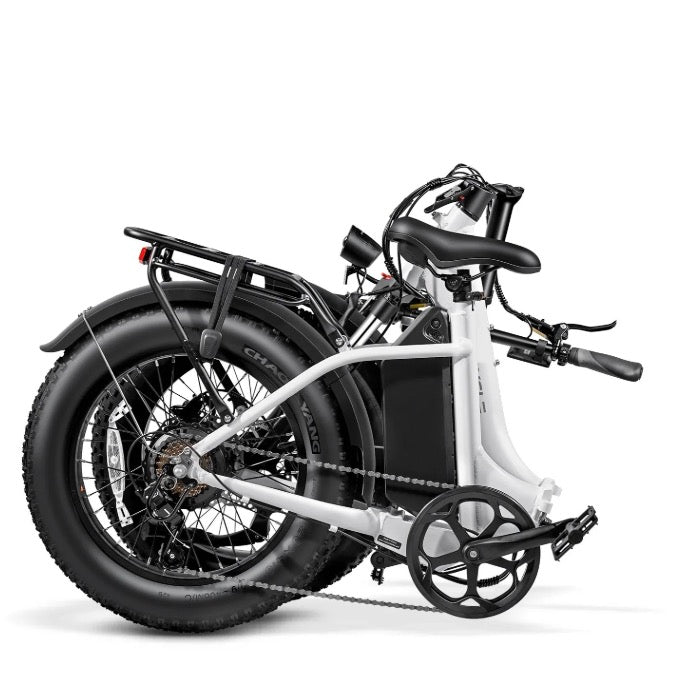

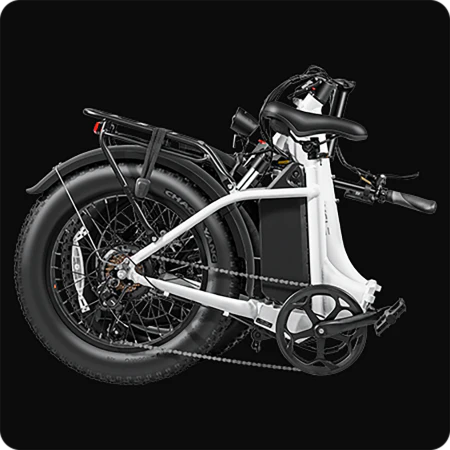

In a trunk or corner, a folded Jaguarundi doesn’t take up too much space while you are camping. Need to buy something but tired of driving a car? then unfold your Jaguarundi Ebike and go for it, even running errands can be fun and happy. Whenever it is, Wherever you are, Fold to Will, Fold as you like.

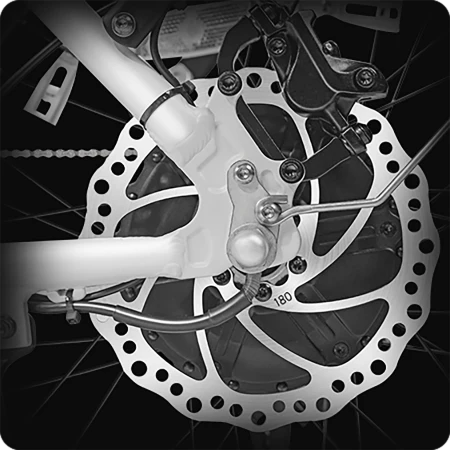

Responsive Hydraulic Disc Brakes
Tech Specs
Specifications
- Battery 52V 15Ah lithium battery
- Charger Short-circuit proof 3.0A fast smart charger
- Range 30-55 miles
- Controller 52V 600W FOC smart controller, Current Range 7-22Ah

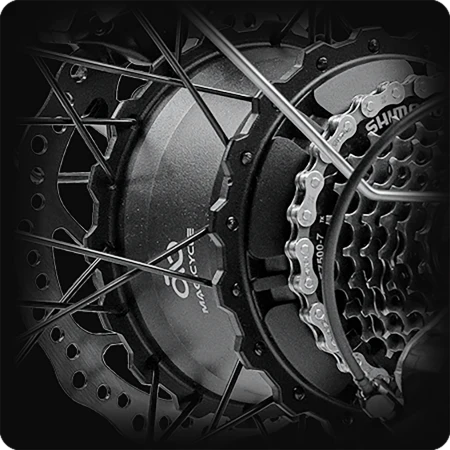

- Hub Motor 600W brushless gear motor

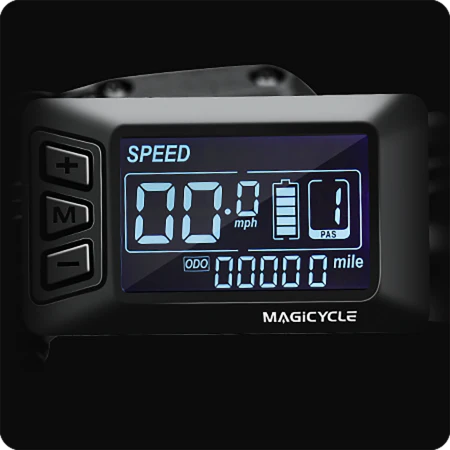

- Display Backlight Display with USB charging
- Total Payload Capacity 350lbs
- Weight 72lbs/32.5kg
- Frame size 18"
- Pedal Assist Intelligent 7-level pedal assist with 12-magnet cadence sensor
Components
- Tires Kenda 20"x4.0"
- Front Fork Alloy Mechanical lockout suspension fork
- Brake Lever Aluminum alloy comfort grip levers with motor cutoff switch
- Throttle Half twist throttle

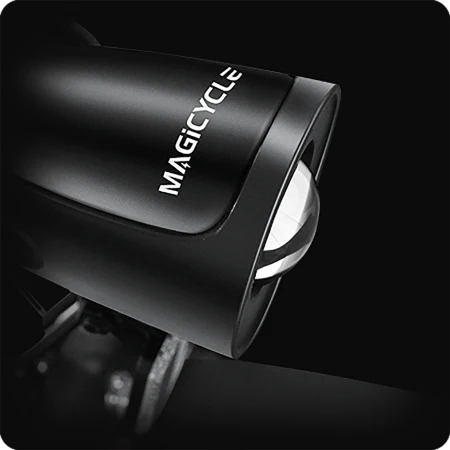

- Lights Integrated front light
- Pedal Wellgo alloy pedal with reflectors
- Freewheel Shimano-14-28T BROWN/BK
- Bike Frame 20" 6061 Aluminum Frame
- Brake 180mm Hydraulic Disc Brakes
- Front Light 6V LED light
- Chain KMC chain
- Saddle Super Soft Cushion
- Stem MA-400 SSABK
- Seat Post Diameter 30.9mm length 300mm
- Crank 48T,170mm forged alloy,dual-sided bashguard
- Kickstand Heavy duty aluminum
- Gearing Shimano 7 speed gear shift system
- Spokes 13 Gauge on the front / 12 Gauge on the back
Geometry
-
A -- Total Length 70.50"
- B -- Handlebar Height 45.30"
- C -- Wheelbase 47.64"
- D -- Chain Stay Length 20.47"
- E -- Wheel Diameter 22.83"
- H -- Maximum Seat to Ground Height 39.37"
- I -- Minimum Seat to Ground Height 32.28"
- J -- Maximum Seat to Pedal Length 37.40"
- K -- Minimum Seat to Pedal Length 30.31"
- L -- Standover Height 15.75"
