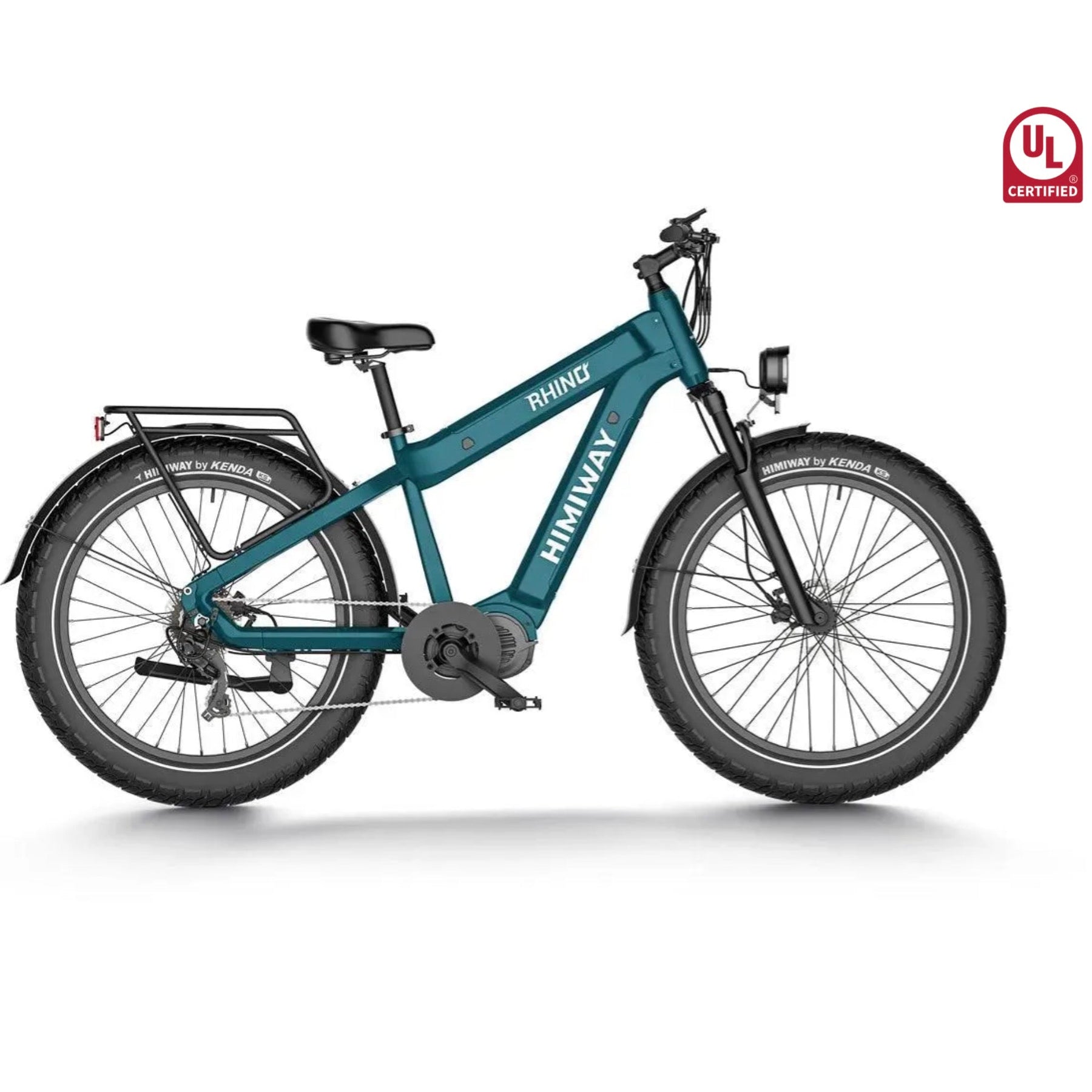

Himiway Rhino..Dual The Limits

• Power through any terrains with Rhino
• Your passport to unforgettable adventures
• The longest range performance in the U.S.

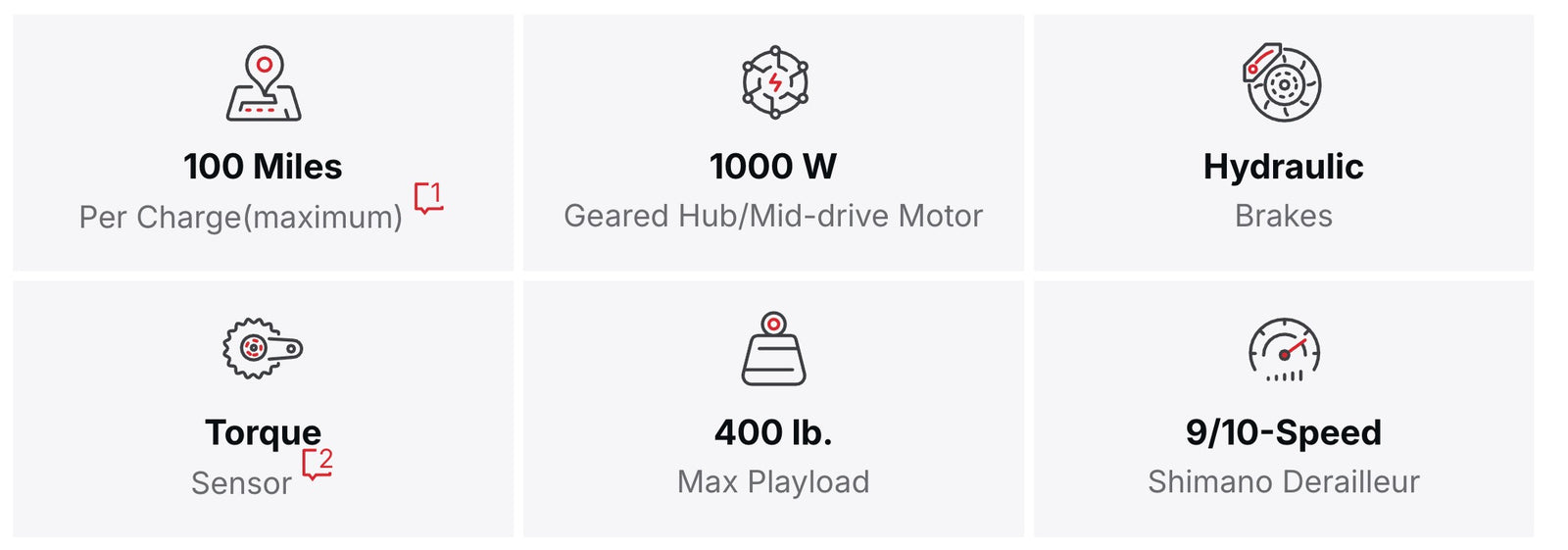

1000W

Geared Hub Motor

48V 15Ah*2

Samsung/LG Battery

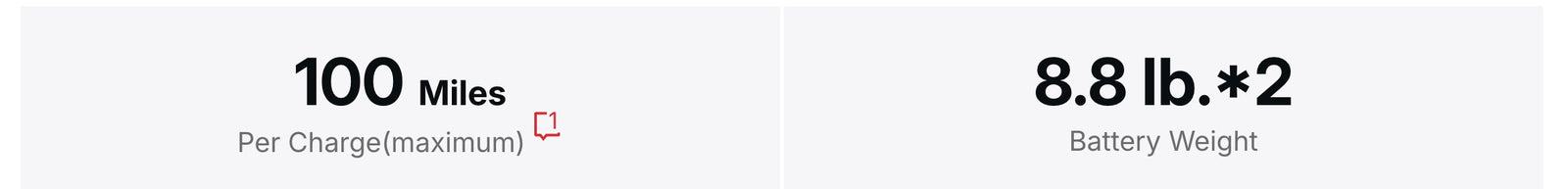

100 Miles

Miles per Charge (estimate)

Max 28 MPH

Pedal Assist

330 lb.

Payload Capacity

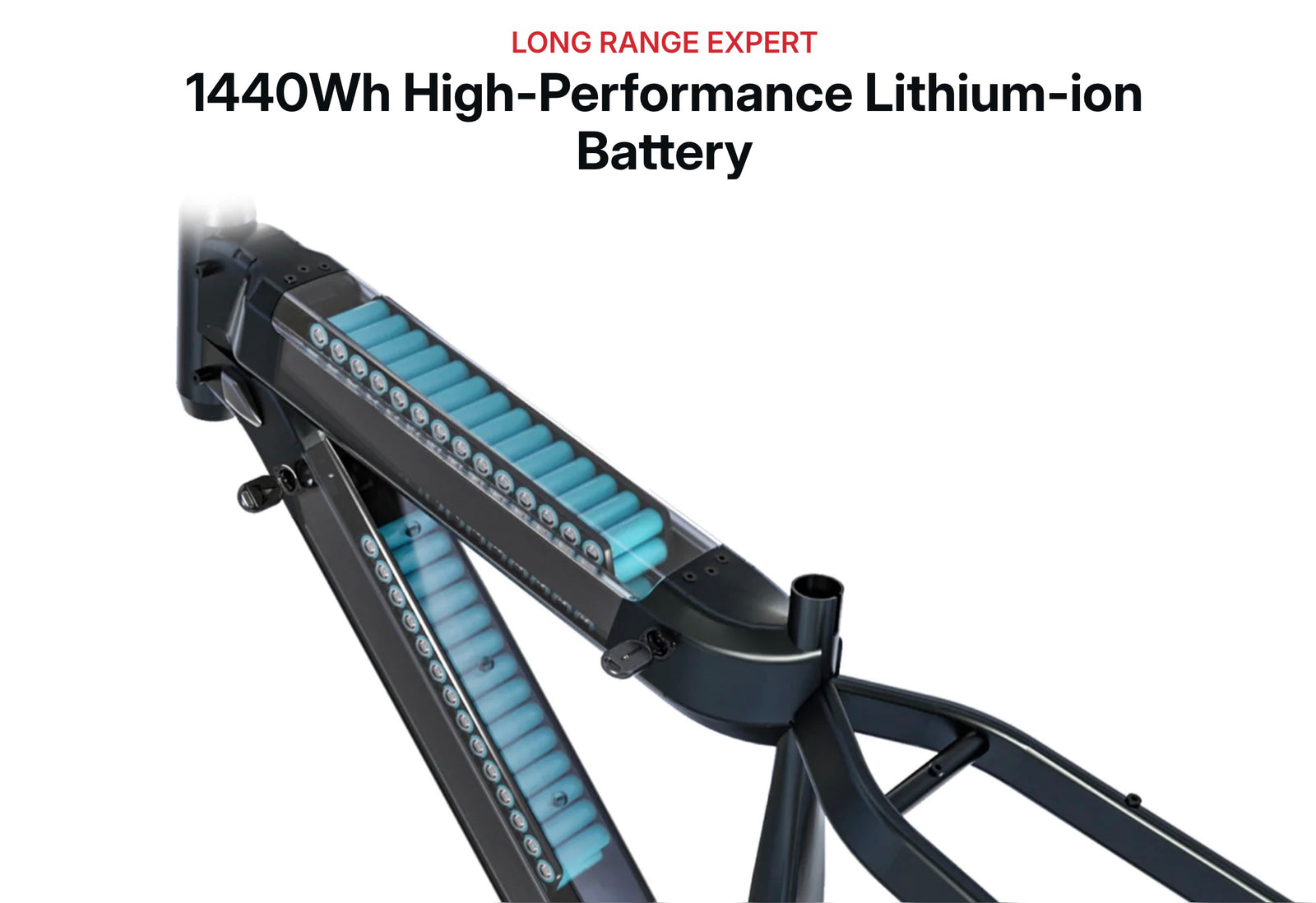

The Longest Range Performance in The U.S.

With two batteries totalling 1,440Wh, you can now easily extend the range and power of your biking journey, making it your exclusive solution to the long and longer range. Two batteries can be charged at the same time, and equipped with two chargers, only takes 5 hours to fully charge.

Experience the Ultimate Ride on Latest KENDA X HIMIWAY Fat Tires

Experience the ultimate thrill of adventure and freedom with our latest ebike 26" x 4.5" fat tires - the perfect combination of power and versatility. With its rugged and durable design, you can conquer any terrain with ease.

Rhino

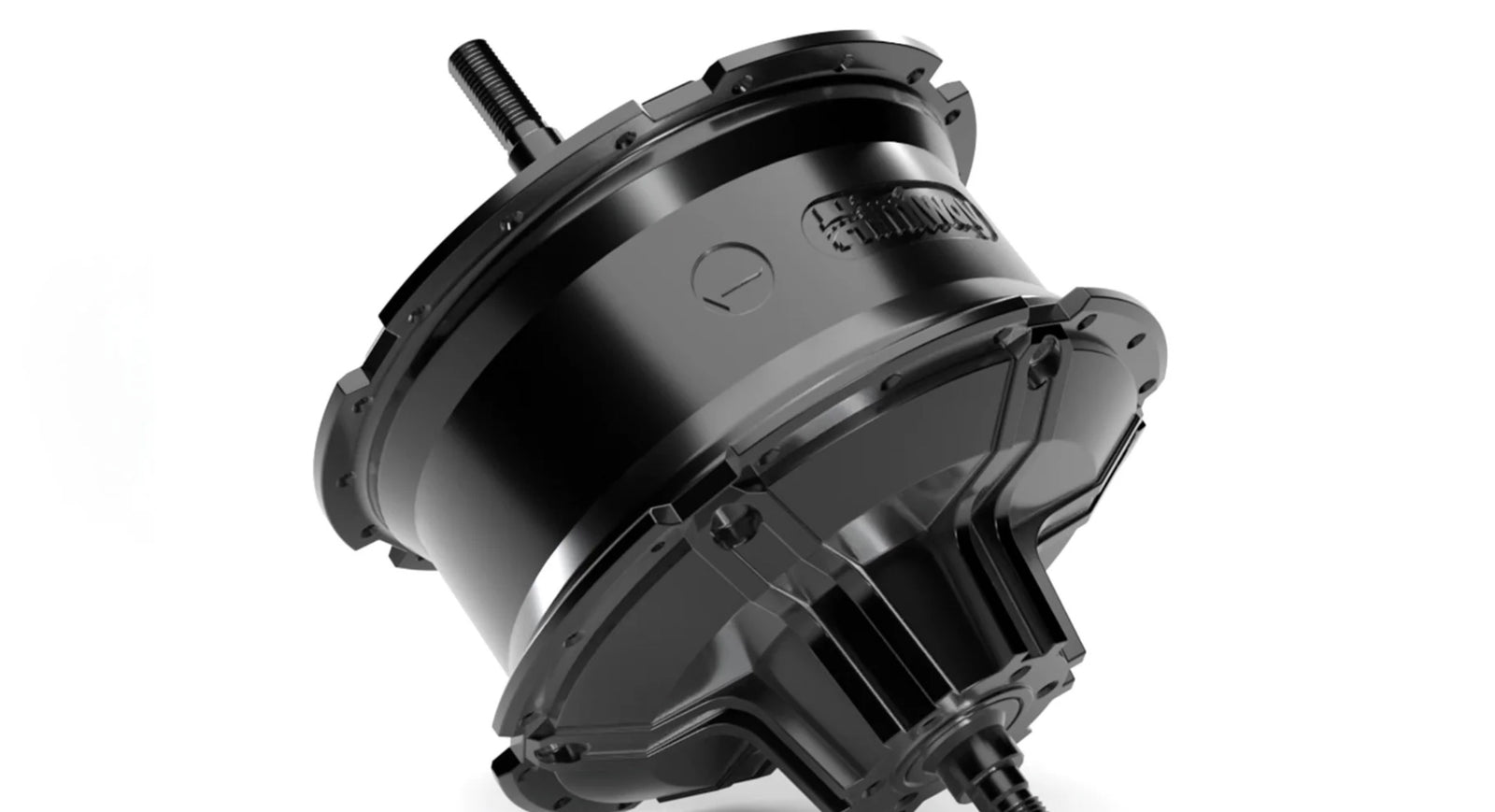

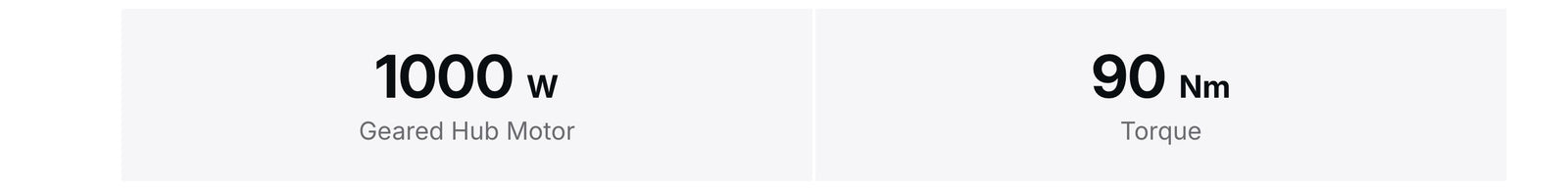

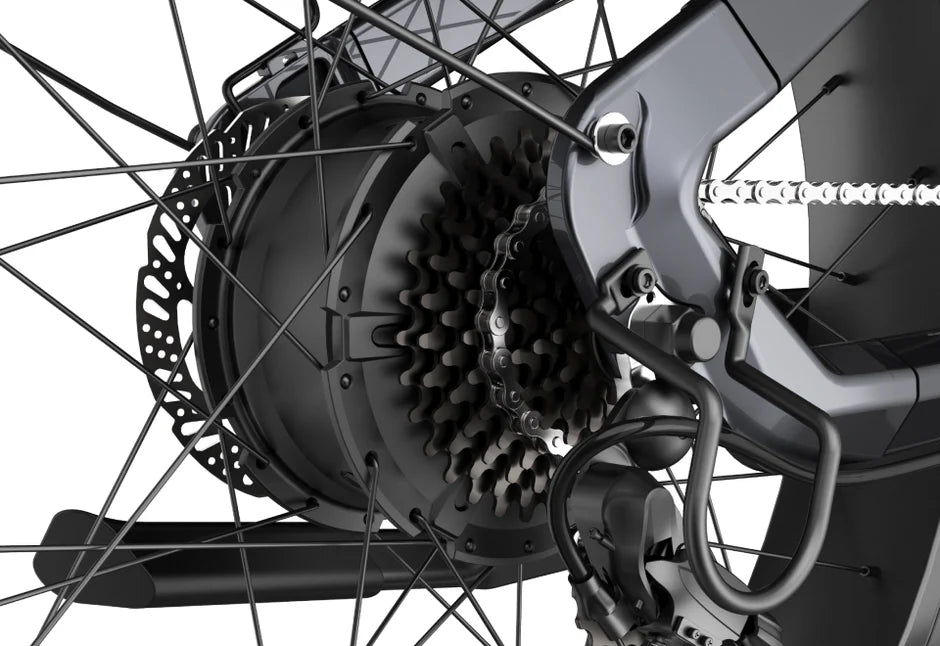

Brushless Geared Hub Motor

Rhino with a 1000W hub motor provides more power, extended range, improved speed, better towing capacity, enhanced durability. It is the best choice for off-road, mountain, outdoor, long-distance travel.

Rhino Pro

Brushless Geared Mid-Drive Motor

Mid-drive motor makes Rhino Pro more efficient when climbing hills or navigating rough terrain, and are also more responsive and provide a more natural-feeling ride than hub motors.

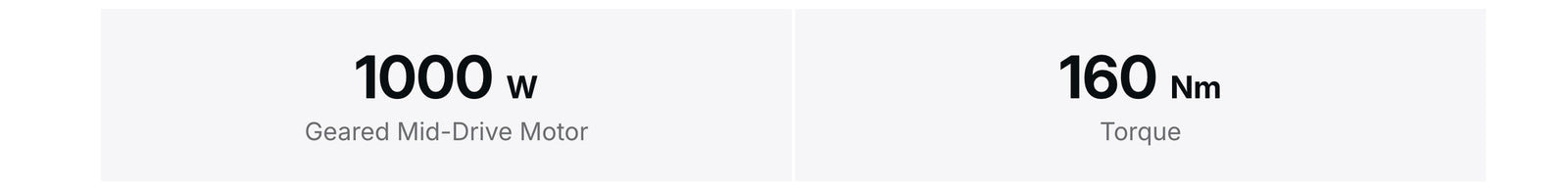

Geared Mid-Drive Motor1000W

Torque160 Nm

Rhino

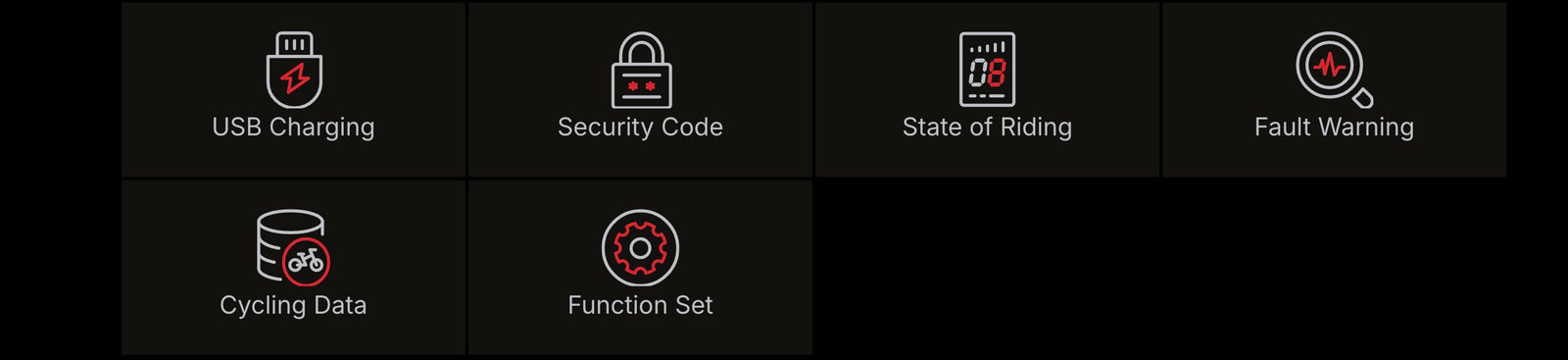

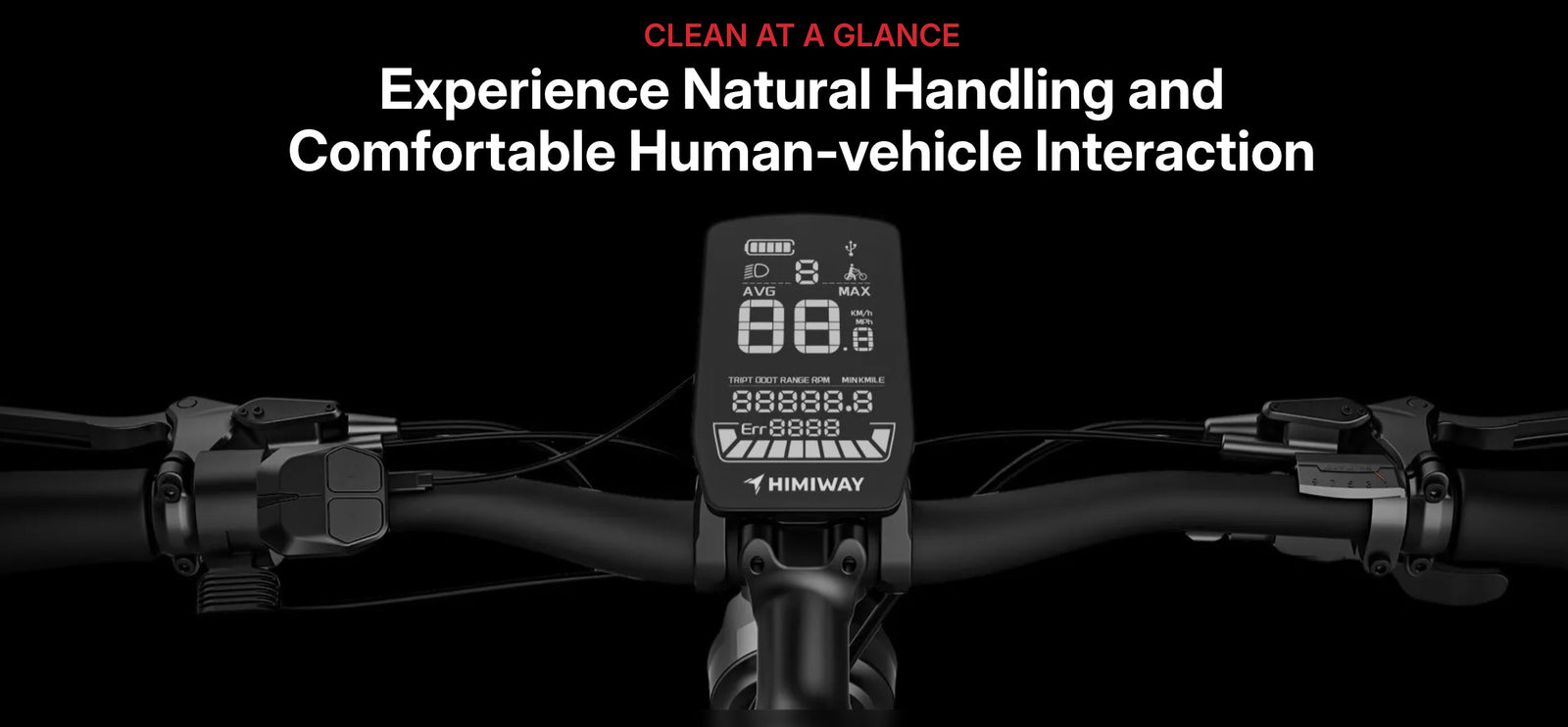

Upgraded Smart LCD Display for Rhino

This LCD display is made of stable motherboard, beautiful, upgraded waterproof, wear-resistant, high temperature and low temperature resistanceand can record a variety of riding data. New features added: new automatic headlights can be turned on (can be set on or off through the instrument)

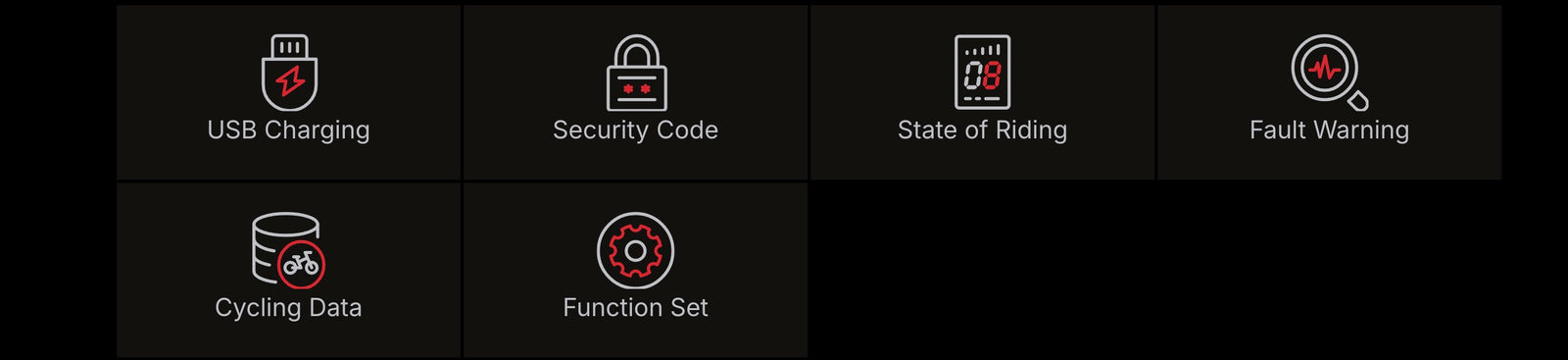

USB Charging

Fault Warning

State of Riding

Cycling Data

Function Set

Rhino Pro

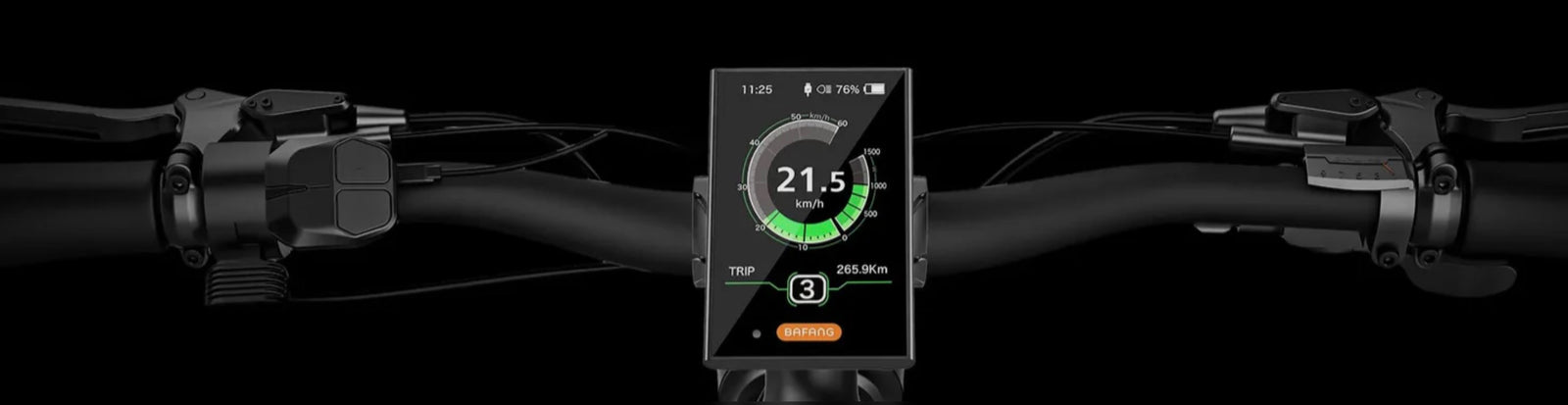

The Highest-End Display for Rhino Pro

Enhance your ebike experience with a brilliant burst of color on our state-of-the-art display. Our colorful display not only adds a touch of excitement to your ride, but also provides you with all the information you need to make the most of your journey.

USB Charging

Fault Warning

State of Riding

Cycling Data

Function Set

 Tech Specs

Specifications

• Battery Dual 48V 15Ah LG lithium battery
• Range 100 miles
• Hub Motor 1000W brushless gear motor/1000w bafang mid drive motor
• Total Payload Capacity 330lbs
• Recommended rider heights 5'3" ~ 6'4"

• Charger Dual US standard 3.0 A smart charger
• Controller 48V/25A
• Display LCD display with USB charging
• Weight 97 lbs
• Pedal Assist Intelligent 0~5 level pedal assist

Components

• Tires 26" x 4.5" Kenda×Himiway fat tires
• Brake Lever Aluminum alloy comfort grip levers with motor cutoff switch
• Rear Light Integrated taillight
• Freewheel Shimano 9 speed gear shift system for Rhino and 10 for pro

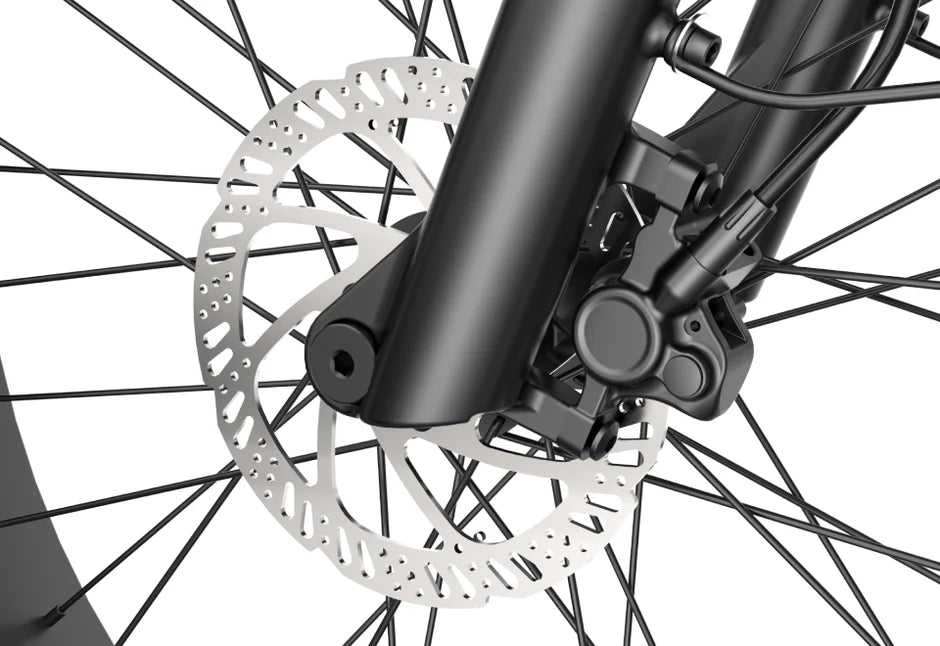

• Brake 180MM hydraulic disc brakes
• Chain KMC chain
• Stem Zoom-28.6*60*31.8mm
• Crank 170mm forged alloy
• Gearing Shimano-13-32T(Rhino)/ 11-34T(Pro)BROWN/BK/

• Front Fork Alloy front suspension fork with lockout and adjustment
• Throttle Thumb throttle
• Pedal Alloy pedal with reflectors
• Bike Frame Upgraded 6061 aluminum
• Front Light 48V LED light
• Saddle SR saddle
• Seat Post φ30.9*300mm alloy seatpost
• Kickstand Heavy duty aluminum
• Spokes 12 gauge

Geometry

•
  A -- Total Length 78.7"
• B -- Handlebar Height 43.8"
• C -- Wheelbase 48.9"
• D -- Minimum Seat Height 34.6"
• E -- Maximum Seat Height 42.1"
• F -- Chain Stay Length 122L
• G -- Standover Height 32.0"
• H -- Top Tube Length 21.9"
• I -- Wheel Diameter 29.8"
• J -- Head Tube Length 7.9"
• K -- Handlebar Length 27.6"

* Himiway has the right without notice to the consumer to substitute components of at least equal quality for advertised Himiway ebike components in the event of the unavailability of such advertised components
