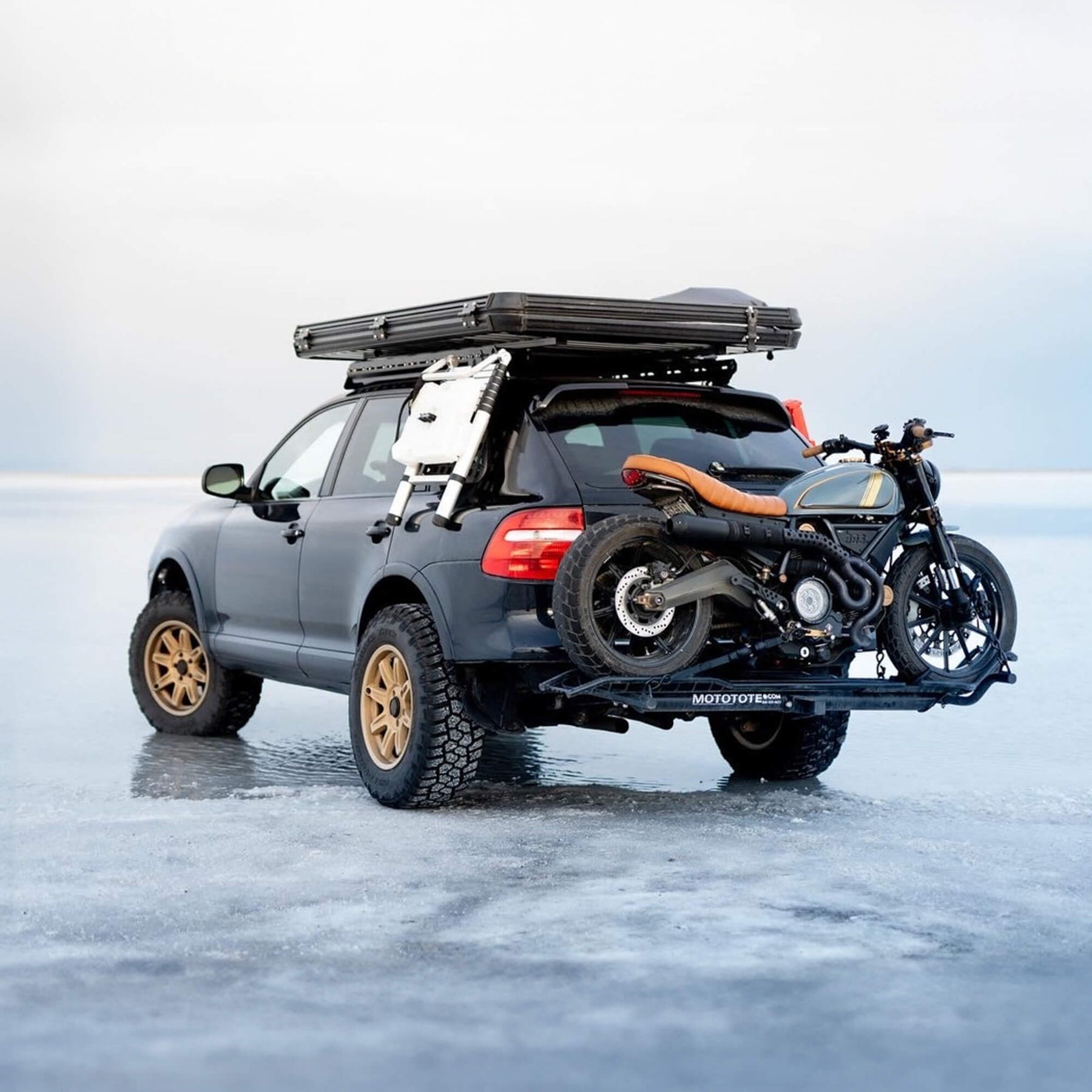

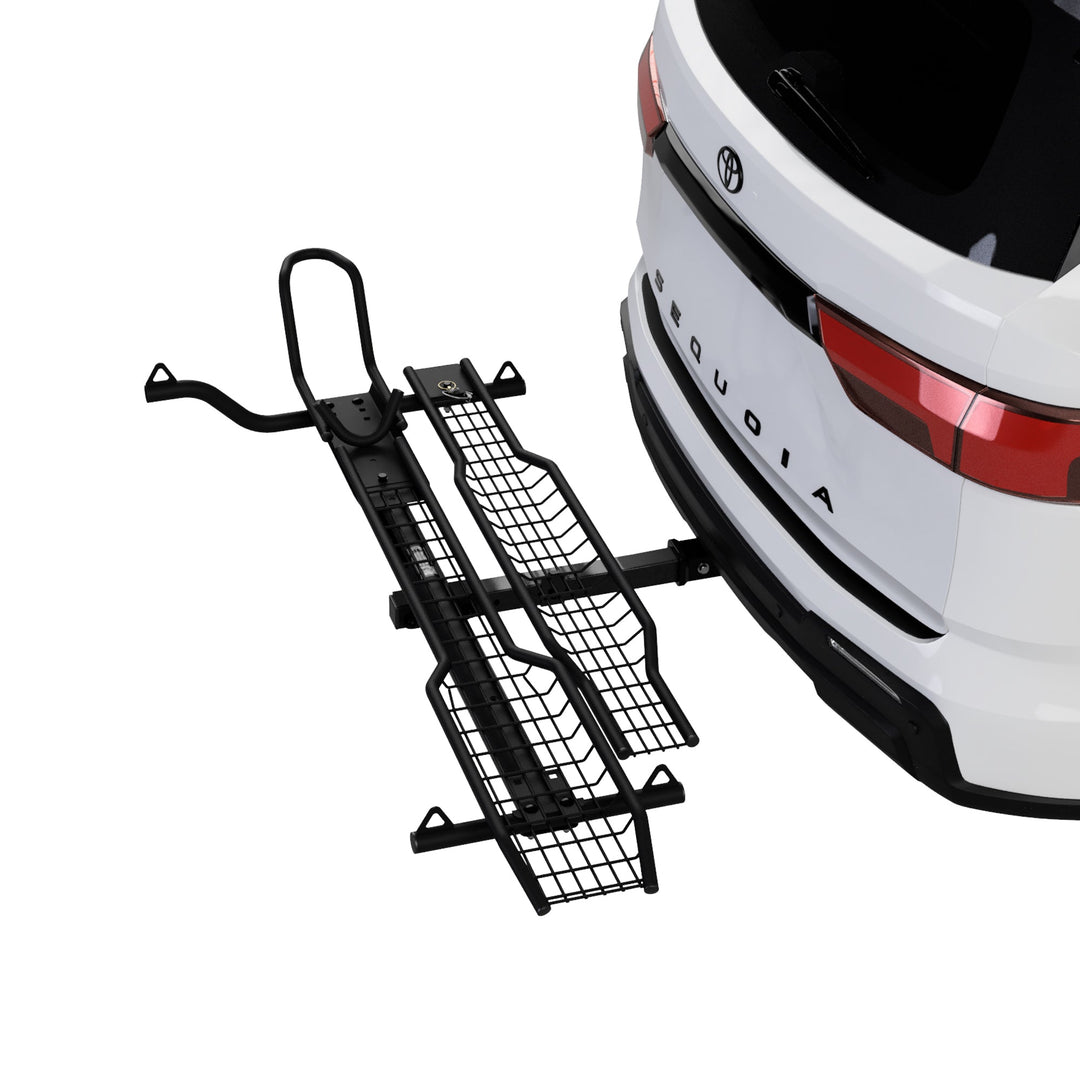

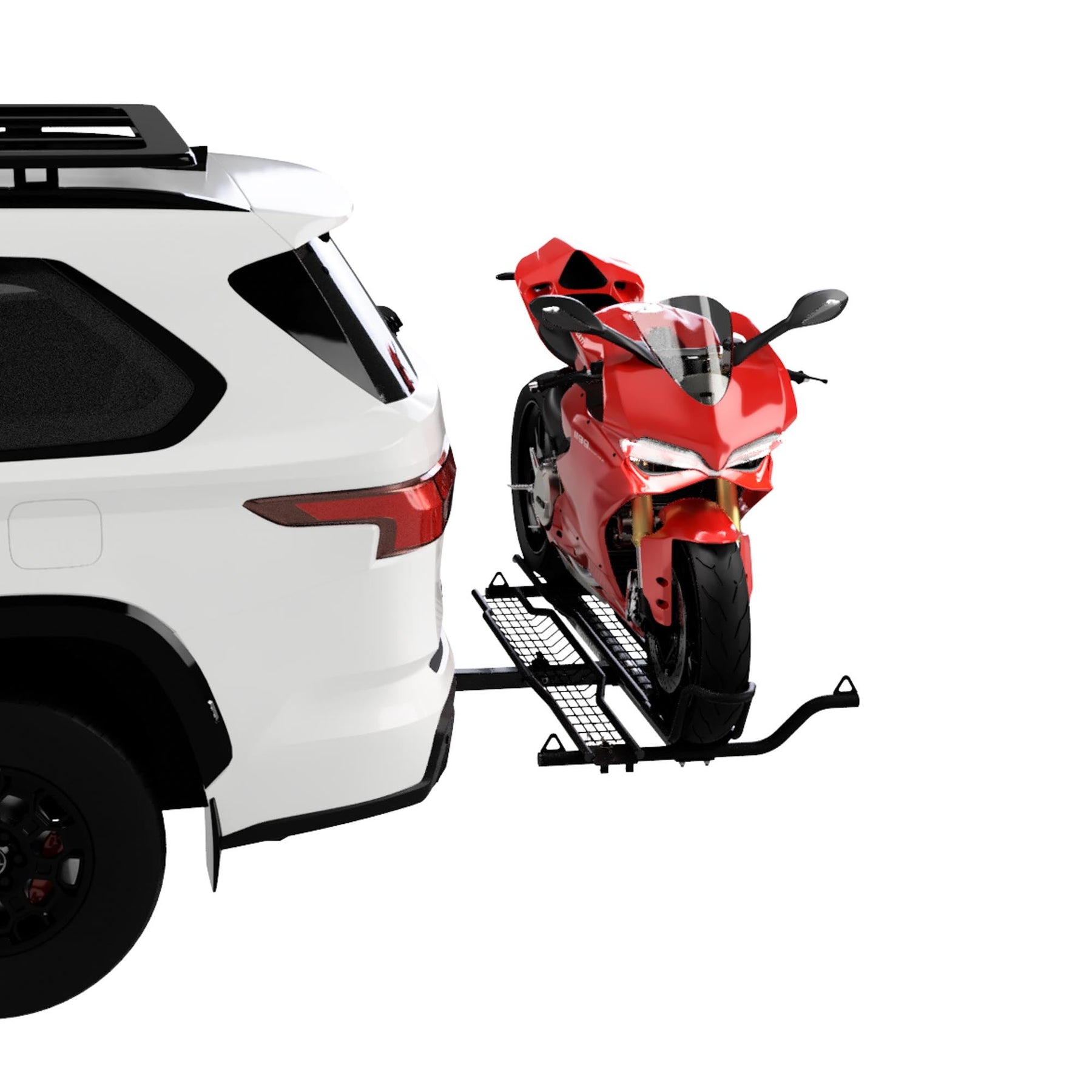

MotoTote Sport Motorcycle Hitch Carrier
Trusted motorcycle carrier for bikes up to 600 lbs.; sport bikes, scramblers, & dual sports.

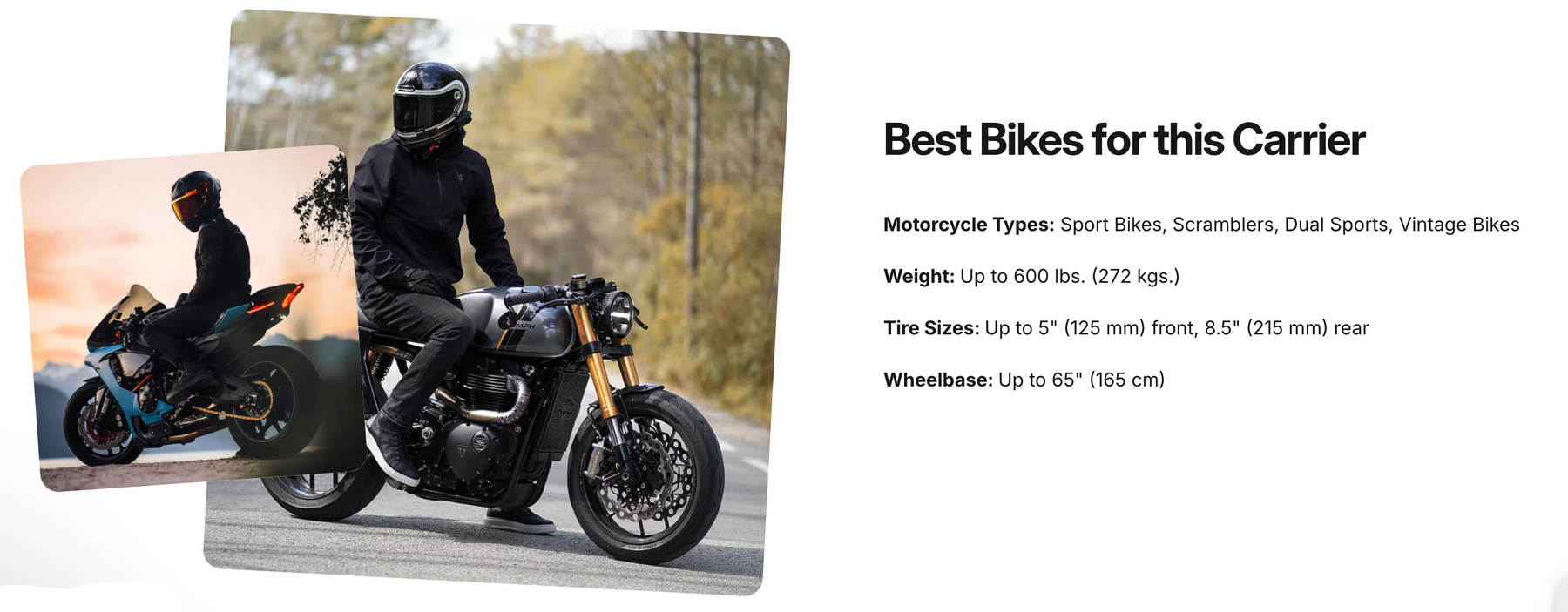

Motorcycle Compatibility
Motorcycle Types: Dirt Bikes, Scooters, Vintage Bikes
Weight Capacity: Up to 600 lbs. (272 kgs.)
Outer Track: 250 lbs. (133 kgs.) Maximum
Tire Sizes: Up to 4.75" (120 mm) Front, 6" (152 mm) Rear
Wheelbases: Up to 65" (165 cm)
MotoTote Sport Motorcycle Carrier - Walkthrough & Testimonial |
|
Dimensions
Wheelbase: Up to 65” (165 cm)
Front Wheel Chock Width: 5” (125 mm.)
Tire Track Width: 8.5" (215 mm)
Track Distance from Vehicle: Adjustable at 16”, 18” or 20”
Total Length: 74” - 80” (188 cm - 203 cm)
Loading Ramp Length: 56” L (142 cm.)
Front Tie Down Width: 29” (73.5 cm)
Rear Tie Down Width: 18.5” (47 cm)
Loading Ramp Slope: v17 ° (On Average)
Weight
Weight Capacity: 600 lbs. (272 kgs.)
Carrier Weight: 60 lbs. (27 kgs.)
Material
Material: Powder Coated Steel
Finish: Textured Black Powder Coating
Hardware: Black Zinc Coated
Assembly
Straightforward by design. Assembly usually takes 30–60 minutes, depending on proficiency, and requires only a few basic tools. Click here for step-by-step instructions.
Product Features

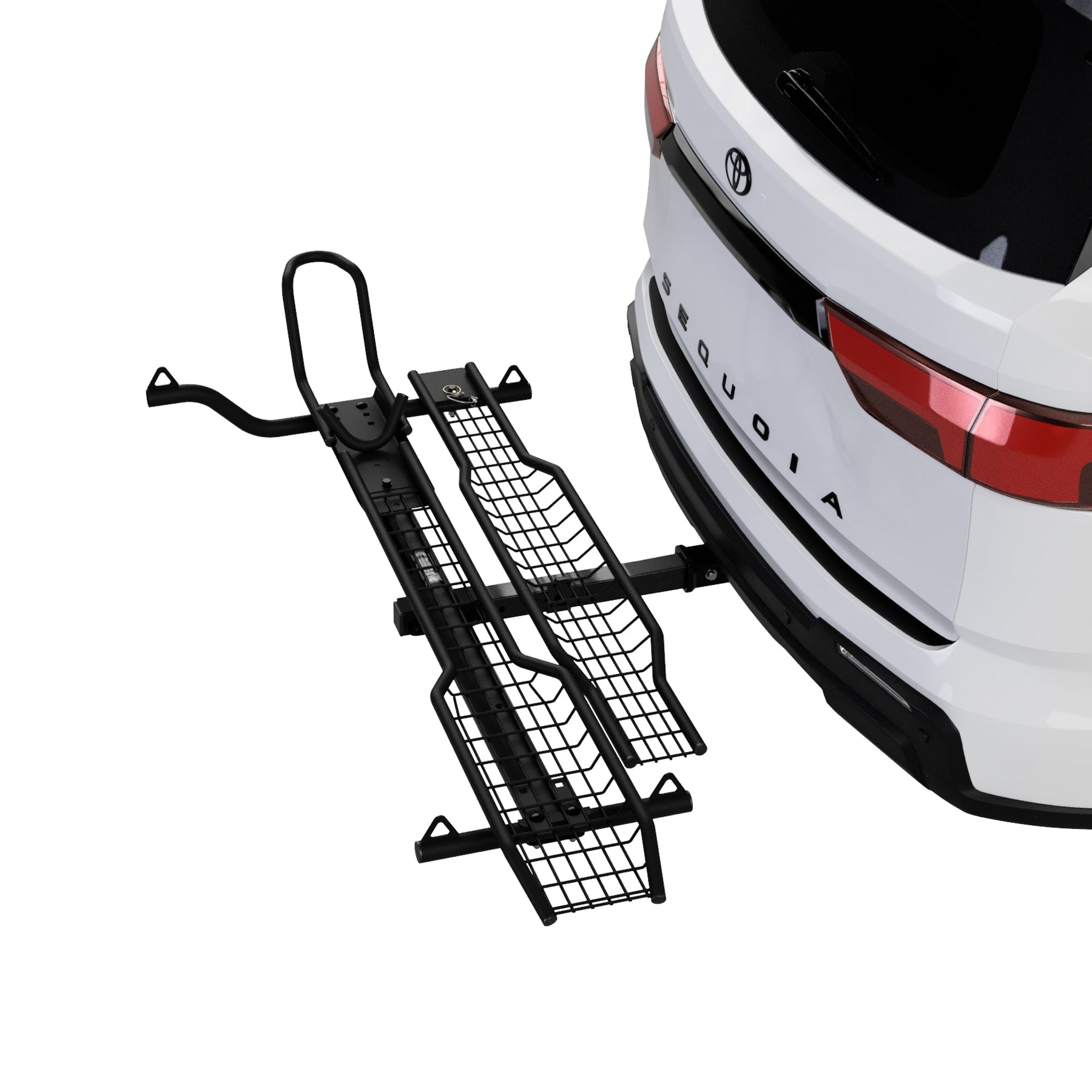

HitchLift Receiver Tube: Innovative 2" receiver tube counteracts common vehicle hitch droop with a slight upward bend, ensuring that the rack is angled correctly from the back of the vehicle. Provides additional ground clearance, attachment of ramp and distance from vehicle adjustability.

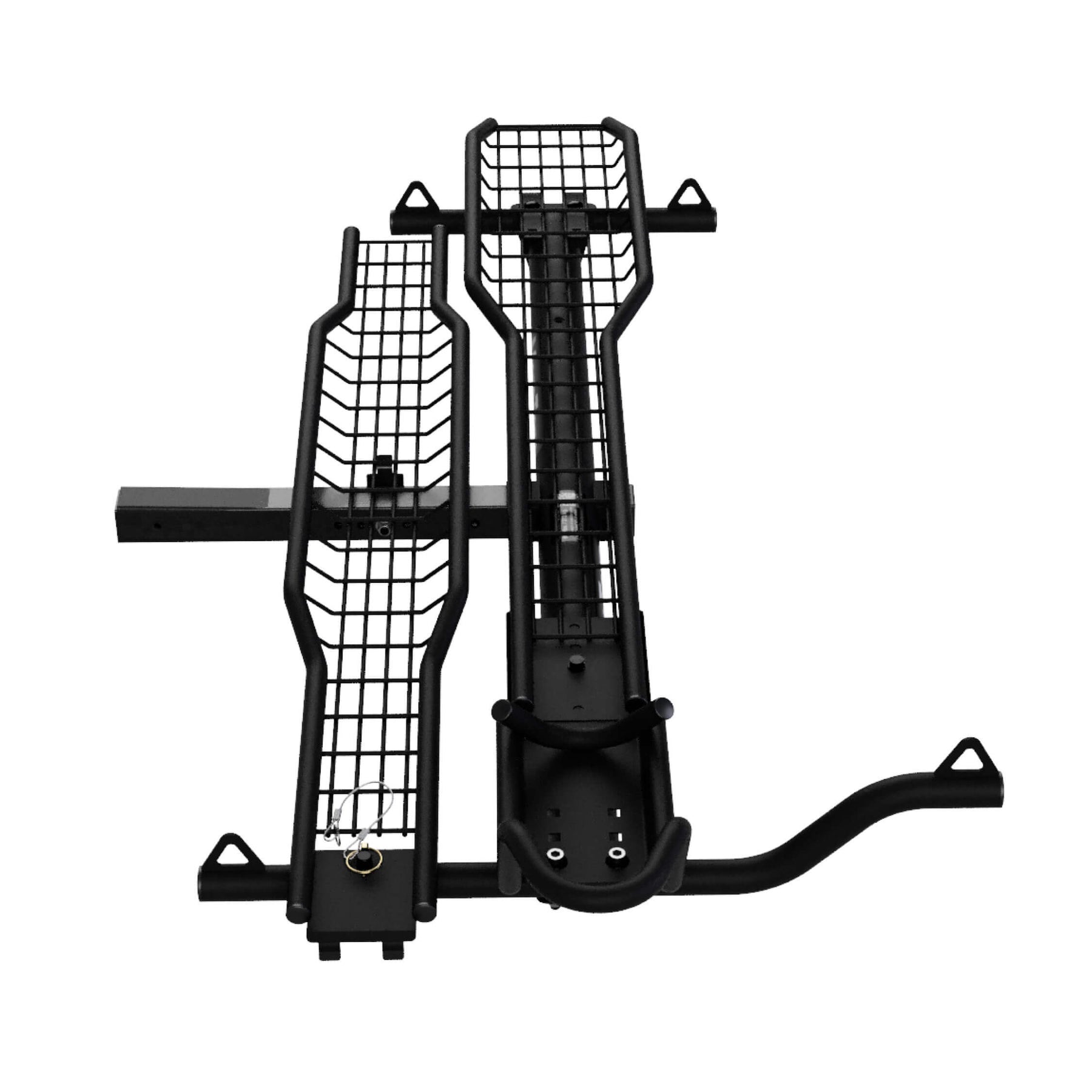

MTX Platform: Heavy-duty steel main support connects to the receiver tube, hauls up to 600 lbs. (272 kgs.), supports chock, track, and orientation adjustability alongside the attachment of innovative components.

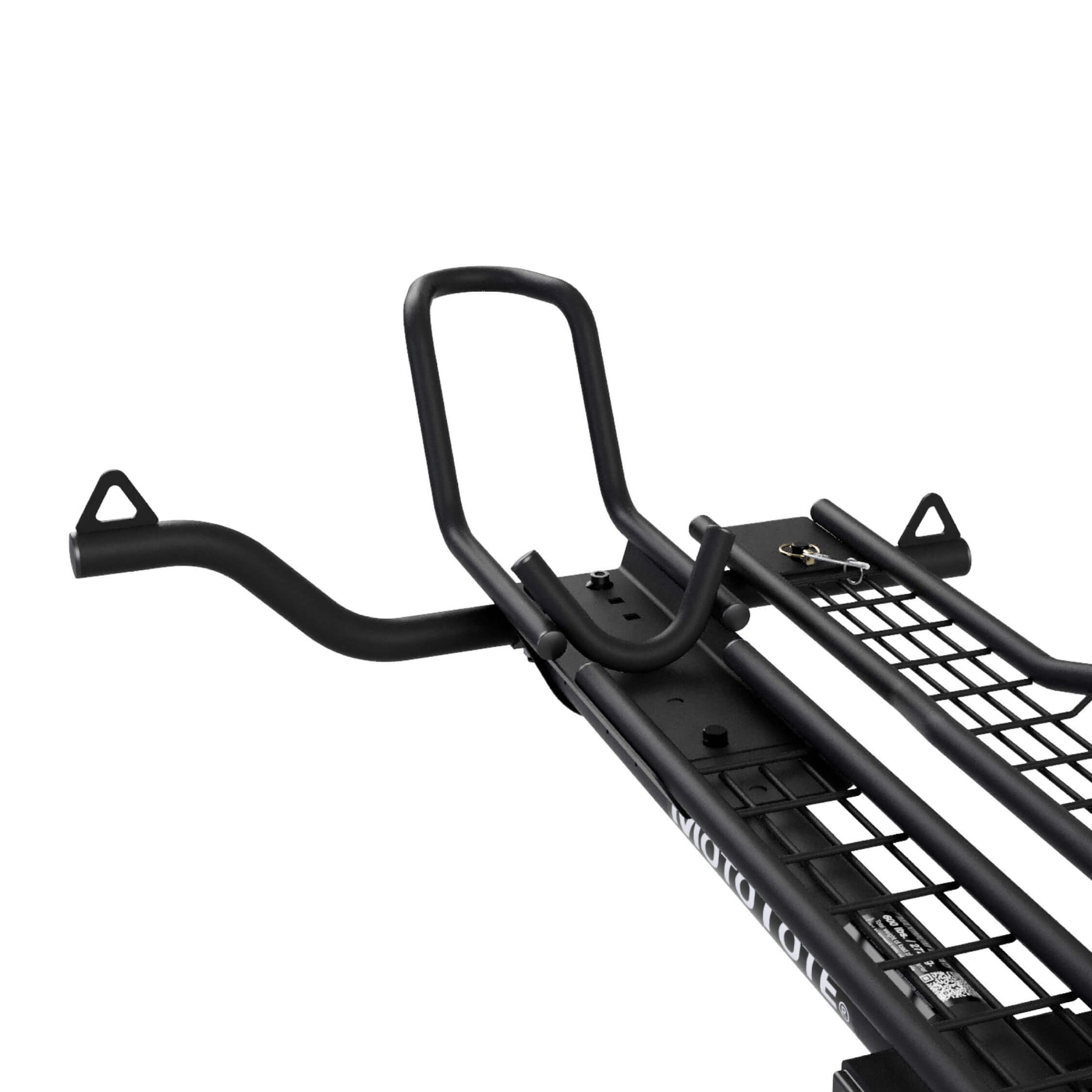

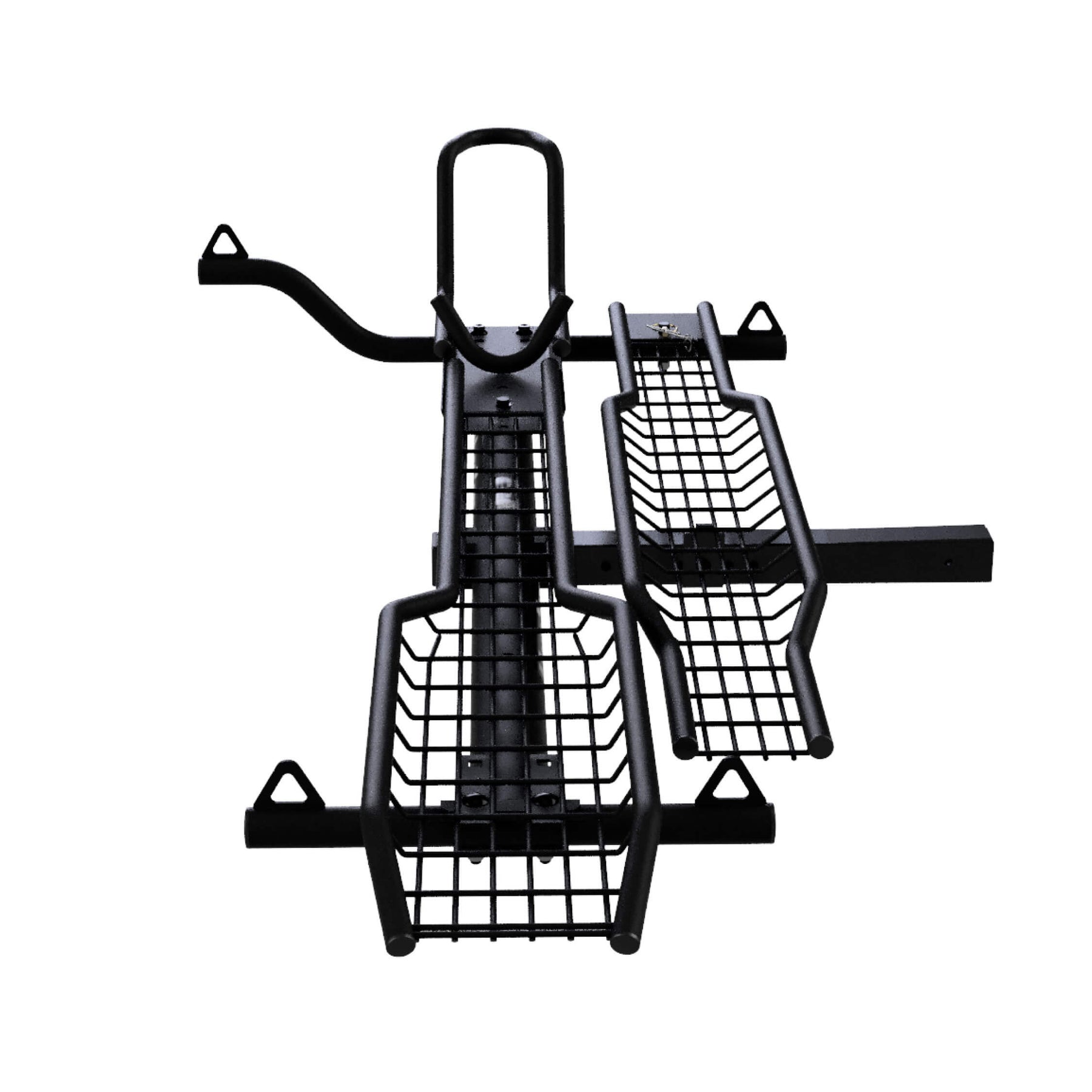

StableStop Chock Wide: One piece tire mount locks front tires up to 5" (125 mm) wide into chock, maximizes support, and and helps balance the bike upright while securing tie-downs.

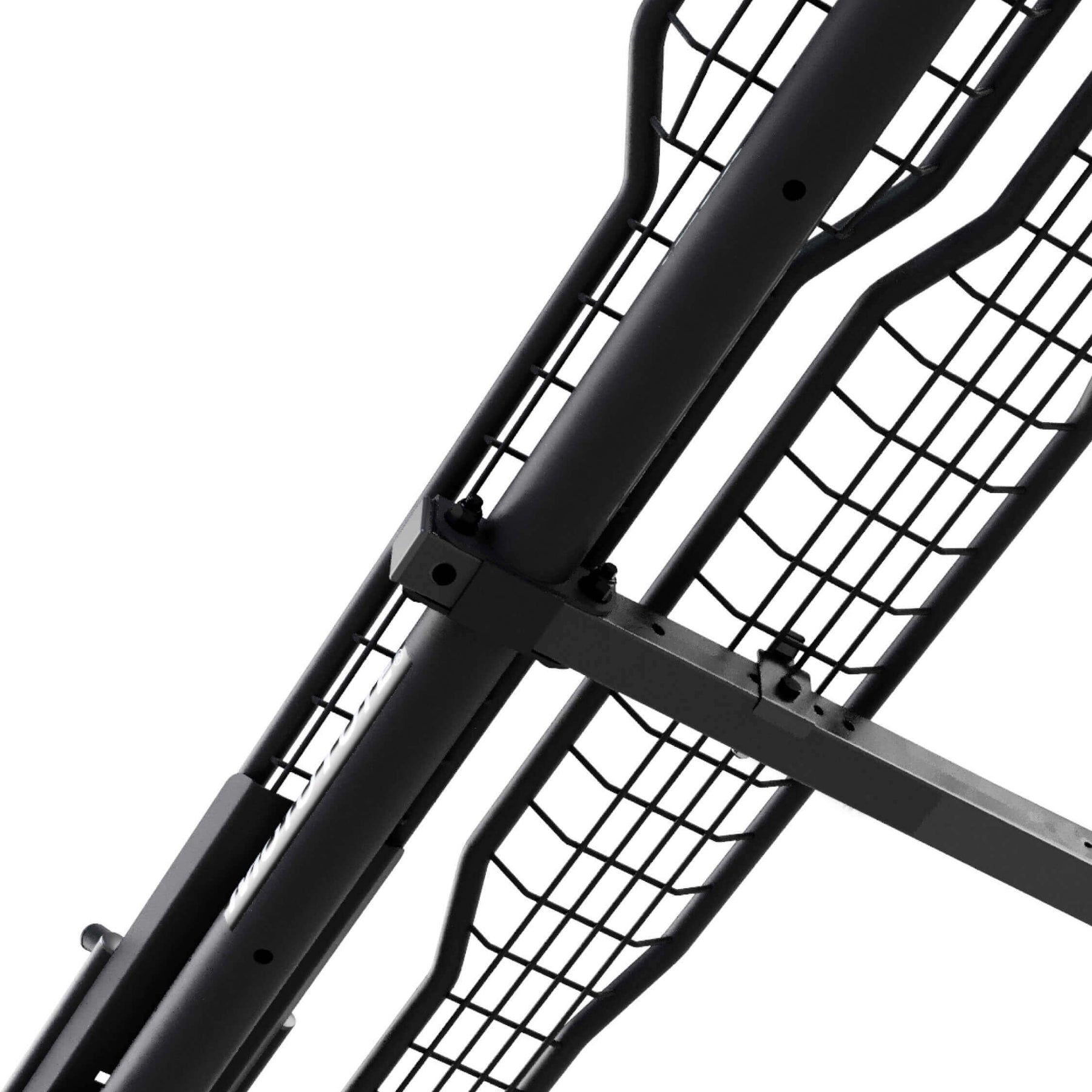

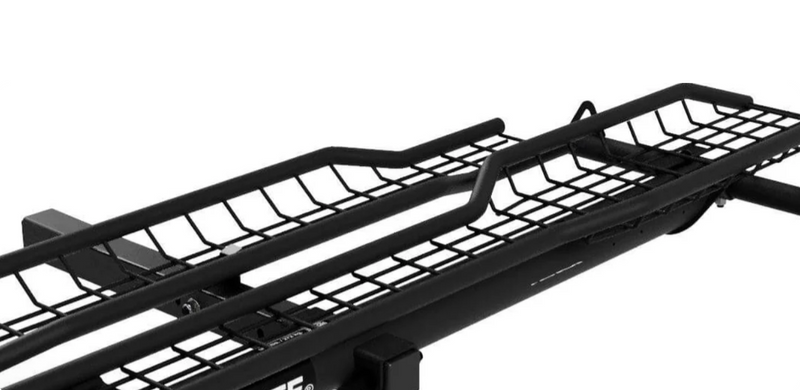

WebGrip Track: Woven steel track reduces carrier weight, secures rear tires up to 8.5" (215 mm) and accommodates up to a 65" (165 cm) wheelbase.

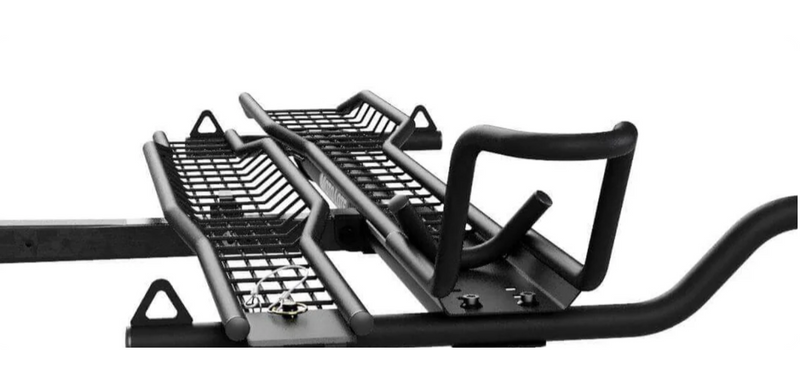

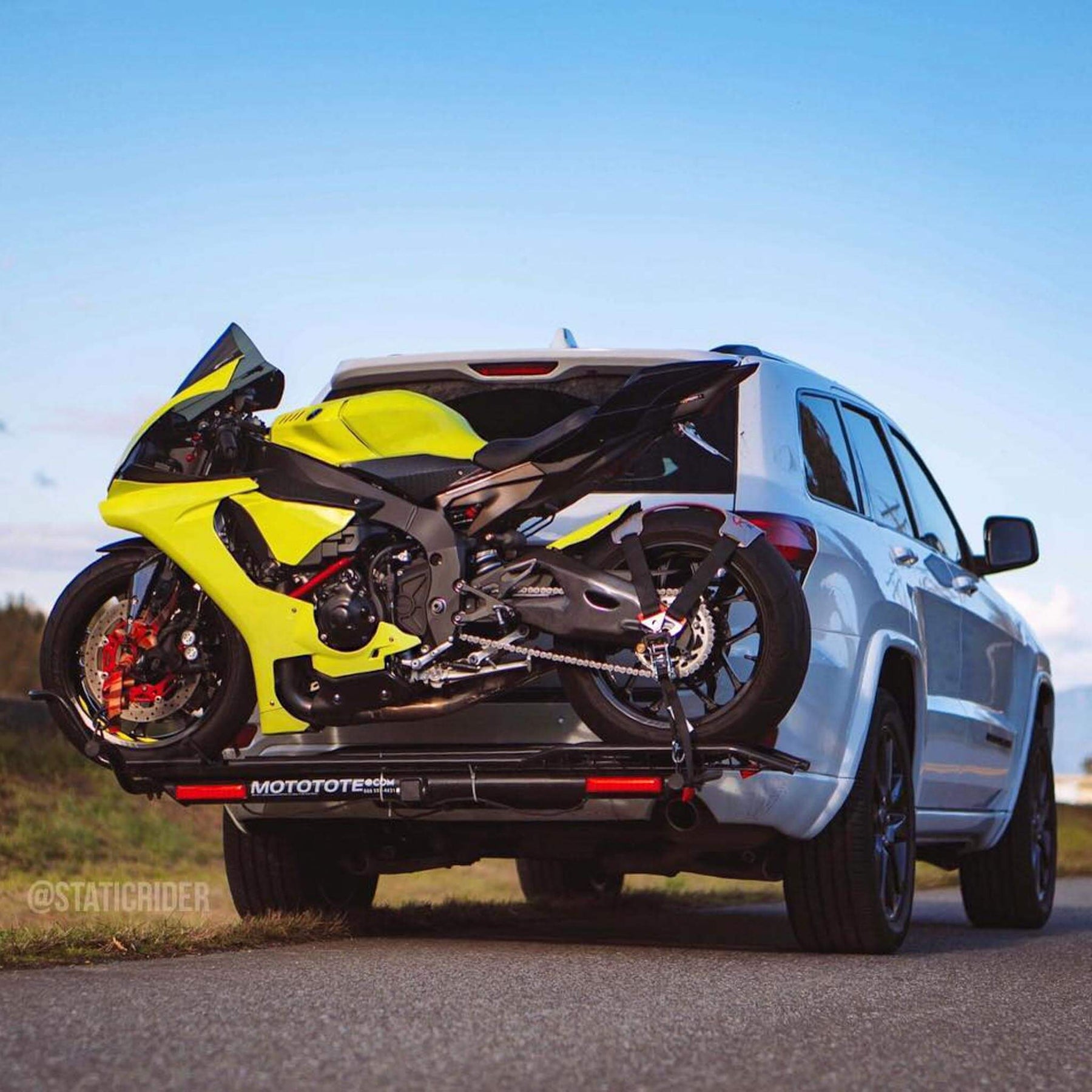

BroadPull+Arm (Front): Patented front tie-down arm provides main support for motorcycle stabilization. Rear tie down arm prevents rear tire from bouncing out of track.

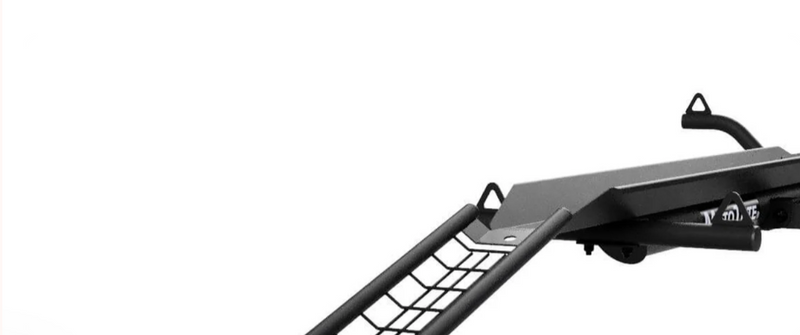

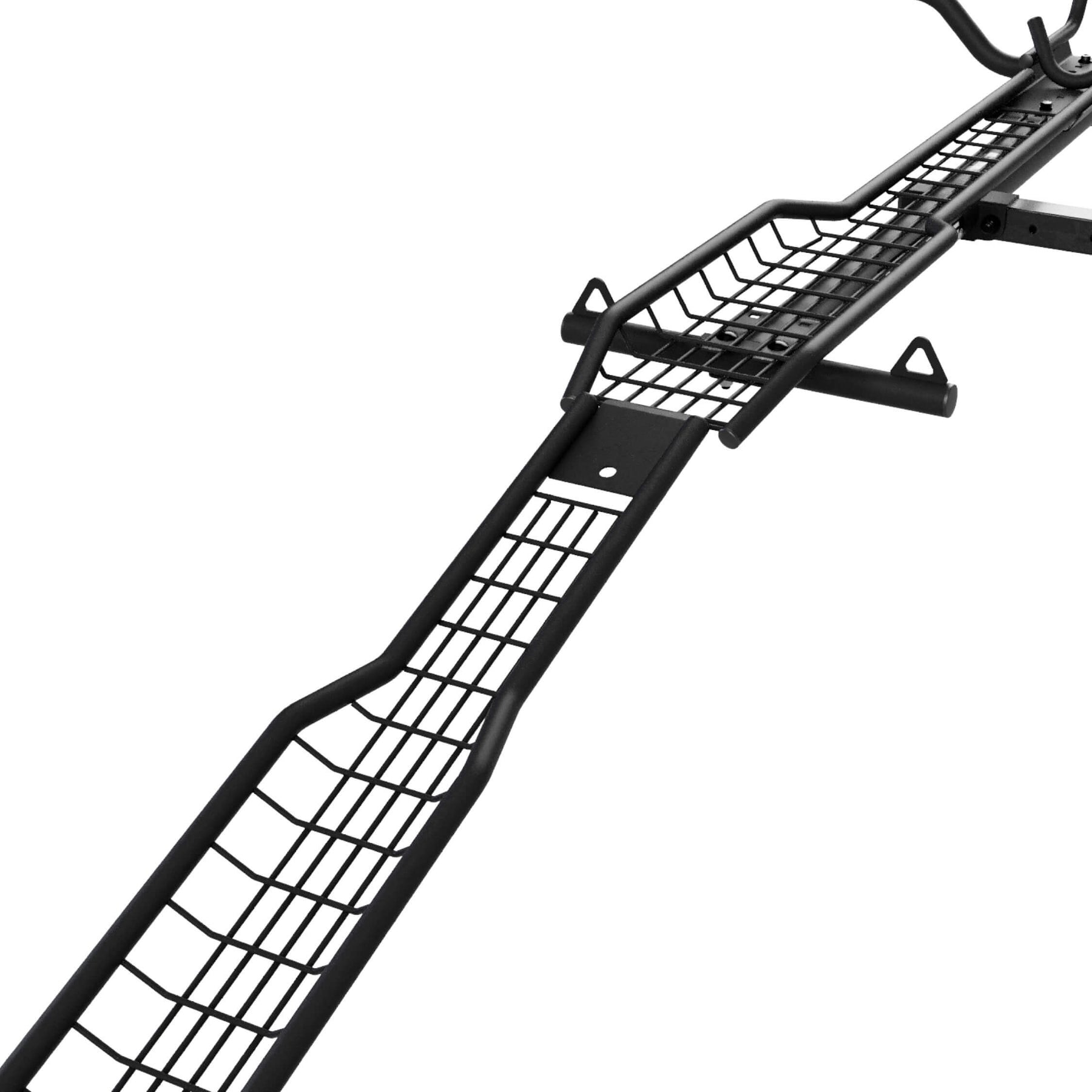

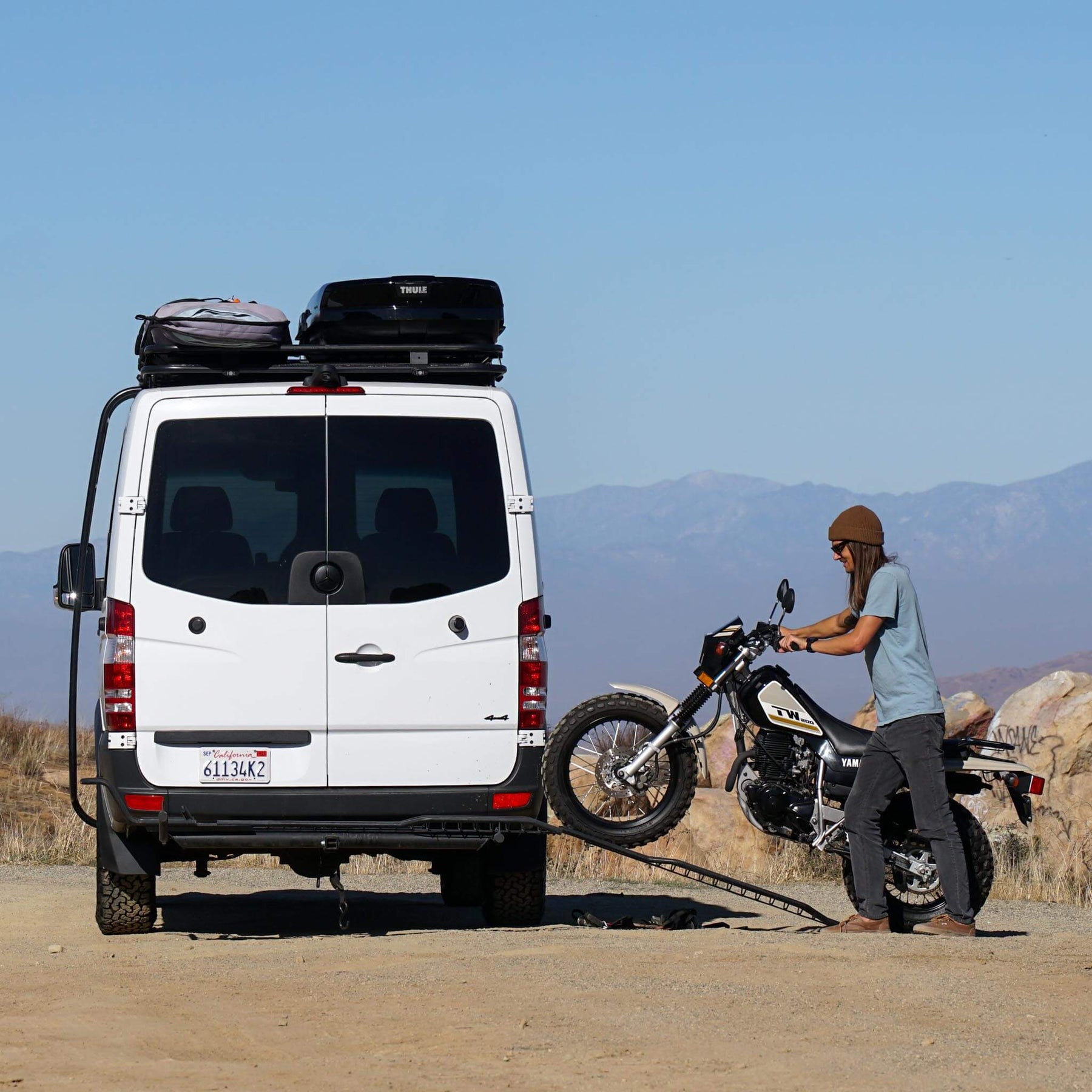

EasyLoad Ramp: A long webbed steel ramp increases tire's traction and eases the loading angle. Ramp hooks into tire track and will not disengage during loading.

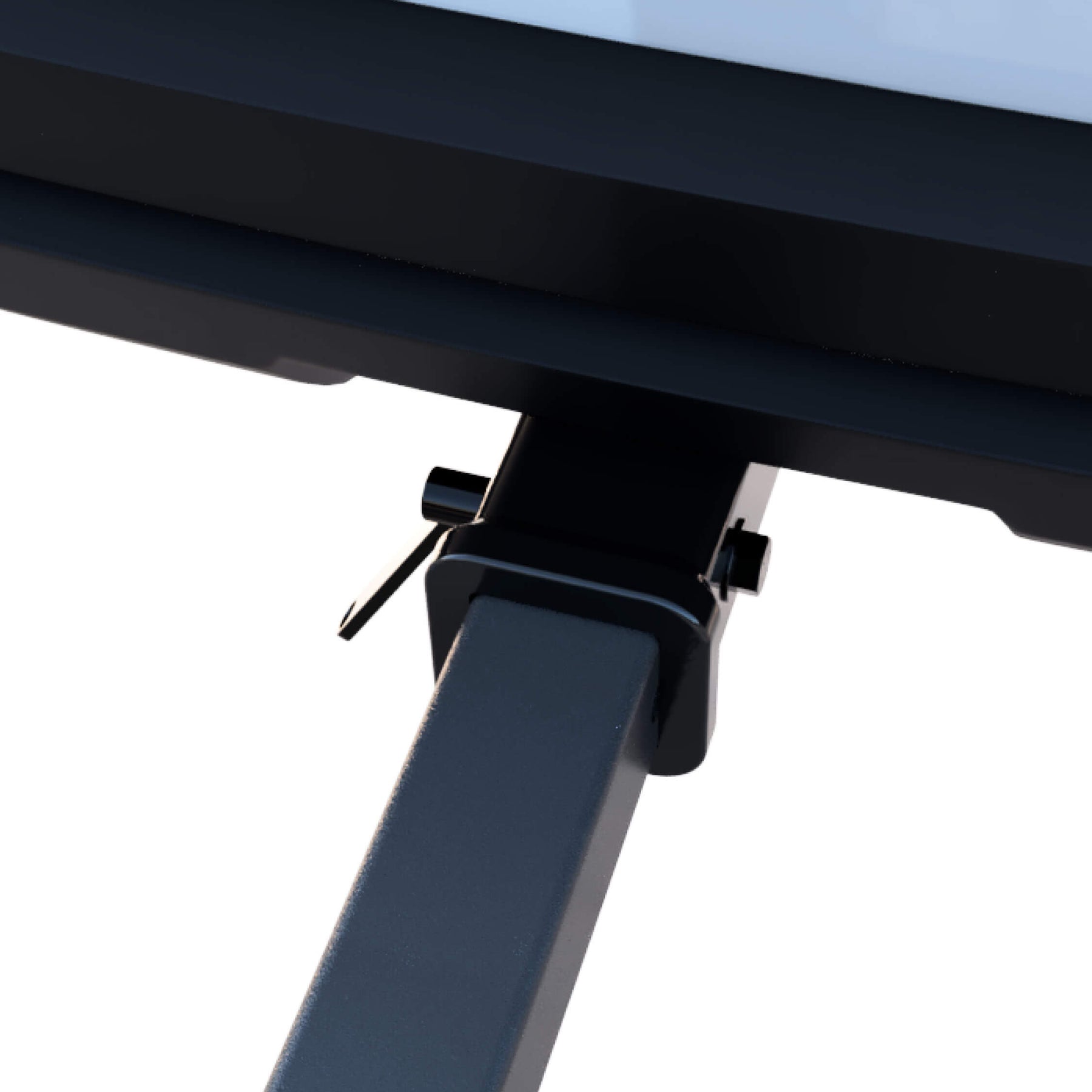

ZeroWobble+ Hitch Mount
Upgraded single-bolt hitch mount installs quickly, requires fewer tools and eliminates rack movement in transport.
