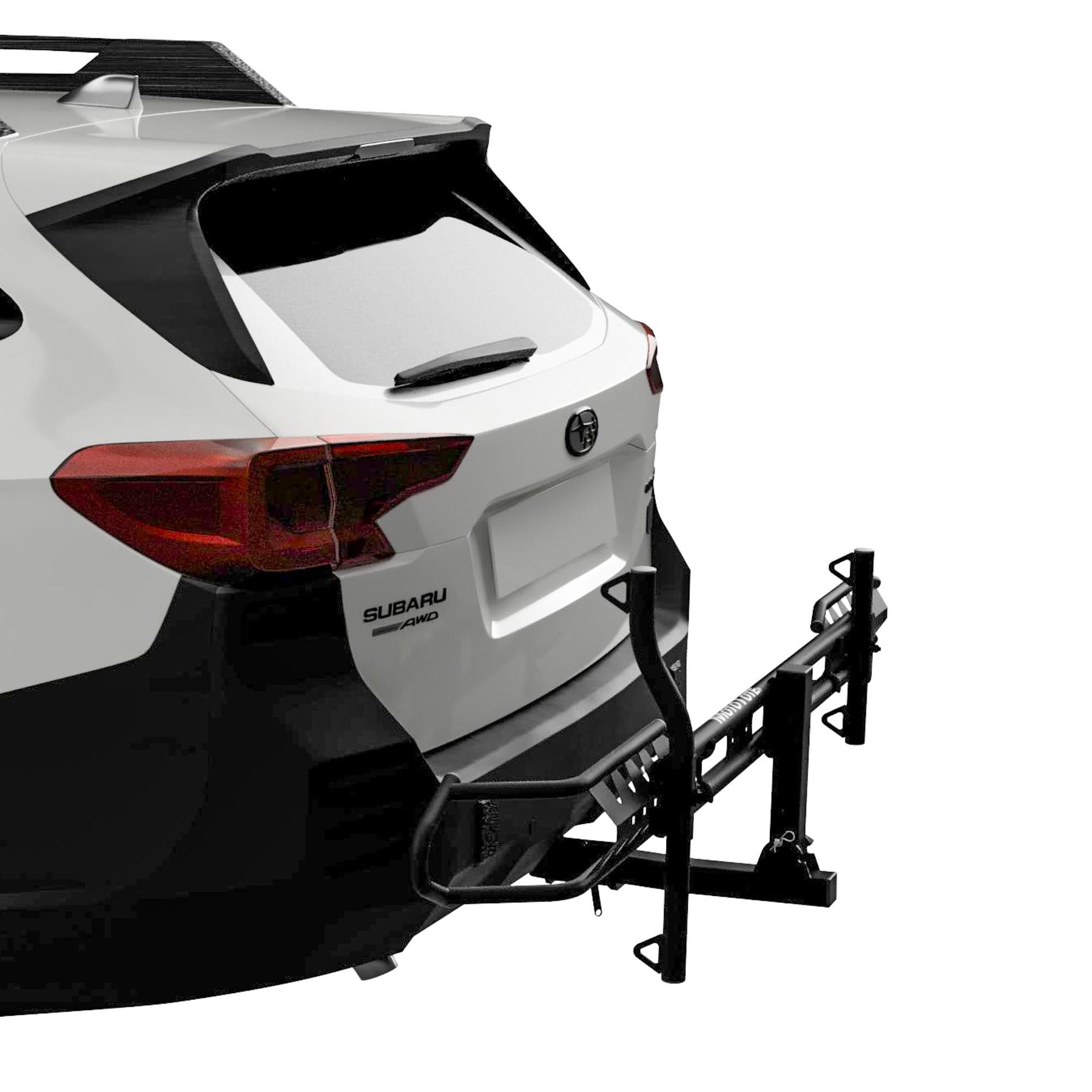

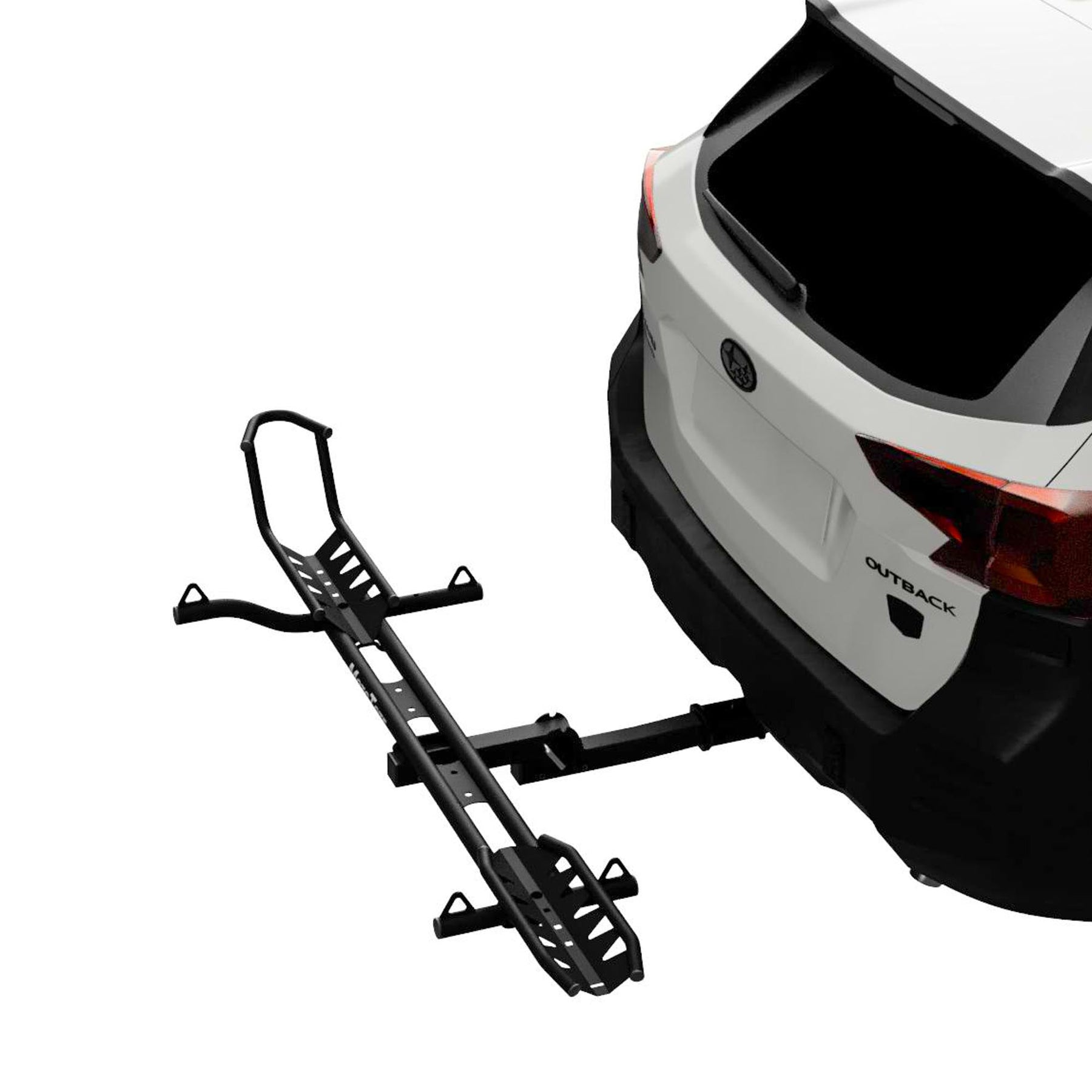

MotoTote Mini Bike Rack for Electric Bikes
Heavy-duty, folding bike rack for electric bikes up to 200 lbs.; fat tire bikes, electric motorbikes & more.
MotoTote Mini Electric Bike Rack: Folds Away & Hauls Up To 200 lbs
Dimensions
Wheelbase: From 40"-52" (102-132 cm.)
Track Distance from Vehicle: Adjustable at 16", 18" or 20"
Total Length: 62"-72" (157.5–183 cm)
Front Tie Down Width: 25" (63.5 cm)
Front Wheel Chock Width: Up to 5" (127 mm.)
Weight
Weight Capacity: 200 lbs. (91 kgs.)
Carrier Weight: 36.5 lbs. (16.5 kgs)
Material
Material: Powder Coated Steel
Finish: Textured Black Powder Coating
Hardware: Black Zinc Coated
Assembly
Straightforward by design. Assembly usually takes 30–60 minutes, depending on proficiency, and requires only a few basic tools. Click here for step-by-step instructions.
Product Features

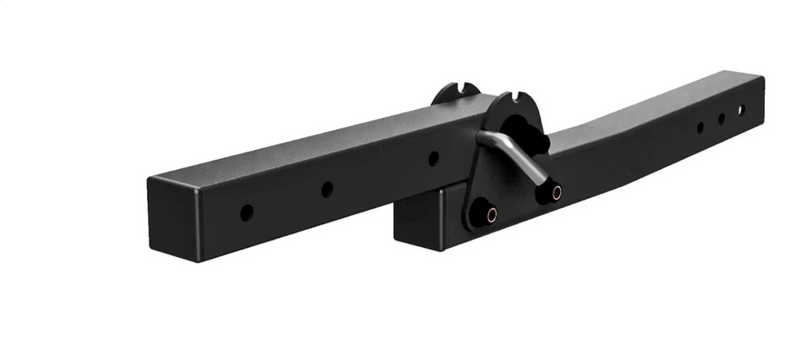

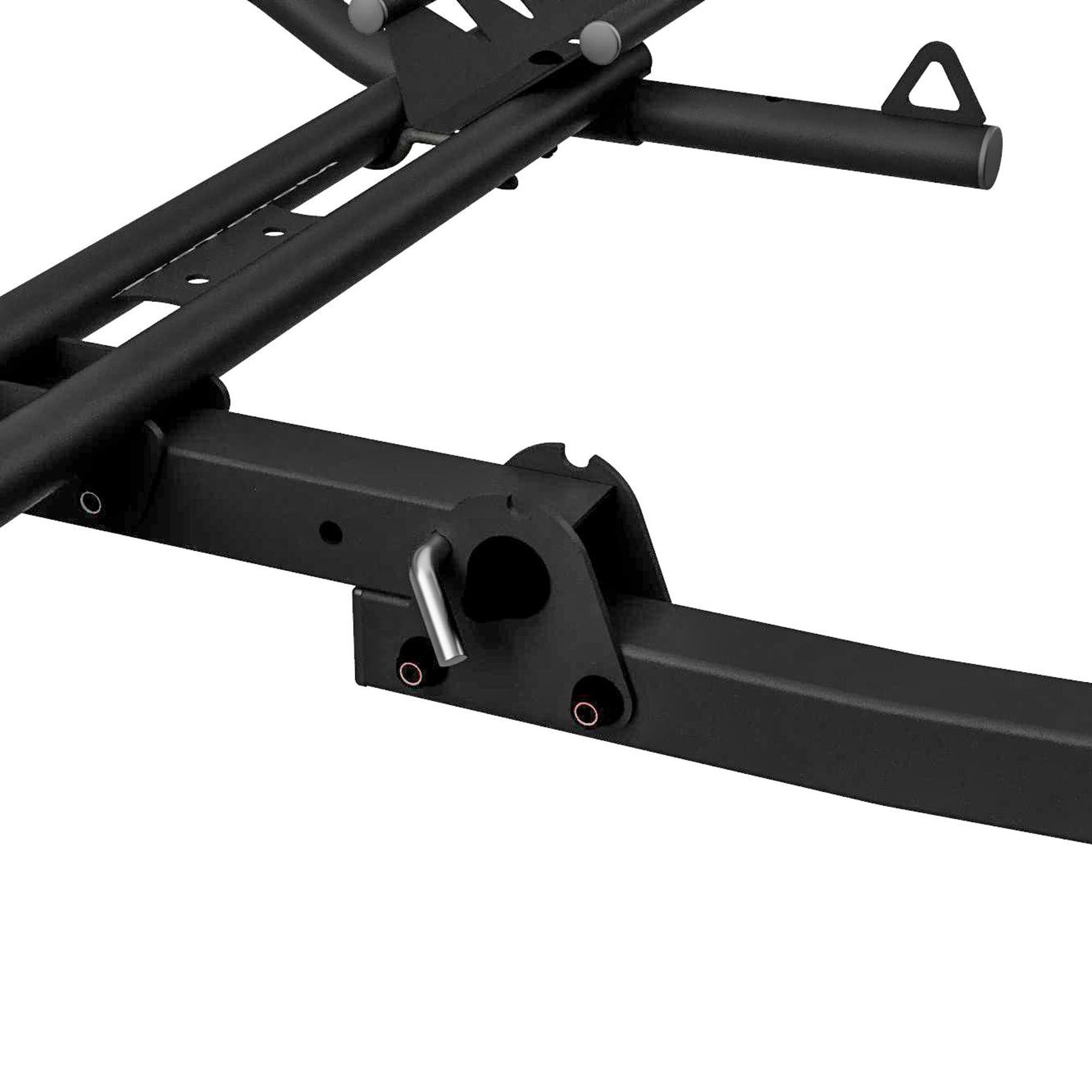

SecureStow Hinge: New, upgraded part with simplified assembly and enhanced lateral strength, this wobble-free fold mechanism reduces the footprint when bikes are off the carrier.

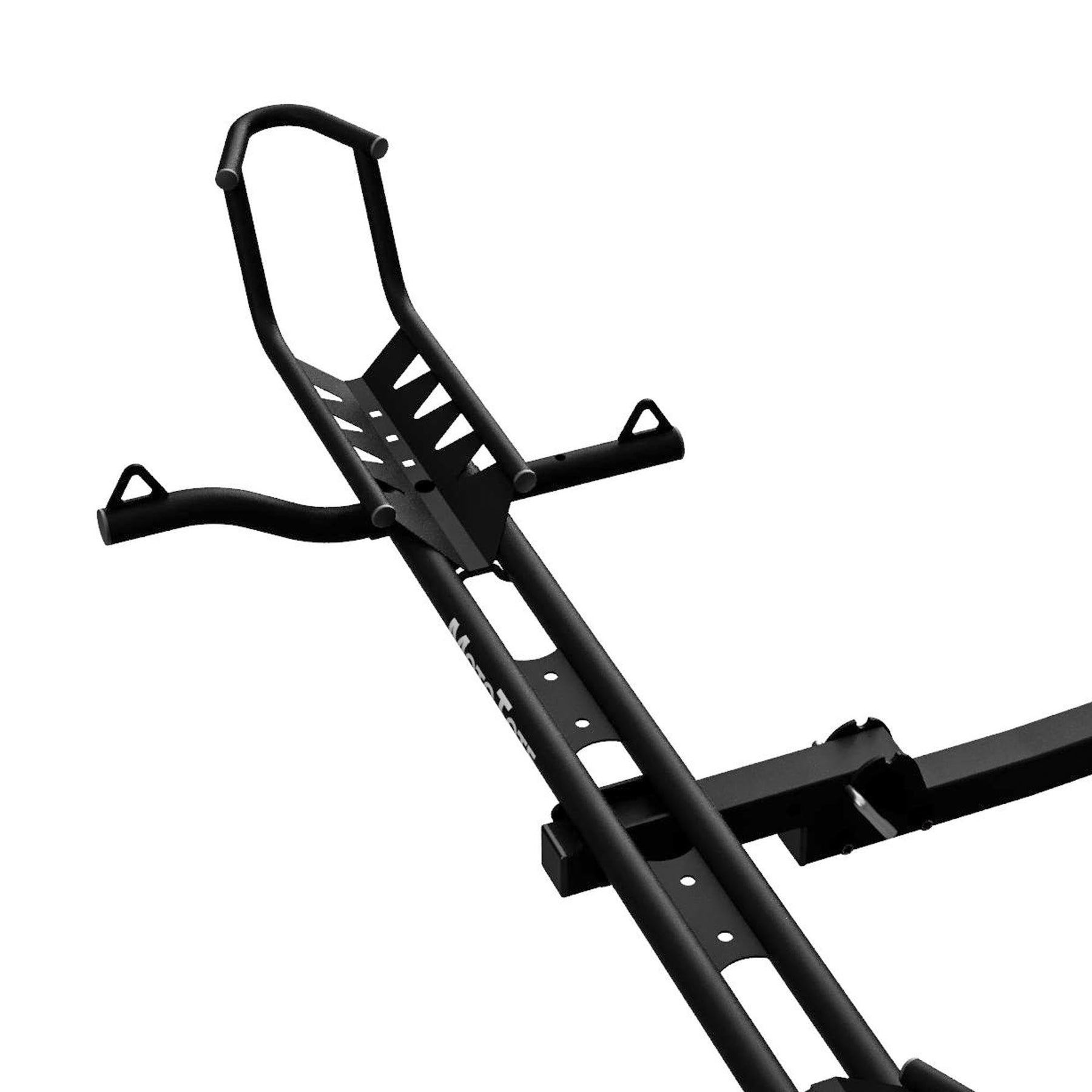

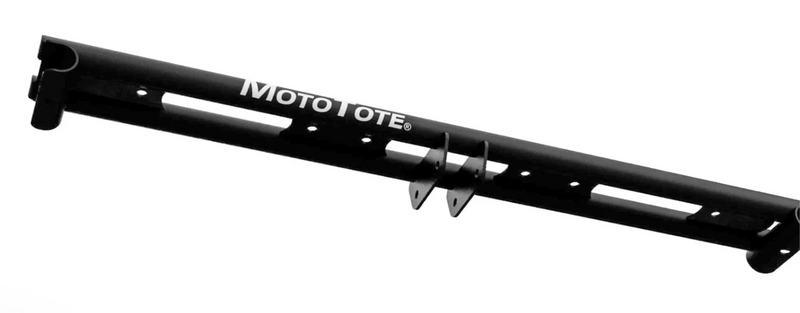

MTM Platform: Innovative dual-beam main support acts as tire track, hauls up to 200 lbs., supports track length adjustability up to 52" and the attachment of innovative components. Connects to 2" receivers.

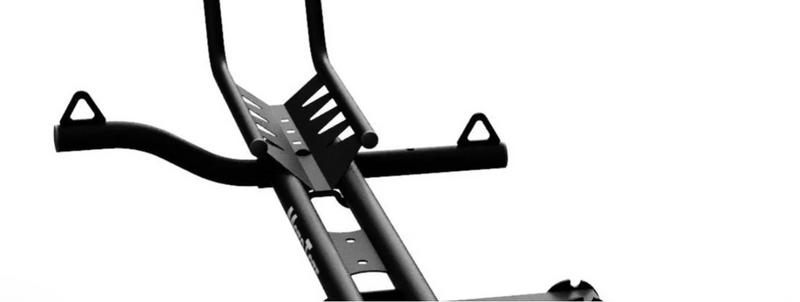

StableStop Mini Chock: One-piece tire stop wedges front tires up to 5" wide into chock, maximizes support, and holds e bikes upright while securing tie-downs.

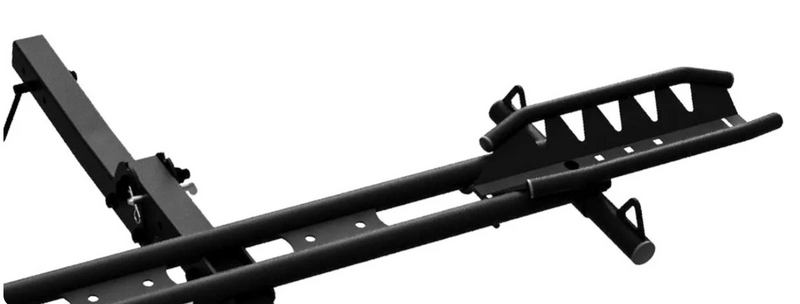

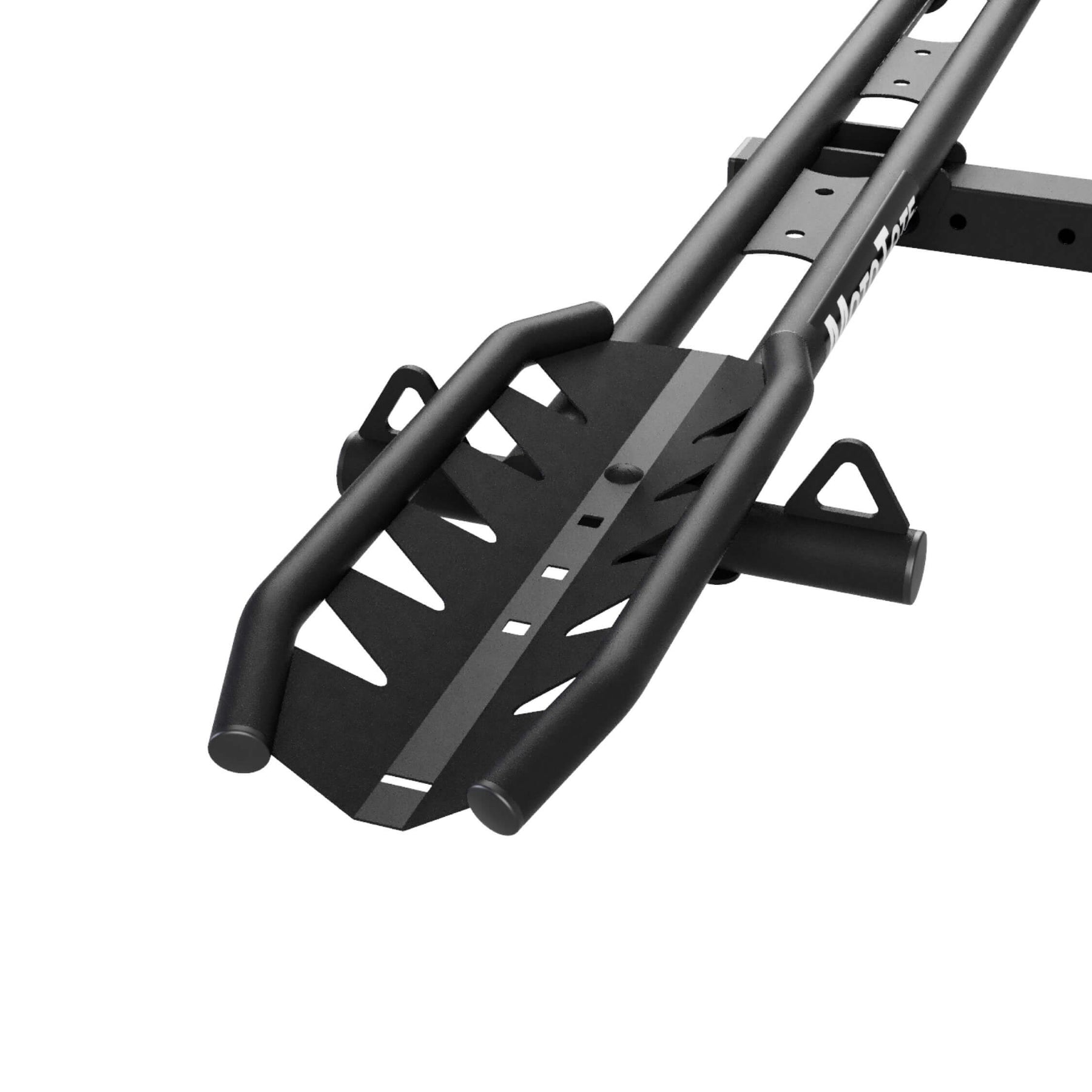

MaxHold Mini Rear Tire Holder: Laser cut tire holder grips and wedges rear tire sizes up to 5" wide into rack.

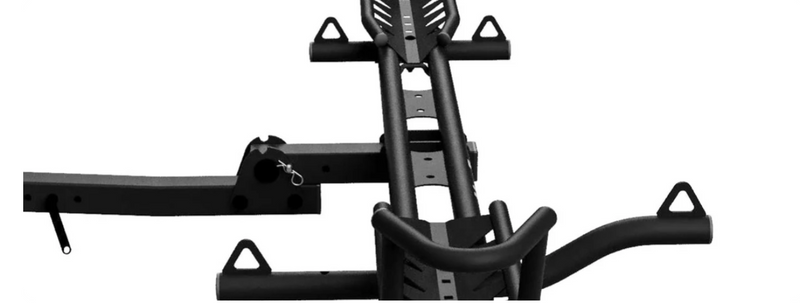

BroadPull Mini Arm: Patented front tie-down arm provides main support for electric bike stabilization. Rear tie down arm prevents rear tire from bouncing out of track.
ZeroWobble+ Hitch Mount
Upgraded single-bolt hitch mount installs quickly, requires fewer tools and eliminates rack movement in transport.
