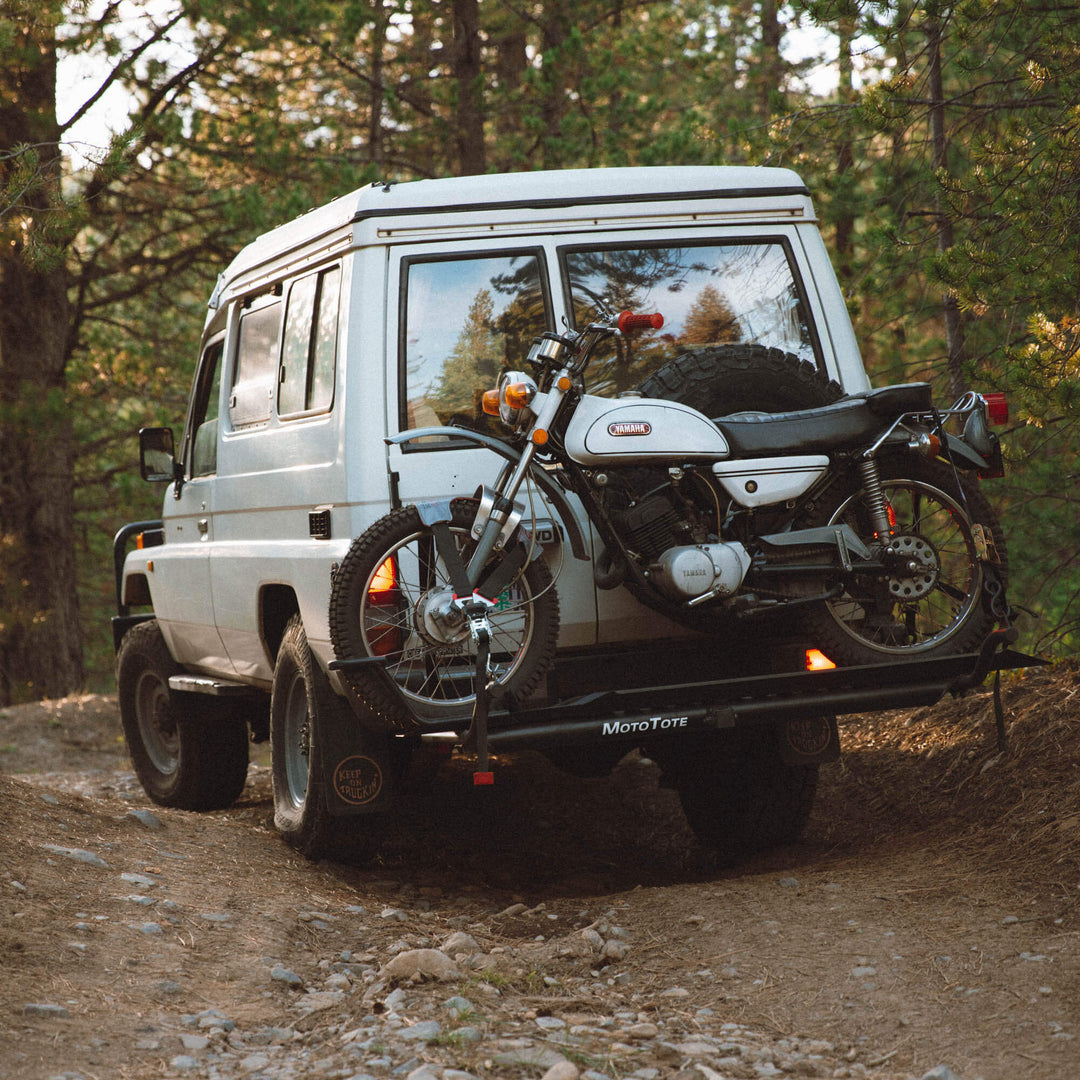

MotoTote Max Motorcycle Hitch Carrier
Maximum-stability motorcycle carrier for bikes up to 600 lbs.; dirt bikes, scooters & more.
Motorcycle Compatibility
Motorcycle Types: : Dirt Bikes, Scooters, Vintage Bikes
Weight: Up to 600 lbs. (272 kgs.)
Tire Sizes Up to 4.75" (120 mm) front, 6" (152 mm) rear
Wheelbase: Up to 65" (165 cm)
Dimensions
Wheelbase: Up to 65” (165 cm)
Front Wheel Chock Width: 4.75” (120 mm.)
Tire Track Width: 6" (152 mm)
Track Distance from Vehicle: Adjustable at 16”, 18” or 20”
Total Length: 72.5" - 78.5" (184 cm - 199 cm)
Loading Ramp Length: 56” L (142 cm.)
Front Tie Down Width:29” (73.5 cm)
Rear Tie Down Width:29” (73.5 cm)
Loading Ramp Slope: v17 ° (On Average)
Weight
Weight Capacity: 600 lbs. (272 kgs.)
Carrier Weight: 59 lbs. (27 kgs.)
Material
Material: Powder Coated Steel
Finish: Textured Black Powder Coating
Hardware: Black Zinc Coated
Assembly
Straightforward by design. Assembly usually takes 30–60 minutes, depending on proficiency, and requires only a few basic tools. Click here for step-by-step instructions.
Product Features

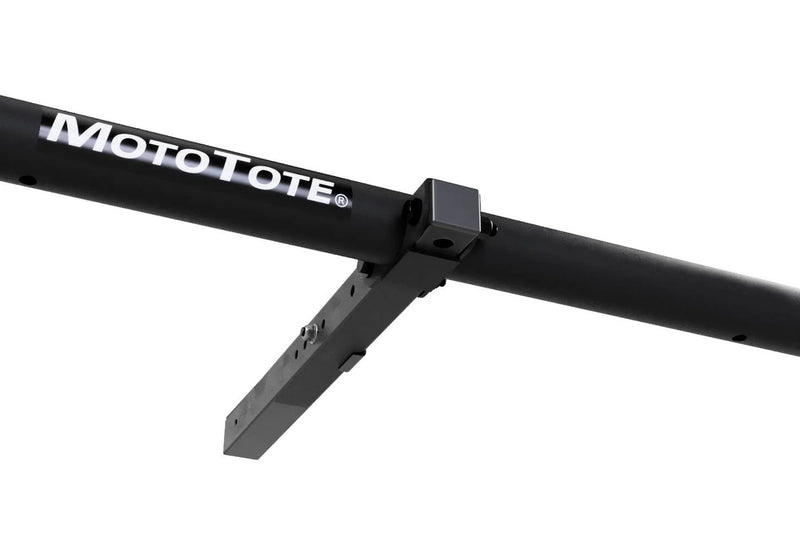

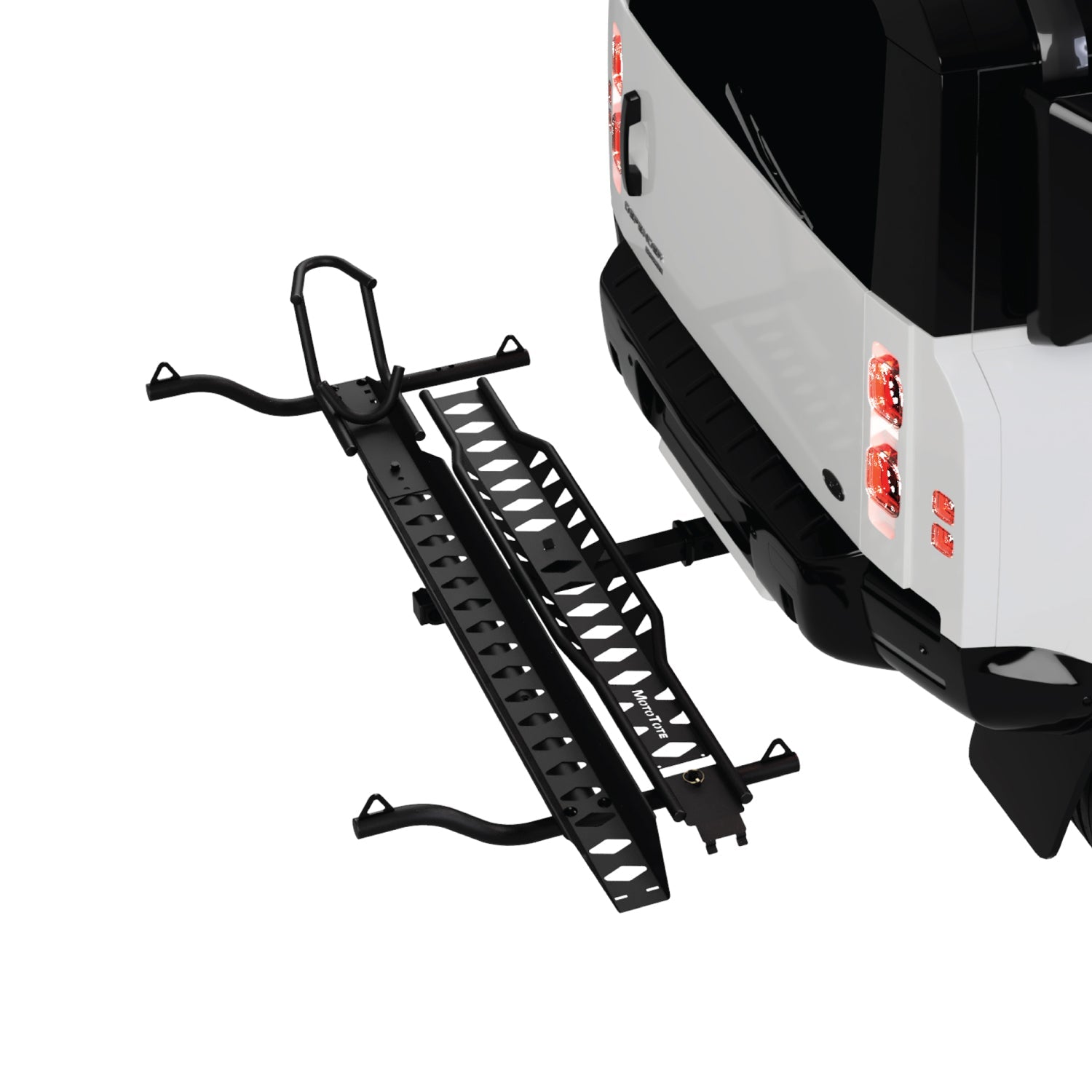

MTX Platform: Heavy-duty steel main support connects to 2" receivers, hauls up to 600 lbs. (272 kgs.), supports chock, track, orientation, and distance from vehicle adjustability, alongside the attachment of innovative components.

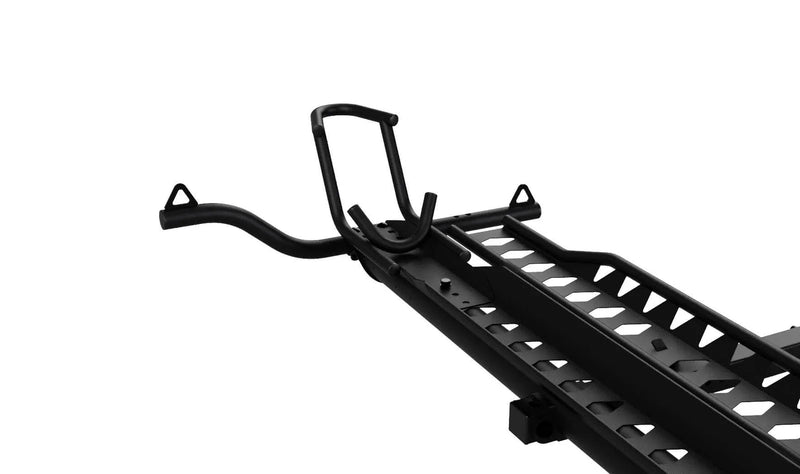

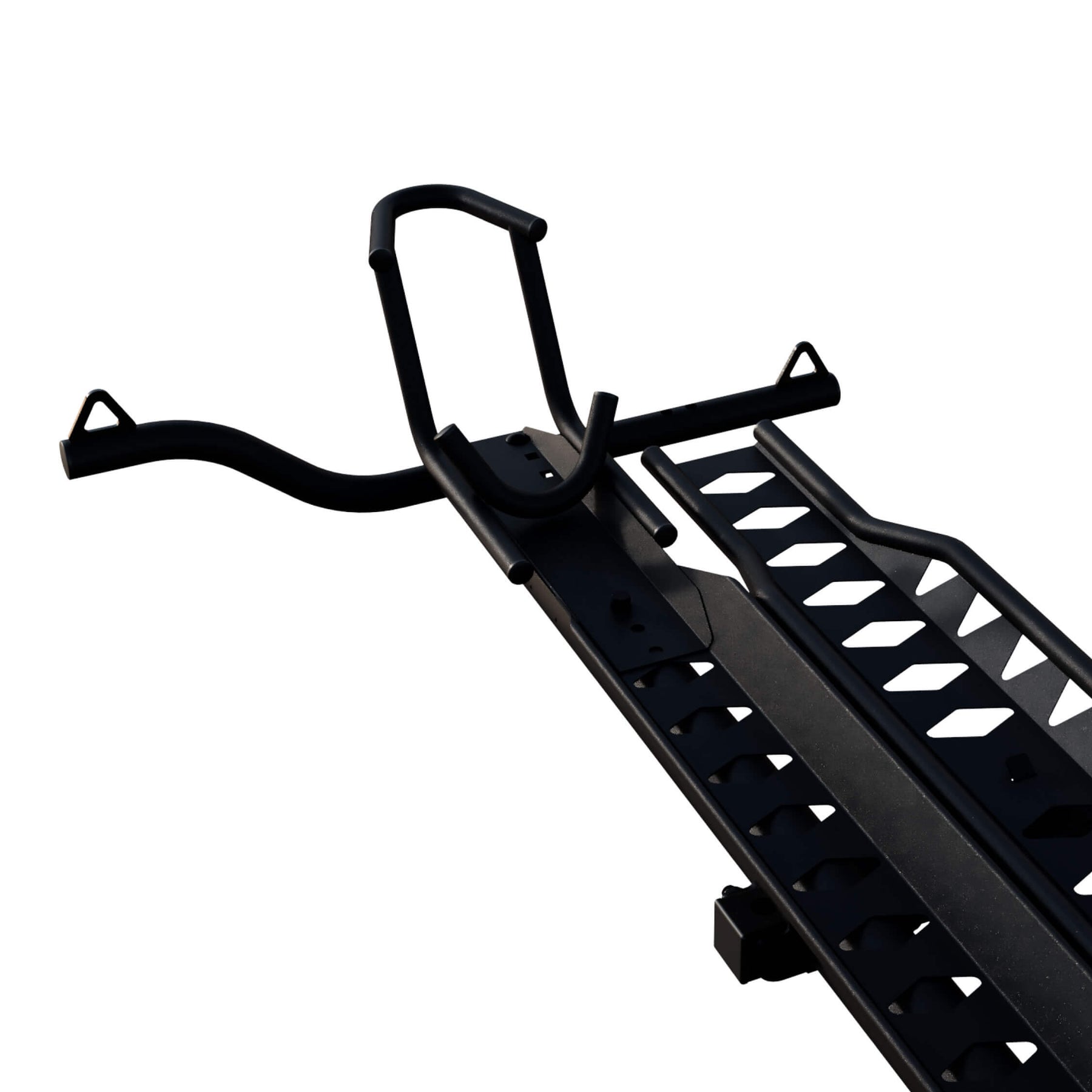

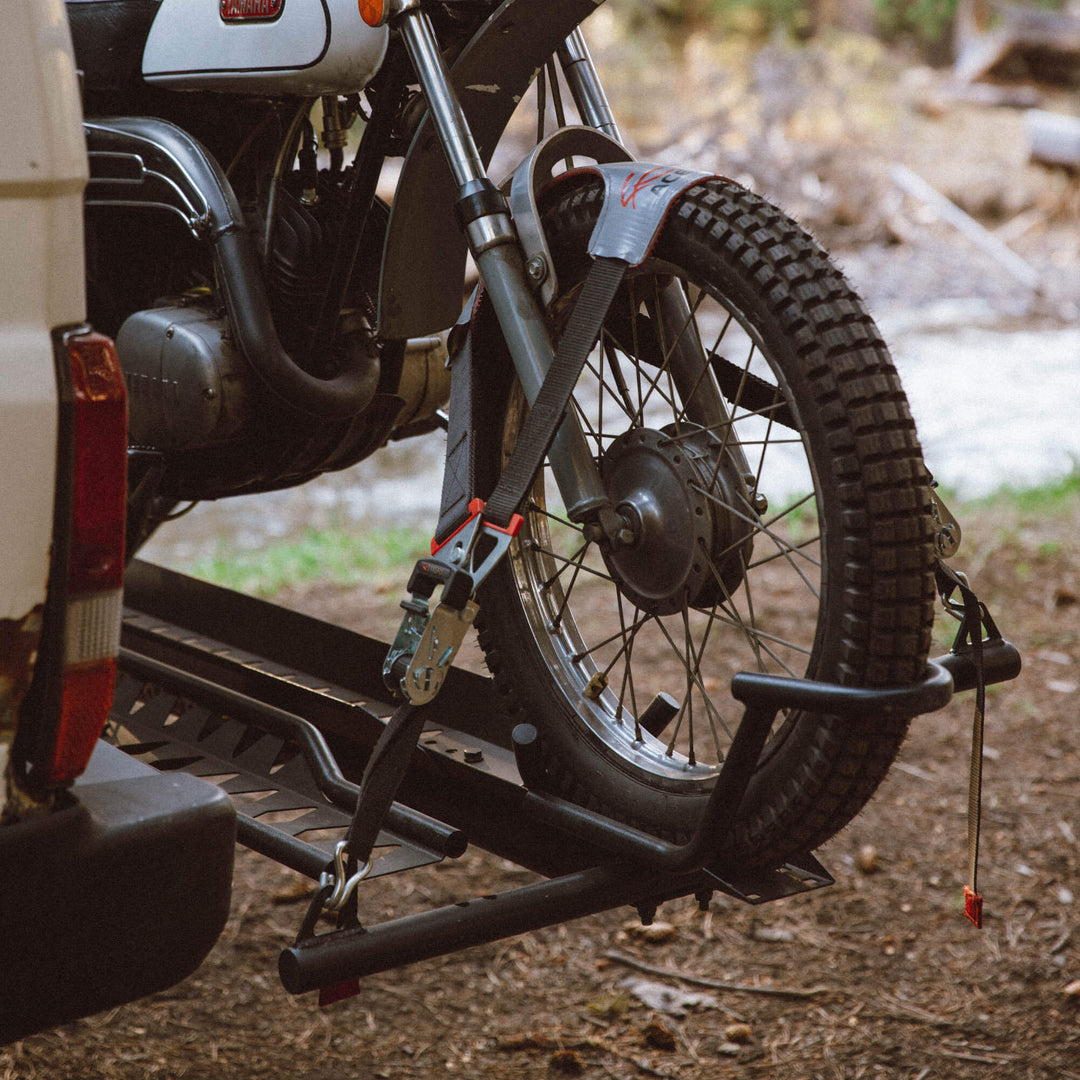

StableStop Chock: Adjustable two-piece tire mount locks front tires up to 4.75" (120 mm) wide into chock, maximizes support, and helps balance the bike upright while securing tie-downs.

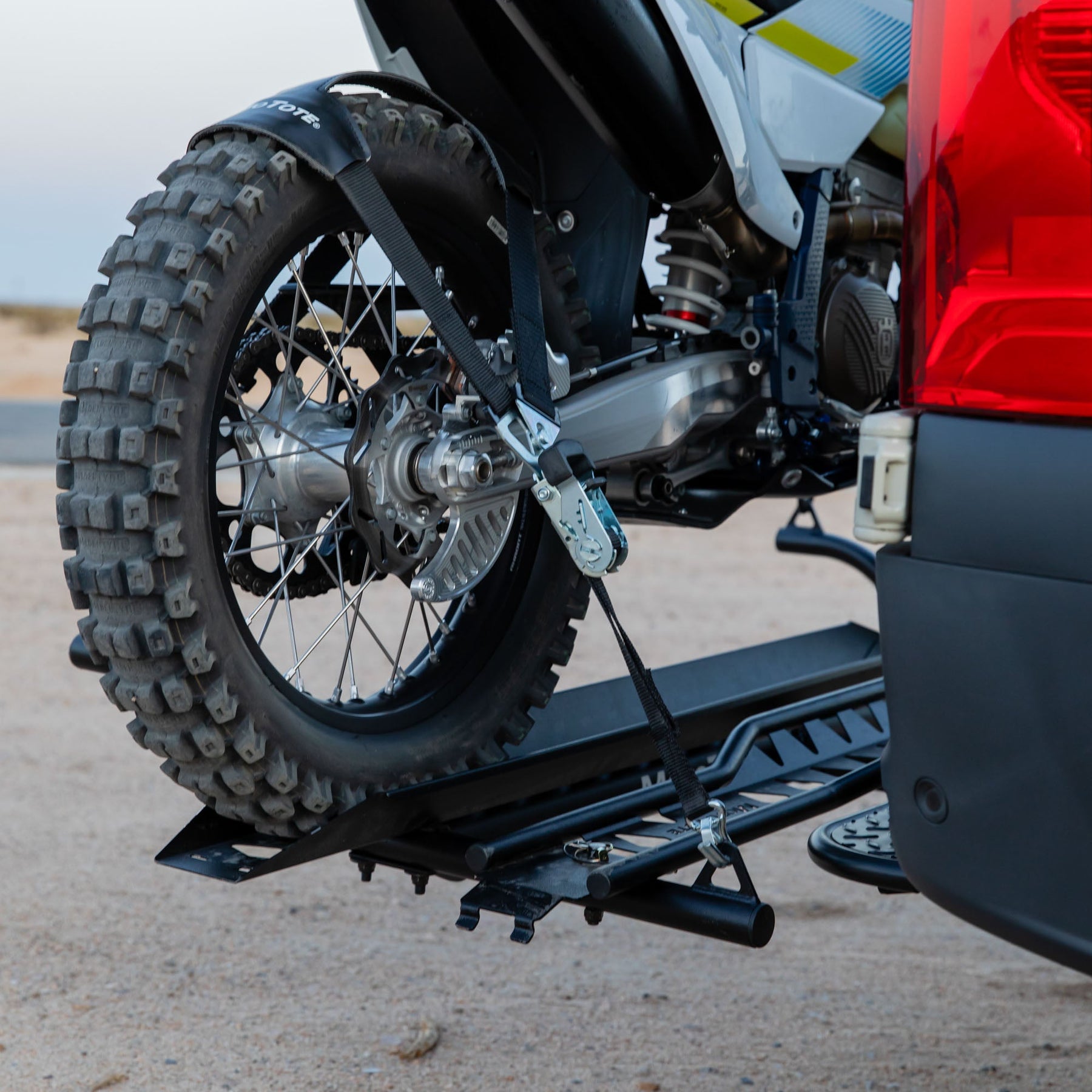

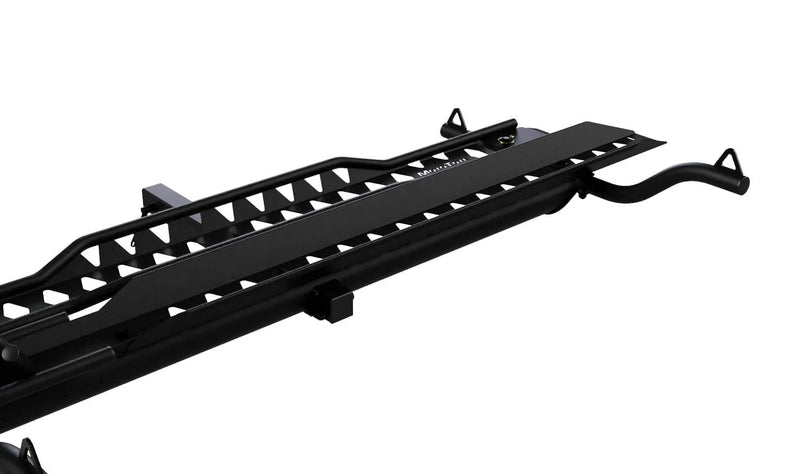

MaxHold Track: Laser cut track with advanced geometry reduces carrier weight, grips/wedges rear tires up to 6" (152 mm) wide into the track, and accommodates most wheelbases up to a 65" (165 cm).

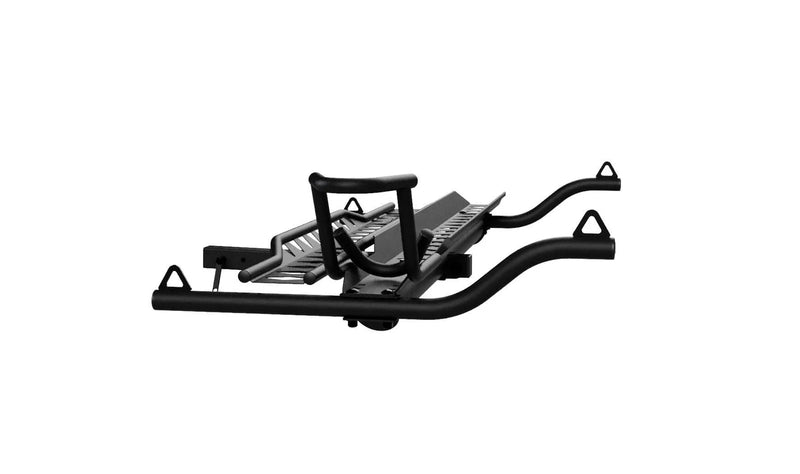

BroadPull+Arms (Front & Back): Two wide tie-down arms maximize tie down leverage on the front and rear of the motorcycle. Patented shape increases carrier clearance on hills and off-road.

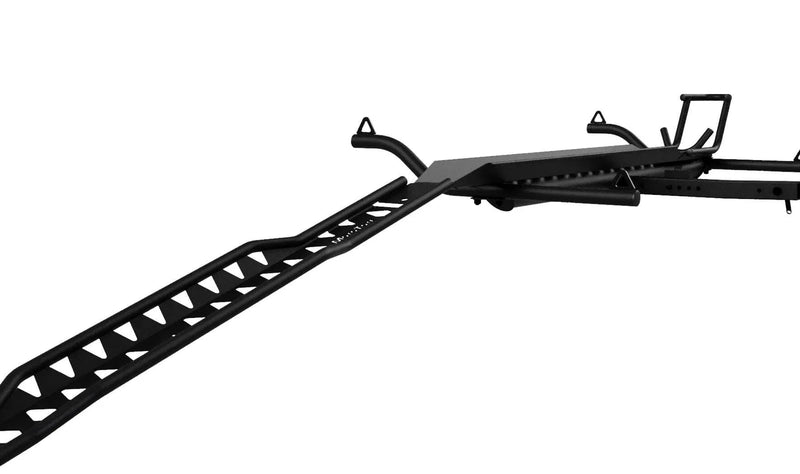

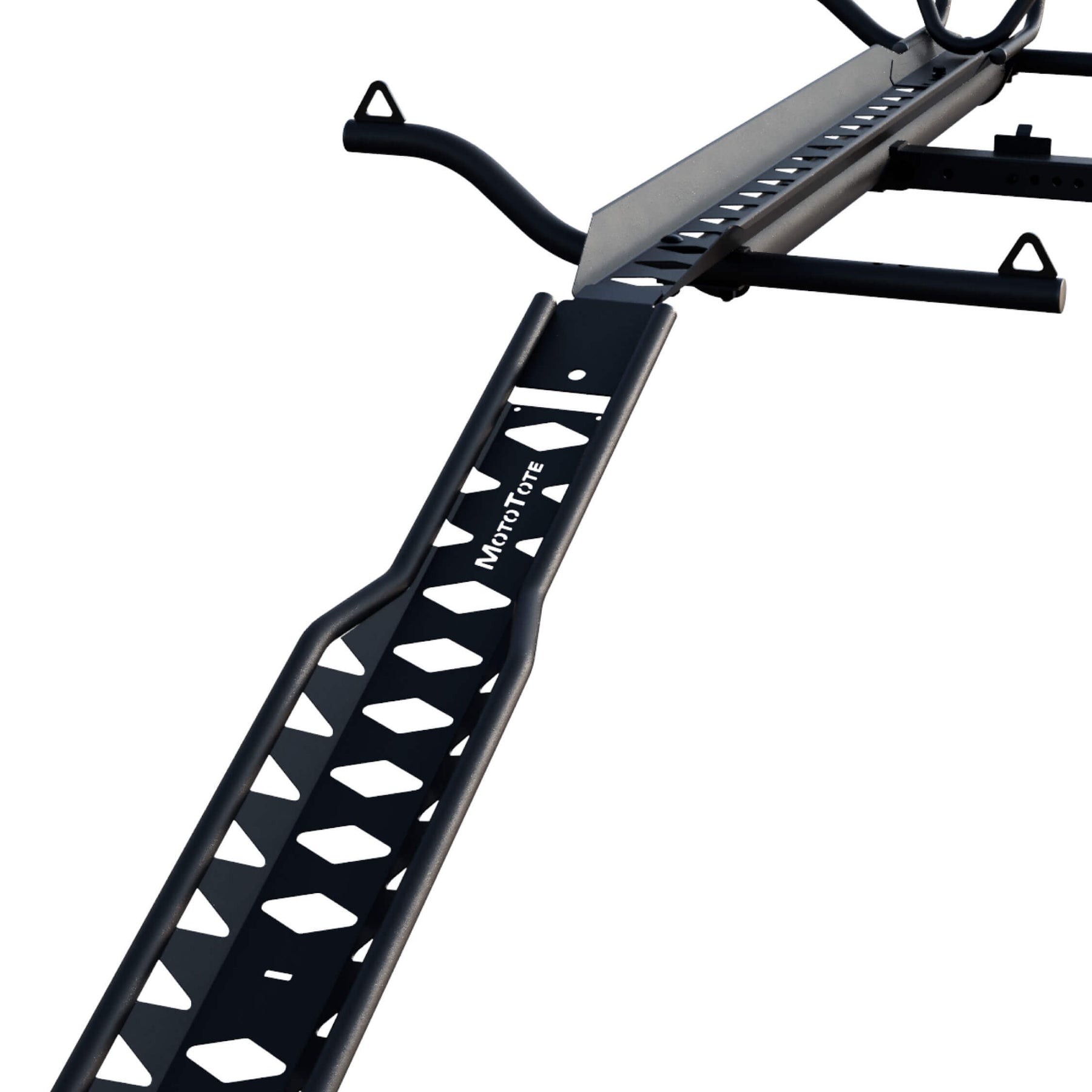

QuickLoad Ramp: A long laser-cut ramp increases tire's traction, eases the loading angle and unhooks from the same side the ramp connects for a quicker loading process.
HitchLift Receiver Tube
Innovative 2" receiver tube counteracts common vehicle hitch droop with a slight upward bend, ensuring that the rack is angled correctly from the back of the vehicle. Provides additional ground clearance, attachment of ramp and distance from vehicle adjustability.
ZeroWobble+ Hitch Mount
Upgraded single-bolt hitch mount installs quickly, requires fewer tools and eliminates rack movement in transport.
