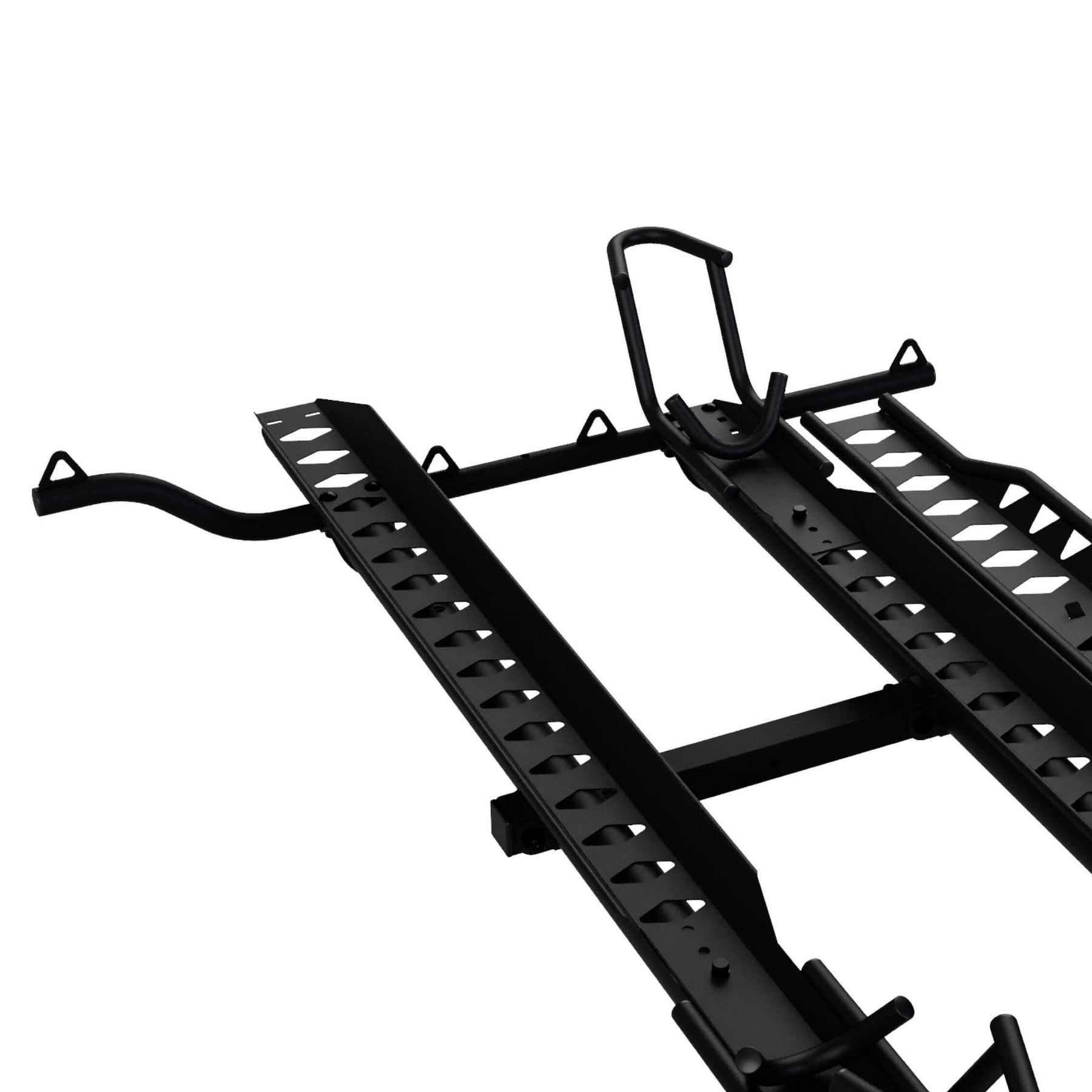

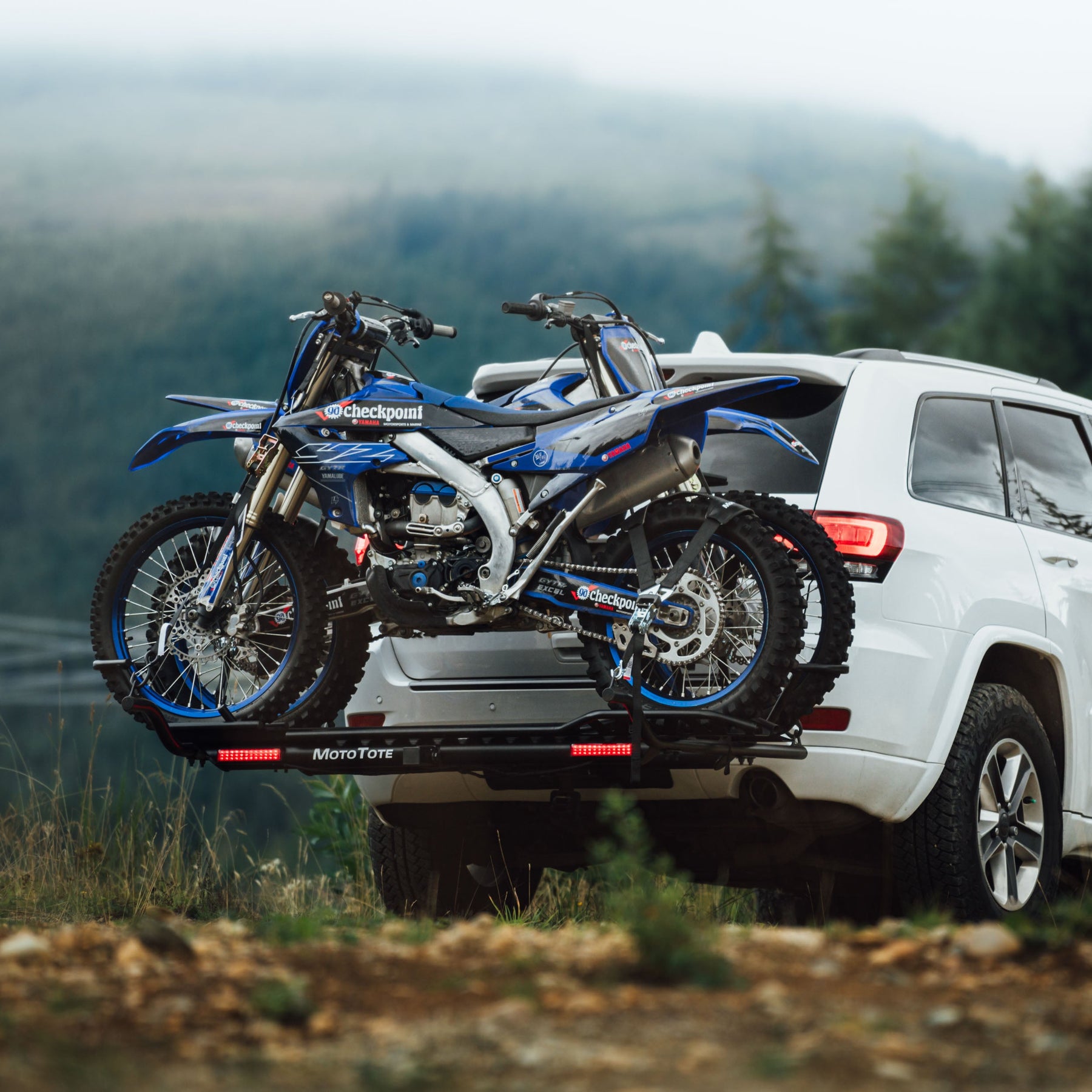

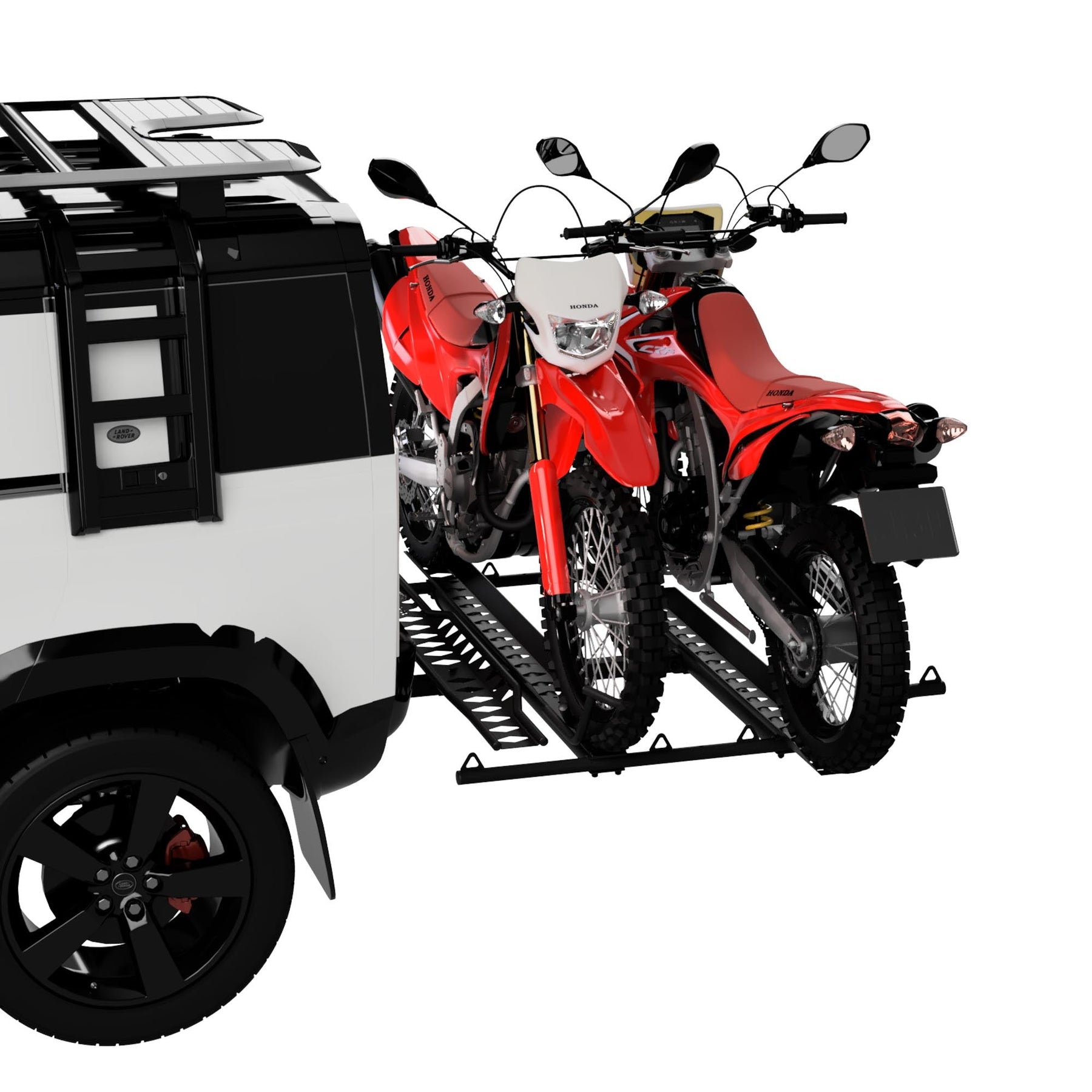

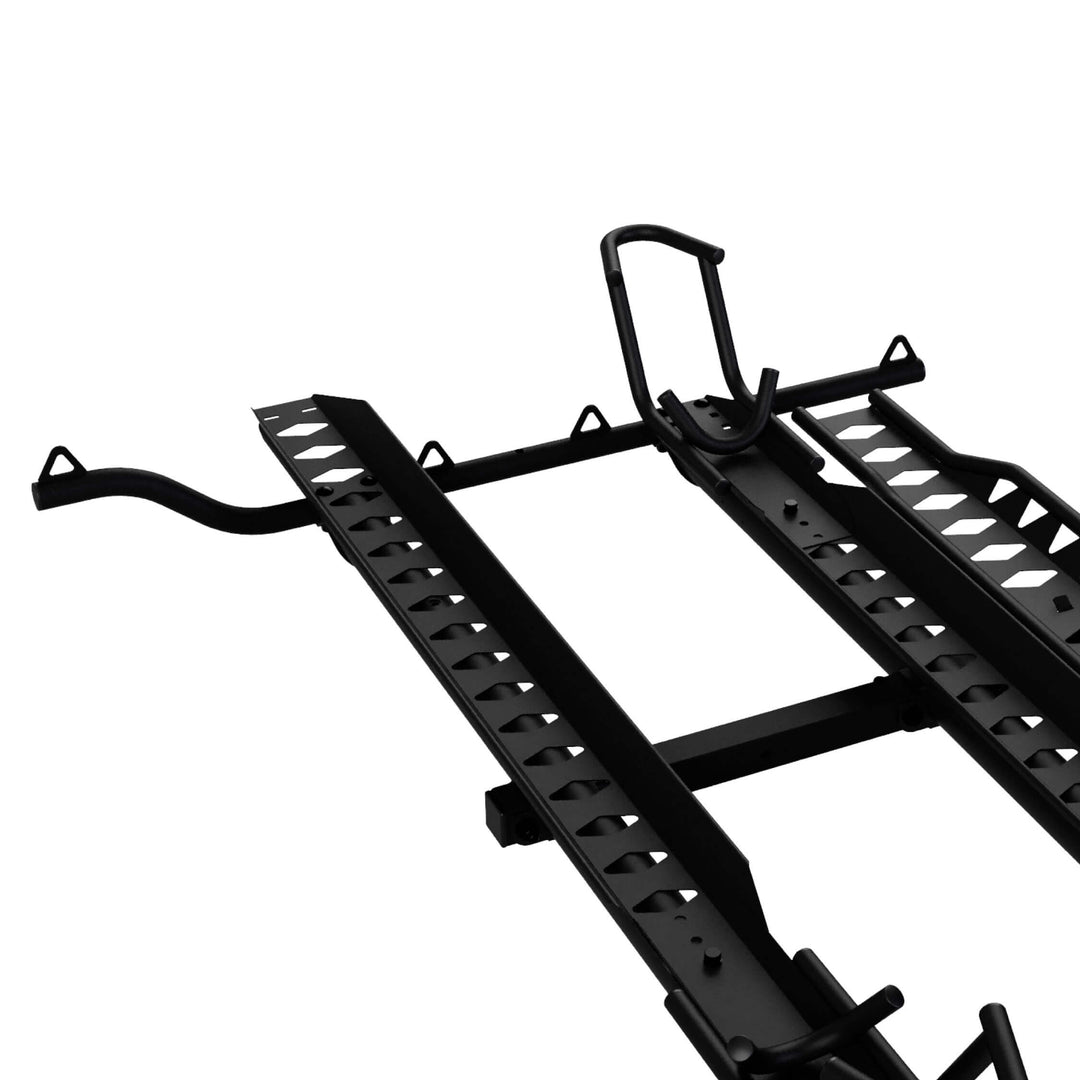

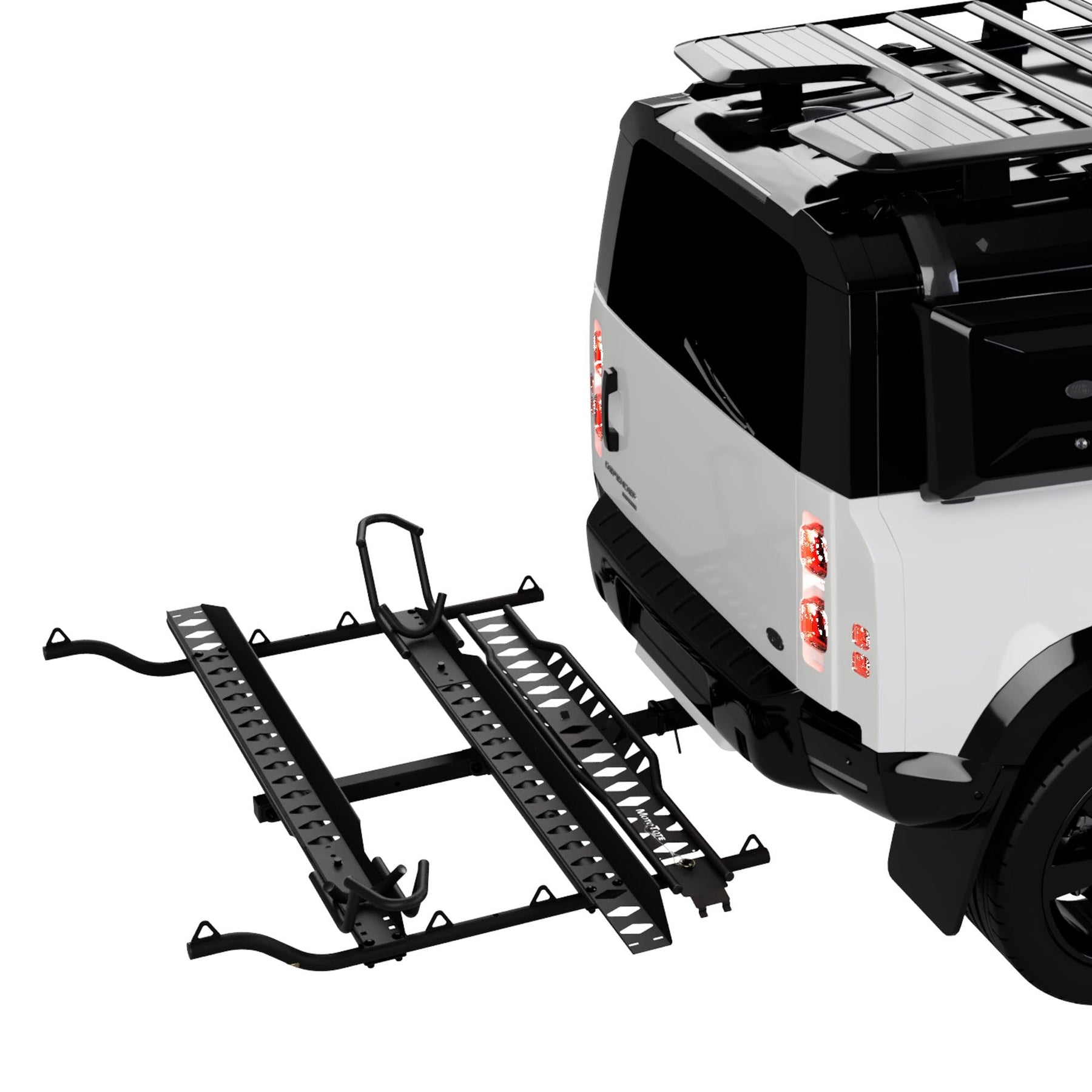

MotoTote Max Dual Motorcycle Carrier
Double Motorcycle Carrier

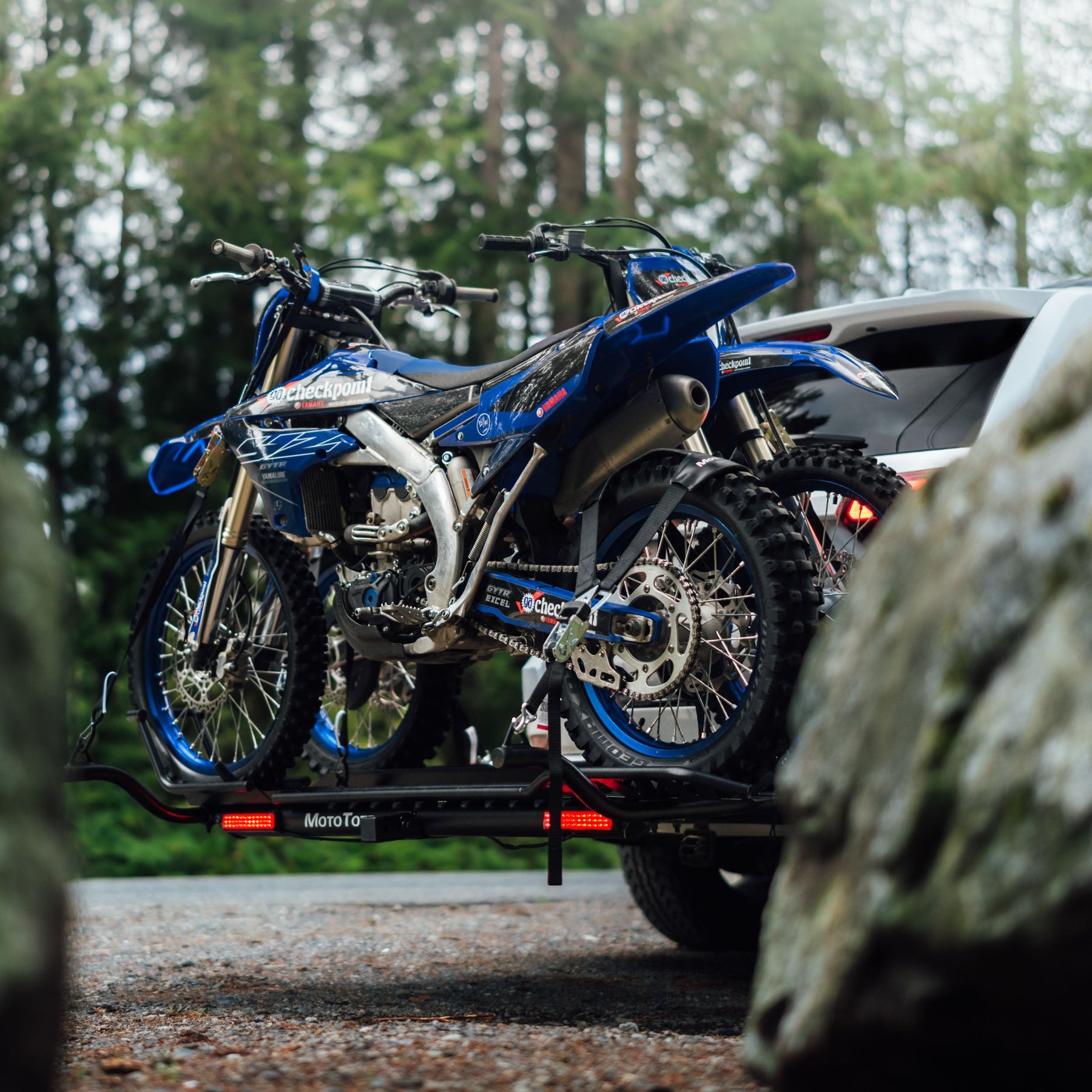

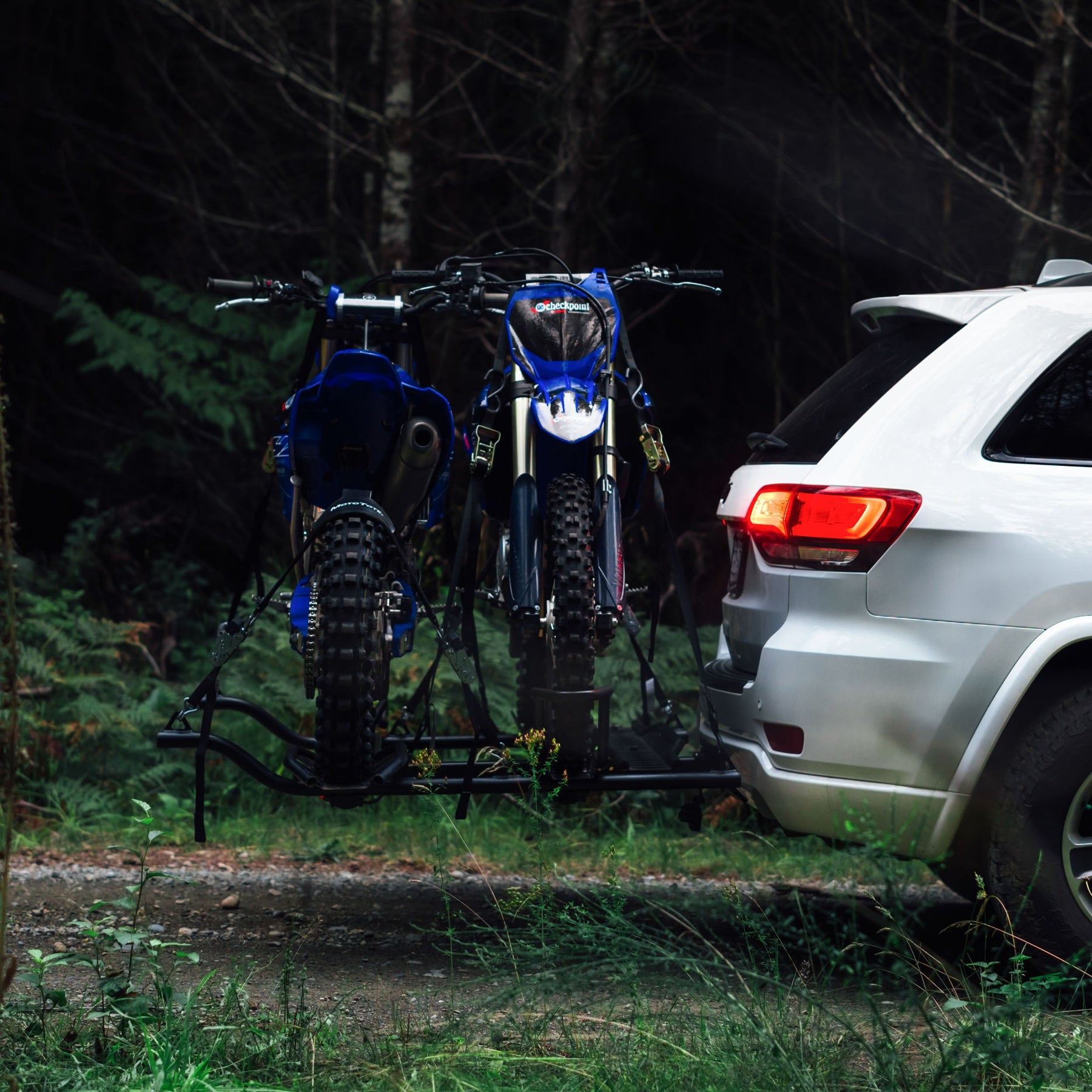

Maximum-stability, dual motorcycle hitch carrier for 2 bikes up to a combined 600 lbs. Includes parts to convert to a single carrier.

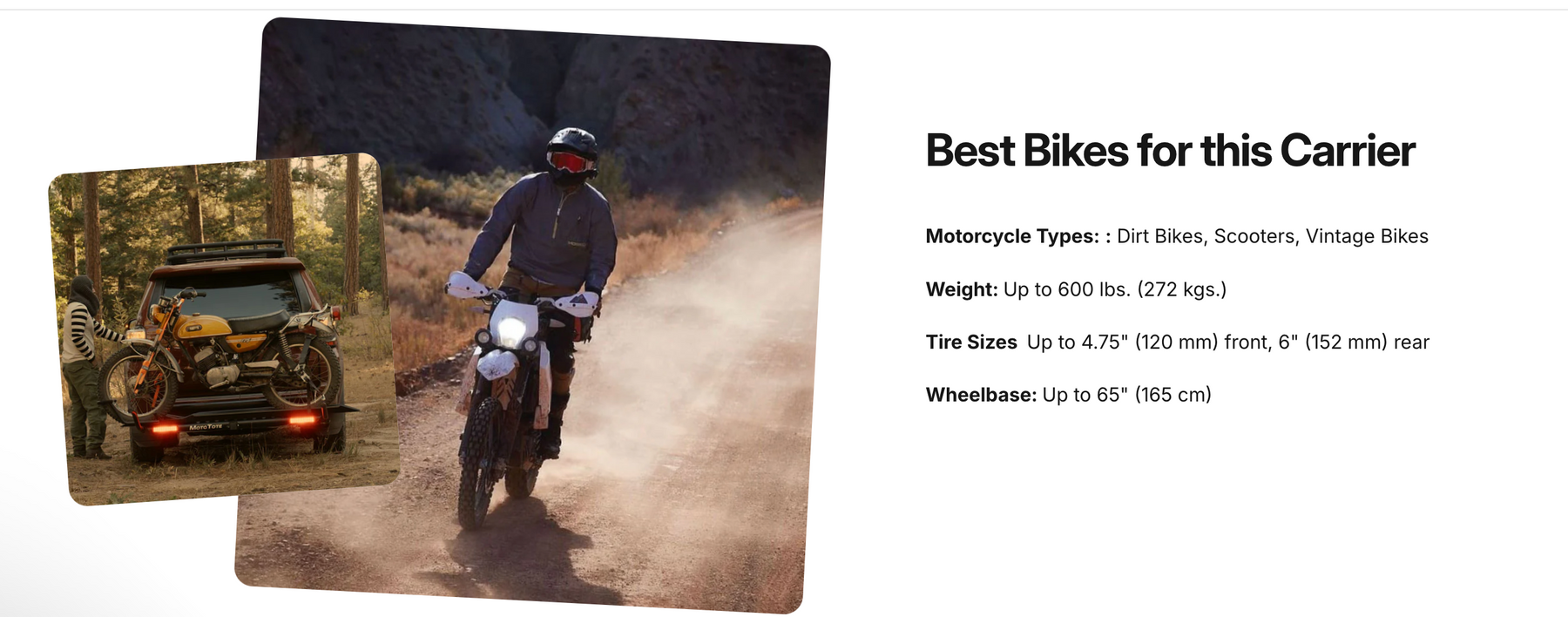

Motorcycle Compatibility
Motorcycle Types: Dirt Bikes, Scooters, Vintage Bikes
Weight Capacity: Up to 600 lbs. (272 kgs.)
Outer Track: 250 lbs. (133 kgs.) Maximum
Tire Sizes: Up to 4.75" (120 mm) Front, 6" (152 mm) Rear
Wheelbases: Up to 65" (165 cm)
Dimensions
Wheelbase: Up to 65” (165 cm)
Front Wheel Chock Width: 4.75” (120 mm.)
Tire Track Width: 6" (152 mm)
First Track Distance from Vehicle: 17.5" (97 cm)
Second Track Distance from Vehicle: 38" (45 cm)
Total Length: 72.5" - 78.5" (184 cm - 199 cm)

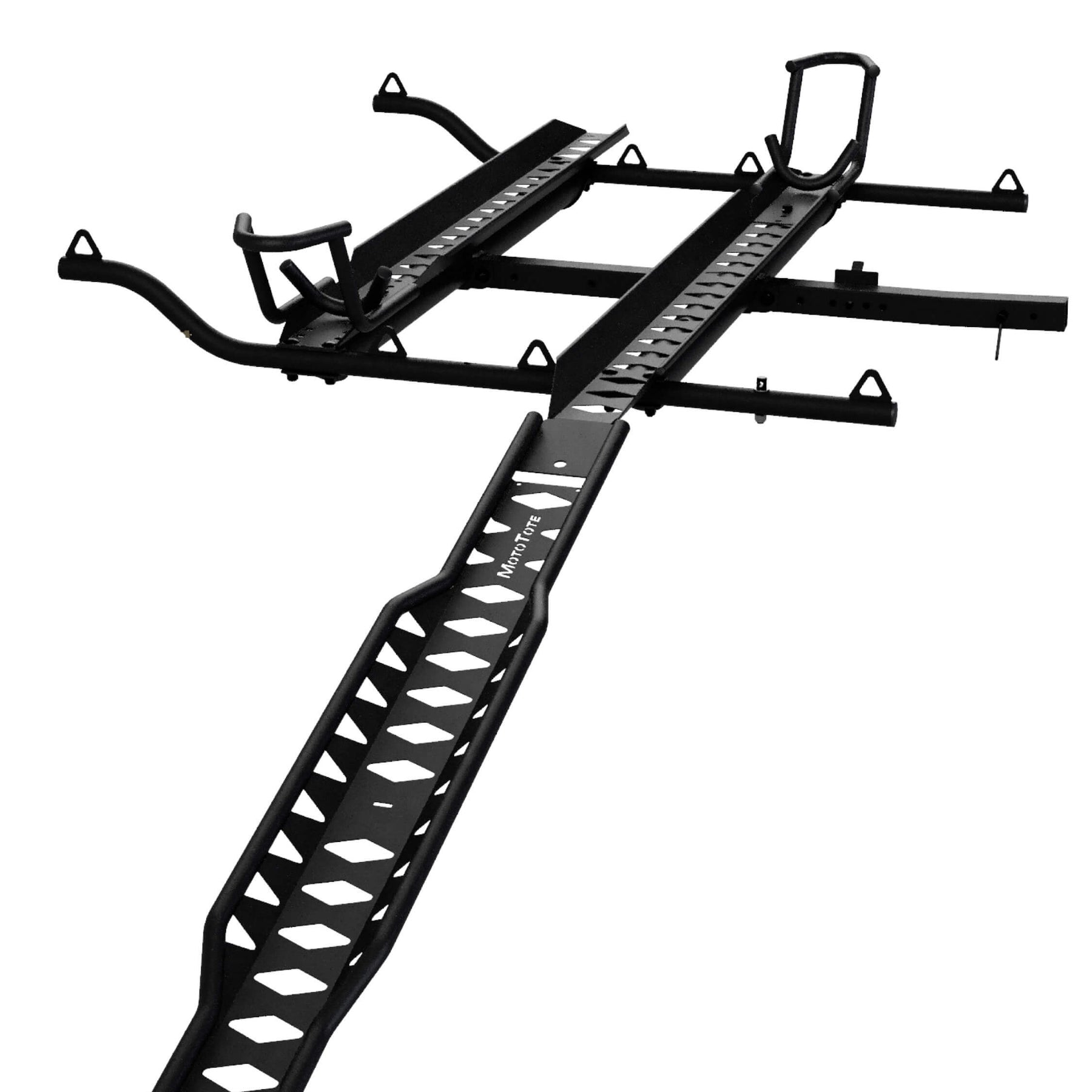

Loading Ramp Length: 56” L (142 cm.)
Front Tie Down Width: 29” (73.5 cm)
Rear Tie Down Width:29” (73.5 cm)
Loading Ramp Slope: v17 ° (On Average)
Weight
Weight Capacity: 600 lbs. (272 kgs.)
Outer Track Maximum Capacity : 250 lbs. (113 kgs.)
Carrier Weight: 101 lbs. (46 kgs.)
Material
Material: Powder Coated Steel
Finish: Textured Black Powder Coating
Hardware: Black Zinc Coated
Assembly
Straightforward by design. Assembly usually takes 30–60 minutes, depending on proficiency, and requires only a few basic tools. Click here for step-by-step instructions.
Product Features

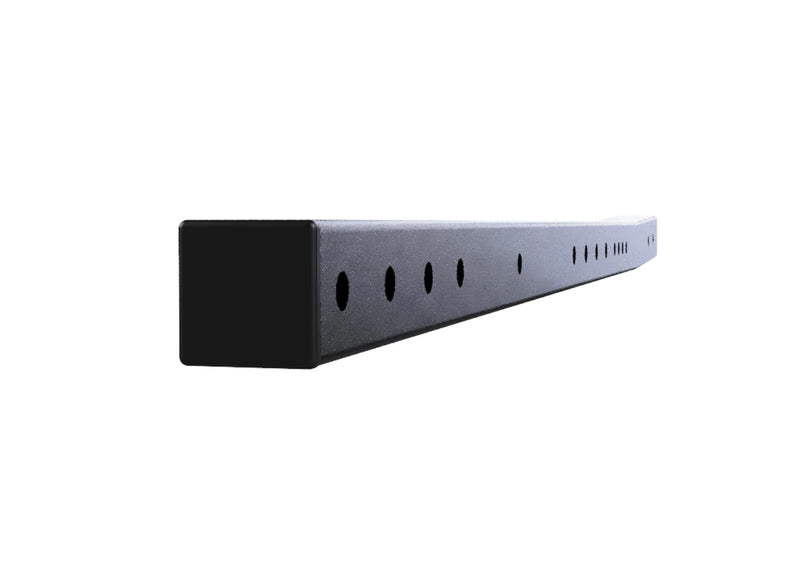

HitchLift Receiver Tube XL Innovative extended 2" receiver tube counteracts common vehicle hitch droop with a slight upward bend, ensuring that the racks are angled correctly from the back of the vehicle. Provides additional ground clearance, attachment of ramp and distance from vehicle adjustability.

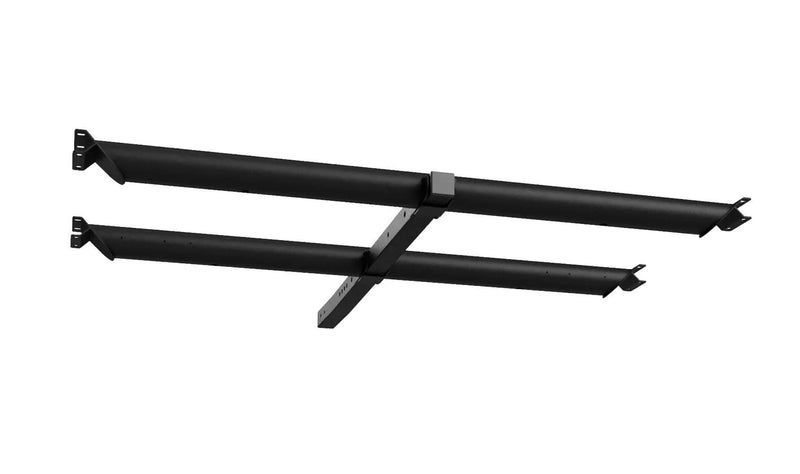

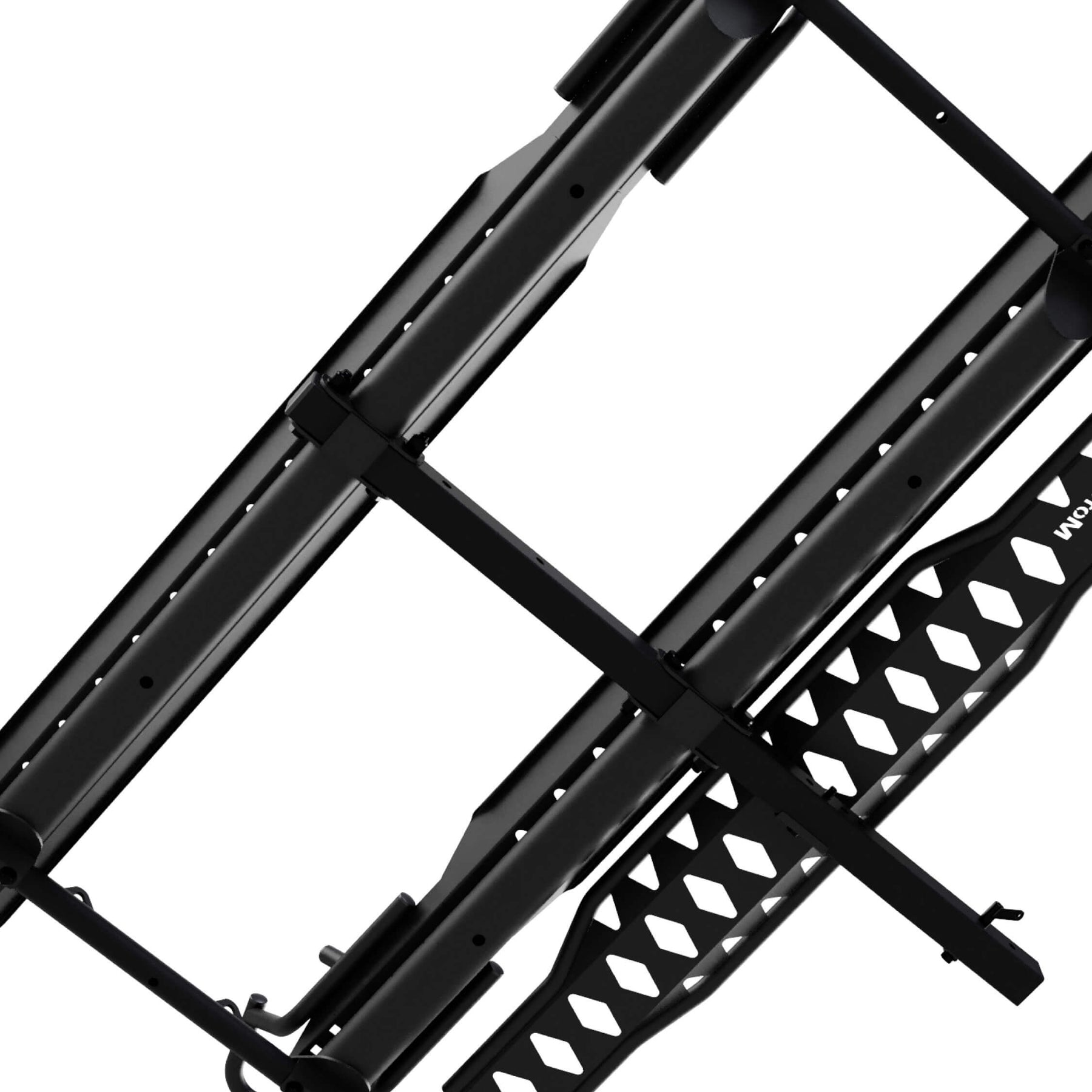

(2) MTX Platforms Two heavy-duty steel main supports connect to 2" receivers, haul up to 600 lbs. (272 kgs.) (300 lbs. per track spot) support track/chock adjustability, and the attachment of innovative components.

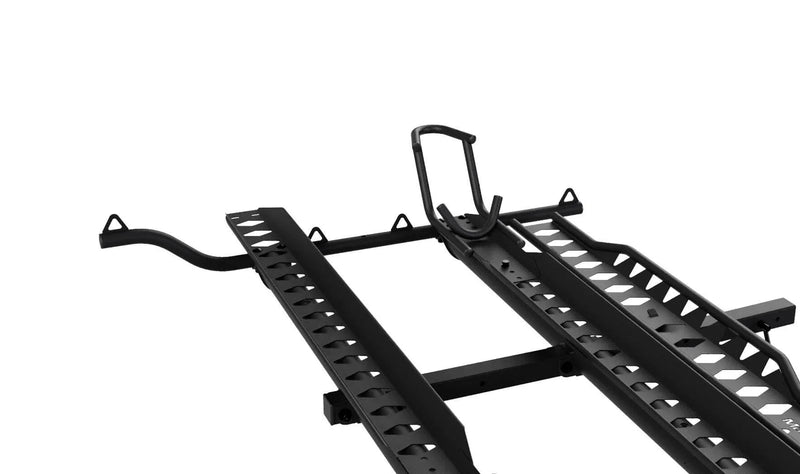

(2) StableStop Chocks Two adjustable tire mounts secure front tires up to 4.75" (120 mm), add lateral support, and hold the motorcycles upright while securing tie-downs.

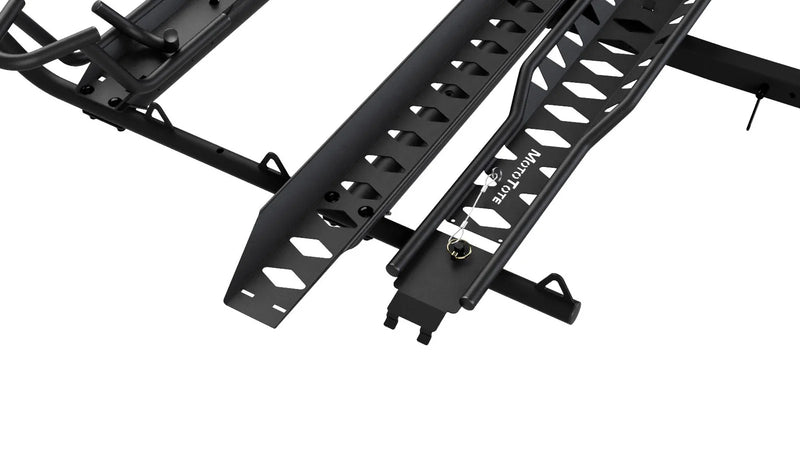

(2) MaxHold Tracks Two adjustable laser cut tracks with improved geometry offer unrivaled wedging and grip to secure a range of rear tire sizes up to 6" (152 mm) and adjust to a 62" (157 cm) wheelbase.

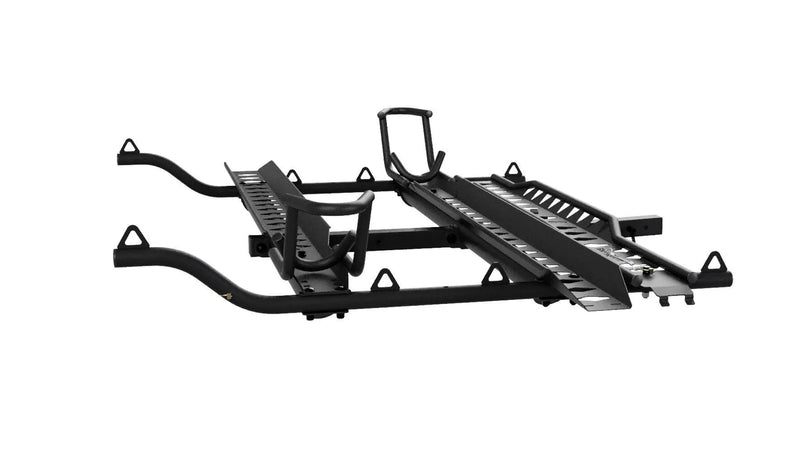

(2) BroadPull XL Arms Two extended length dual tie-down arms expand strap angles, add strength and maximize leverage.

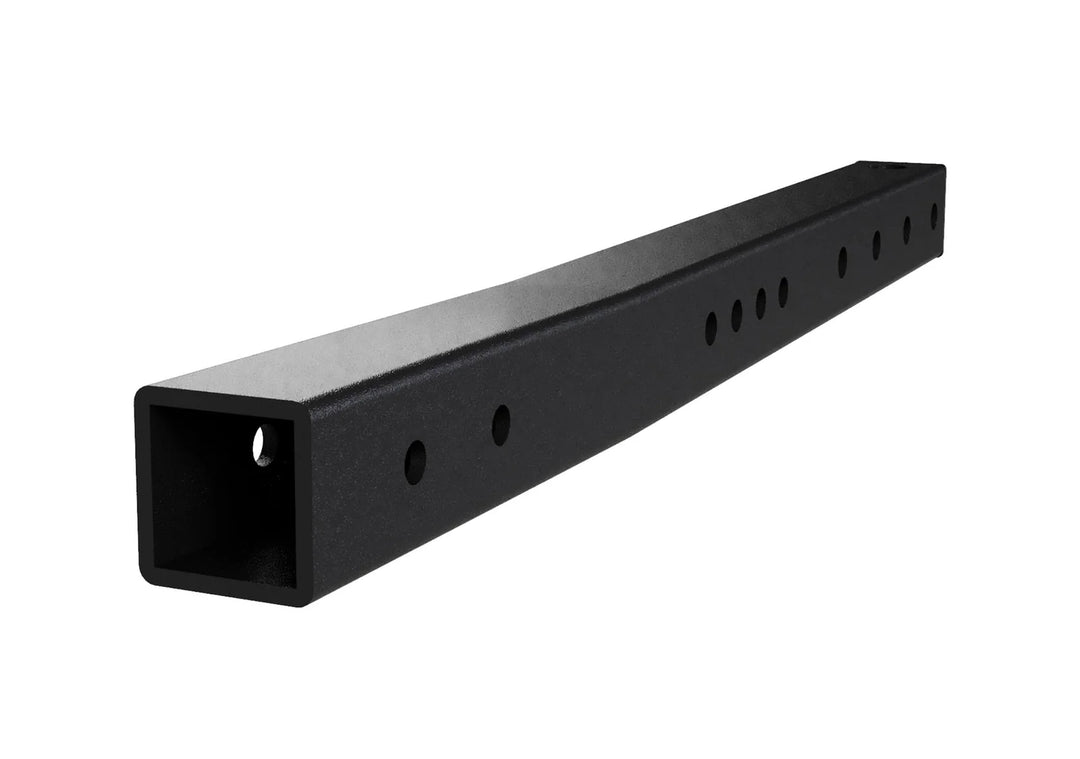

HitchLift Receiver Tube
Innovative 2" receiver tube counteracts common vehicle hitch droop with a slight upward bend, ensuring that the rack is angled correctly from the back of the vehicle. Provides additional ground clearance, attachment of ramp and distance from vehicle adjustability.

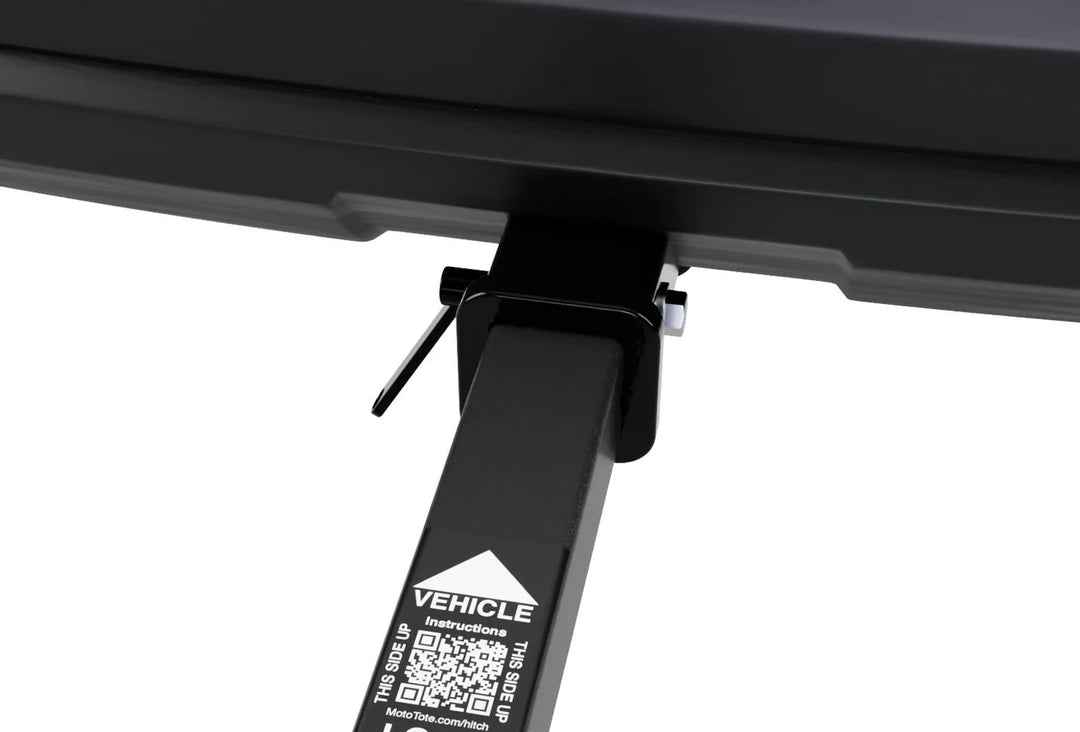

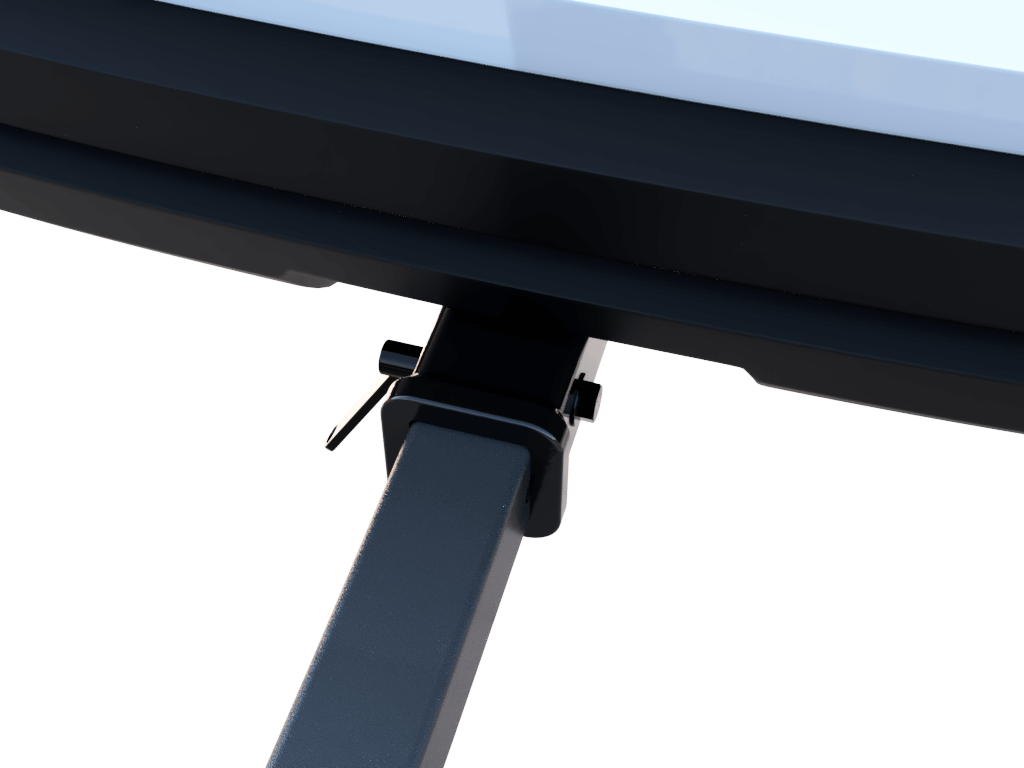

ZeroWobble+ Hitch Mount
Upgraded single-bolt hitch mount installs quickly, requires fewer tools and eliminates rack movement in transport.
