MotoTote m3 Motorcycle Hitch Carrier
Proven motorcycle rack for bikes up to 500 lbs; dirt bikes, scooters & more.
Motorcycle Compatibility
Motorcycle Types: Dirt Bikes, Scooters, Vintage Bikes
Weight Capacity: Up to 600 lbs. (272 kgs.)
Outer Track: 250 lbs. (133 kgs.) Maximum
Tire Sizes: Up to 4.75" (120 mm) Front, 6" (152 mm) Rear
Wheelbases: Up to 65" (165 cm)
Dimensions
Wheelbase: Up to 65” (165 cm)
Track Distance from Vehicle: Adjustable at 16”, 18” or 20”
Total Length: 72.5” - 78.5” (184 cm - 199 cm)
Loading Ramp Length: 56” L (142 cm.)
Front Tie Down Width: 29” (73.5 cm)
Front Wheel Chock Width: 4.75” (120 mm.)
Loading Ramp Slope: v17 ° (On Average)
Weight
Weight Capacity: 500 lbs. (227 kgs.)
Carrier Weight: 59 lbs. (27 kgs.)
Material
Material: Powder Coated Steel
Finish: Textured Black Powder Coating
Hardware: Black Zinc Coated
Assembly
Straightforward by design. Assembly usually takes 30–60 minutes, depending on proficiency, and requires only a few basic tools. Click here for step-by-step instructions.
Product Features

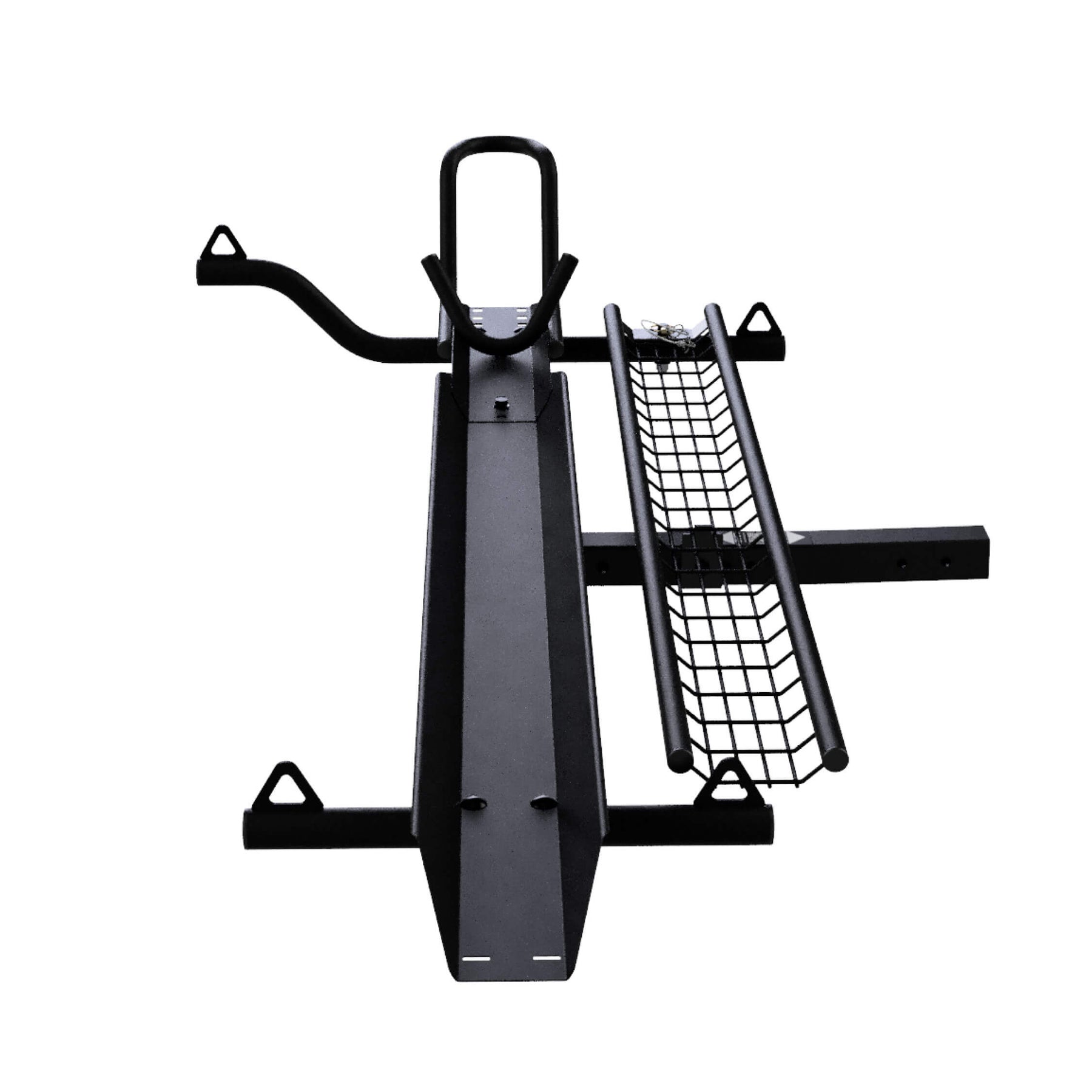

MTX Platform: Heavy-duty steel main support connects to 2" receivers, hauls up to 500 lbs. (227 kgs.), supports track, chock, orientation, and distance from vehicle adjustability, alongside the attachment of innovative components.

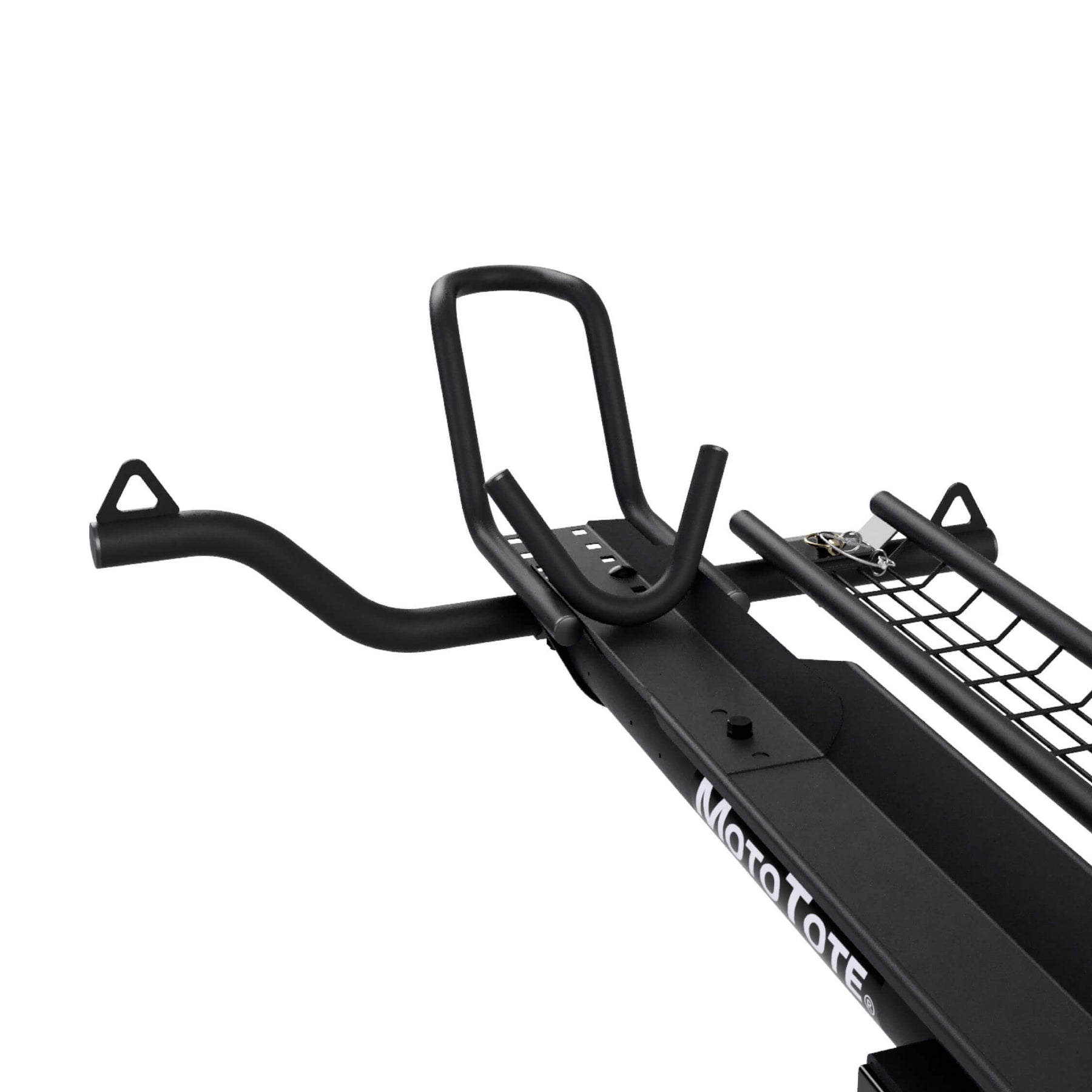

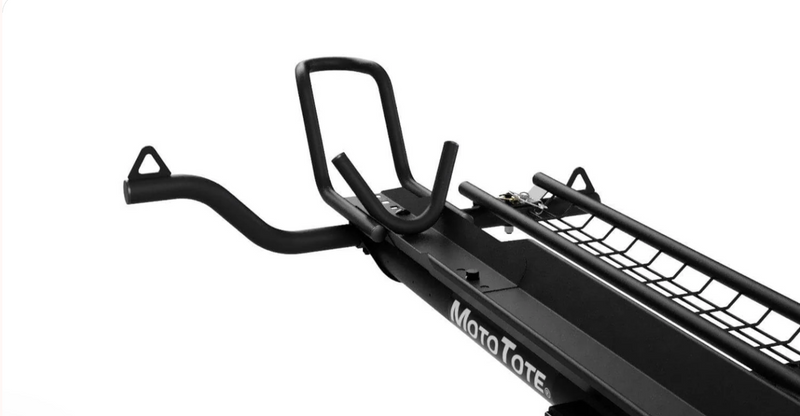

StableStop Chock: Adjustable two-piece front tire mount locks tires up to 4.75" (120 mm) wide into track, maximizes support, and helps balance the bike upright while securing tie-downs.

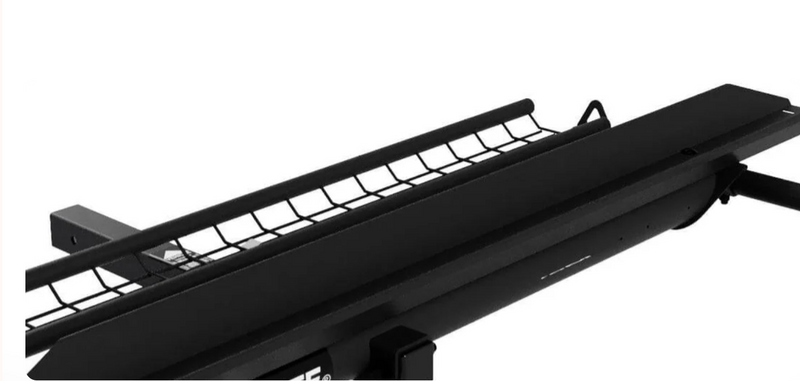

Angled Steel Track: Angled track wedges rear tire sizes up to 6" (152 mm) wide into track and accommodates up to 65" (165 cm) wheelbases.

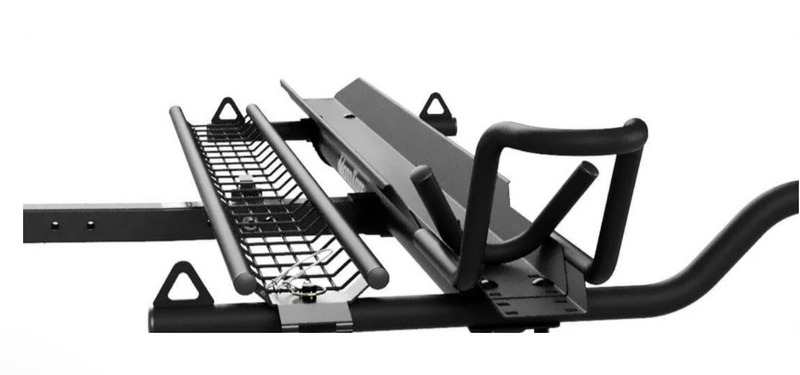

BroadPull Arm: Patented front tie-down arm provides main support for motorcycle stabilization. Rear tie down arm prevents rear tire from bouncing out of track.

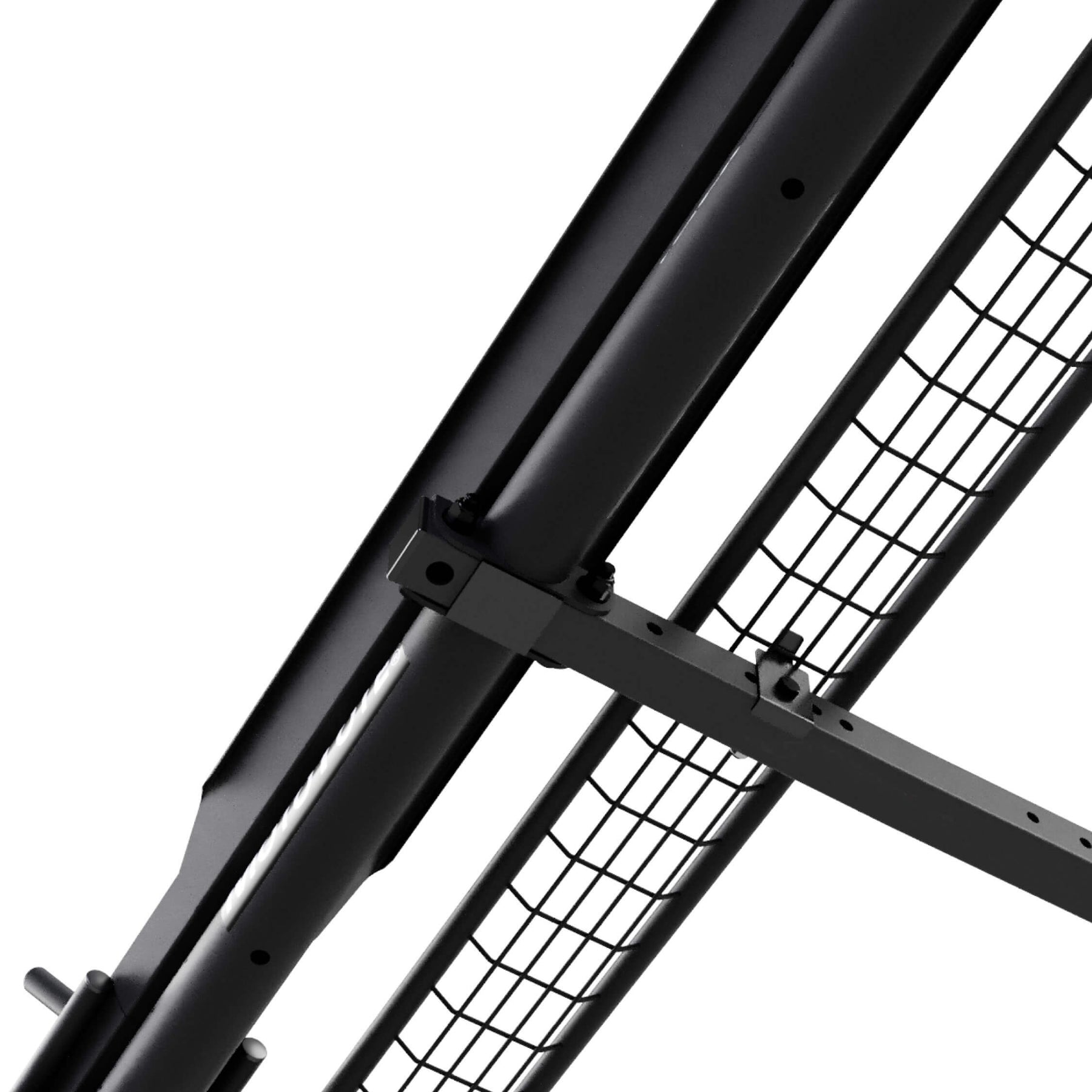

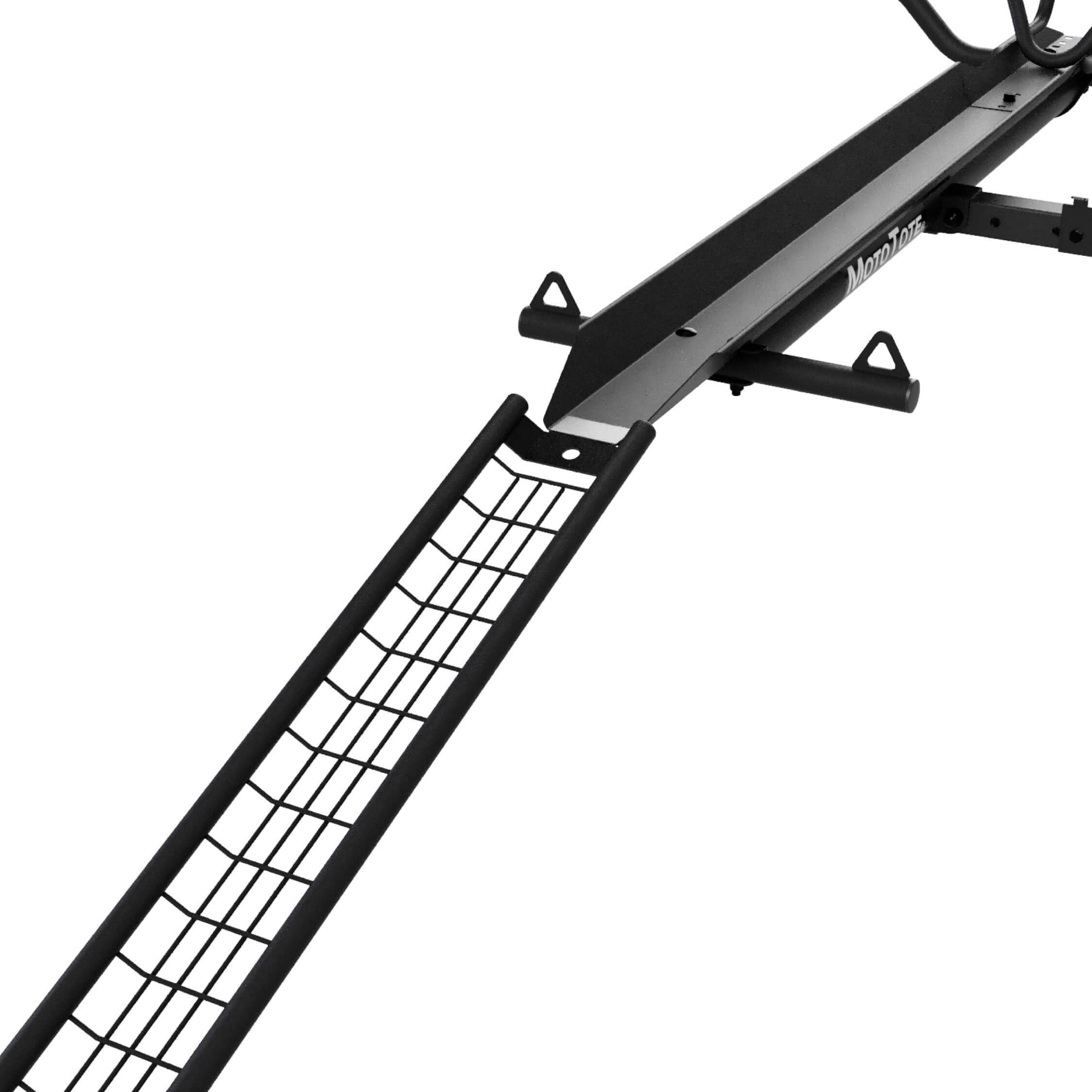

EasyLoad Ramp: A long webbed steel ramp increases tire's traction and eases the loading angle. Ramp hooks into tire track and will not disengage during loading.

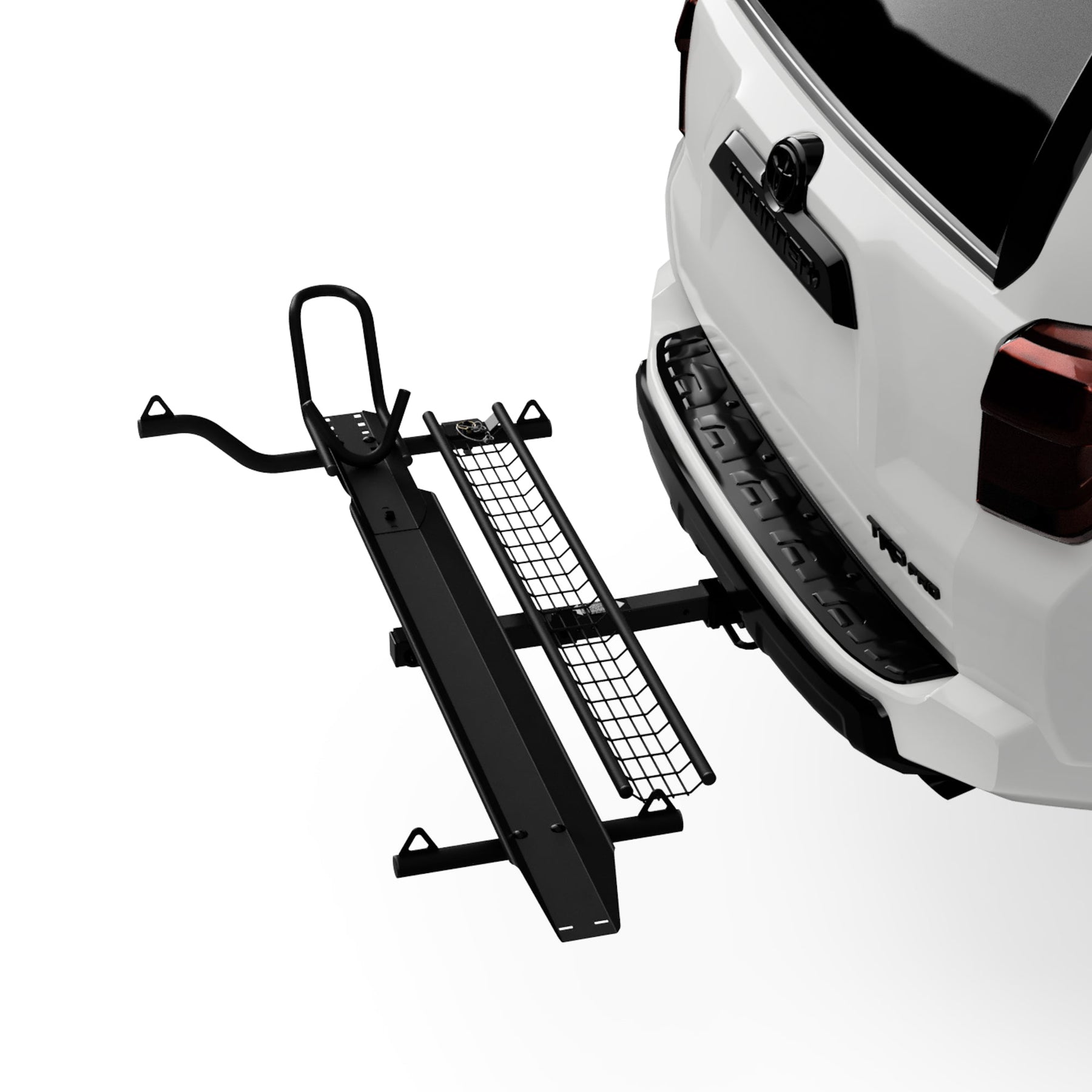

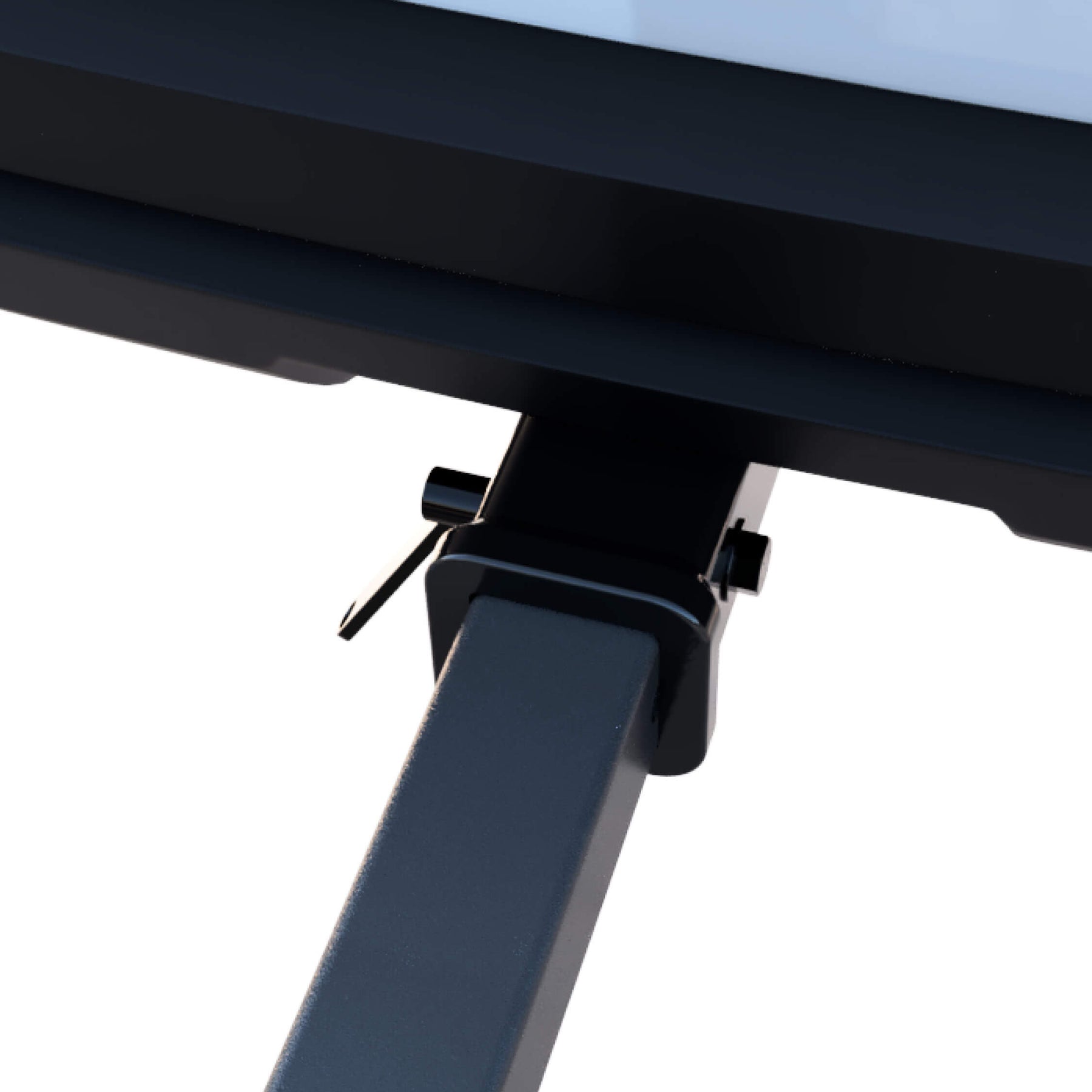

ZeroWobble+ Hitch Mount
Upgraded single-bolt hitch mount installs quickly, requires fewer tools and eliminates rack movement in transport.
