Velowave Ranger 2.0 Fat Tire All-Terrain E-Bike
- No Tax
- Free Shipping
- In stock, ready to ship
In accordance with UL 2849

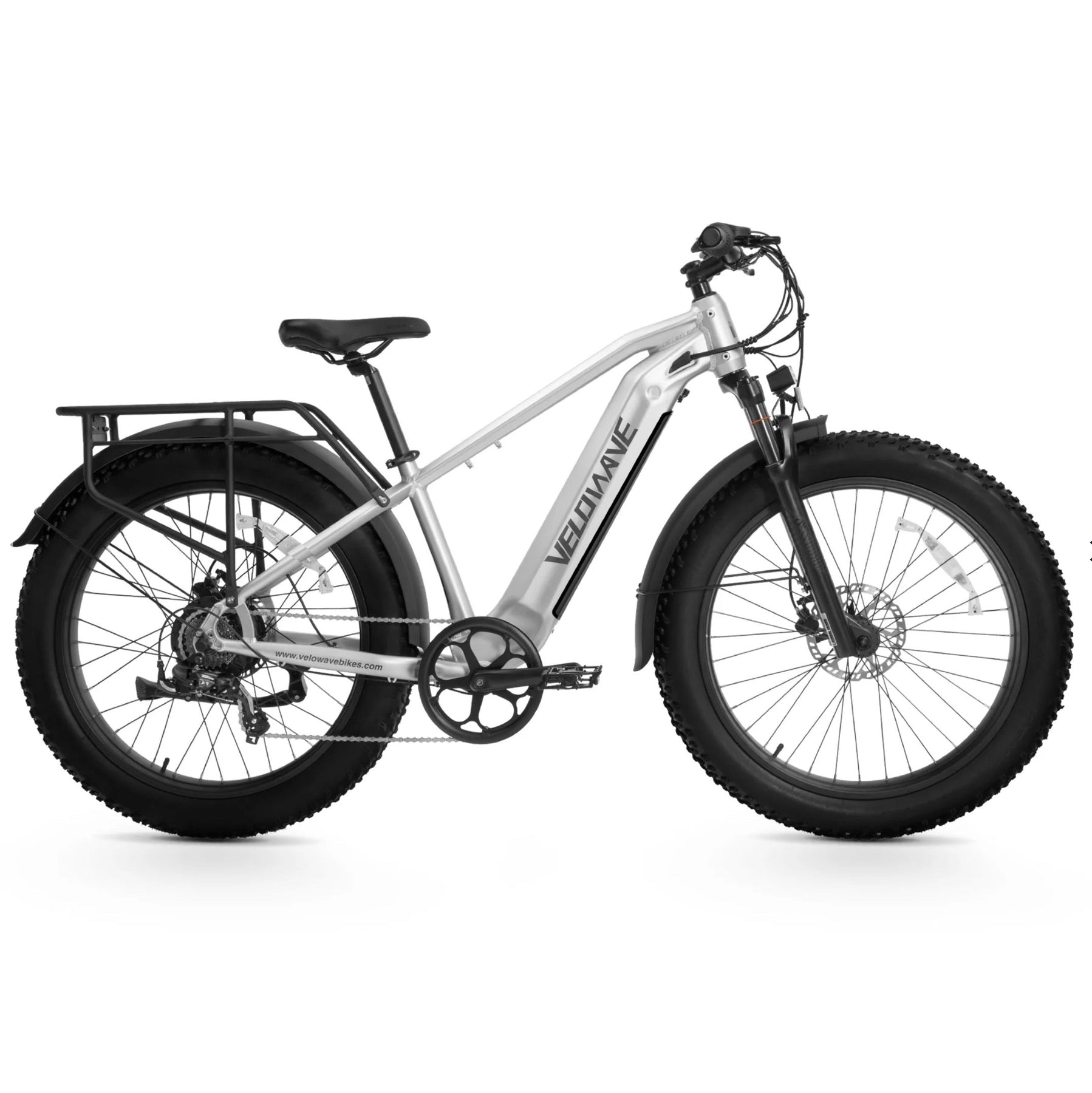

Ranger 2.0 Fat Tire All-Terrain Electric Bike
This ranger 2.0 boasts a powerful motor propelling you up to 28 MPH and a lockable, removable battery for hassle-free charging at home or the office, it covers up to 90 Miles by Pedal; 30 Miles by Throttle on a single charge, free from range worries. The 4-inch fat tires conquer anything from snow and sand to rough city streets, 6061 aluminum frame supports up to 350 lbs, ensuring a reliable and sturdy ride.
Specs & Size
| Total Length | 1914mm |
| Head Tube Length | 140mm |
| Head Tube Angle | 70° |
| Seat Tube | 425mm |
| Seat Tube Angle | 70.3° |
| Handlebar Height | 1109mm |
| Bottom Bracket Height | 361mm |
| Chainstay Length | 496mm |
| Front-Center | 669mm |
| Wheelbase | 1170mm |
| Standover Height | 704mm |
| Reach | 404mm |
| Seat Height Min/Max | 823mm/1012mm |
General
- Classes:Class 3(Ebikes can go up to 28mph with pedal assistance)
- Max Speed: 28MPH by pedal, 20MPH by throttle
- Range:Avg. 65 Miles* on PAS, up to 90 Miles on Level 1, 30 Miles* on Throttle (Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)
- Pedal Assist:5 Levels
Frameset
- Frame: 6061 Aluminium, Removable Battery, Internal Routing
- Fork:Hydraulic Suspension Fork with 60mm travel, with lockout
Wheels
- Rim Material:Aluminum
- Rim Size:26" 36H Front & Rear
- Front Wheel Spokes:13G x 244/246mm, Black Stainless
- Rear Wheel Spokes:12G x 217/219mm, Black Stainless
- Tubes:Butyl Rubber, Schrader Valve
- Hubs:Disc Nutted Front /Rear Axles
- Tire: Kenda Fat Tires
- Tire Size: 26" x 4.0"
E-system
- Battery:Removable Internal Lithium-ion Battery, 48V 15Ah, 720Wh, LG Cells
- Charger:48V 2 Amp Charger, Approx. 8 Hour Charging, Aviation Connector. UL LISTED
- Motor:Geared Hub Motor, Rated 750W, Peak 1200W, Max Torque 80NM
- Controller: 48V 25A Peak
- Display: Multifunctional Color-Screen Display
- Pedal Assist: Cadence Sensor
- Throttle: Thumb Throttle
- Front Light:48V 10W LED Light, 30 LUX
Drivetrain
- Shifter:Shimano 7-Speed RevoShift
- Rear Derailleur:Shimano ARDTY500D 7-Speed, Long Cage
- Crank & Chainring: 52T, 170mm Alloy Crank
- Freewheel:Shimano 14-28T, 7-Speed freewheel
- Pedal: Alloy Platform Pedals
- Chain:KMC 124 Link, 7-Speed
Components
- Saddle: Comfortable Wide Saddle
- Seatpost:Forged Alloy, Ø30.4*350mm
- Seat Clamp:Ø35mm Quick Release
- Stem:Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 70mm, RISE: ±7°
- Handlebar:Aluminum Ø31.8mm, Width 740mm
- Headset:Sealed Bearing Headset
- Grips:Nylon Lock-on, Ergonomic Comfort
- Brake:Front & Rear Hydralic Disc Brakes, with180mm discs, with power-cut-off function
- Brake rotor: 180mm, 1.9mm thick
- Kickstand:Side Kickstand, Alloy, Rear Mount
- Fenders:Plastic 26"x110mm
- Rear Rack:Aluminum Alloy Rear Rack
Weight
- Net Weight:33.1kg (72.97lb) ( including battery)
- Gross Weight:43.8kg (96.56lb)
- Battery Weight:4kg (8.82lb)
- Weight limit:136 kg (300 lb) Payload Capacity
Size
- Product Size:1930x755x1110mm
- Packing Size:1570x330x900mm
What is in the box
Electric Bike x 1
Charger x 1
Battery x 1
Front Light & Reflector Combo x1
Spare Screws x 2
Front Axle Skewer x 1
Pedals x 2
Instruction Manual x 1
Allen Wrench x 1
Open End Wrench x 2
