Name: Velowave| Ranger 2.0 Fat Tire Step-Thru Electric Bike
Brand: VELOWAVE
SKU: Silver
Price: 1499.0 USD
Availability: InStock

Velowave| Ranger 2.0 Fat Tire Step-Thru Electric Bike

$1,699.00 $1,499.00 Save 12%

Tax included. Shipping calculated at checkout.

Color

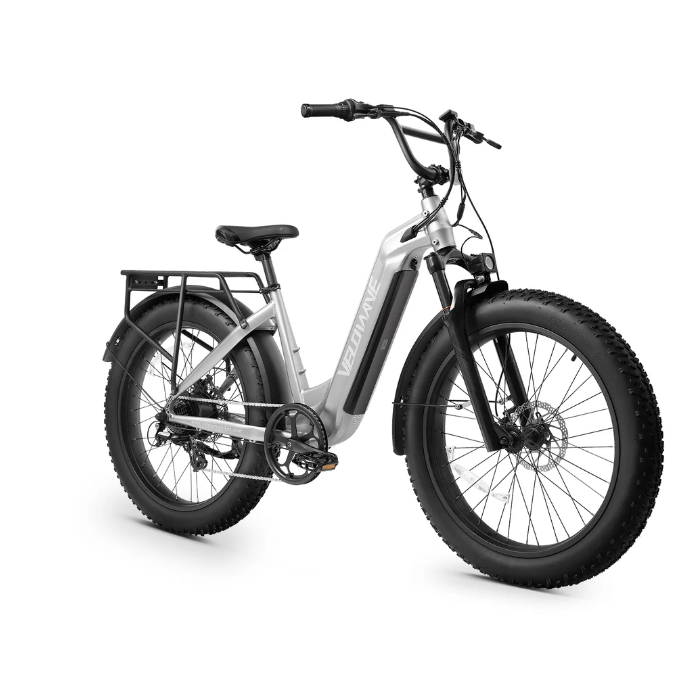

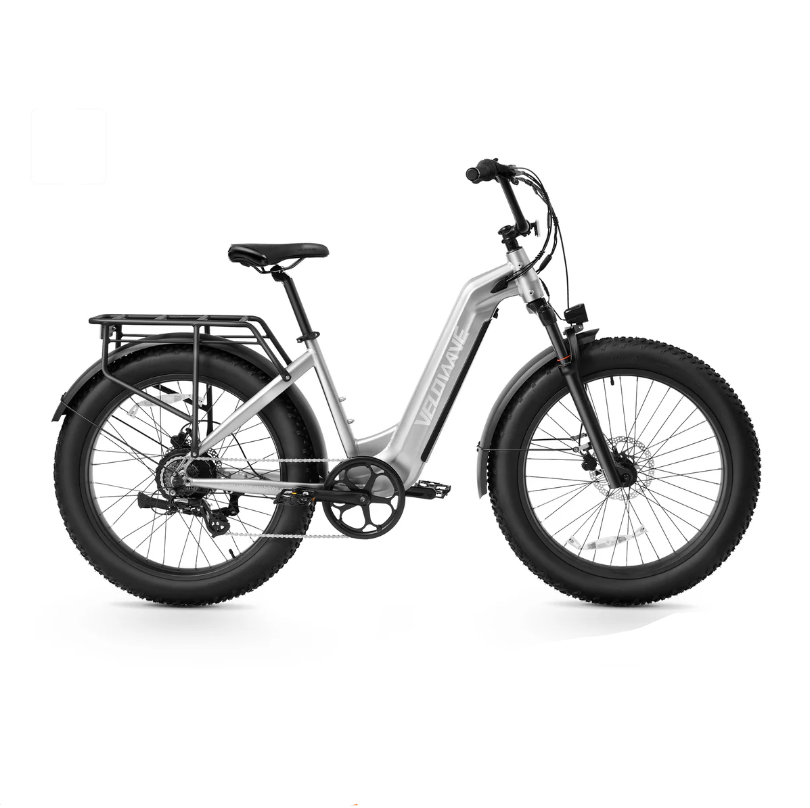

Silver

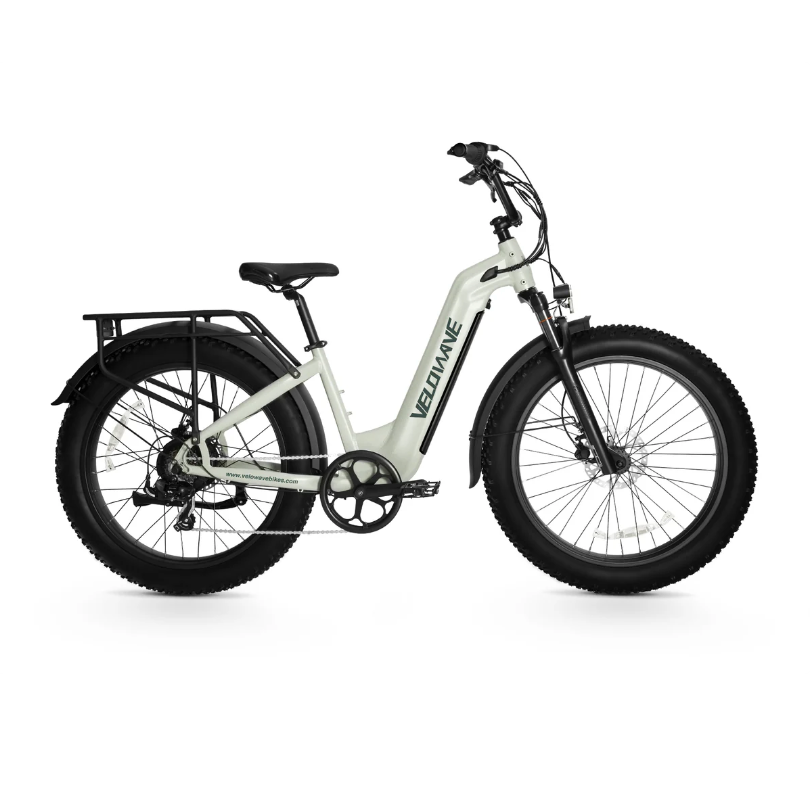

Morandi Green

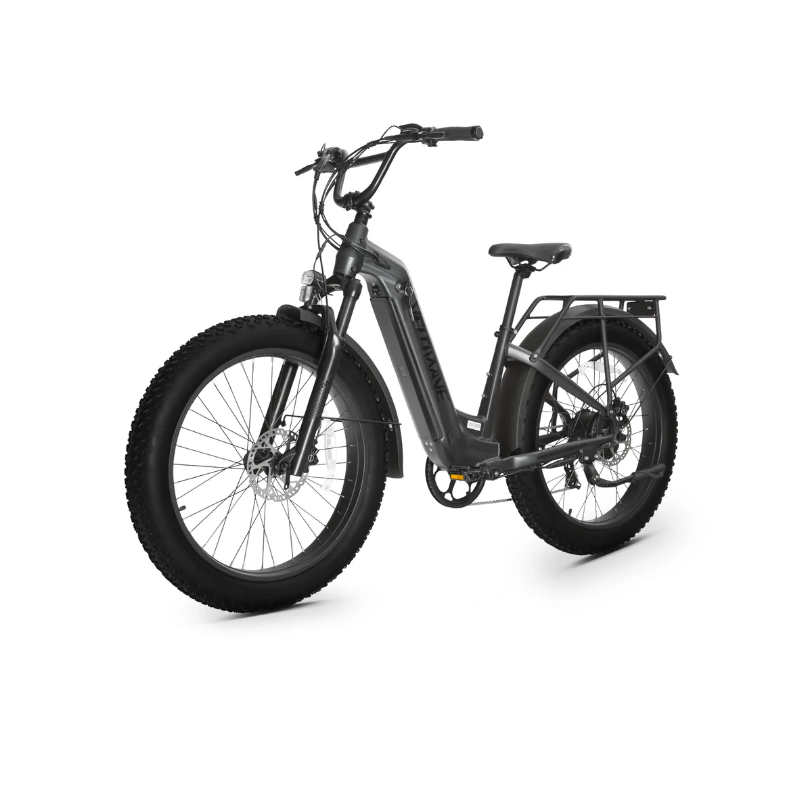

Dark Grey

No Tax

Free Shipping

In stock, ready to ship
Backordered, shipping soon

Ranger Step-Thru 2.0

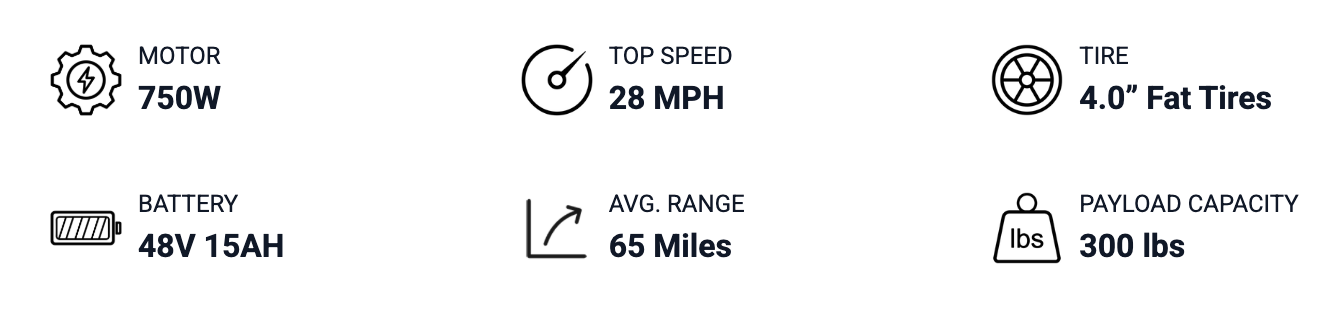

Blending power, speed and convenience. The ranger step-through offers a top speed of 28 MPH with a dynamic 750W geared hub motor, powered by a removable 48V 15AH LG battery for an extended and adaptable ride covering 30 miles on a single charge, and up to 90 miles by pedal. Roll smoothly on sturdy 4" fat tires offering superior traction and stability on any terrain.

The step-through frame enhances accessibility making it an inclusive choice for a wide range of individuals. With a robust payload capacity of 300lbs.

Featuring a complimentary rear rack and fenders – all included with no extra cost !

Specs & Size

Frame Size	Standard (mm)
Handlebar Height	1206mm
Reach	402mm
Head Tube Length	140mm
Seat Tube Length	425mm
Standover Height	457mm
Wheelbase	1172mm
Total Length	1922mm
Seat Height Min/Max	819/1009mm

General

Classes:Class 3(Ebikes can go up to 28mph with pedal assistance)
Max Speed: 28MPH by pedal, 20MPH by throttle
Range:Avg. 65 Miles* on PAS, up to 90 Miles on Level 1, 30 Miles* on Throttle (Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)
Pedal Assist: 5 Levels

Frameset

Frame: 6061 Aluminium, Removable Battery, Internal Routing
Fork: Hydraulic Suspension Fork with 60mm travel, with lockout

Wheels

Rim Material: Aluminum
Rim Size: 26" 36H Front & Rear
Front Wheel Spokes: 13G x 244/246mm, Black Stainless
Rear Wheel Spokes: 12G x 217/219mm, Black Stainless
Tubes: Butyl Rubber, Schrader Valve
Hubs: Disc Nutted Front /Rear Axles
Tire: Kenda Fat Tires
Tire Size: 26" x 4.0"

E-system

Battery: Removable Internal Lithium-ion Battery, 48V 15Ah, 720Wh, LG Cells
Charger: 48V 2 Amp Charger, Approx. 8 Hour Charging, Aviation Connector. UL LISTED
Motor:Geared Hub Motor, Rated 750W, Peak 1200W, Max Torque 80NM
Controller: 48V 25A Peak
Display: Multifunctional Color-Screen Display
Pedal Assist: Speed Sensor
Throttle: Thumb Throttle
Front Light: 48V 10W LED Light, 30 LUX

Drivetrain

Shifter: Shimano 7-Speed RevoShift
Rear Derailleur: Shimano ARDTY500D 7-Speed, Long Cage
Crank & Chainring: 52T, 170mm Alloy Crank
Freewheel: Shimano 14-28T, 7-Speed freewheel
Pedal: Alloy Platform Pedals
Chain: KMC 124 Link, 7-Speed

Components

Saddle: Comfortable Wide Saddle
Seatpost: Forged Alloy, Ø30.4*350mm
Seat Clamp: Ø35mm Quick Release
Stem: Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 70mm, RISE: ±7°
Handlebar:Aluminum Ø31.8mm, Width 720mm
Headset: Sealed Bearing Headset
Grips: Nylon Lock-on, Ergonomic Comfort
Brake: Front & Rear Hydralic Disc Brakes, with180mm discs, with power-cut-off function
Brake rotor: 180mm, 1.9mm thick
Kickstand: Side Kickstand, Alloy, Rear Mount
Fenders: Plastic 26"x110mm
Rear Rack: Aluminum Alloy Rear Rack

Weight

Net Weight:34.9kg (76.94lb) ( including battery)
Gross Weight:45.6kg (100.53lb)
Battery Weight: 4kg (8.82lb)
Weight limit:136 kg (300 lb) Payload Capacity

Size

Product Size:1930x740x1210mm
Packing Size: 1570x330x900mm

[{"id":47254109913258,"title":"Silver","option1":"Silver","option2":null,"option3":null,"sku":"Silver","requires_shipping":true,"taxable":false,"featured_image":{"id":41223887257770,"product_id":8196597842090,"position":4,"created_at":"2025-07-20T19:26:48-07:00","updated_at":"2025-07-20T19:30:06-07:00","alt":null,"width":810,"height":808,"src":"\/\/ebikehaul.com\/cdn\/shop\/files\/Screenshot_2025-07-20_at_7.26.45_pm.png?v=1753065006","variant_ids":[47254109913258]},"available":true,"name":"Velowave| Ranger 2.0 Fat Tire Step-Thru Electric Bike - Silver","public_title":"Silver","options":["Silver"],"price":149900,"weight":0,"compare_at_price":169900,"inventory_management":null,"barcode":"","featured_media":{"alt":null,"id":32763360247978,"position":4,"preview_image":{"aspect_ratio":1.002,"height":808,"width":810,"src":"\/\/ebikehaul.com\/cdn\/shop\/files\/Screenshot_2025-07-20_at_7.26.45_pm.png?v=1753065006"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47254134587562,"title":"Morandi Green","option1":"Morandi Green","option2":null,"option3":null,"sku":"Morandi Green","requires_shipping":true,"taxable":false,"featured_image":{"id":41223888502954,"product_id":8196597842090,"position":5,"created_at":"2025-07-20T19:27:08-07:00","updated_at":"2025-07-20T19:30:24-07:00","alt":null,"width":810,"height":808,"src":"\/\/ebikehaul.com\/cdn\/shop\/files\/Screenshot_2025-07-20_at_7.27.02_pm.png?v=1753065024","variant_ids":[47254134587562]},"available":true,"name":"Velowave| Ranger 2.0 Fat Tire Step-Thru Electric Bike - Morandi Green","public_title":"Morandi Green","options":["Morandi Green"],"price":149900,"weight":0,"compare_at_price":169900,"inventory_management":null,"barcode":"","featured_media":{"alt":null,"id":32763361525930,"position":5,"preview_image":{"aspect_ratio":1.002,"height":808,"width":810,"src":"\/\/ebikehaul.com\/cdn\/shop\/files\/Screenshot_2025-07-20_at_7.27.02_pm.png?v=1753065024"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":47254134620330,"title":"Dark Grey","option1":"Dark Grey","option2":null,"option3":null,"sku":"Dark Grey","requires_shipping":true,"taxable":false,"featured_image":{"id":41223889715370,"product_id":8196597842090,"position":6,"created_at":"2025-07-20T19:27:27-07:00","updated_at":"2025-07-20T19:30:42-07:00","alt":null,"width":810,"height":808,"src":"\/\/ebikehaul.com\/cdn\/shop\/files\/Screenshot_2025-07-20_at_7.27.24_pm.png?v=1753065042","variant_ids":[47254134620330]},"available":true,"name":"Velowave| Ranger 2.0 Fat Tire Step-Thru Electric Bike - Dark Grey","public_title":"Dark Grey","options":["Dark Grey"],"price":149900,"weight":0,"compare_at_price":169900,"inventory_management":null,"barcode":"","featured_media":{"alt":null,"id":32763362705578,"position":6,"preview_image":{"aspect_ratio":1.002,"height":808,"width":810,"src":"\/\/ebikehaul.com\/cdn\/shop\/files\/Screenshot_2025-07-20_at_7.27.24_pm.png?v=1753065042"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Ranger Step-Thru 2.0

Blending power, speed and convenience. The ranger step-through offers a top speed of 28 MPH with a dynamic 750W geared hub motor, powered by a removable 48V 15AH LG battery for an extended and adaptable ride covering 30 miles on a single charge, and up to 90 miles by pedal. Roll smoothly on sturdy 4" fat tires offering superior traction and stability on any terrain. The step-through frame enhances accessibility making it an inclusive choice for a wide range of individuals. With a robust payload capacity of 300lbs. Featuring a complimentary rear rack and fenders – all included with no extra cost !

Key Features

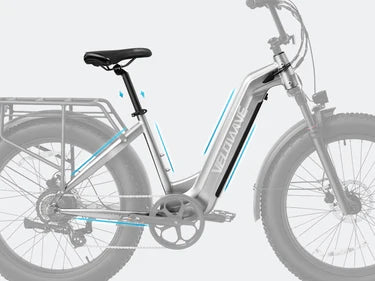

6061 Aluminum Frame

Our Step-Thru Frame ensures easy on-off access for all riders, while the reinforced rear triangle supports up to 350 lbs, accommodating most users with ease.

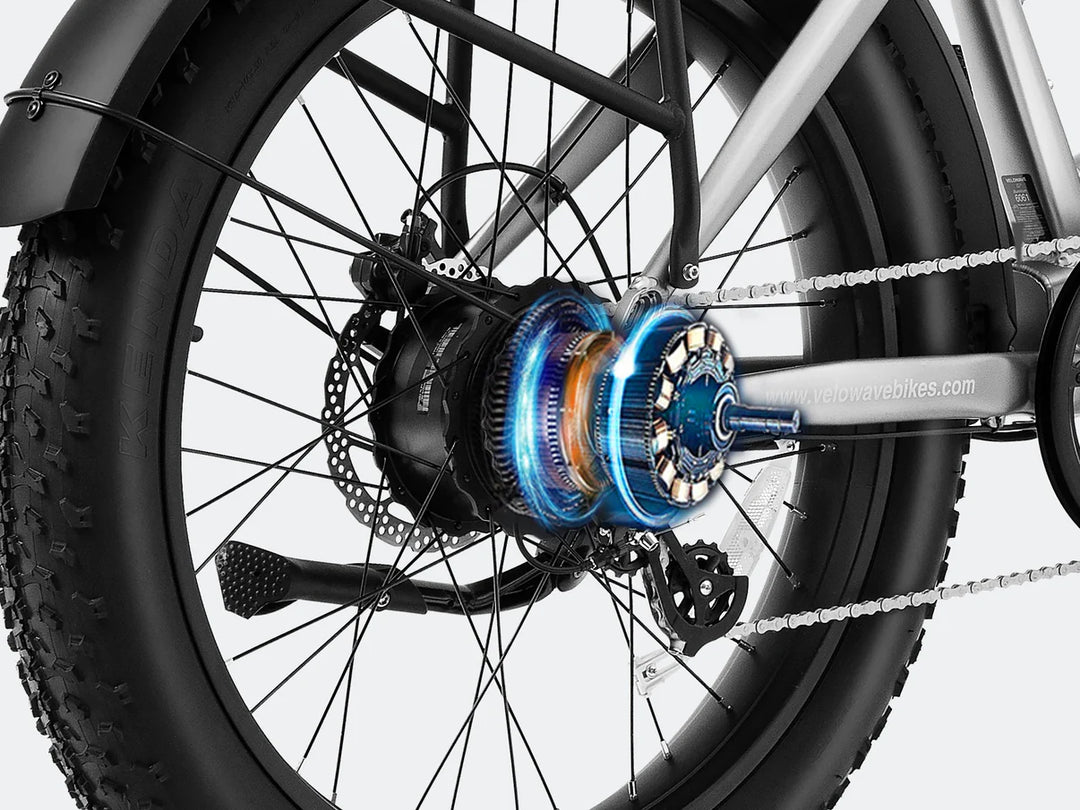

750W Hub Motor

Experience strong electric power and stability with our 750W Geared Hub Motor, making cruising effortless and hill-climbing a breeze.

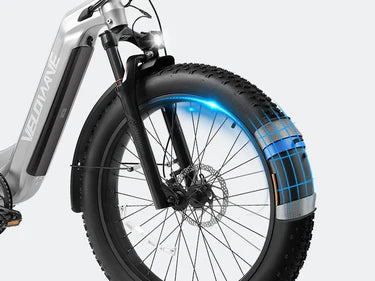

Fat Tire Design

Our 26"*4.0" Fat Tire is anti-skidding and wear-resistant, adapting seamlessly to various terrains such as snow and sand, providing smooth rides on rugged landscapes.

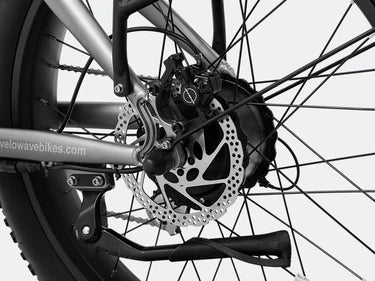

Convenient Control

Enjoy multiple riding modes and reliable hydraulic disc brakes for perfect braking performance and a seamless riding experience.

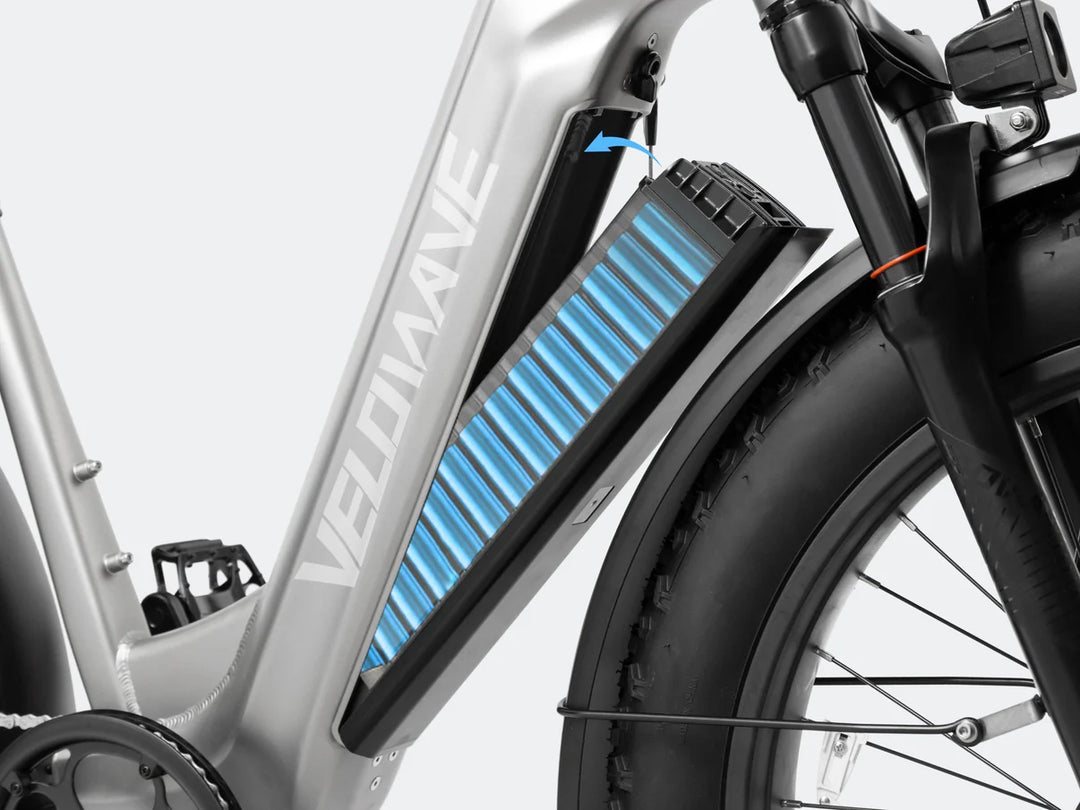

Removable LG Battery

Powered by a high-quality 48V 15AH LG battery, our e-bike covers up to 90 miles on a single charge and is conveniently lockable and removable for easy charging.

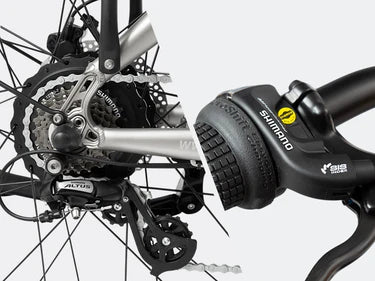

Shimano Derailleur

Conquer steep hills and cruise at high speeds effortlessly with our 7-speed cassette transmission featuring an 11T to 32T gear range.

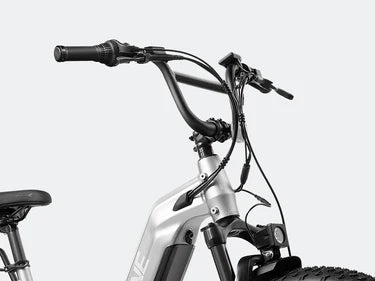

Upright Handlebar

Embrace comfort and safety with our Ranger E-Bike's upright handlebars, providing a clearer view of the road, reduced wrist pressure, and enhanced control for extended rides.

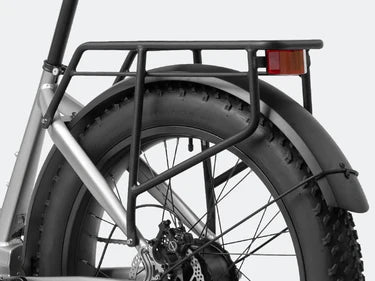

Rack & Fenders

Carry cargo effortlessly and maintain a stylishly clean appearance on- and off-road with our practical rear rack and upgraded 1-piece fender package.

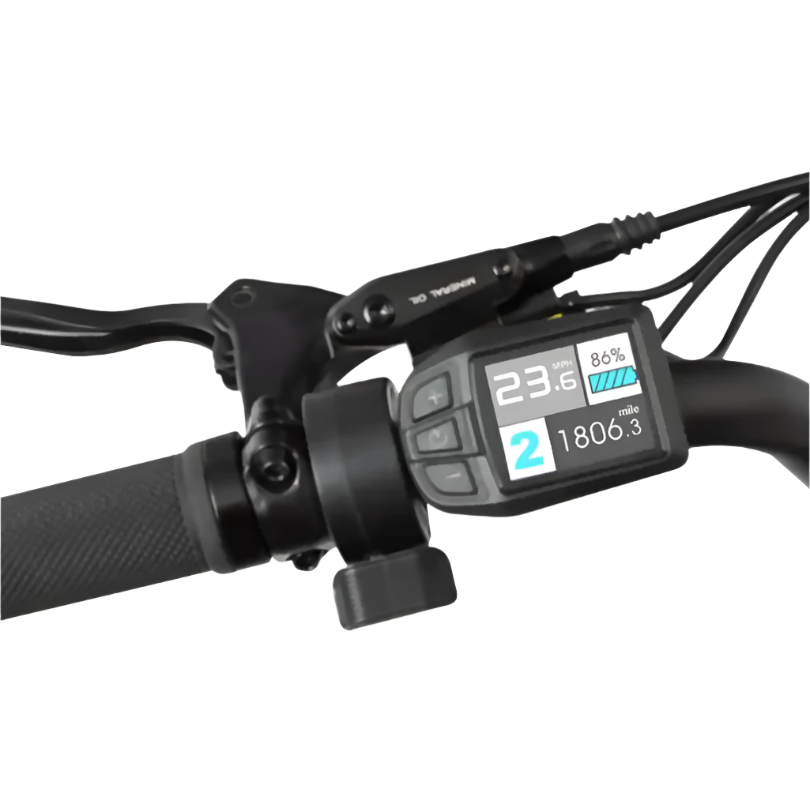

Throttle & Display

Experience power on demand with the intuitive thumb throttle and stay informed with real-time metrics and customizable riding modes on our advanced display.
