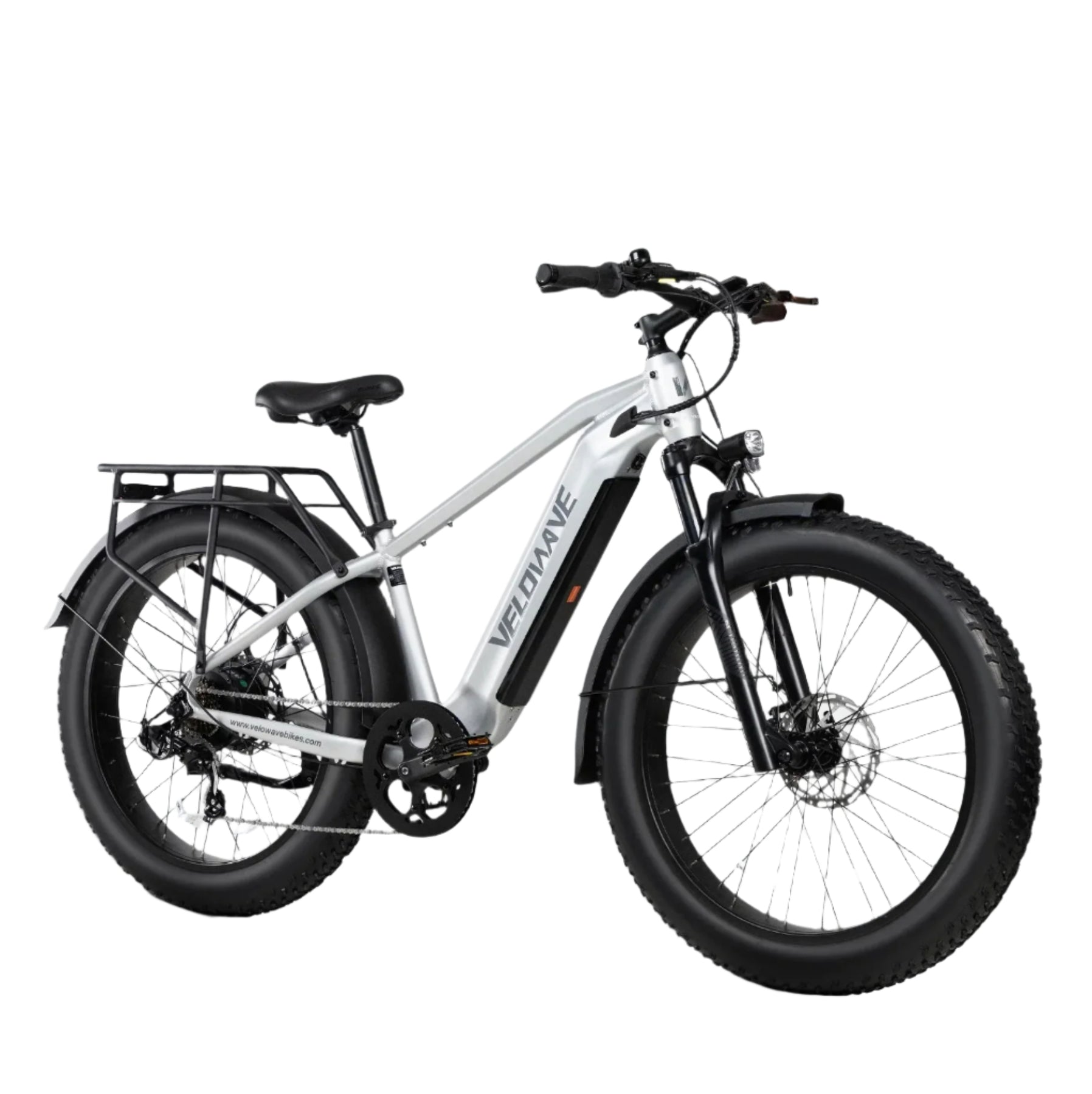

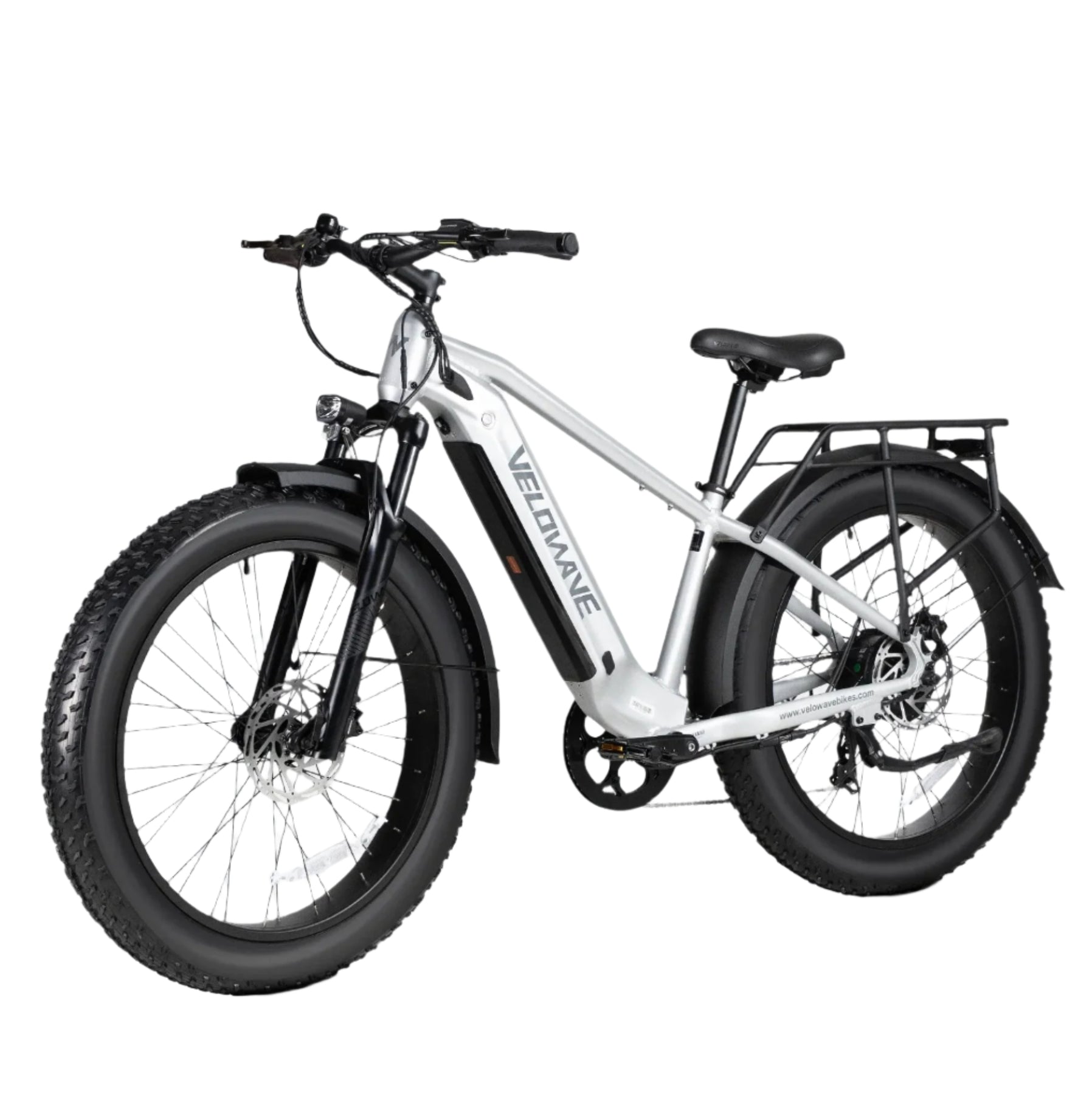

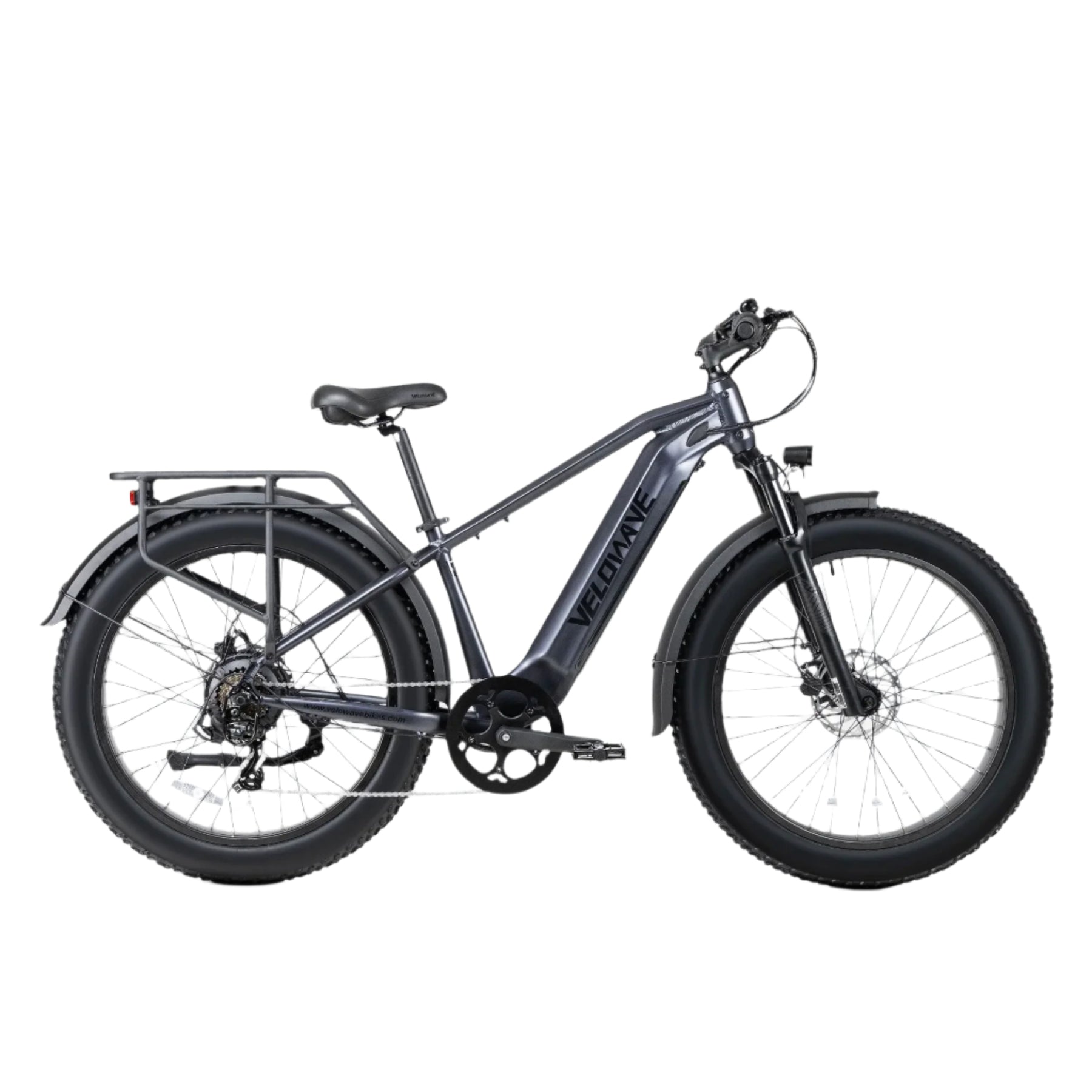

Velowave| Ranger 3.0 Fat Tire All-Terrain Electric Bike
Elevate Your Ride with Advanced Technology
The Ranger 3.0 is engineered to conquer off-road adventures with unparalleled ease and control. Its advanced torque sensor delivers responsive power from a robust 750W motor (peak 1000W) with a torque of 85Nm, effortlessly handling rugged terrains and steep inclines. With its advanced features and technology, the Ranger 3.0 sets a new standard for electric bikes, delivering exceptional performance and reliability wherever your adventure takes you.
Specs
Geometry
| Frame Size | Standard (mm) |
| Handlebar Height | 1109mm |
| Reach | 404mm |
| Head Tube Length | 140mm |
| Seat Tube Length | 425mm |
| Standover Height | 753mm |
| Wheelbase | 1165mm |
| Total Length | 1914mm |
| Seat Height Min/Max | 823/1012mm |
General
- Classes:Class 3(Ebikes can go up to 28mph with pedal assistance)
- Max Speed: Up to 28 MPH on Pedal Assist; 20 MPH on Throttle
- Range:Avg. 65 Miles* on PAS, up to 90 Miles on Level 1, 30 Miles* on Throttle (Range Per Charge is measured under the conditions that power is sufficient, with a 75kg load, at 86°F(30°C), 70% humidity, on a level road, in pedal assist mode with level 1 assistance, and in pure electric riding mode by throttle. Actual results may vary based on differences in temperature, load, wind speed, road conditions and other factors.)
Frameset

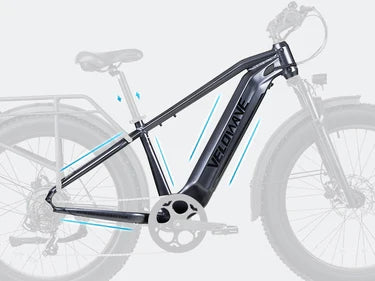

- Frame: 6061 Alluminum Alloy with Internal Battery

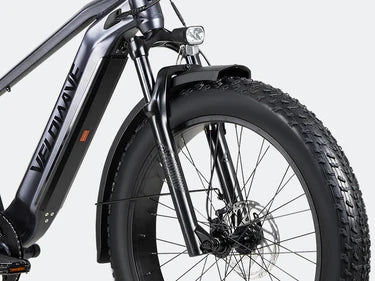

- Fork: Hydraulic Suspension Fork with 60mm travel, with lockout
- Rear Suspension: /
Wheels
- Rim: Aluminum 26" 36H Front & Rear
- Spokes: Black Stainless, Front 13Gx 244/246mm, and Rear 12Gx217/219mm
- Hubs: Disc Nutted Front /Rear Axles
- Tires: Kenda 26" x 4.0" Fat Tires
- Tubes: Butyl Rubber, Schrader Valve
E-system

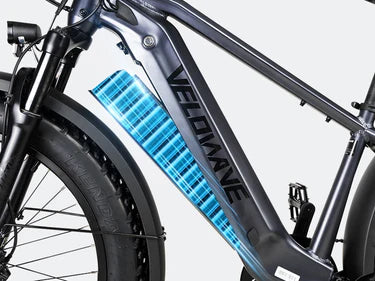

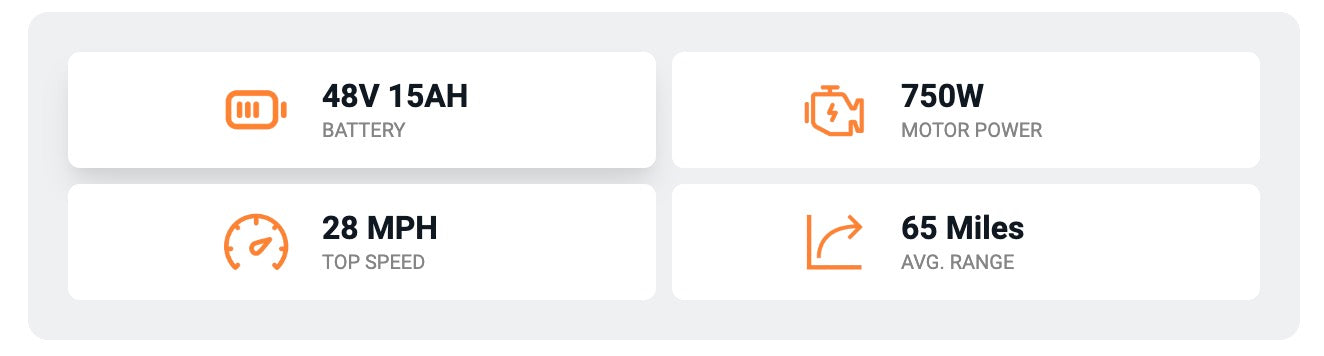

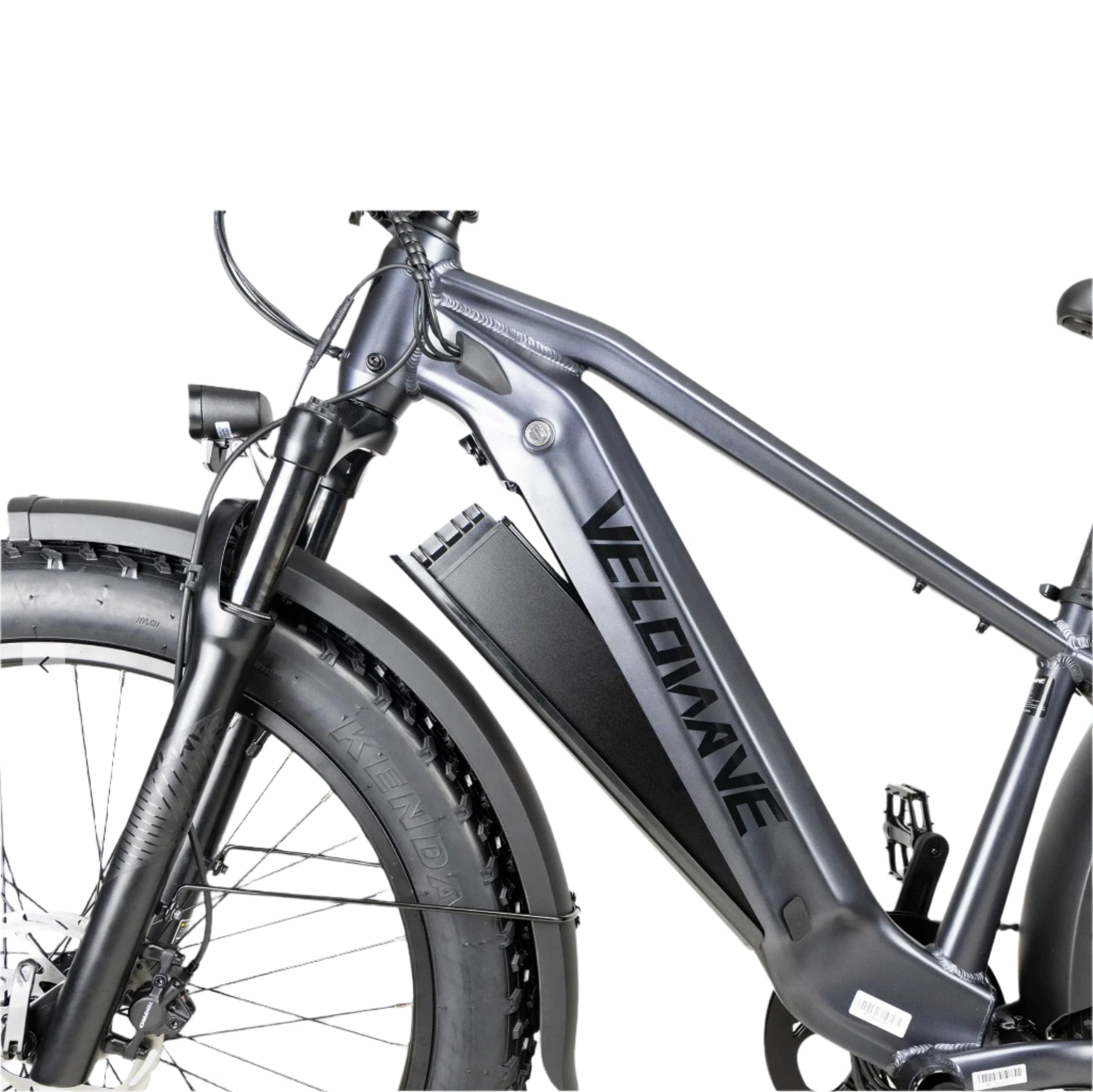

- Battery: Removable Internal Lithium-ion Battery 48V15AH (720Wh) with LG cells
- Charger: 48V 2 Amp Charger, Approx. 8 Hour Charging

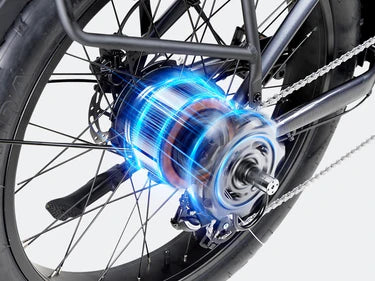

- Motor: 750W （Peak 1000W）, 85Nm

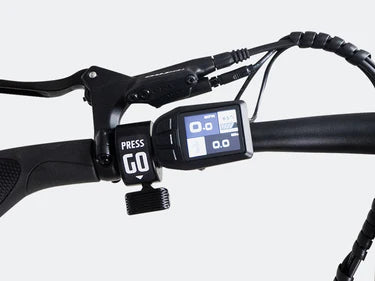

- Display: TFT Smart Easy Read Display with Backlight, Colorful screen
- Pedal Assist: 5 Levels
- Sensors: Torque Sensor
- Throttle: Throttle on demand - Throttle from a complete stop

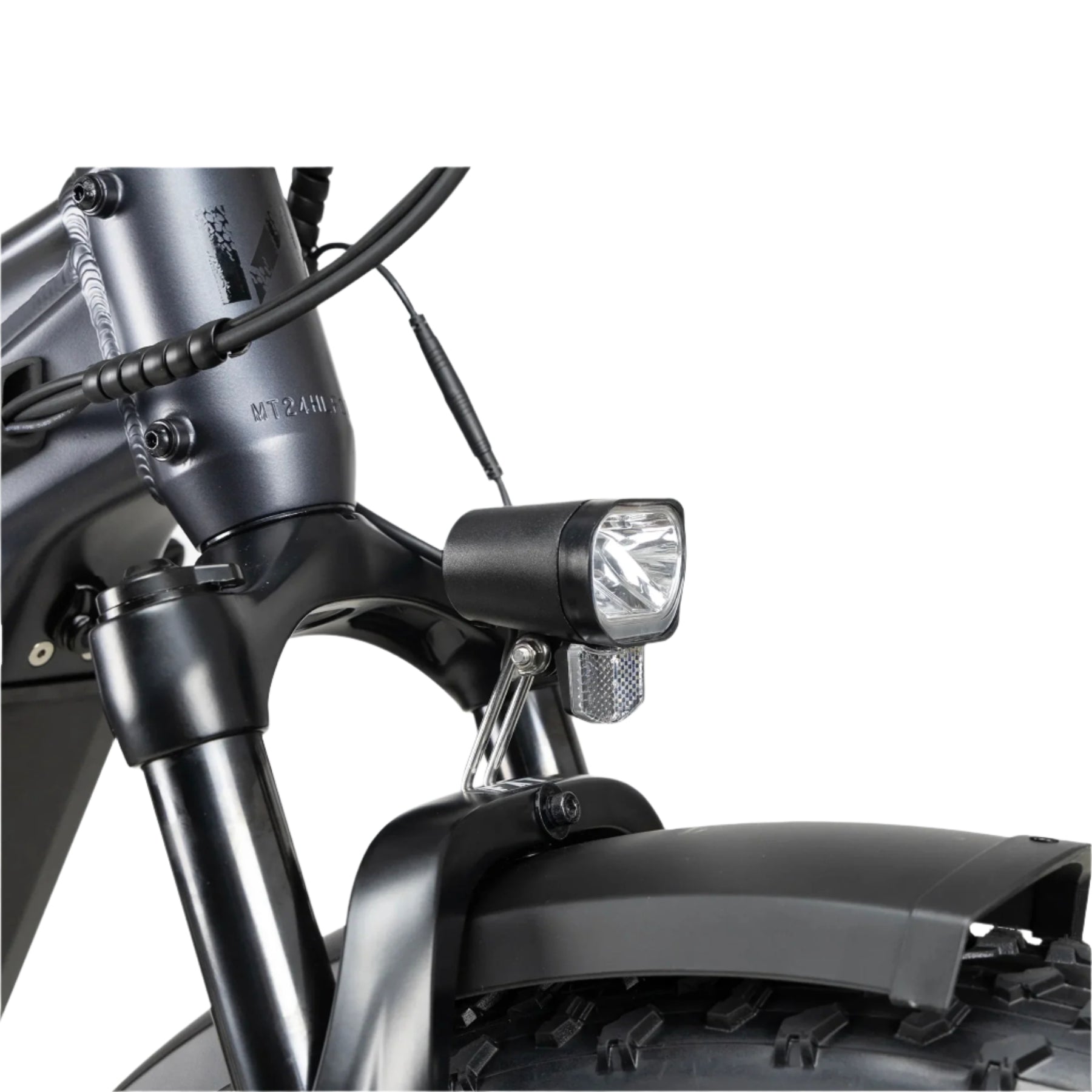

- Light: Front 48V LED Light 75 LUX
- Tail Light: Rear Break Light, 12V 20 LUX
Drivetrain
- Shifter: Shimano 7-Speed RevoShift
- Crankset: 170mm w/ 52 T
- Freewheel: Shimano 14-28T, 7-Speed freewheel
- Pedals: Alloy Platform
- Chain: KMC 124 Link, 7-Speed

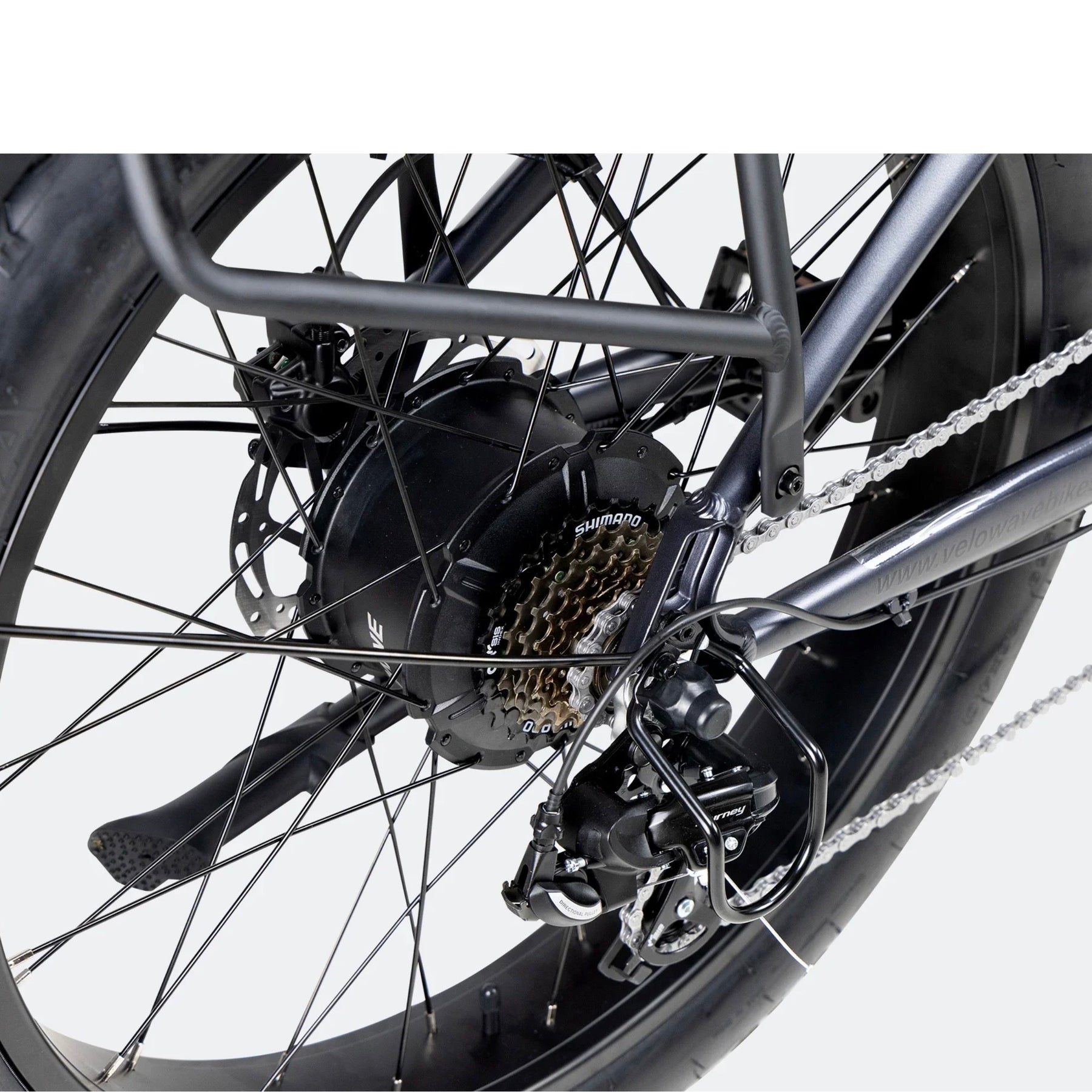

- Rear Derailleur: Shimano ARDTY500D 7-Speed
Components
- Saddle: Comfortable Wide Saddle
- Seatpost: Forged Alloy, Ø30.4*350mm
- Seat Clamp: Ø35mm Quick Release
- Stem: Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT:70mm, RISE:±7°

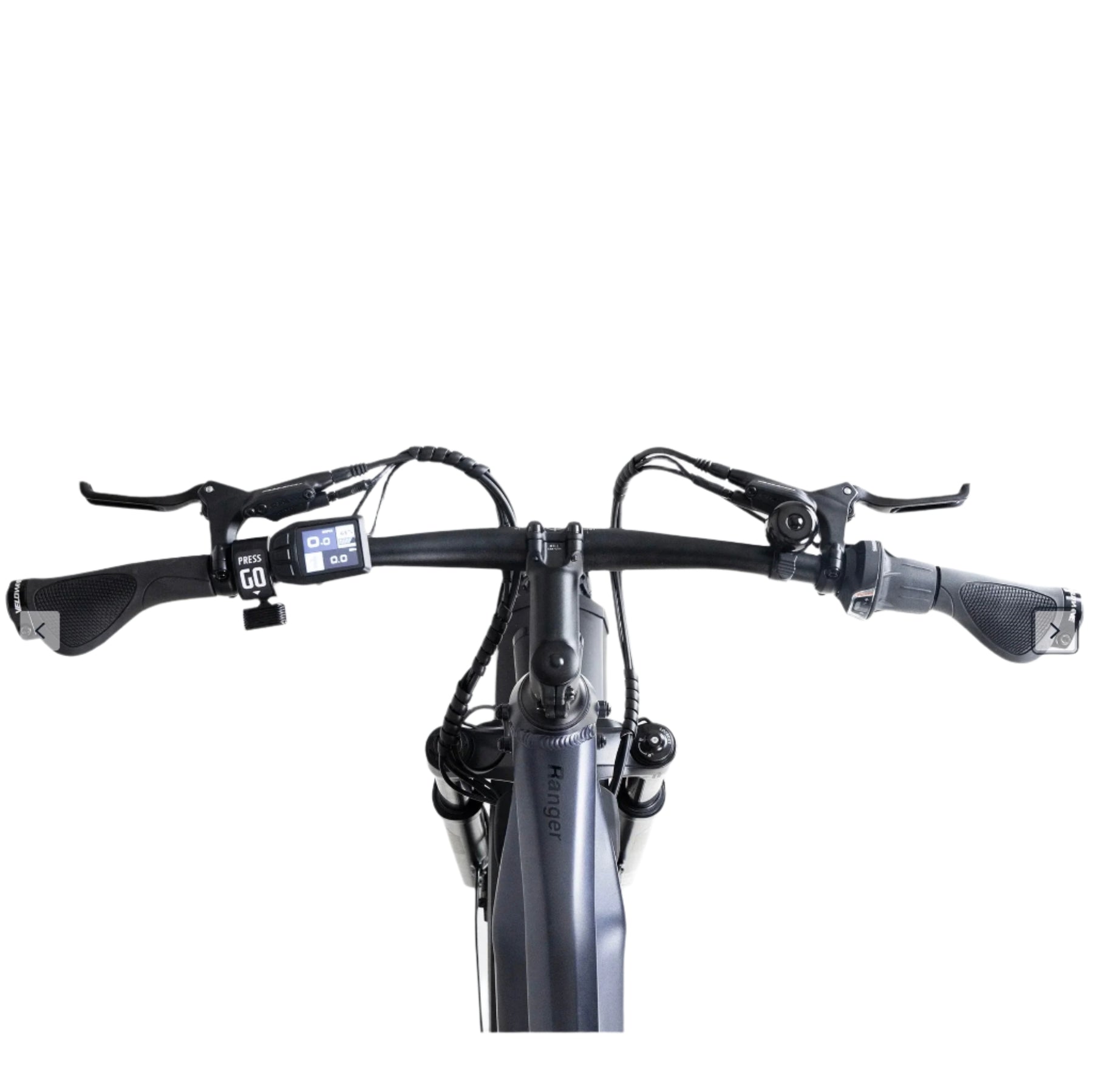

- Handlebars: Aluminum Ø31.8mm, Width 740mm
- Headset: Sealed Bearing Headset
- Grips: Ergonomic Comfort

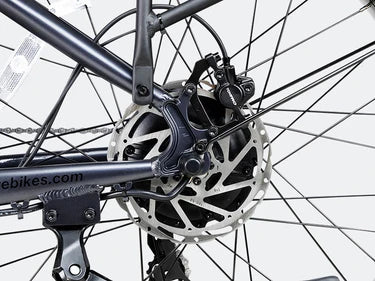

- Brakes: Hydraulic Disc Brakes w/180mm discs, w/ power-cut-off function
- Kickstand: Alloy, Rear Mount
- Fenders: Plastic 26"x110mm

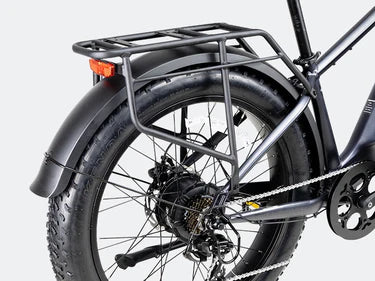

- Rear Rack: Aluminum alloy rear rack
Weight
- Net Weight: 37.5KG (82.67LBS) (including battery)
- Gross Weight: 45.6KG (100.53LBS)
- Battery Weight: 4KG (8.82LBS)
- Max Load Capacity: 300 lbs Payload Capacity
Size
- Product Size: 1930x755x1110MM
- Packing Size: 1590*325*895MM
