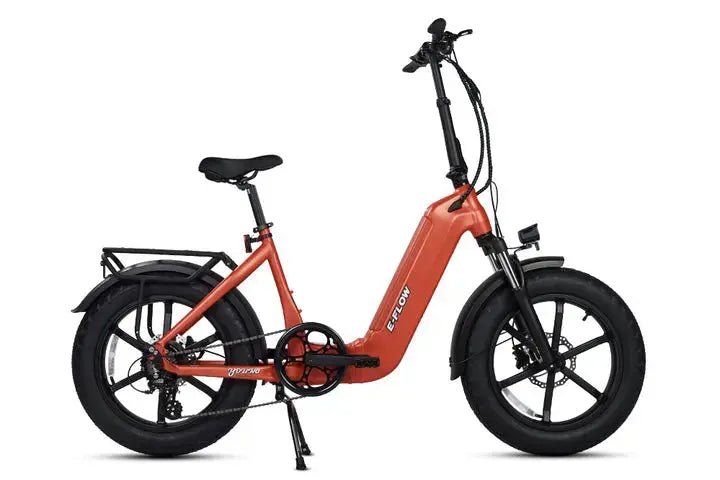

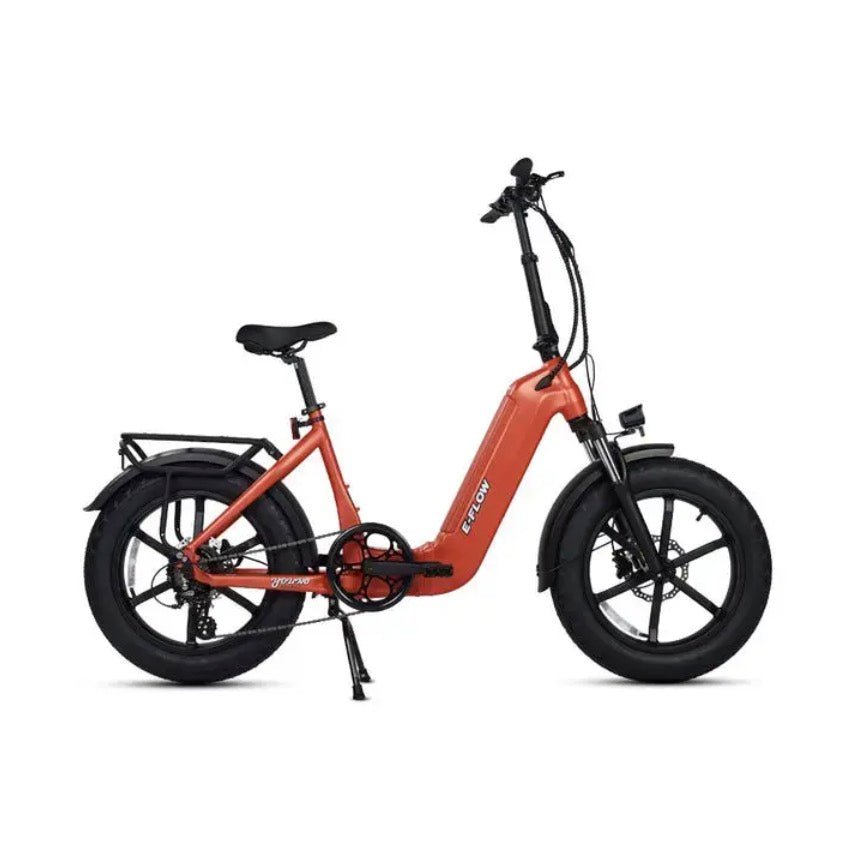

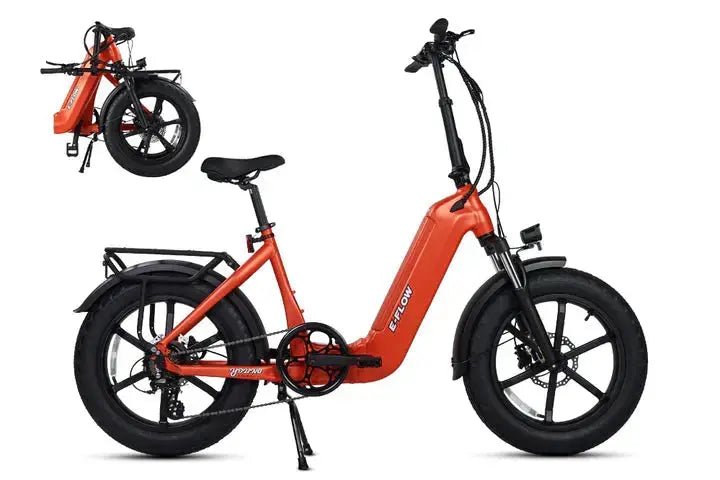

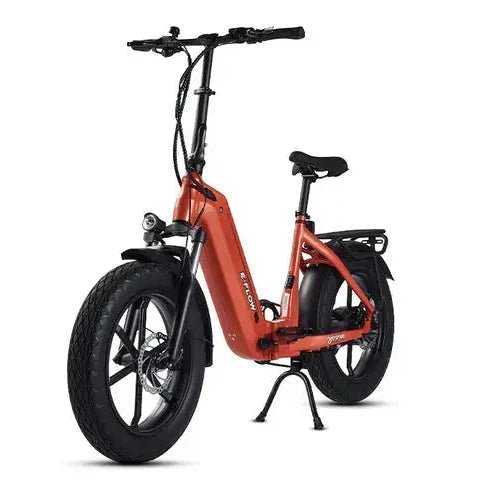

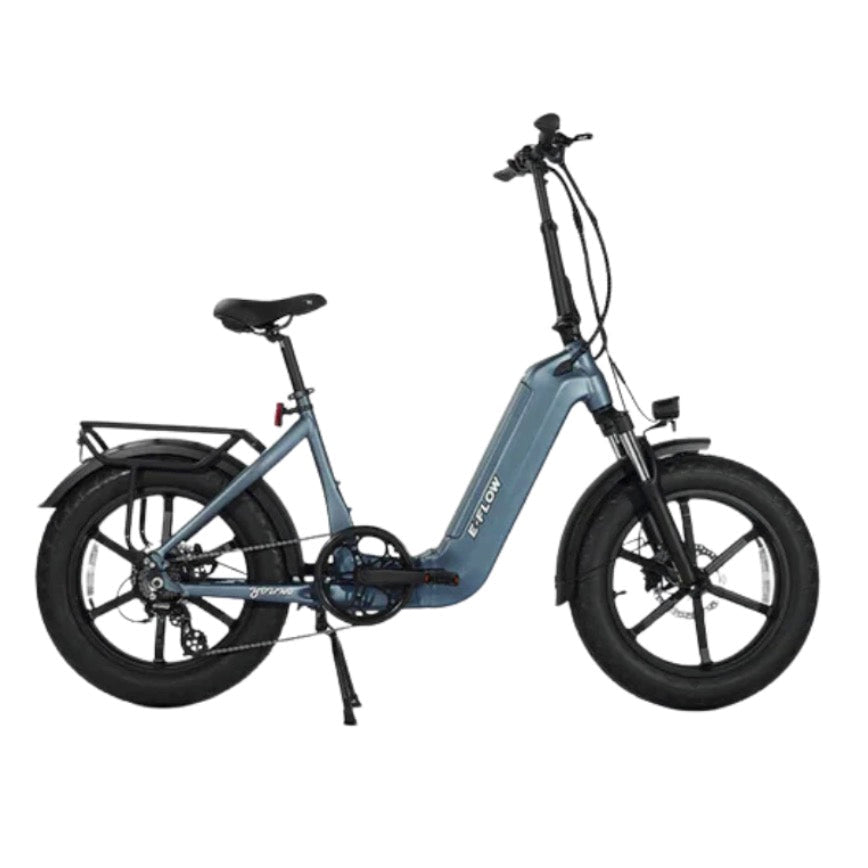

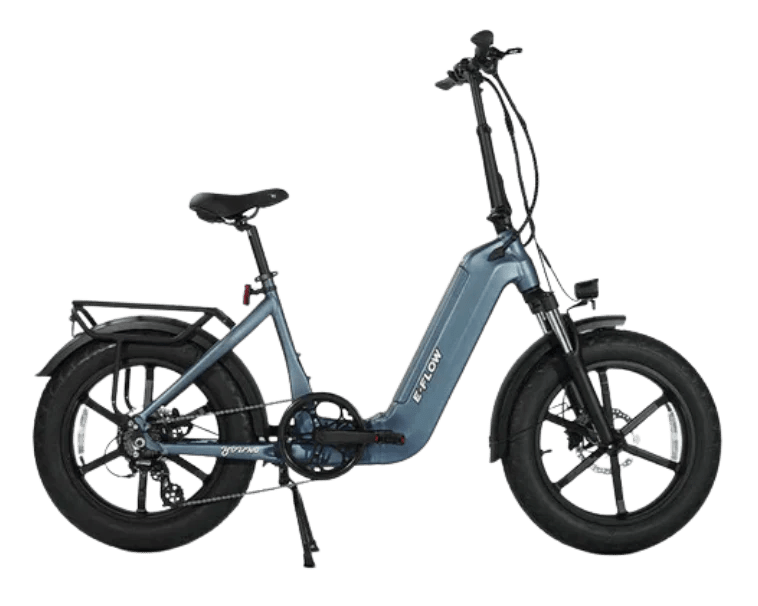

eJOE Young E-FLOW Foldable Step-Through Commuter E-Bike
Specs
Everything you need to know about the EJOEBIKE E-FLOW
Specifications
|
Frame |
Aluminum alloy |
|
Motor |
750W |
|
Battery |
48V 20Ah |
|
Top Speed |
28 MPH |
|
Range |
90mi |
|
Payload |
330 lbs |
Dimensions
| Overall Length | 1800mm/ 70.8 in |
| Overall Width | N/A |
| Wheelbase | N/A |
| Seat Height | 822-842mm/ 32.4-33.1 in |
| Handlebar Height | N/A |
Warranty
| Frame | Lifetime Limited Warranty |
| Electrical Components | 2 Years |
| Battery | 2 Years (800 charge cycles) |
| Motor | 2 Years |
| Display | 2 Years |
| Mechanical Parts | 1 Year |
| Tires & Brake Pads | 90 Days (wear items) |
| Support | Lifetime Technical Support |
C - Head Tube Length
145
145
D - Head Tube Angle
68°
68°
E - Effective Top Tube Length
609
625
F - Bottom Bracket Height
305
305
G - Bottom Bracket Drop
70
70
H - Chainstay Length
490
490
I - Fork Offset
46
46
J - Wheelbase
1163
1171
K - Frame Reach
383
392
L - Frame Stack
677
677
Fork Travel
90
90
Fork Height
525
525
Built for Adventure
Every detail of the EJOEBIKE E-FLOW is engineered for performance, comfort, and reliability. Discover the features that make this the ultimate electric mountain bike.
Your Everyday Ride
Self-developed, high-quality alternative at an unbeatable price.
750W Bafang Rear Hub Motor
The E-Flow is built around a Bafang Sutto 750W rear hub motor — a proven performer trusted by serious riders worldwide. It delivers smooth, powerful assist that gets you up to 28 MPH with ease, handling steep climbs and fast city streets without hesitation. More power where you need it, less effort when you want it.
960Wh Long-Range Battery
A 48V 20Ah 960Wh Bafang battery packed with LG cells gives the E-Flow a range of up to 90 miles on a single charge — enough to cover a full week of commutes without plugging in. When it's time to recharge, the battery comes off the bike so you can charge it wherever is most convenient.
Hydraulic Disc Brakes
Front and rear hydraulic disc brakes give the E-Flow reliable, responsive stopping power in all conditions. Rain, gravel, steep descents — the brakes perform consistently every time you squeeze the lever, giving you the confidence to ride harder knowing you can stop when it counts.
20" x 4.0" Fat Tires
Wide 20" x 4.0" fat tires combined with a 60mm front suspension fork make the E-Flow remarkably comfortable on rough roads. The tires absorb vibration and grip varied surfaces — from packed dirt to wet pavement — so every ride stays smooth and stable no matter the conditions.
