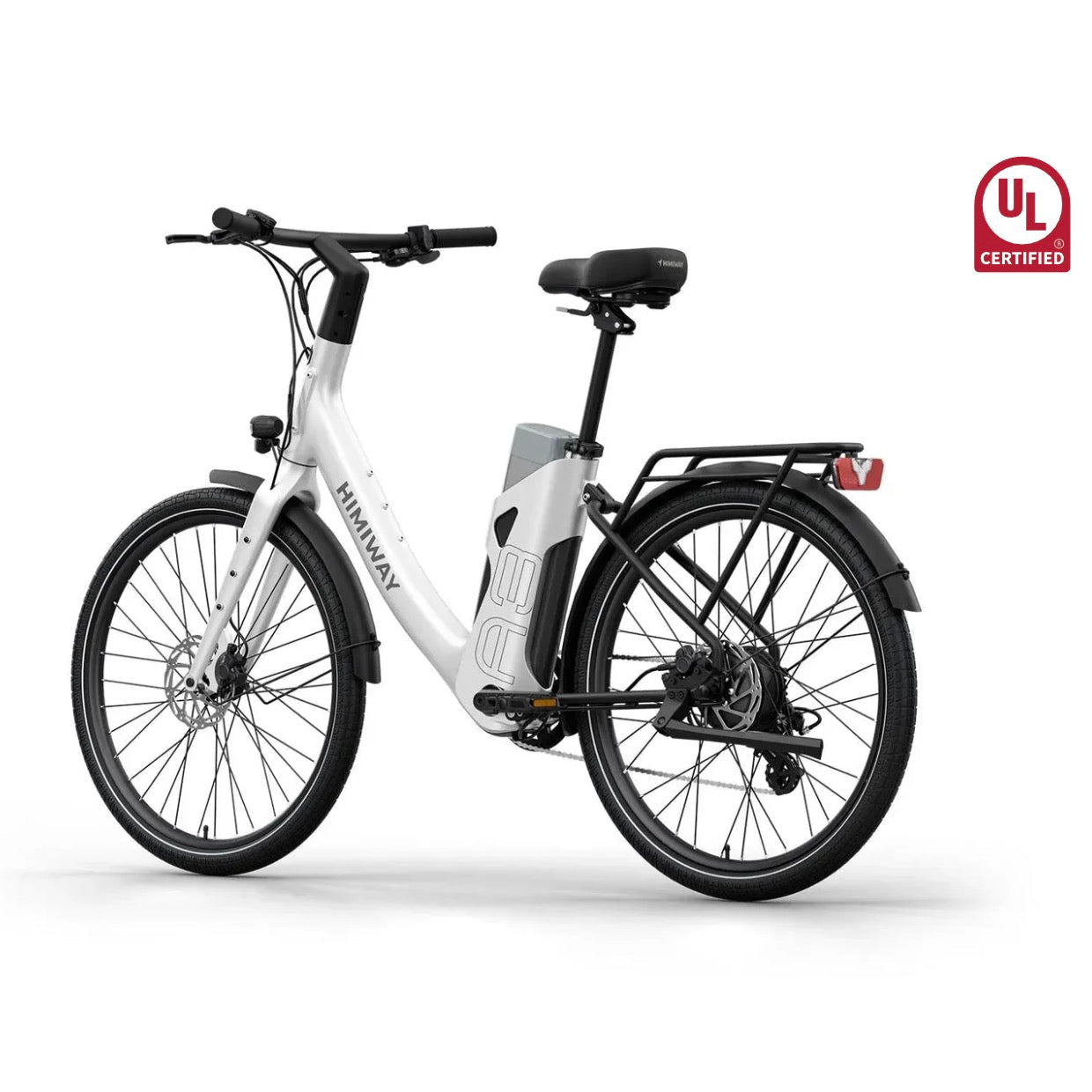

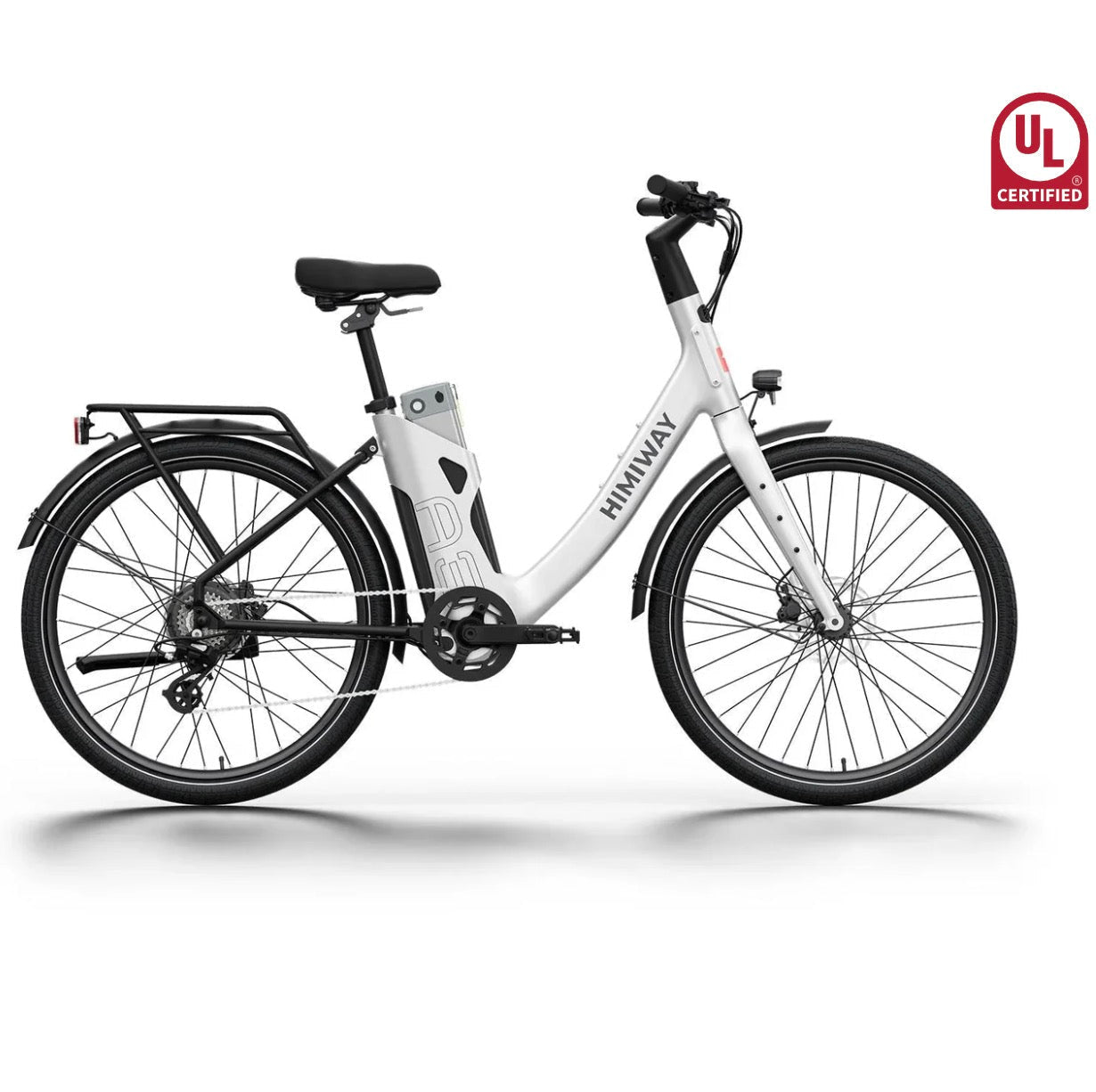

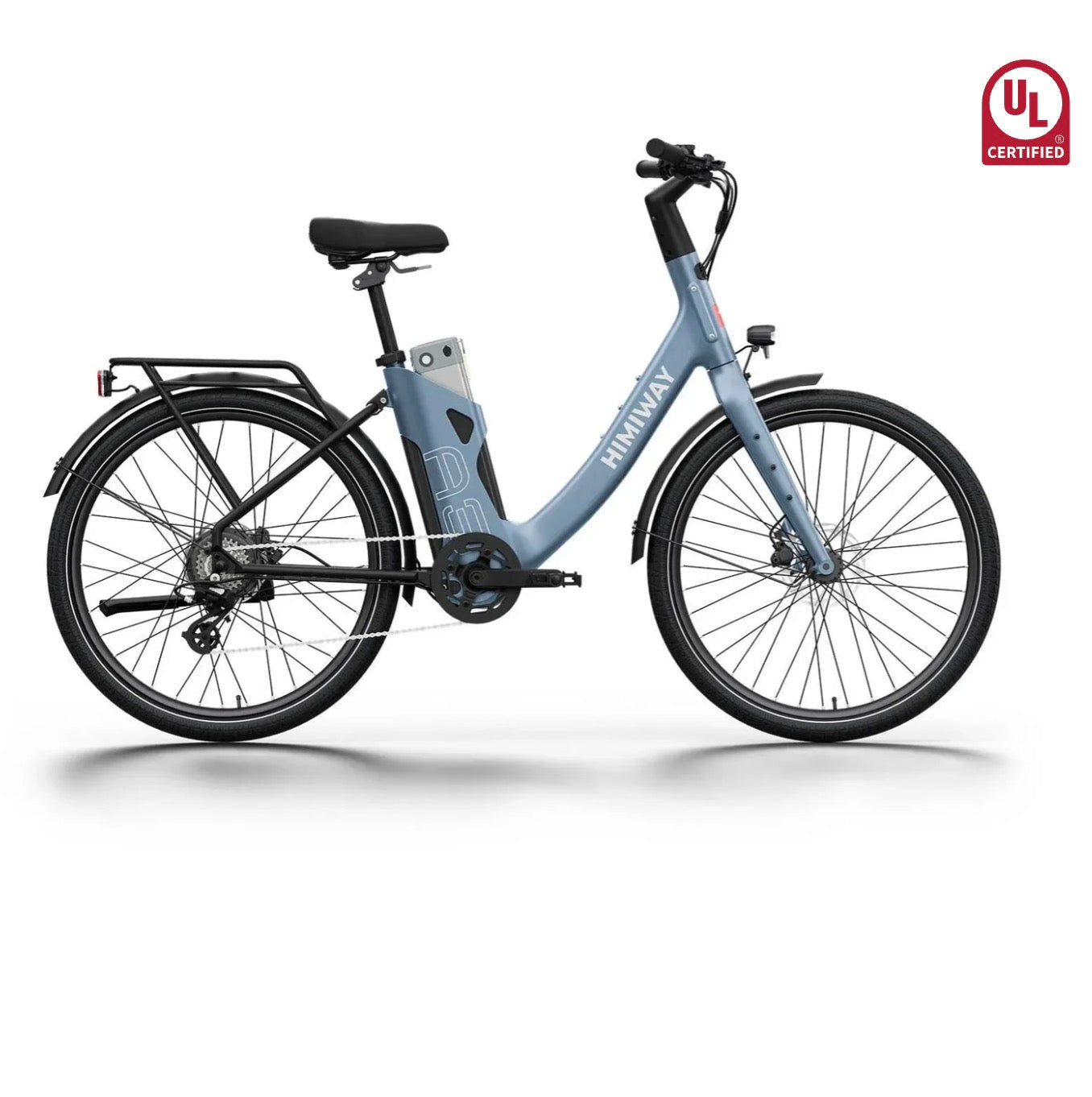

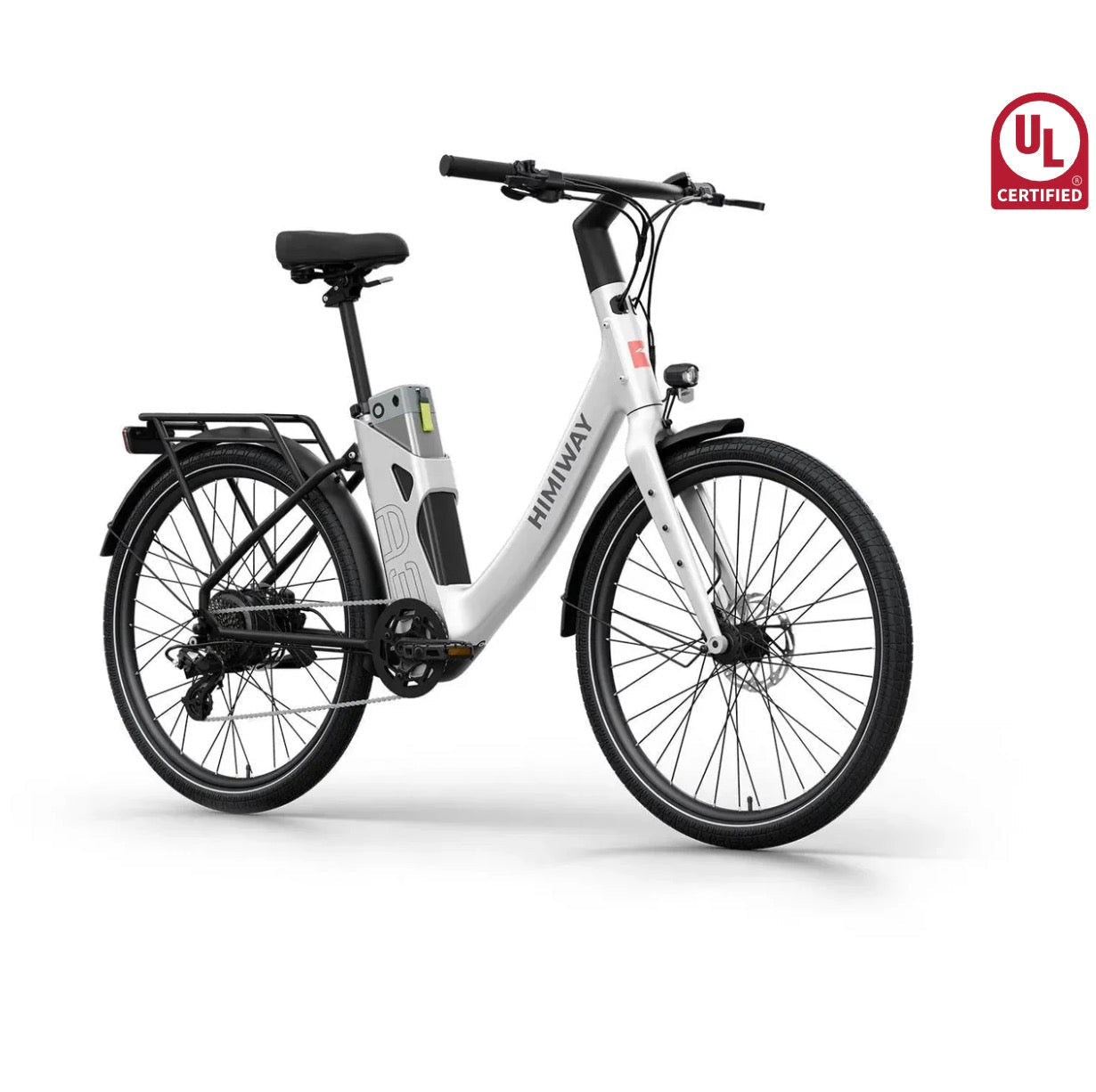

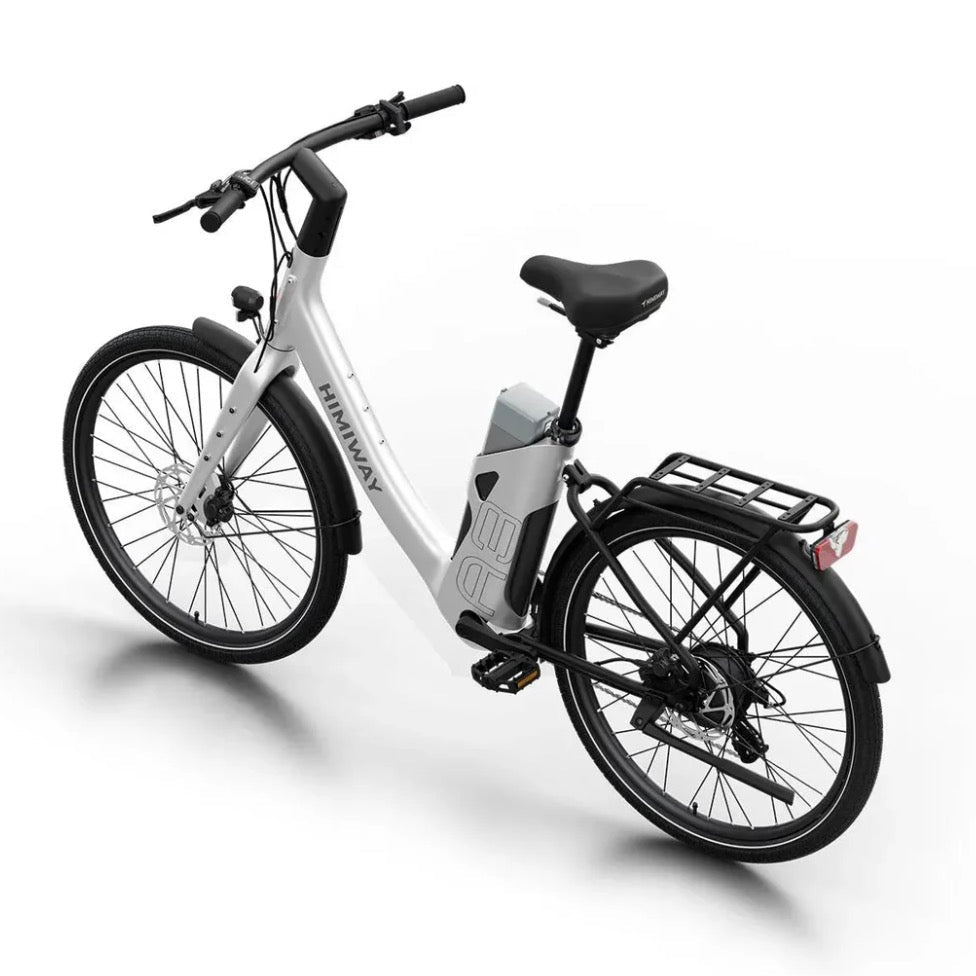

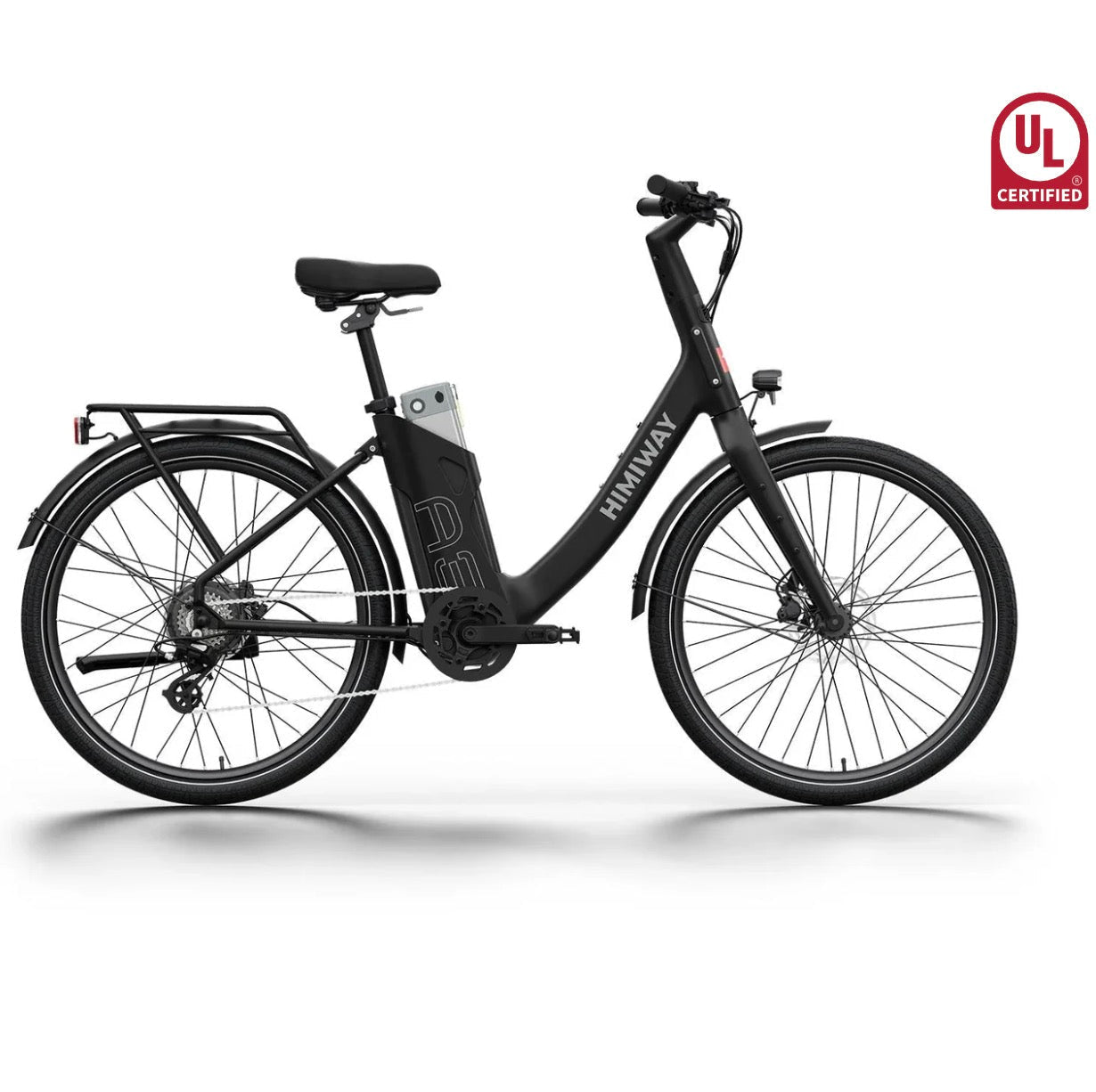

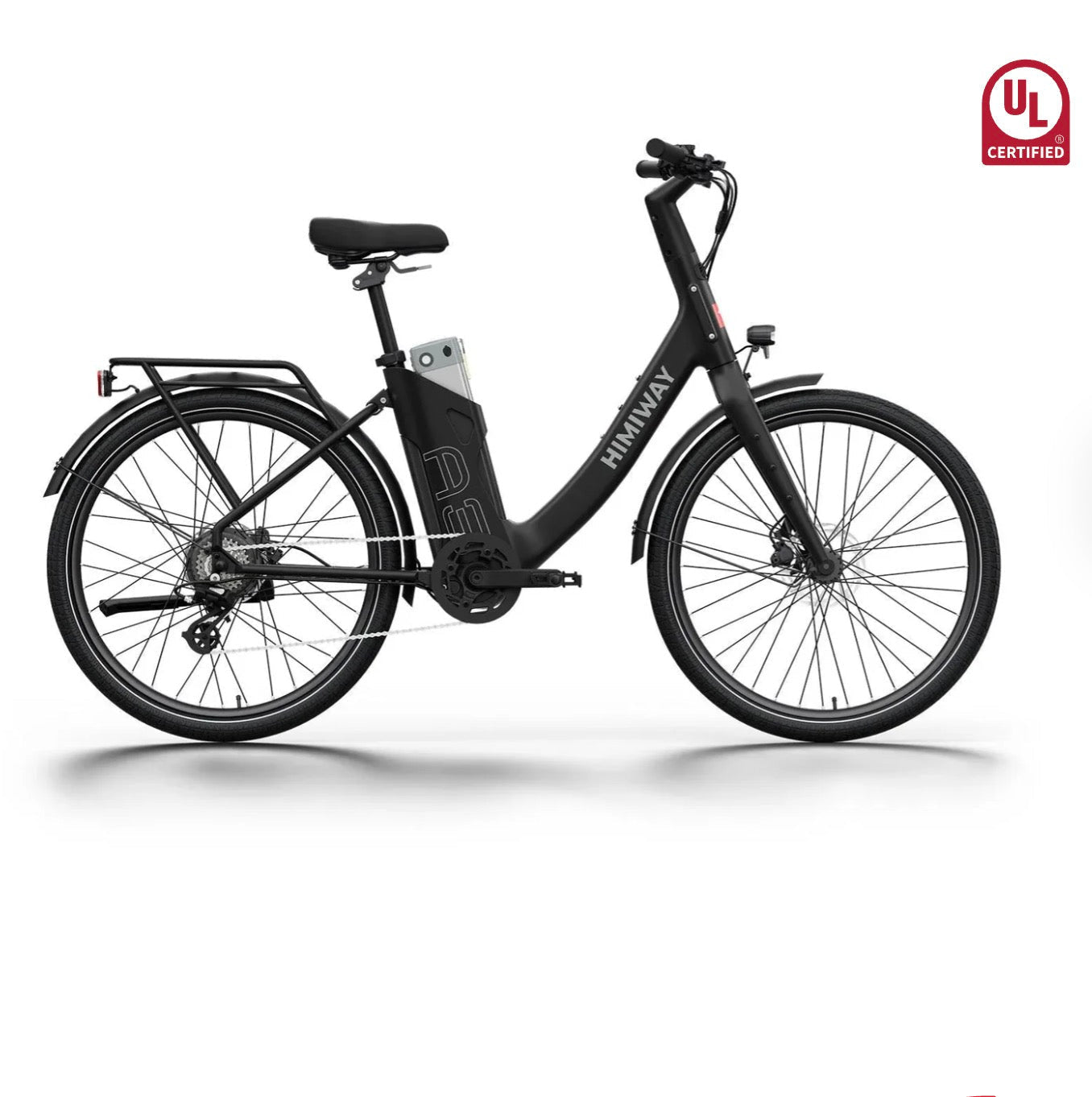

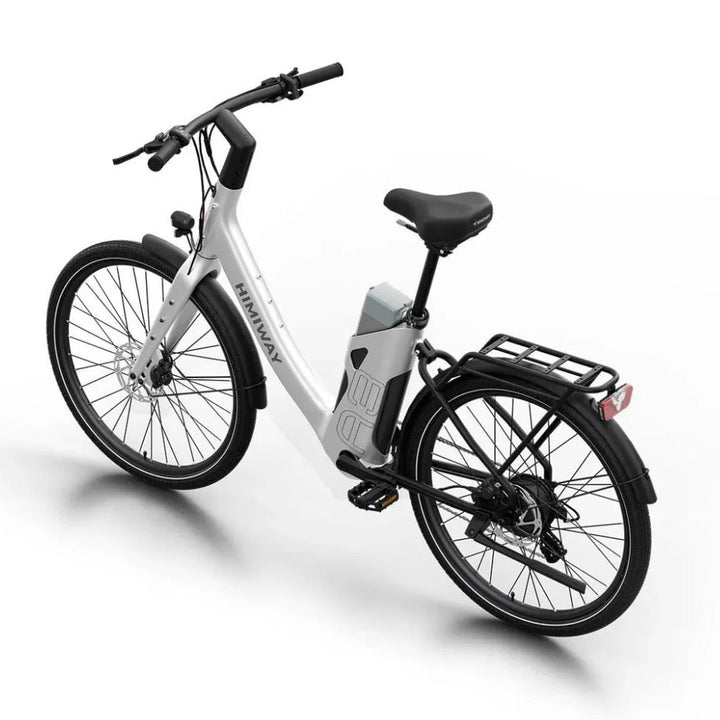

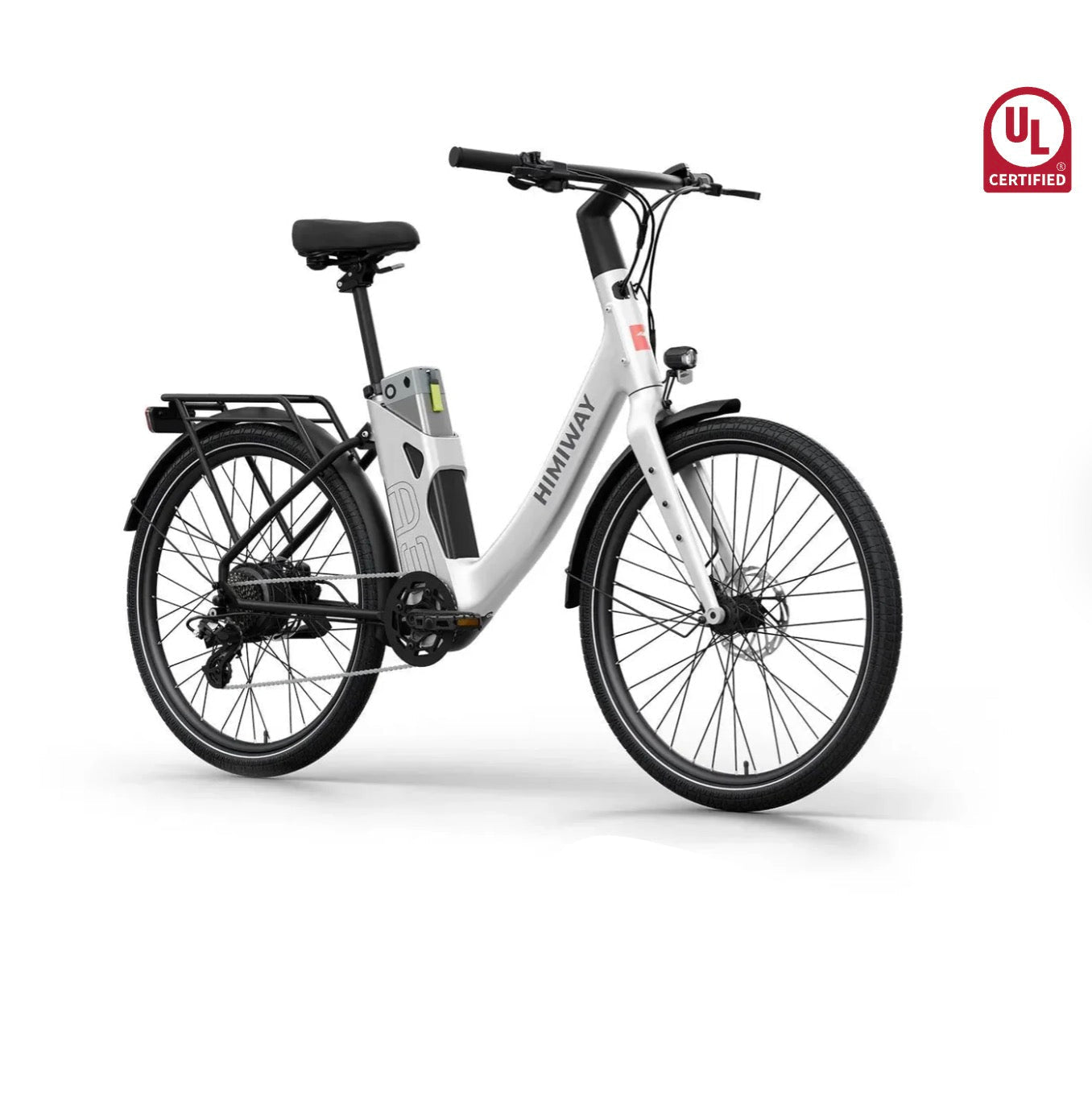

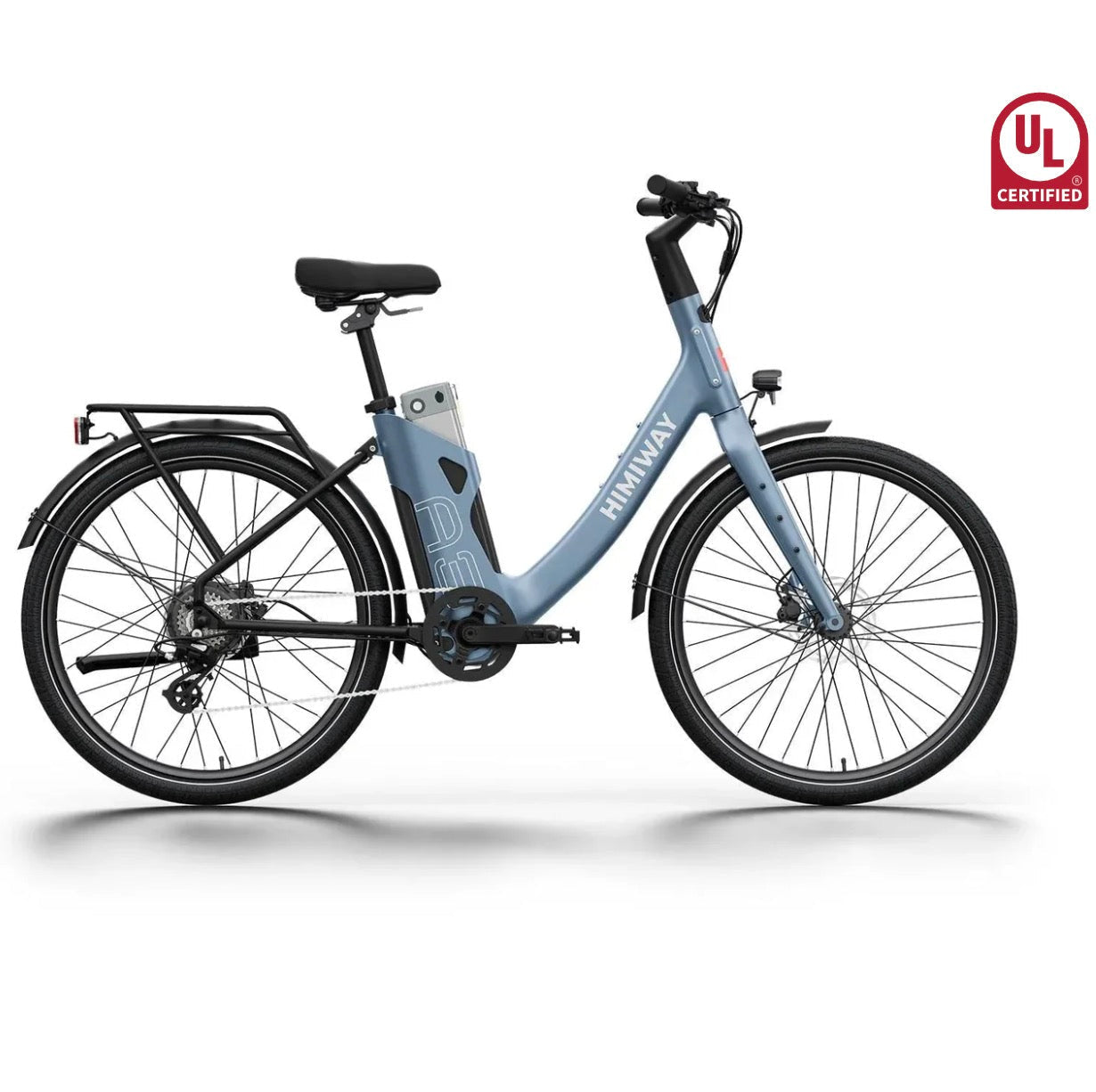

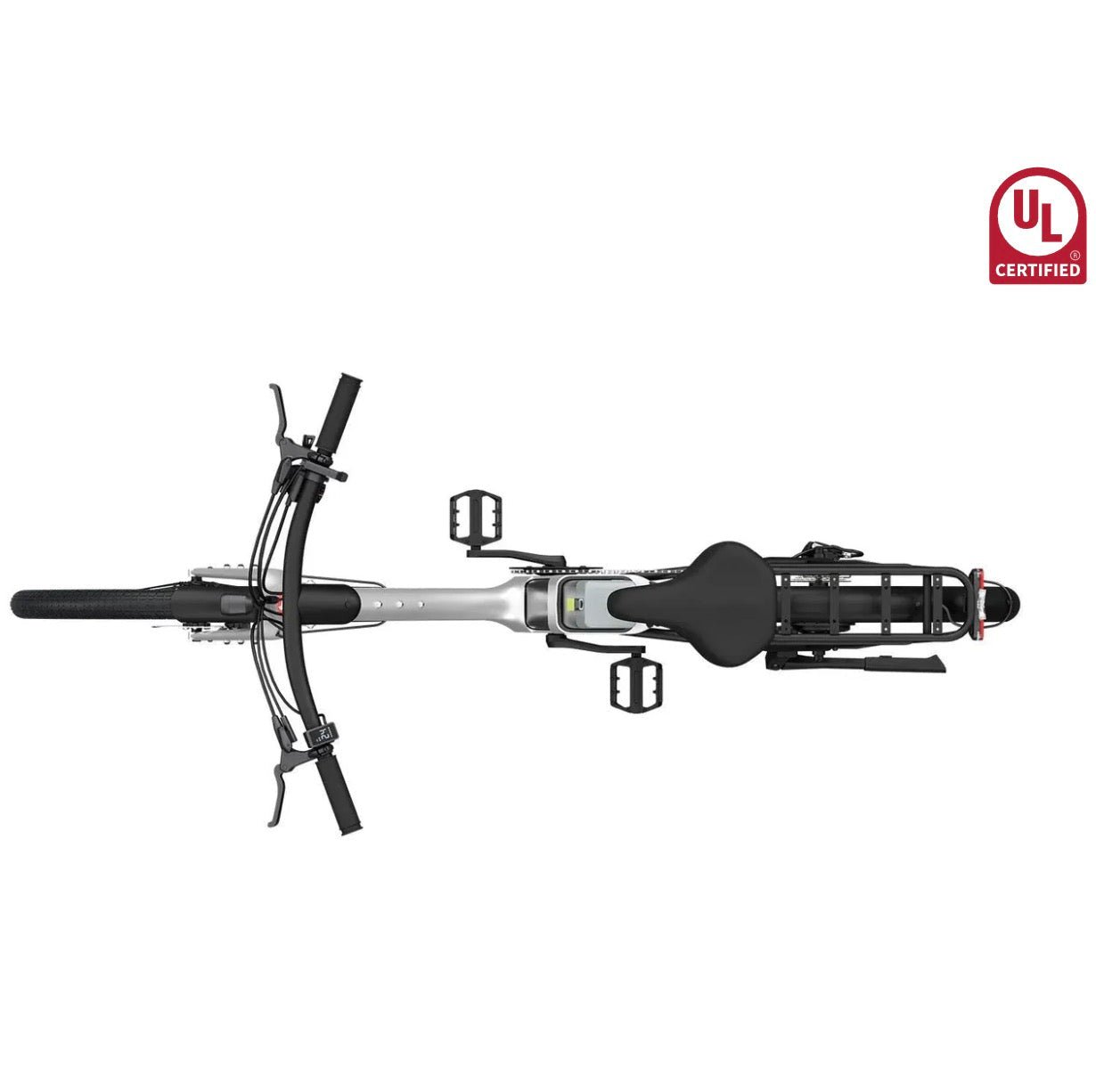

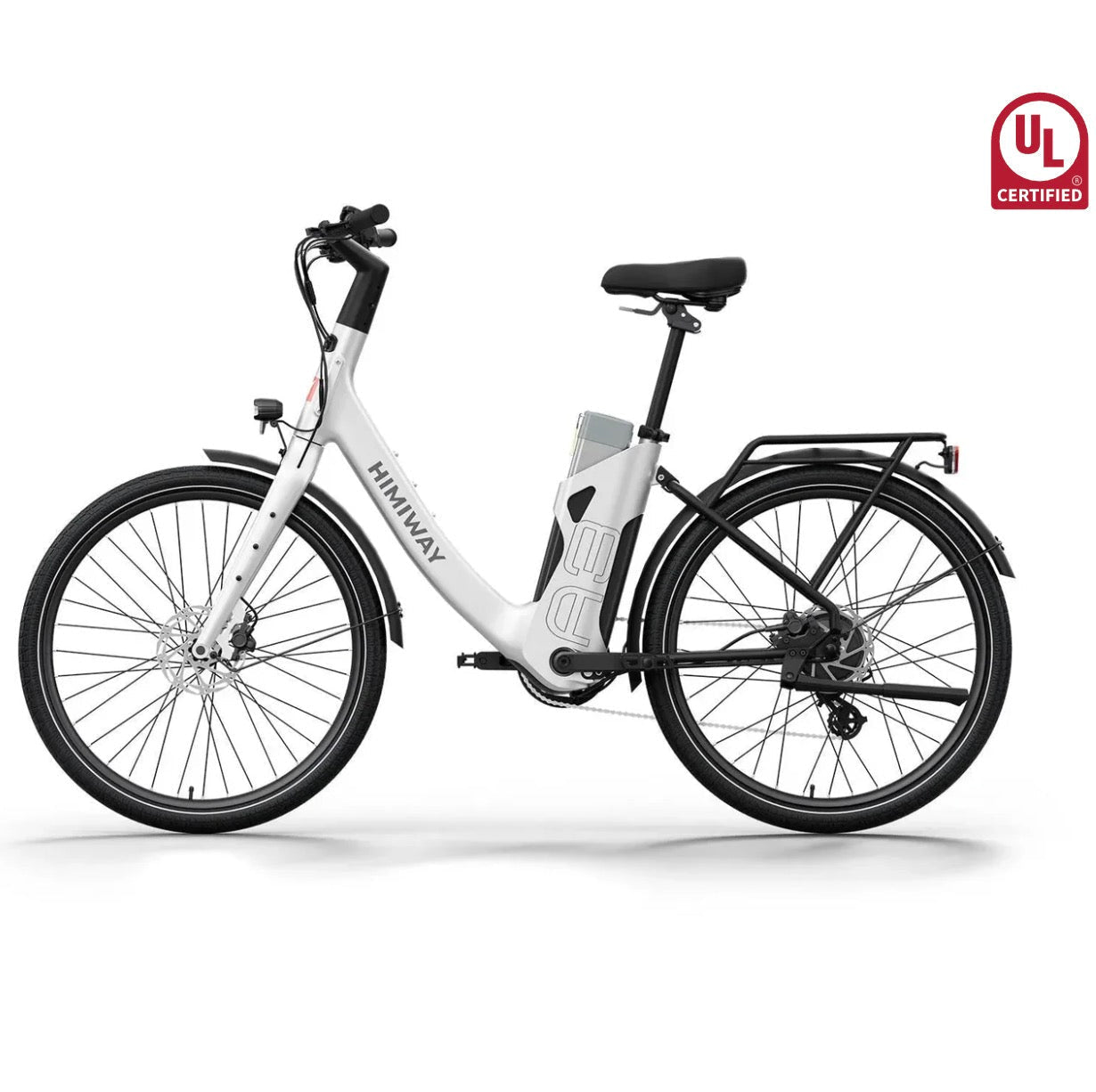

Himiway| A3 Urban Electric Commuter Bike | 70-Mile Range, 500W
- No Tax
- Free Shipping
- In stock, ready to ship
Himiway A7 Pro Full Suspension Commuter E-Bike | 500W Mid-Drive
· Navigate city streets with unparalleled style and efficiency on the Himiway A3 Urban Electric Commuter Bike. Designed for the modern rider, this sleek electric city bike combines powerful performance with intelligent features, making every journey a pleasure. Experience the future of urban mobility with its long-lasting battery, intuitive pedal assist, and durable construction.
· Performance & Range: Powering your ride is a silent yet mighty 500W brushless geared hub motor, delivering an impressive 86Nm of torque to conquer hills and headwinds effortlessly. The Himiway A3 offers a remarkable 70-mile range on a single charge thanks to its integrated 48V 15Ah LG/Samsung lithium battery. With a quick 5-hour charge time, you're always ready for your next adventure.
Intelligent Riding Experience: Equipped with an advanced torque sensor, the Himiway A3 provides a natural and responsive pedal assist, seamlessly matching your effort for a truly intuitive ride. Its Shimano Altus 7-speed drivetrain offers versatile gearing for varied terrain, while Tektro hydraulic disc brakes ensure superior stopping power and safety in all conditions.
· Urban Design & Comfort: The Himiway A3 boasts a unique unibody frame construction that integrates the battery for a clean, minimalist aesthetic and enhanced frame strength. 26" x 2.2" Innova tires and a front suspension fork absorb road vibrations, ensuring a comfortable and smooth ride. Features like integrated LED lights, full fenders, and an adjustable kickstand make it the perfect electric bike for daily commuting.
· Customization: With 28 mounting points throughout its frame, the Himiway A3 allows for extensive customization. Add a rear rack, basket, child seat, or other accessories to perfectly tailor your urban e-bike to your specific needs.
Specs
Geometry
Recommended Height: 5'1"~6'
| total length | 70.6 |
| handlebar height | 45.3 |
| handlebar length | 26.7 |
| wheelbase | 43.8 |
| wheel diameter | 26.2 |
| minimum seat height | 24 |
| maximum seat height | 31.8 |
| chain stay length | 18.3 |
| frame stack | 23.5 |
| effective top tube length | 21.1 |
| head angle | 69° |
| standover height | 24.6 |
| Frame | 6061 Aluminum frame |
| Headset | Neco A16M 44*44*30 |
| Fork | 6061 aluminum 100*12mm thru axle, rack mounts, fender mounts, post disc mount |
| Front wheel | Rim: 26""*1.75*36H*13G A/V | Spoke: 13G*257.5MM/259.5MM | Hub: R303F-12 12g*36H 12*100mm |
| Rear wheel | Rim: 26""*1.75*36H*13G A/V | Spoke: 13G*225.5MM/226.5MM | Hub: 48v 500w Himiway Hub Motor |
| Tires | Innova IA-2128 26*2.2 25-60PSI |
| Battery | 48V15AH LG 21700 IP65 720Wh |
| Motor | 500w Himiway brushless gear motor |
| Display | Himiway LED Display |
| Sensors | Torque sensor丨speed sensor丨brake sensor |
| Crankset | Crank arm:J6061-T6 170mm | Chain ring: 38T narrow wide steel chainring BCD104 |
| Chain | KMC Z8.3 EPT 112L |
| Groupset | Shimano altus M310 7 speed |
| Front brake | Tektro HD-E3520 hydraulic brake |
| Rear brake | Tektro HD-E3520 hydraulic brake |
| Rotors | F:160mm R:160mm |
Components
| Handlebar | Himiway integrated handlebar-Stem 680mm width*90mm stem |
|
Seatpost |
Himiway flip seatpost 27.2*300 |
| Saddle | TTZ032X |
| Pedal | Aluminum pedal |
| Lights | 48V LED light |
| Kickstand | Adjustable aluminum kickstand |
Others
| Range | 70 miles |
| Controller | 48V/18A |
| Charger | US standard 2.0 A smart charger |
| Rider height | 5'1"~6' |
| Weight | 68.3 lb. |
| Max. payload capacity | 300 lb. |
A3 Included in Delivery
