Himiway B3 Foldable Electric Commuter Bike
- No Tax
- Free Shipping
- In stock, ready to ship
Himiway|B3 70-Mile Range, 500W Foldable Electric Commuter Bike
Meet the Himiway B3 Foldable Electric Commuter Bike, designed for the modern urban explorer and daily commuter. This innovative folding ebike combines exceptional portability with powerful performance, making it the perfect companion for navigating city streets, public transport, and even weekend getaways.
More
Folding & Portability:
The Himiway B3 features a simple 3-step folding mechanism, transforming it into a remarkably compact electric bike that can be easily stored in small apartments, car trunks, or on public transportation. Its relatively lightweight 60.6 lbs (check exact weight) makes it a truly portable electric bike.
Power & Range:
Equipped with a responsive 500W brushless geared hub motor, the B3 delivers smooth and efficient power for your daily rides. The high-capacity 48V 15Ah LG Lithium-ion battery provides an impressive up to 70-mile range (with pedal assist), ensuring you can go further without range anxiety. The torque sensor offers a natural and intuitive riding experience, providing power exactly when you need it.
Ride Comfort & Durability:

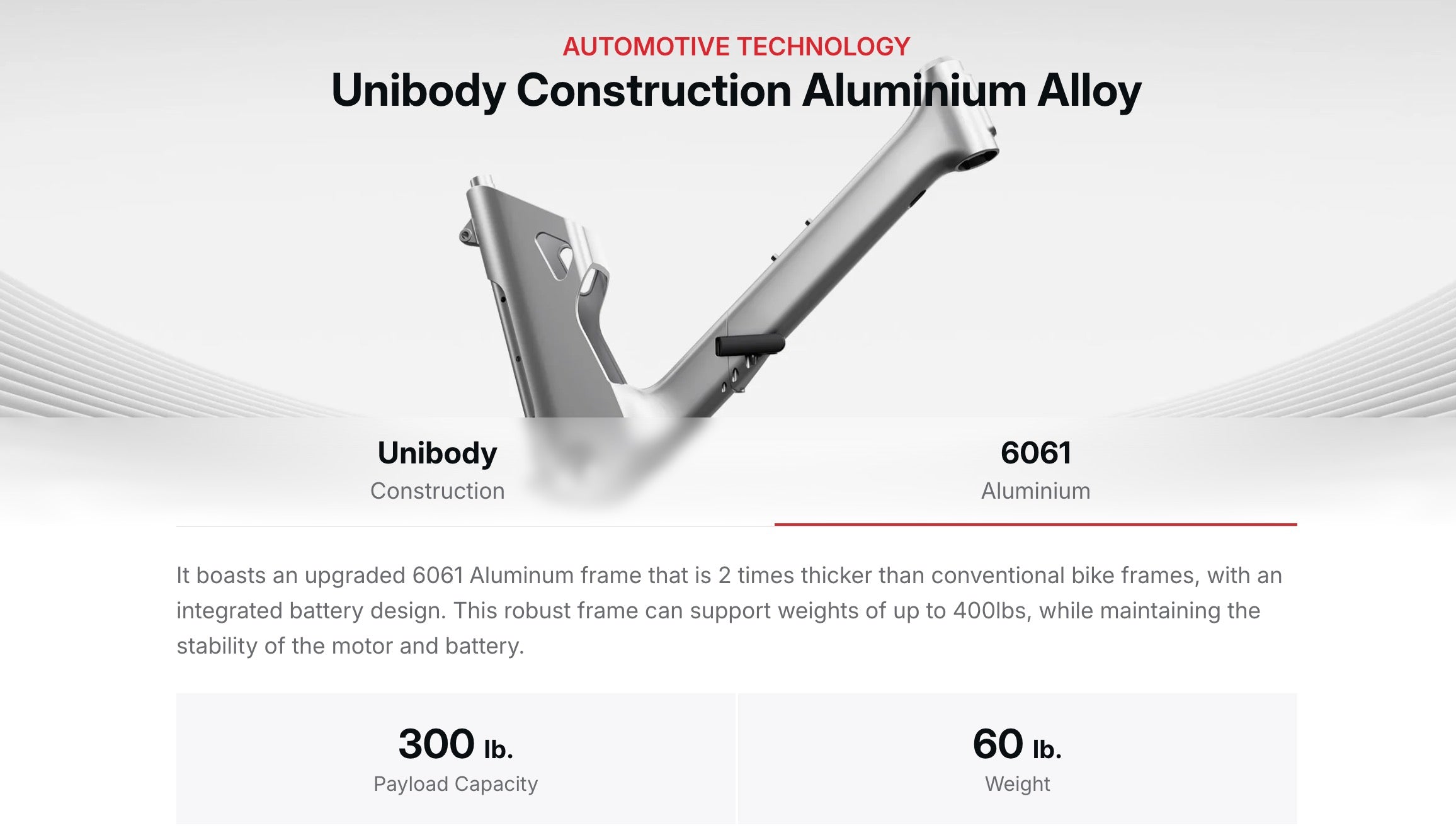

Despite its compact size, the Himiway B3 doesn't compromise on comfort or stability. Its 20" x 2.4" tires offer a smooth and stable ride, absorbing road imperfections. The unibody construction with a 6061 aluminum front frame and A356 steel rear ensures exceptional durability and safety. Mechanical disc brakes provide reliable stopping power in all conditions.
Smart Features for the Commuter:

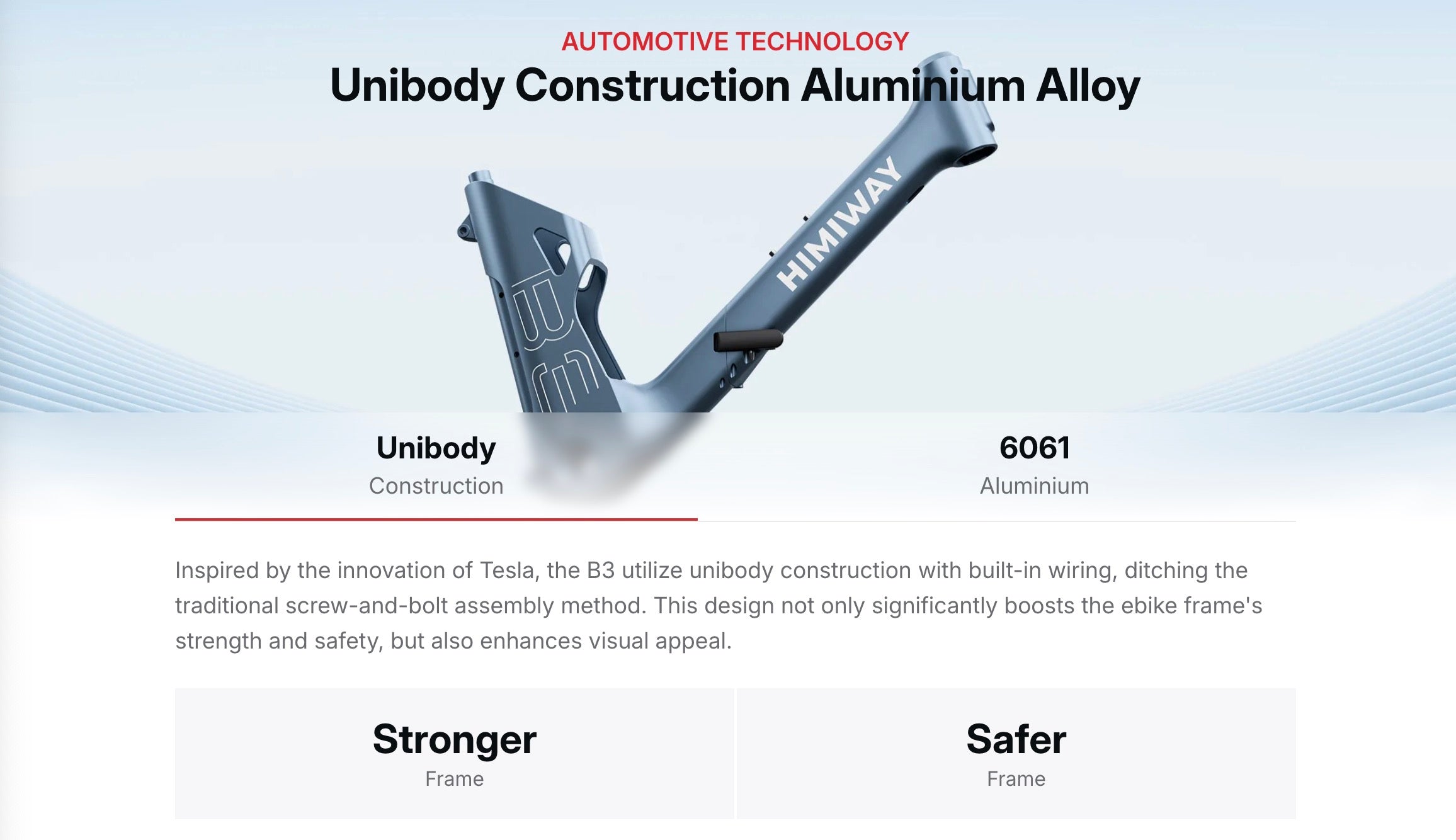

The Himiway B3 comes equipped with a clear LCD display, integrated LED lighting, and often includes a rear rack and fenders, making it a fully-equipped electric commuter bike. The IP65 waterproof rating ensures reliability even in wet conditions. Its stylish design with built-in wiring further enhances its sleek appeal.
Specs
Geometry
Recommended Height: 5' ~ 6'
| total length | 63.8 |
| handlebar height | 45.3 |
| handlebar length | 23.6 |
| wheelbase | 42.5 |
| wheel diameter | 20.8 |
| minimum seat height | 31.5 |
| maximum seat height | 39.5 |
| chain stay length | 15.4 |
| frame stack | 22.5 |
| frame reach | 17.7 |
| effective top tube length | 26 |
| head tube length | 5.5 |
| head angle | 70° |
| standover height | 18.8 |
Specification
| Frame | 6061 Aluminum frame |
| Headset | Neco H510 |
| Fork | Coil suspention fork, 40mm travel, is disc mount |
| Shock | |
| Front wheel | Rim: MD-260 20*2.5""*36H*13G A/V | Spoke: 13G*171MM/172MM | Hub: MS-37F 13G*36H*100mm |
| Rear wheel | Rim: MD-260 20*2.5""*36H*13G A/V | Spoke: 13G*133MM/134MM | Hub: 48v 500w Himiway Hub Motor |
| Tires | Innova 20x2.40 lA-1283 |
| Battery | 48V15AH LG 21700 IP65 720Wh |
| Motor | 500w Himiway brushless gear motor |
| Display | Himiway LCD Display |
| Throttle | Thumb throttle |
| Sensors |
Torque sensor丨speed sensor丨brake sensor |
| Crankset | Crank arm:6061-T6 145mm | Chain ring: 44T narrow wide steel chainring BCD104 |
| Cassette | Shimano MF-TZ500-7 14-28T |
| Chain | KMC Z8.3 EPT 100L |
| Groupset | Shimano altus M310 7 speed |
| Front brake | Nutt JAK-8 mechanical disc brake |
| Rear brake | Nutt JAK-8 mechanical disc brake |
| Rotors | F:160mm R:160mm |
Components
| Stem | Folding stem, riser length: 360mm |
| Handlebar | JY-A153 W:600 |
|
Seatpost |
Himiway flip seatpost 27.2*300 |
| Saddle | Himiway TTZ032X |
| Pedal | Aluminum pedal |
| Lights | 48V LED light |
| Kickstand | Aluminum kickstand |
Others
| Range | 70 miles |
| Controller | 48V/18A |
| Charger | US standard 2.0 A smart charger |
| Rider height | 5'~6' |
| Weight | 60.6 lb. |
| Max. payload capacity | 300 lb. |
Included in Delivery B3
