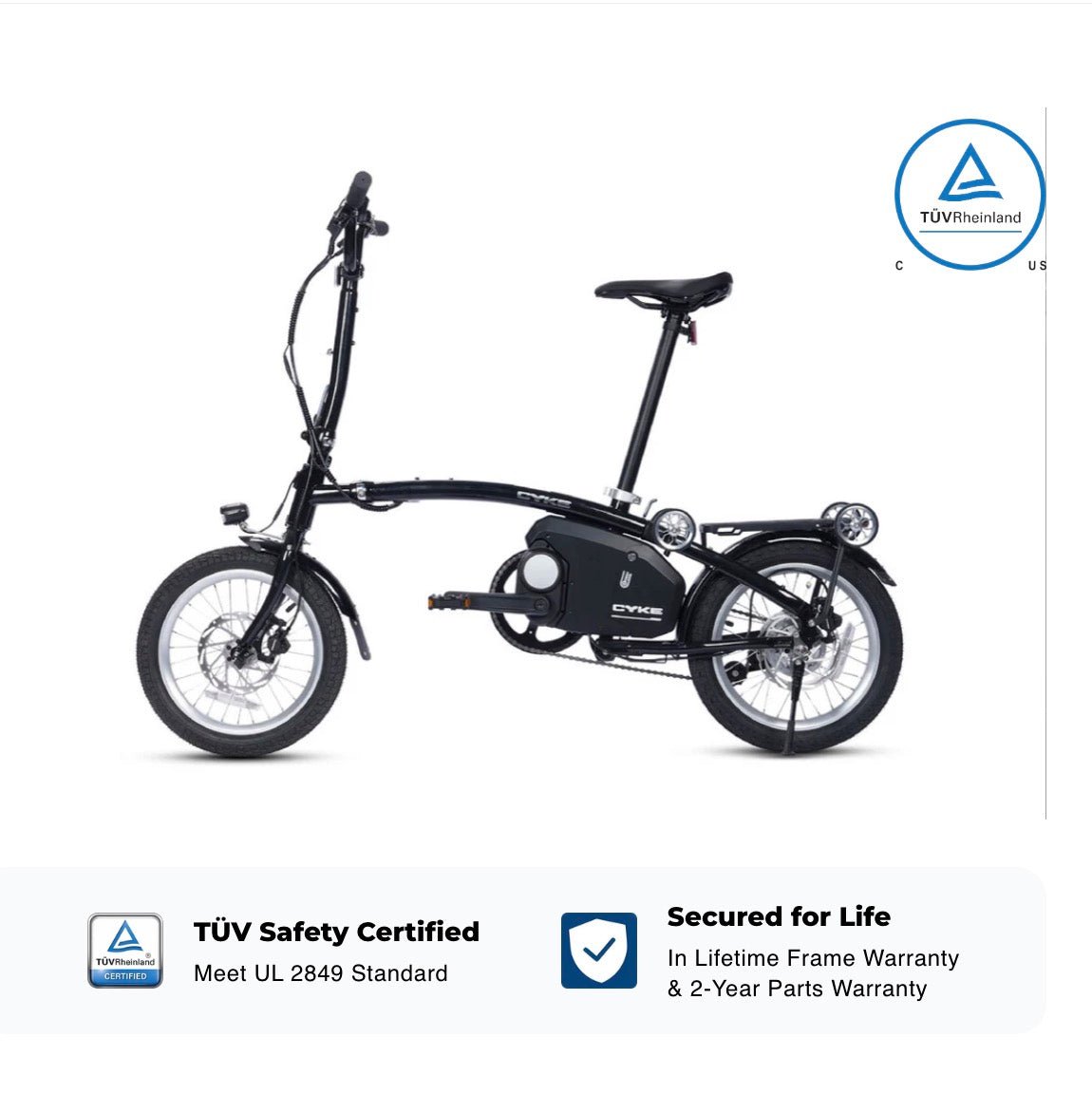

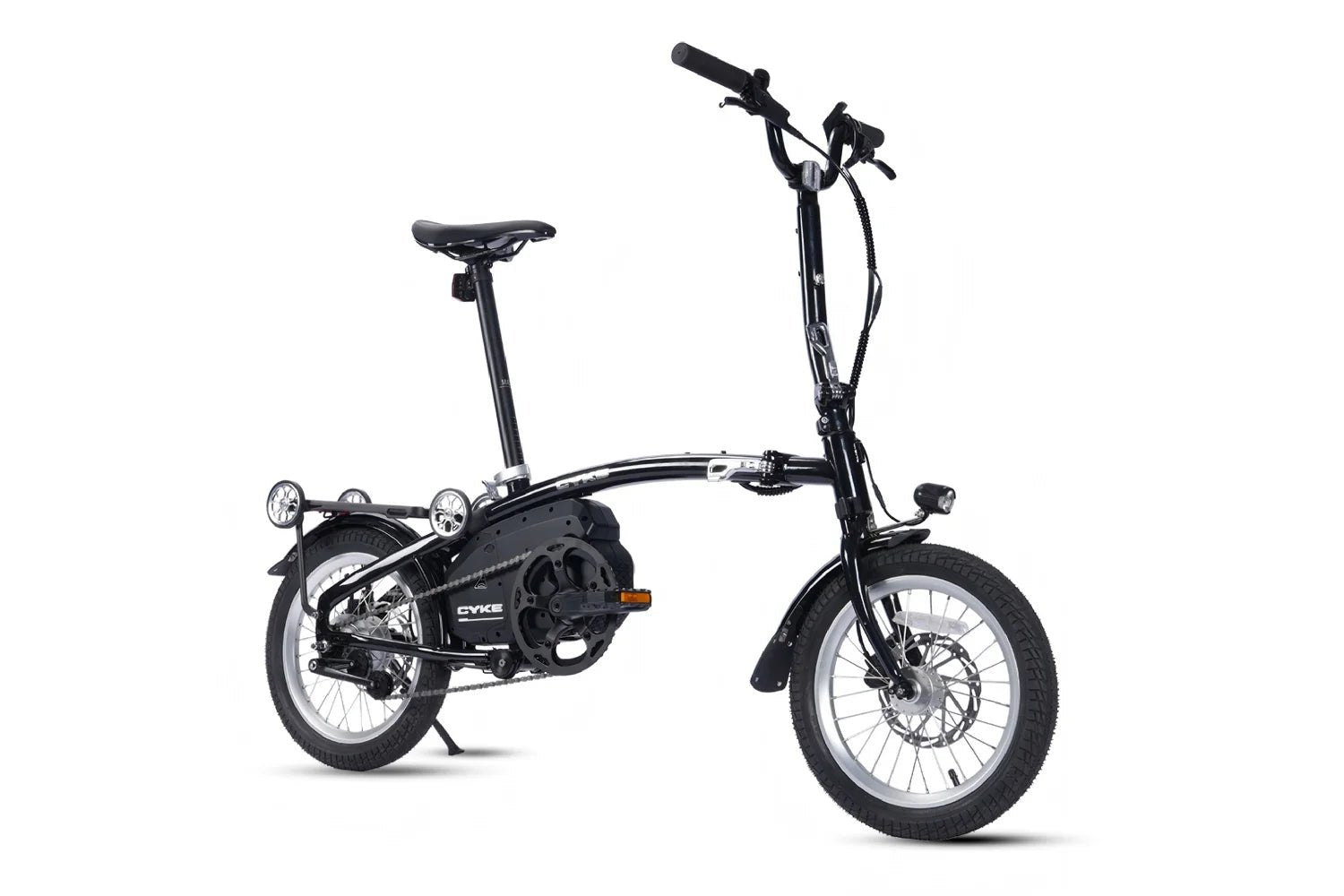

CYKE Kingfisher Mid-Drive Folding eBike
Introduce the world’s smallest folding electric bike (mid-drive), with the folding size of 28.74 × 14.57 × 27.56 in. Set to refine urban mobility, Kingfisher is deigned for anyone who demands performance, portability, and style in one.

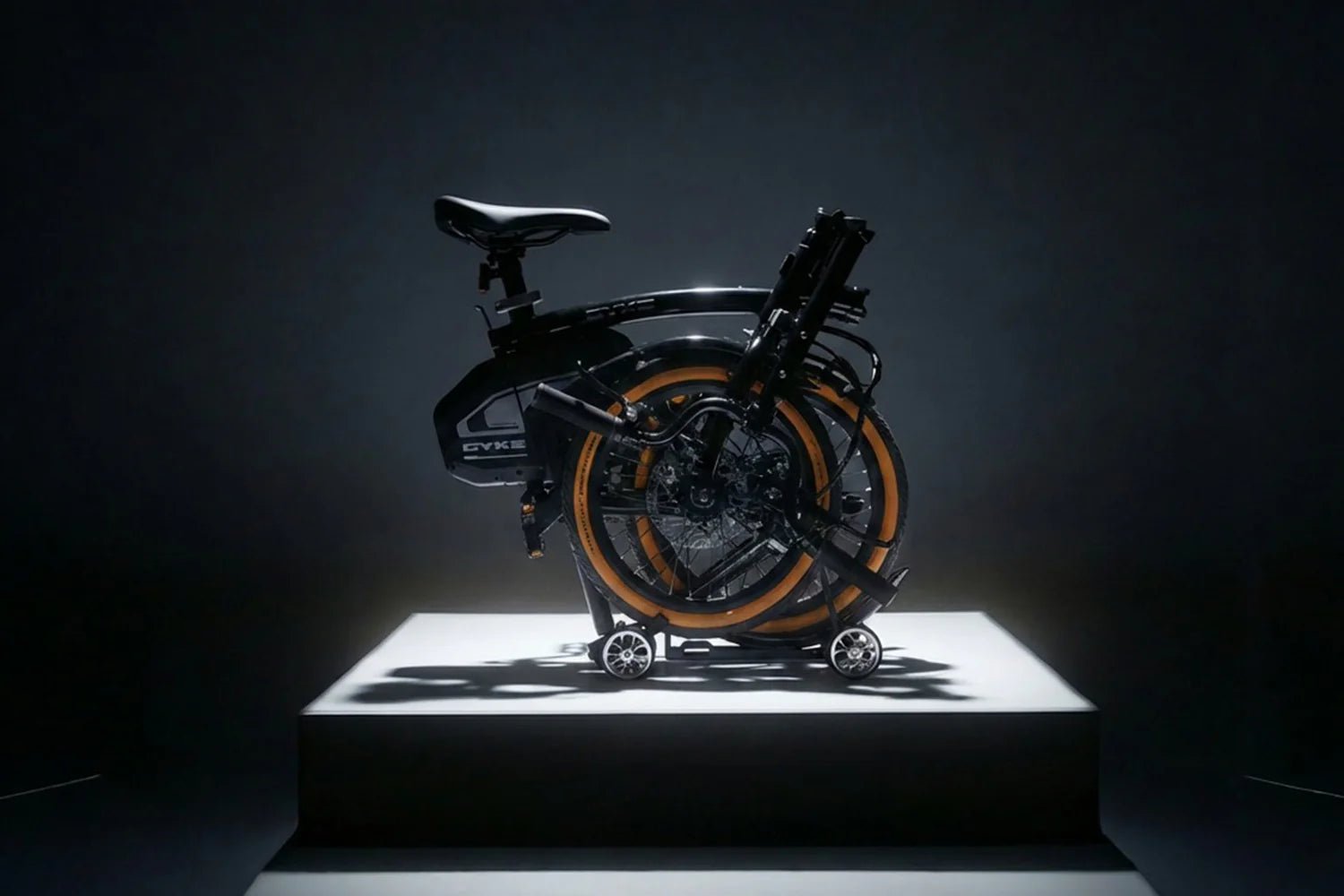

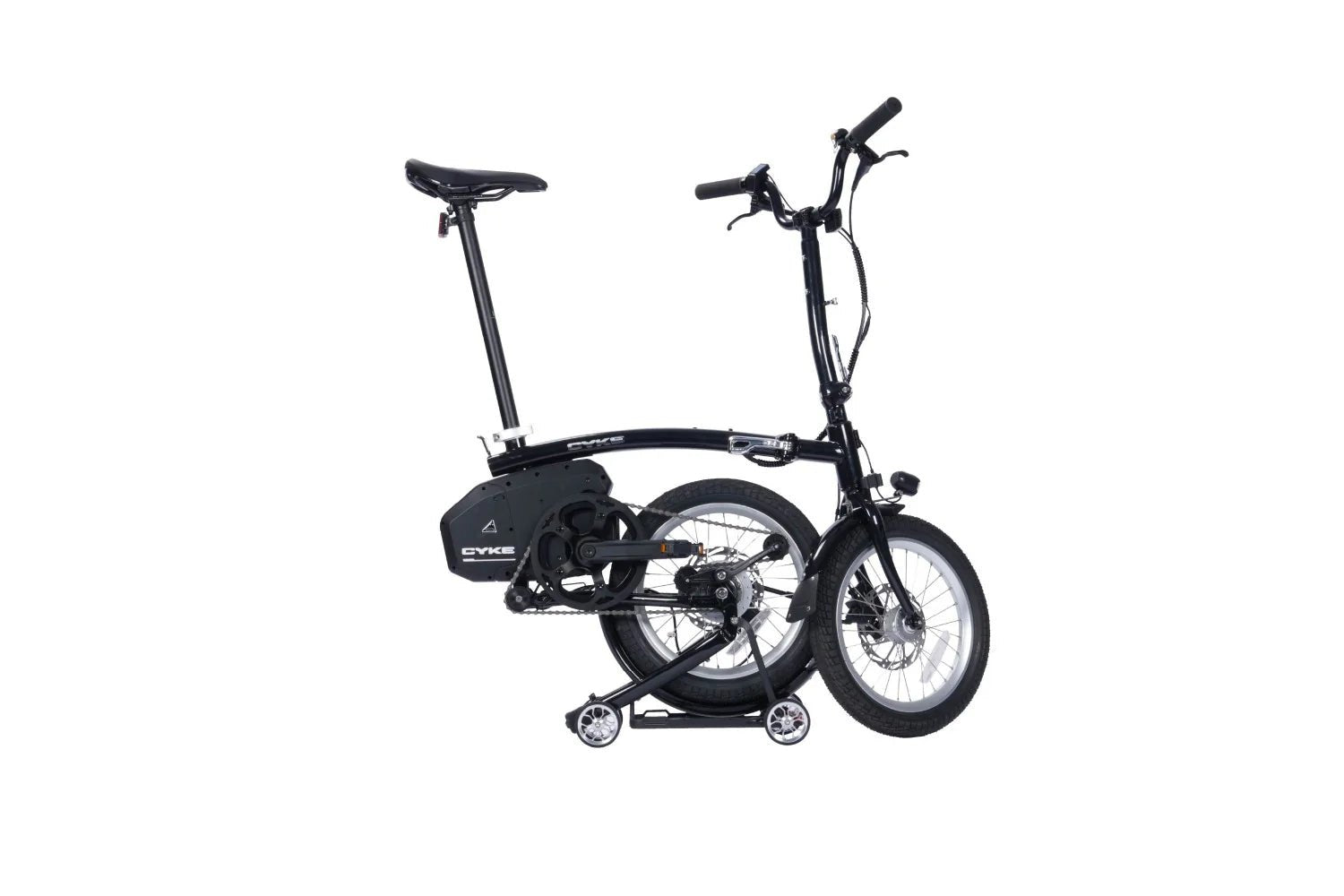

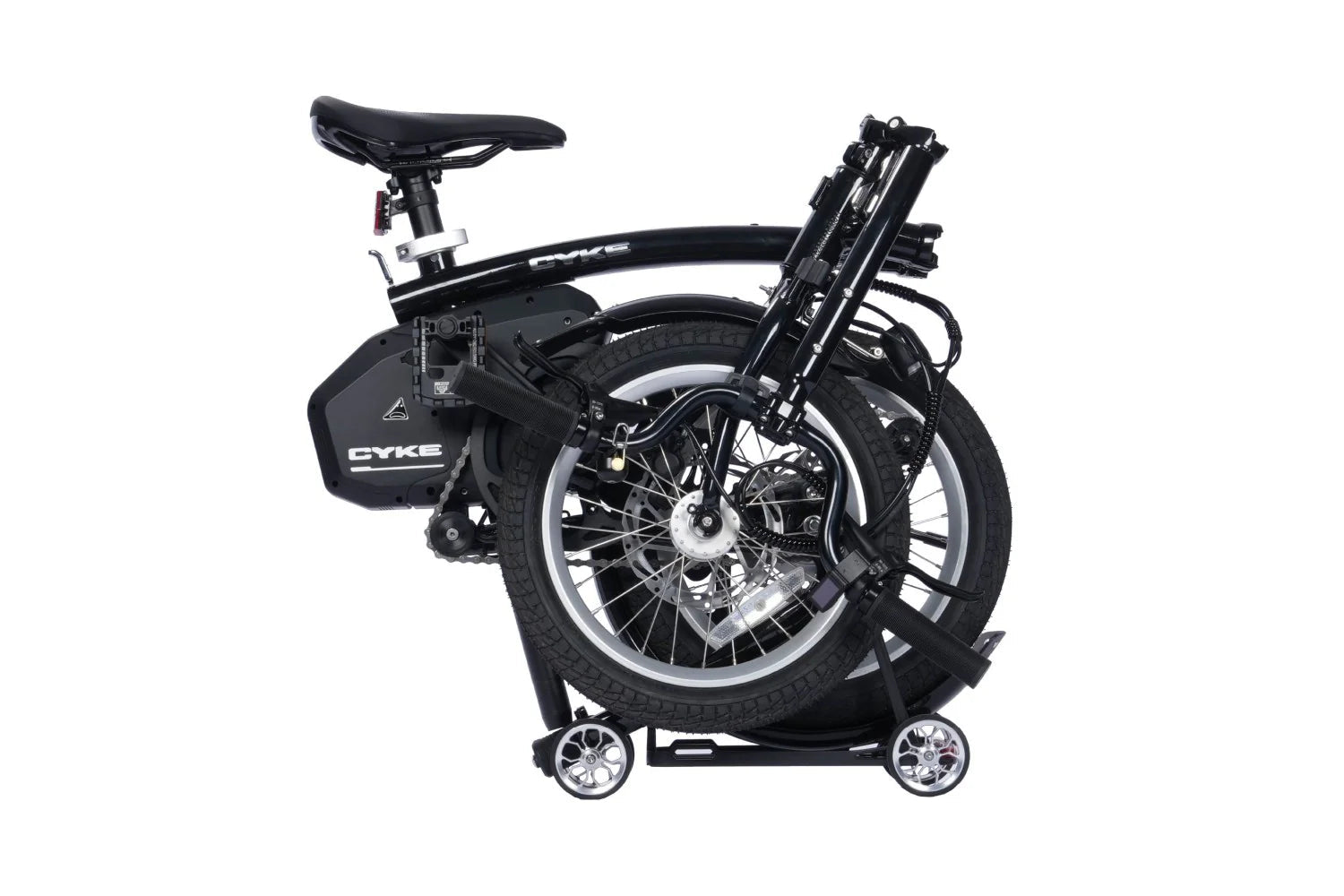

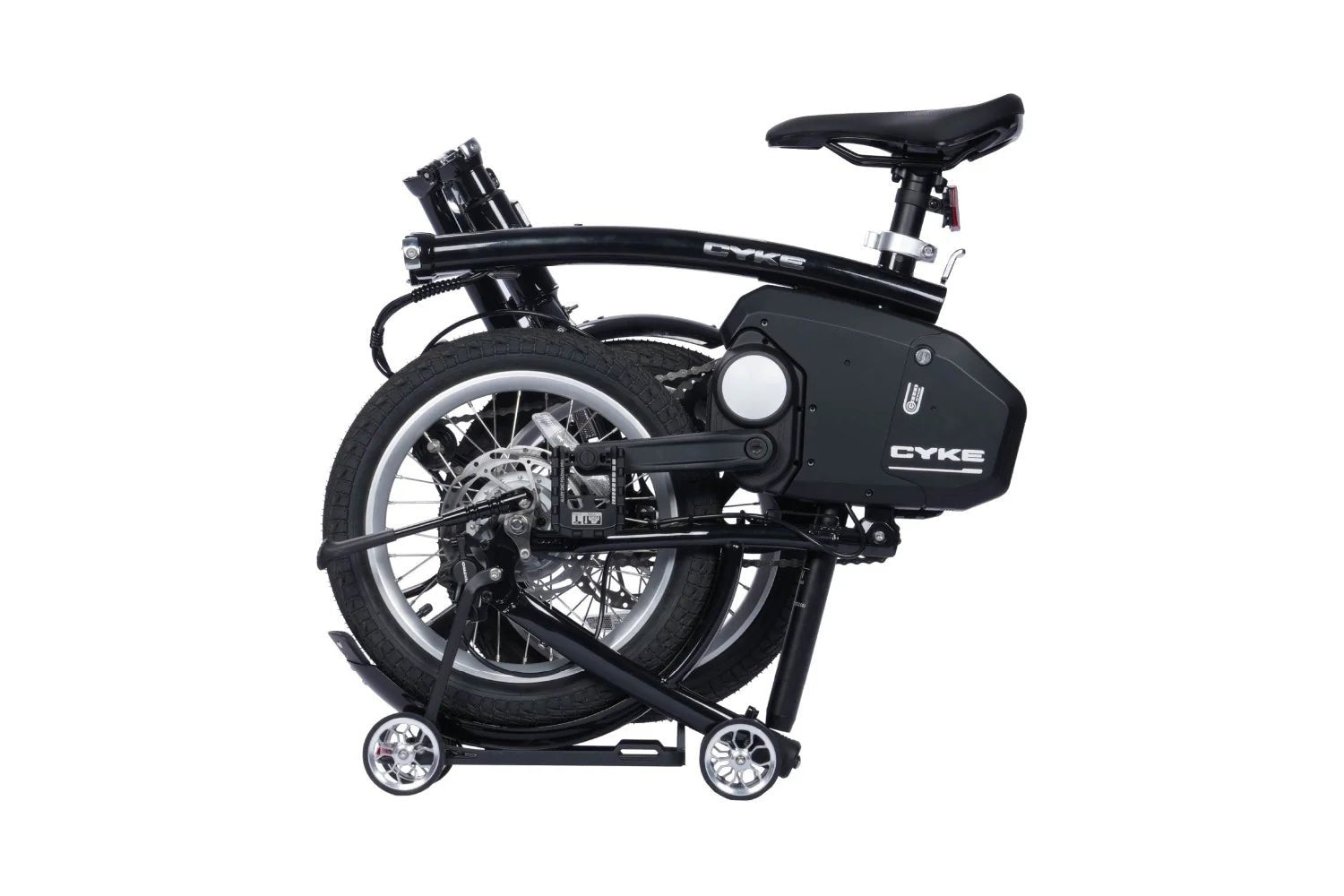

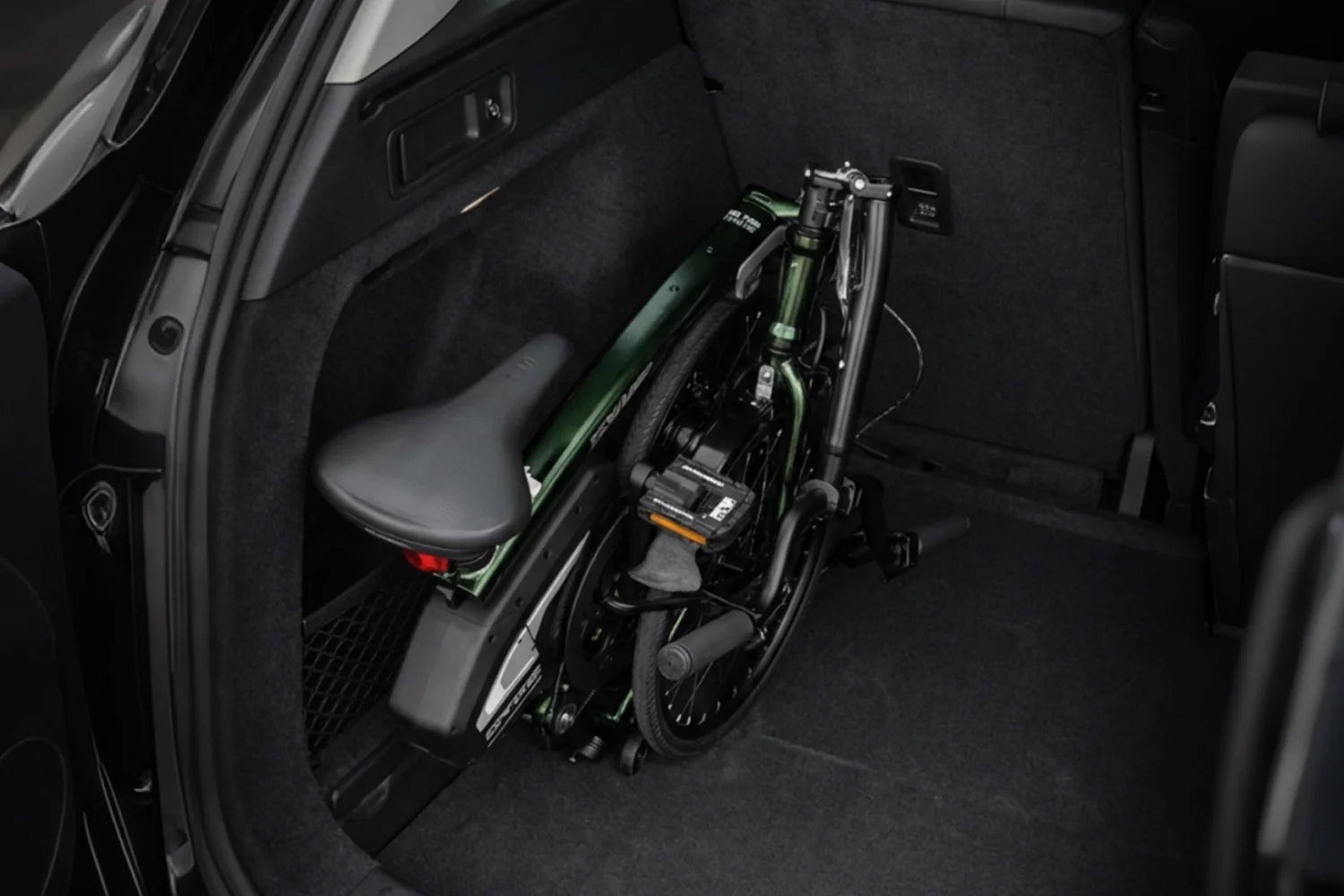

- Ultra-Compact Folding Design: Experience the innovation of the world's most compact mid-drive eBike, folding down to just 28.74 × 14.57 × 27.56 in. This tri-fold design makes it incredibly easy to store and transport.
- Powerful Mid-Drive Motor: The 250W mid-drive motor with 60 Nm of torque can reach a maximum power of 345W, effortlessly take you up to 20 MPH.
- 360Wh Battery for 55-Mile Range: Equipped with a 36V 10AH, 360Wh Lithium-ion battery with LG cells, supports up to 55-mile range per charge.
- Durable and Safe: Built with a robust Chromoly steel frame and precision-engineered TEKTRO hydraulic disc brakes, ensuring confidence and control on every ride.
- Premium Comfort on Every Move: Feel the comfort with an SR ventilated saddle and Schwalbe puncture-resistant tires, delivering superior comfort and a worry-free journey.
Specs
E-bike System
| Battery | 36V, 360Wh Lithium-ion battery with LG cells |
| Motor | 36V 250W Mid-Drived Motor, Torque: 60N·m |
| Range | 31 Miles / 55 Miles (PAS3/PAS1) |
| Display | 1.3" OLED screen, Waterproof Rating: IPX6 |
| Charger | 36V 5A |
| Charging Time | 2.5H |
| Sensor | Torque sensor |
| Max Speed | Max: 20 MPH |
| Pedal Assist Modes | 3 |
| Waterproof Rating | IPX5 |
Frameset
| Frame | Chrome-molybdenum steel foldable frame |
Wheels

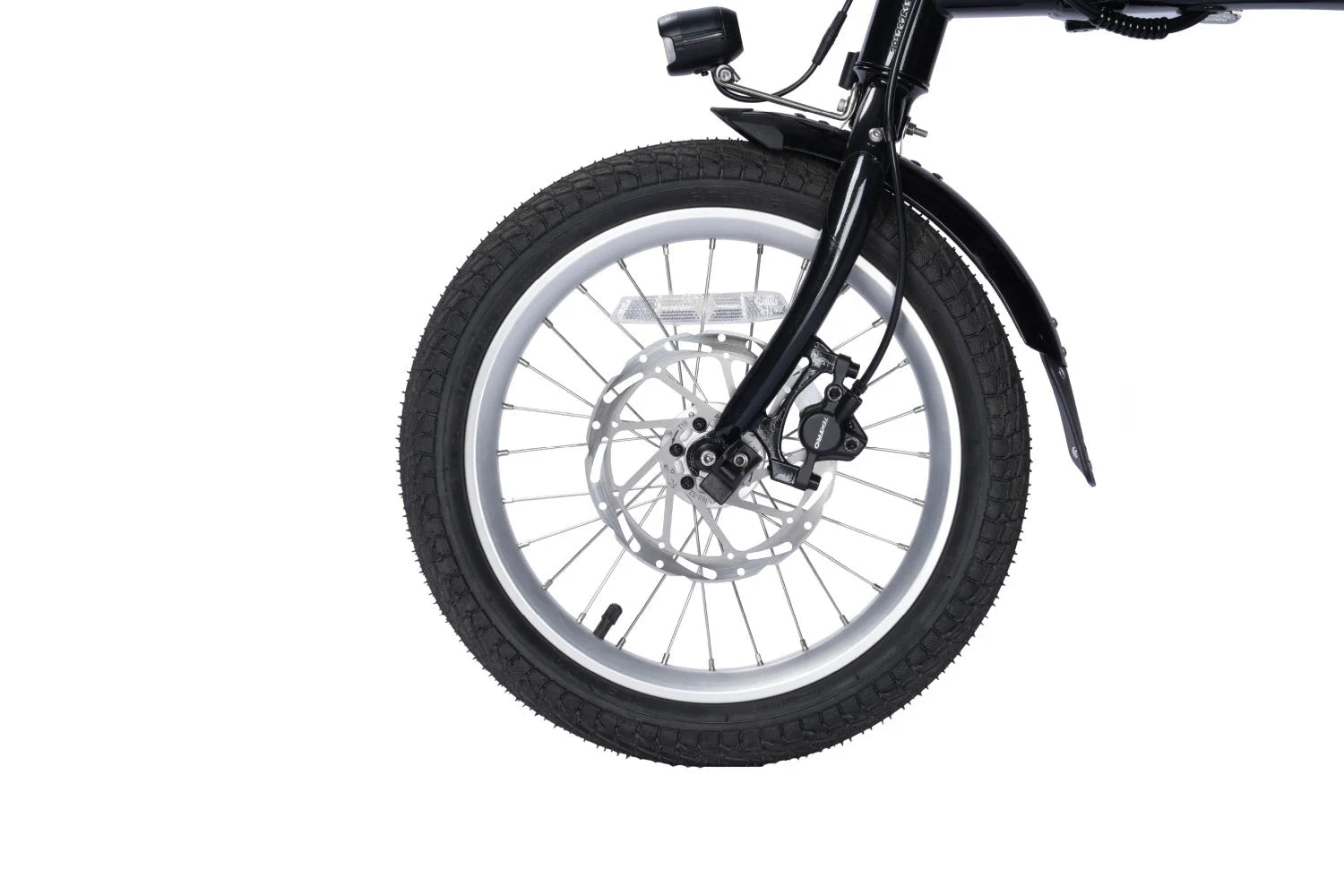

| Rim | 16-inch aluminum rim |
| Tire | Marathon RACER 16 × 1.35" 35-349 (Urban) / KENDA 16 ×2.25 58-305 (Sport) |
| Front Hub | 14G 28H |
| Spoke | Black stainless steel |
Drivetrain

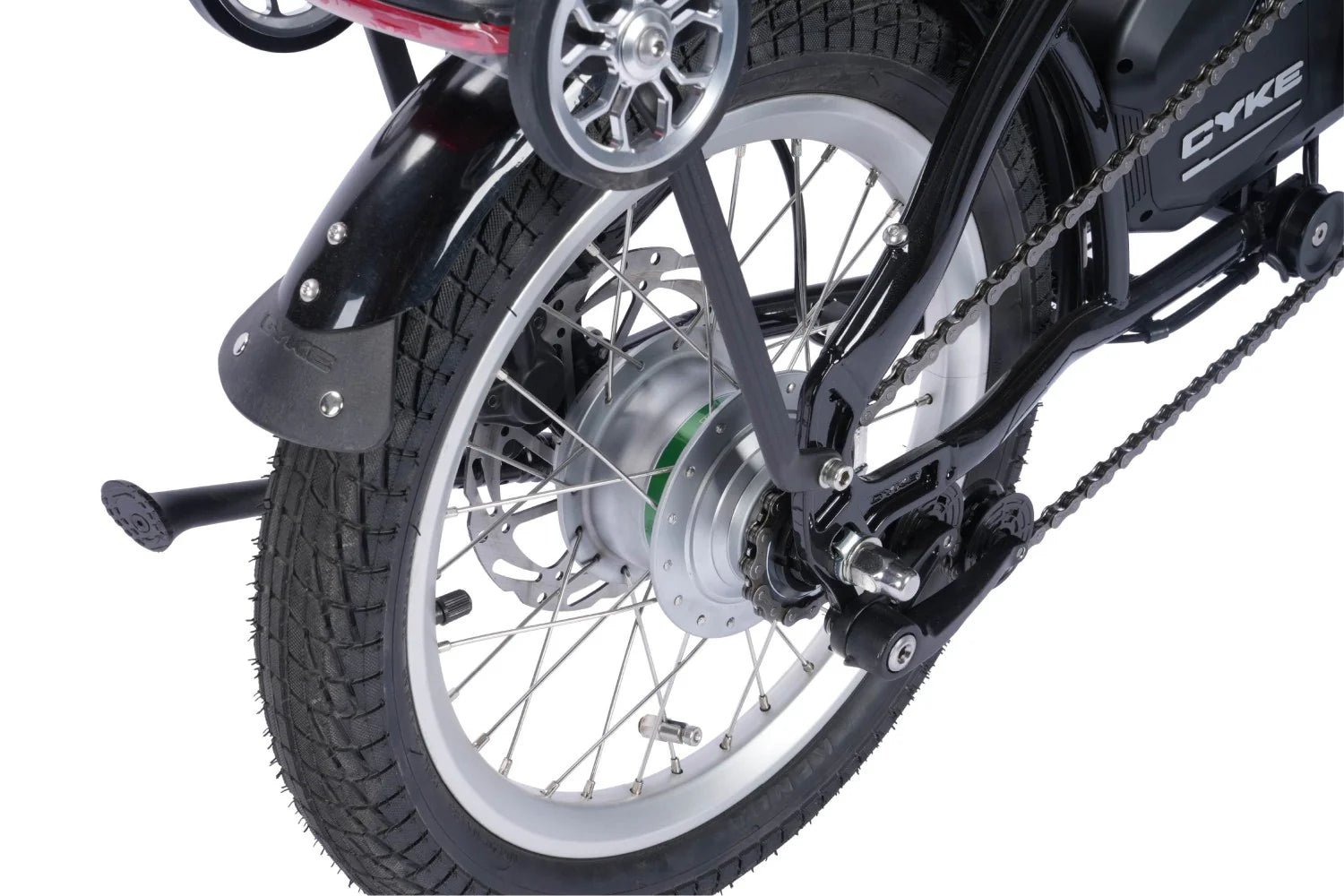

| Shifter | Lofandi internal 3-speed aluminum hub with disc brake version, Overall gear ratio: 166% 1st gear ratio: 1 2nd gear ratio: 1.29 3rd gear ratio: 1.66 |
| Crank Arm | 165mm aluminum |
| Chainring | 48T |
| Chain | KMC 114 links |
Components
| Saddle | 260*190mm，VL-6535 |
| Grips | Velo 32mm aluminum rim |

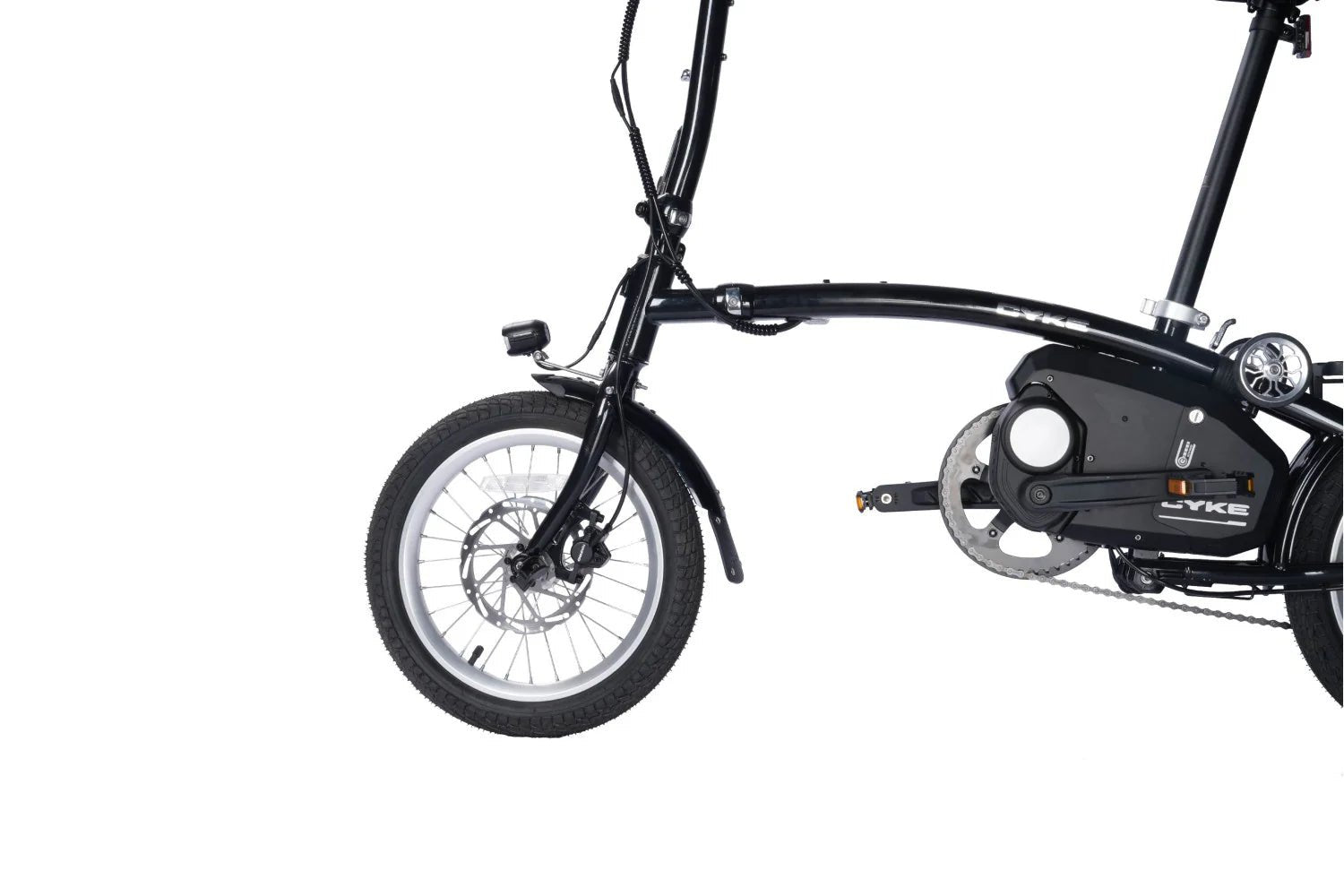

| Brakes | TEKTRO hydraulic disc brakes |
| Brake Rotor | 160*1.8mm brake rotor |
| Kickstand | 205mm Aluminum Kickstand |
| Pedal | 90*72mm Aluminum folding pedal |

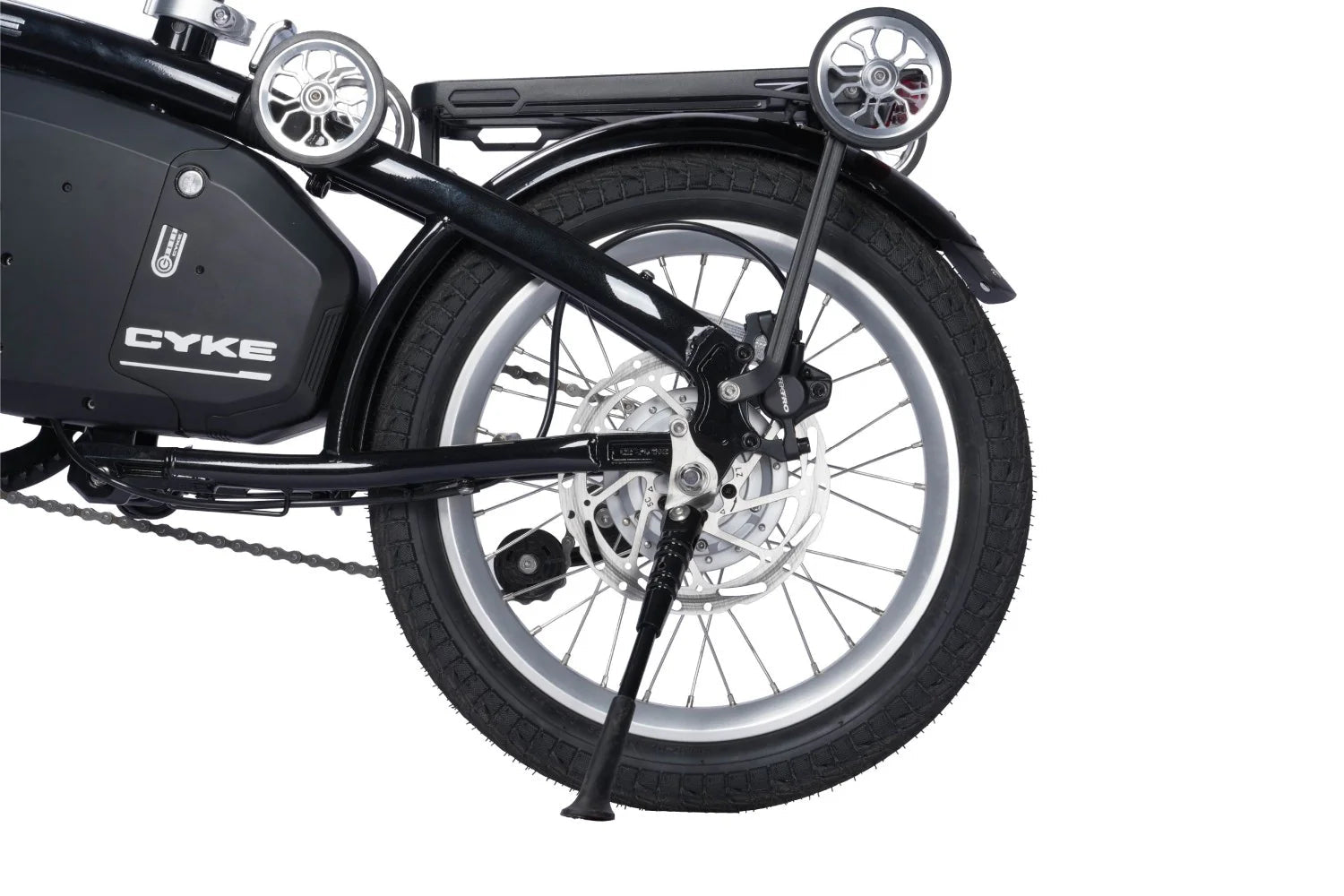

| Rear Rack | Aluminum alloy integrated casting rear rack |
| Rear Rack Wheels | 81.8mm Diameter aluminum pulley |
| Headlight | Voltage Range: 6V-48V, 50 LUX, Power:1.5-1.8W |
| Taillight | Voltage Range: 6-48V DC, Power: 1W |
Weight
| Weight Limit | 242.5 lbs |
| Net Weight | 50 lbs |
| Gross Weight | 55.1 lbs |
| Folded Dimension | 28.74 × 14.57 × 27.56 in |
| Box Dimension | 26.38 × 16.54 × 28.74 in |
Enhanced Performance for the Great Outdoors
Robust Chromoly Steel Frame
The Chromoly steel frame provides exceptional durability and comfort.
Durability: Stronger than typical eBike materials, Chromoly steel withstands daily stresses, including frequent folding, and resists cracks, ensuring a longer lifespan.
Comfort: With a slight flex, the frame absorbs road vibrations better than aluminum or carbon, delivering a smoother ride on uneven urban surfaces without compromising quality.

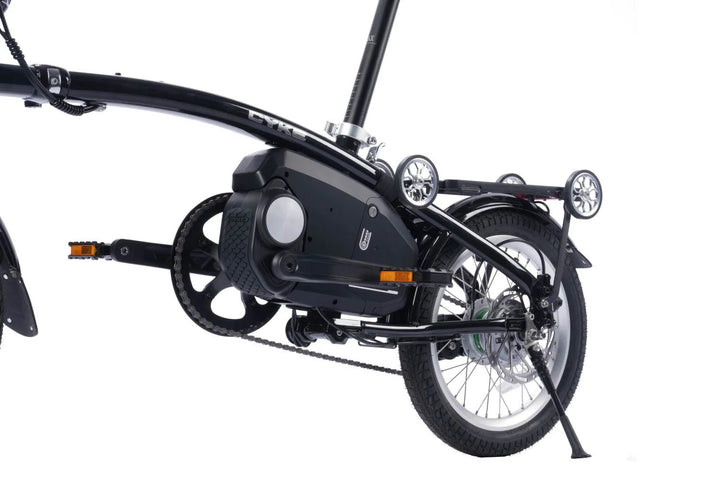

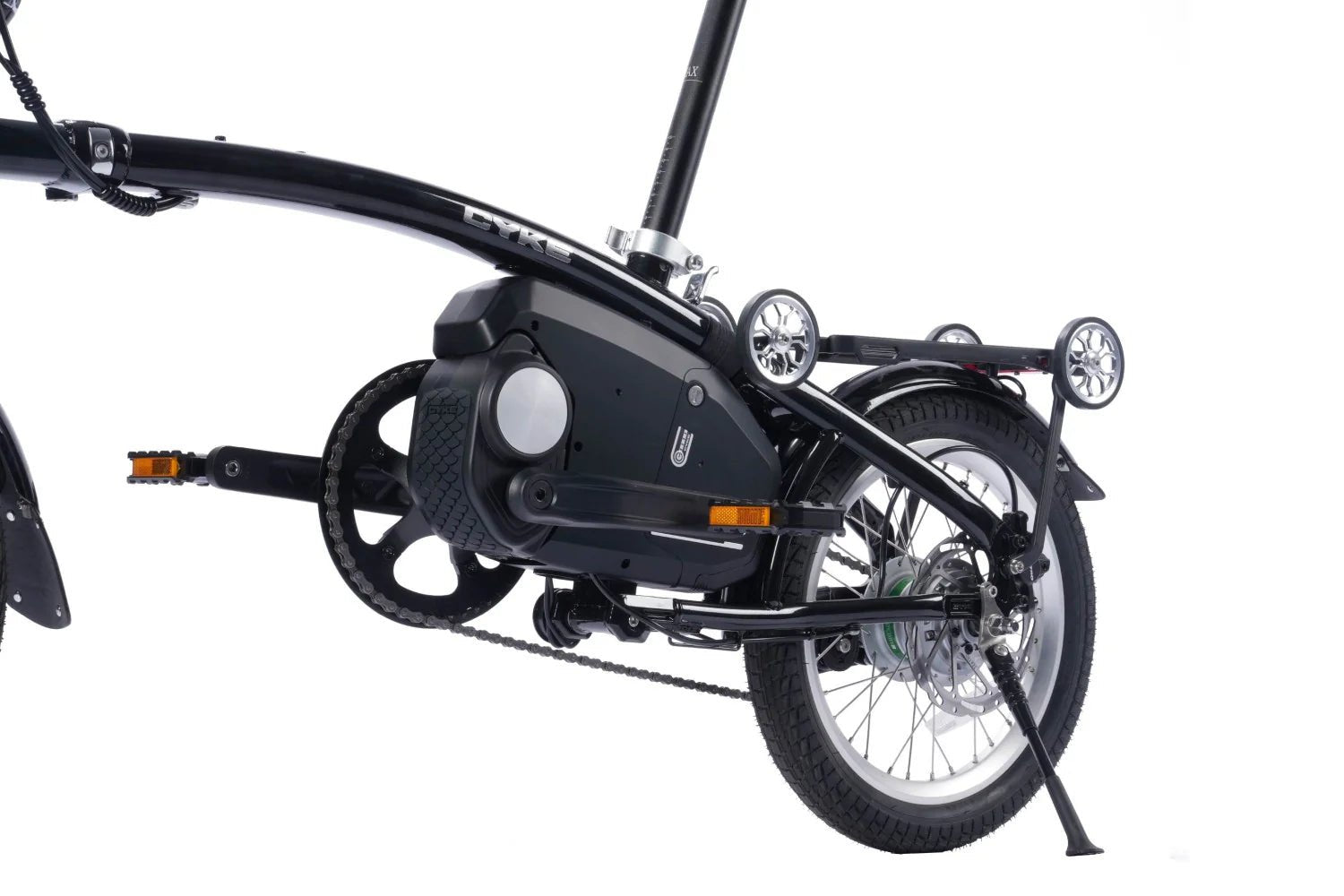

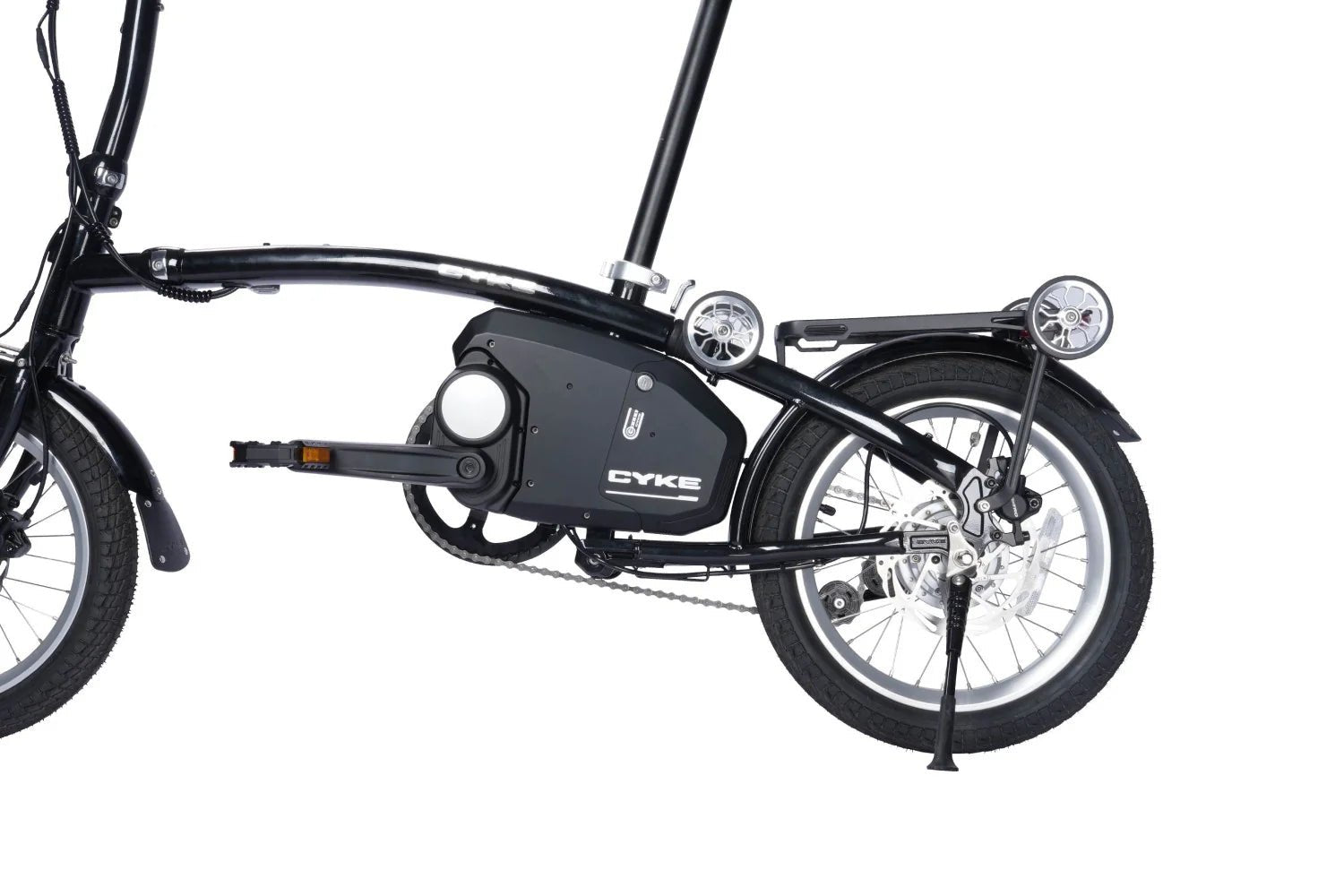

Powerful Mid-Drive Motor
‒ Rated Power: 250W
‒ Max Power: 345W
Equipped with a high-torque 250W mid-drive motor, the Kingfisher delivers up to 60Nm of torque, allowing you to effortlessly conquer hills and reach speeds of up to 32 km/h (20 MPH).
Integrated 360Wh Lithium Battery
Enjoy up to 55-Mile range on a single charge, thanks to the 36V 10AH, 360Wh Lithium-ion battery with LG cells. Moreover, we specially designed an Integrated Motor-Battery System to ensure a compact design, longer rides, and easier maintainence in the future.
Smart and Green Choice
Integrated Display
To keep you informed with real-time data like speed and battery life, the Kingfisher features a 1.3" OLED screen with an IP65 waterproof rating. This ensures that you never lose track of essential information, no matter the conditions on the road.

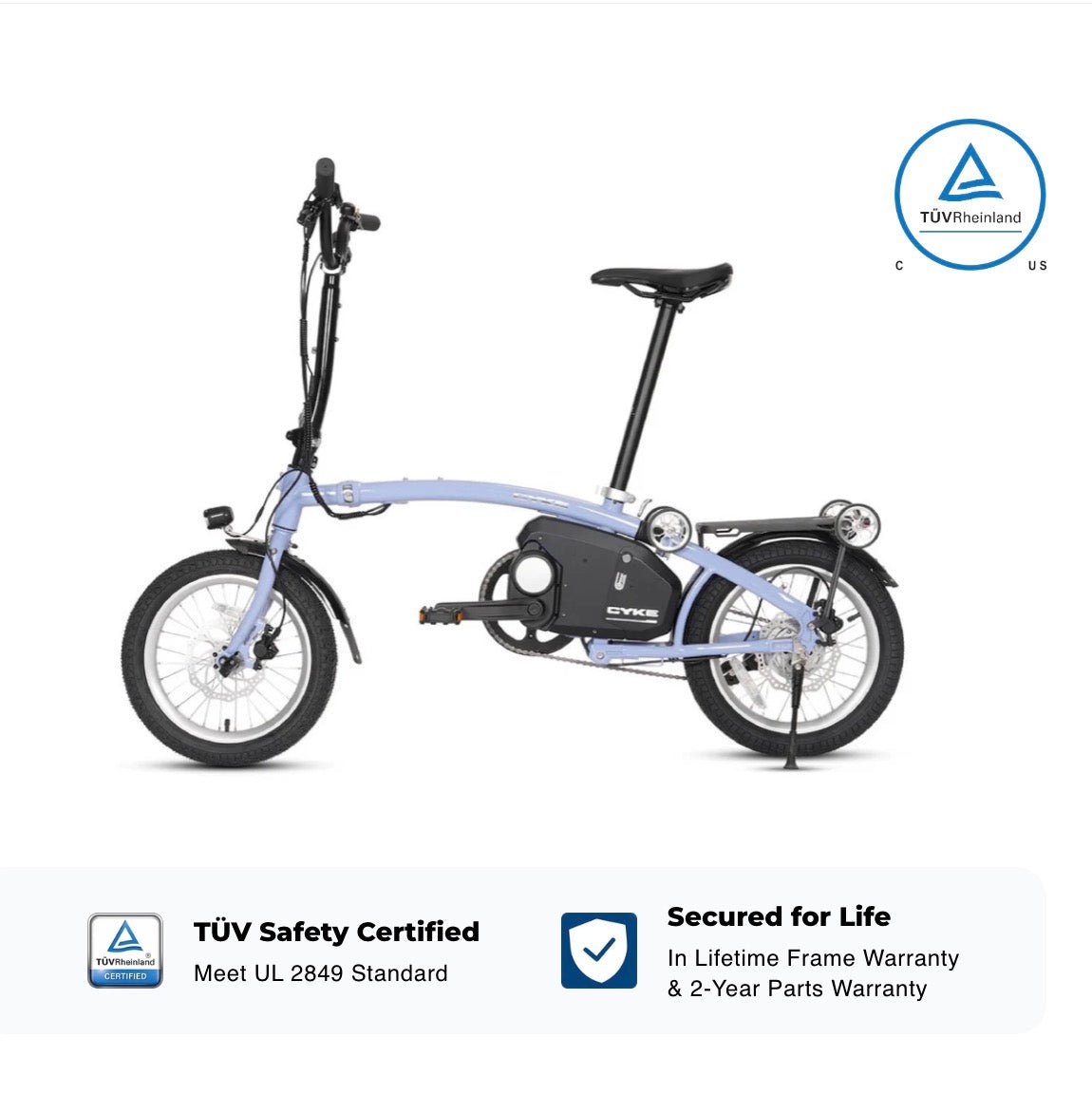

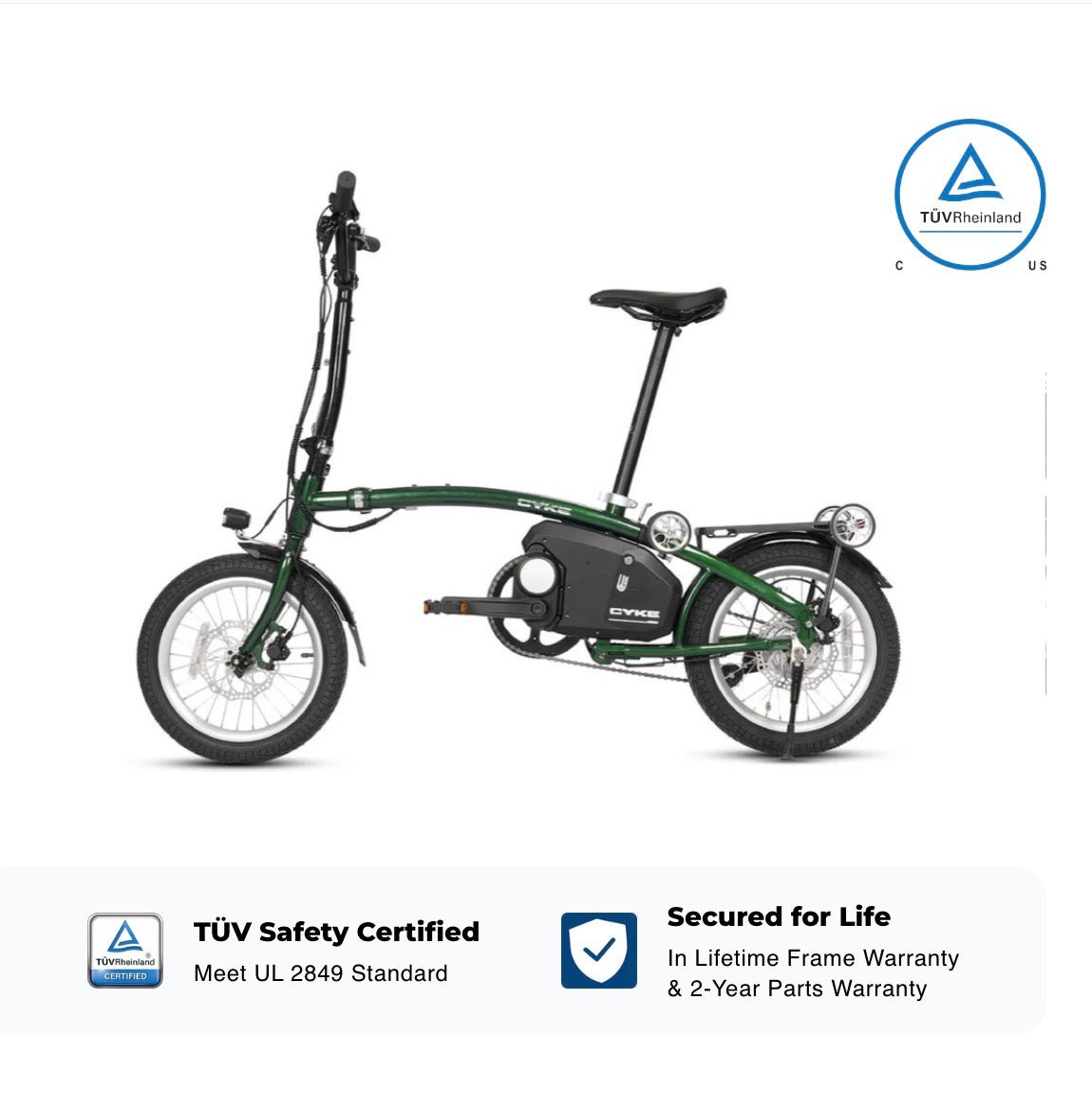

Multiple Color Options
Currently, there are four colors you can choose from to match your style and make your Kingfisher uniquely yours:
‒ Black
‒ Yellow
‒ Green
‒ Blue
Eco-Friendly Transportation
The Kingfisher is more than just an eBike—it's a sustainable way to navigate your city. Each step you ride with Kingfisher, you're reducing your carbon footprint and contributing to cleaner, greener urban environments.
