REVI BIKES Cheetah Prowler

$3,599.00 $2,599.00 Save 28%
/
Shipping calculated at checkout.

Certified in accordance with UL2849/UL2271

  • No Tax
  • Free Shipping
  • In stock, ready to ship
  • Backordered, shipping soon

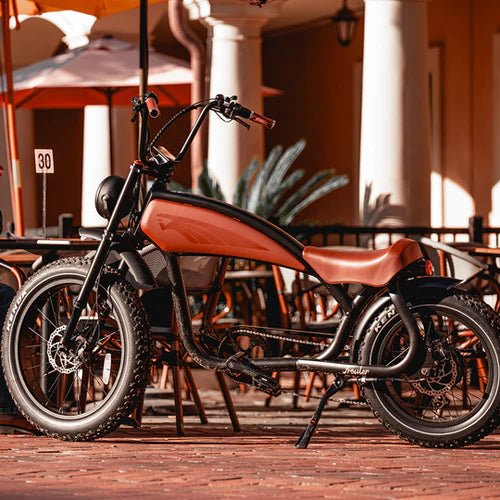

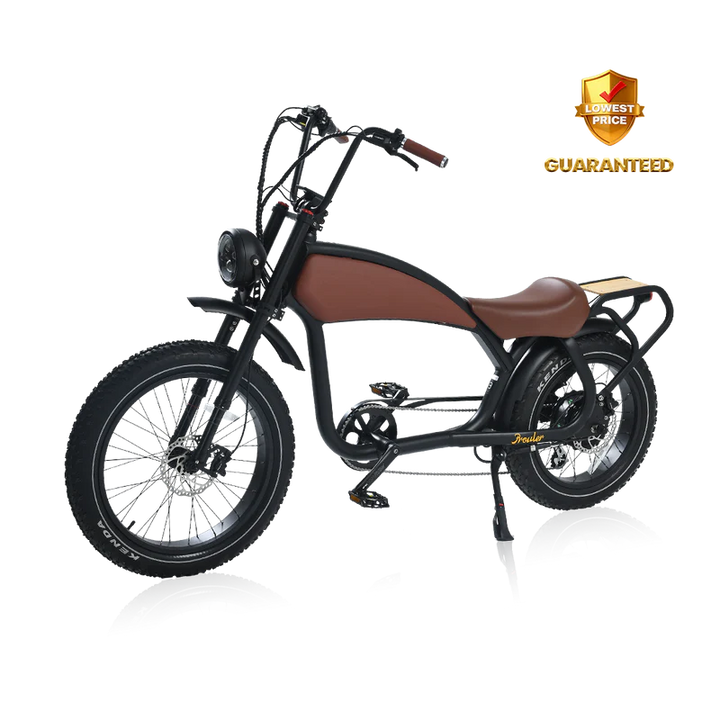

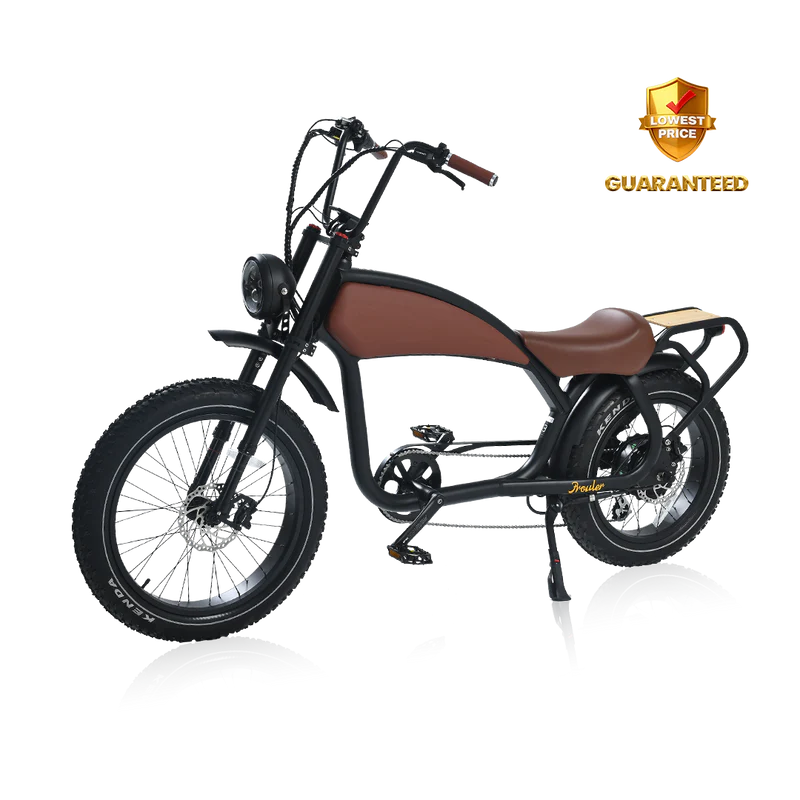

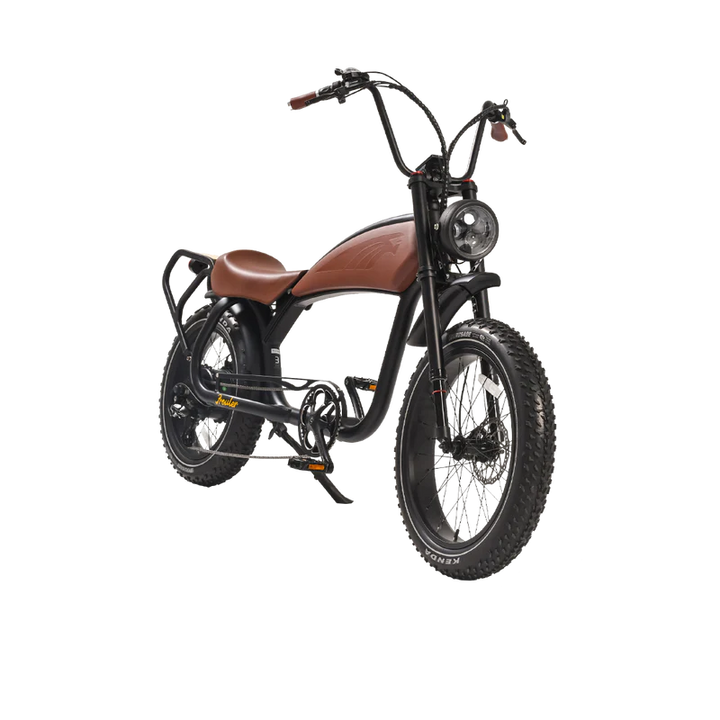

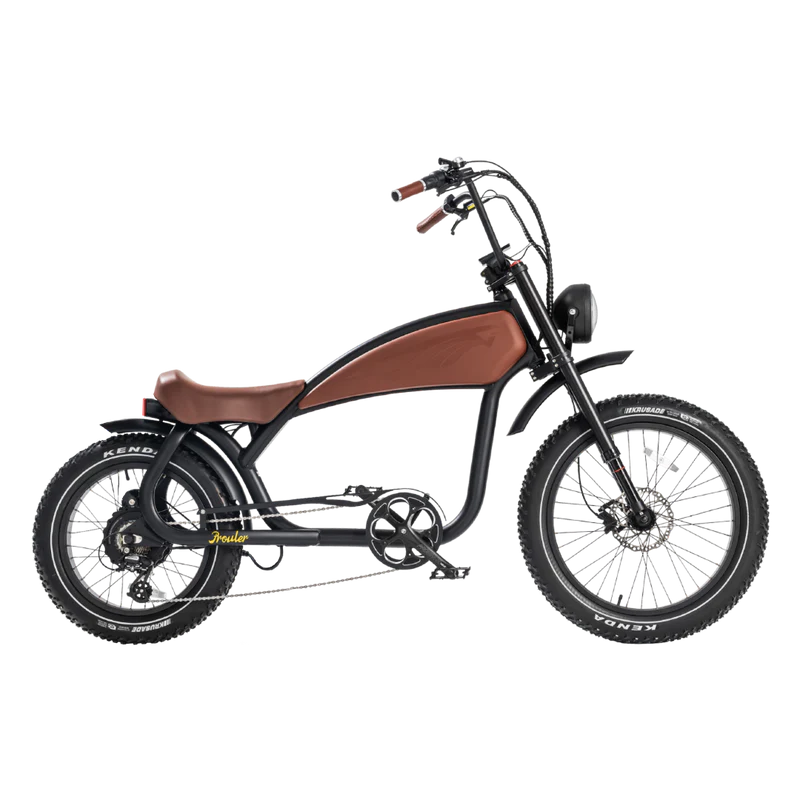

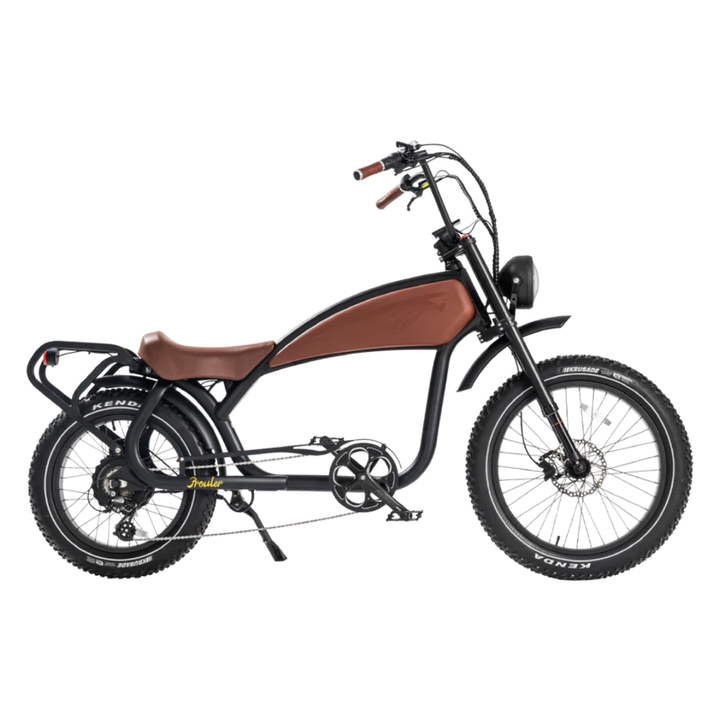

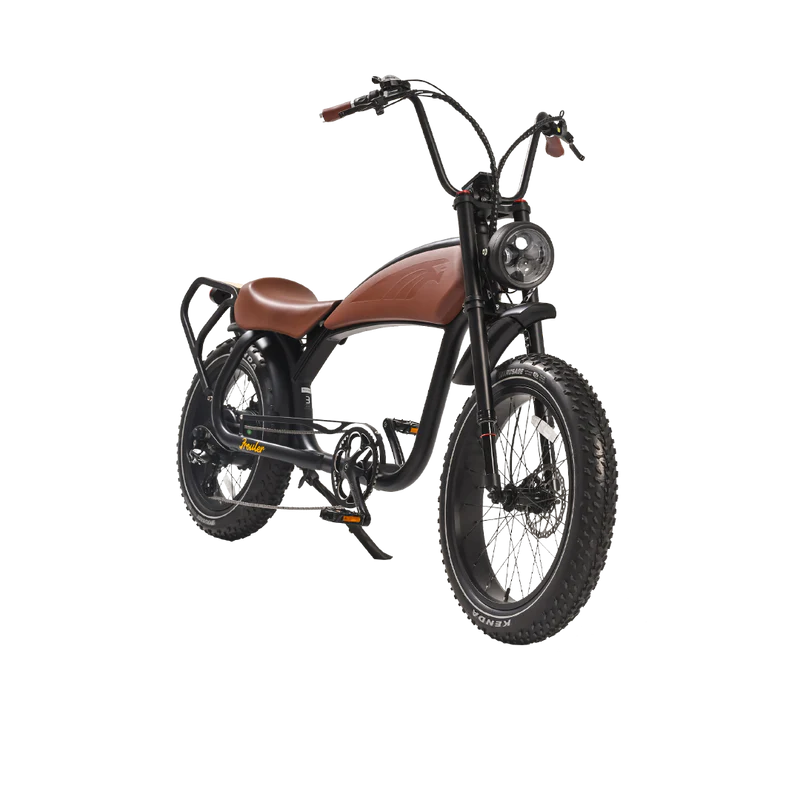

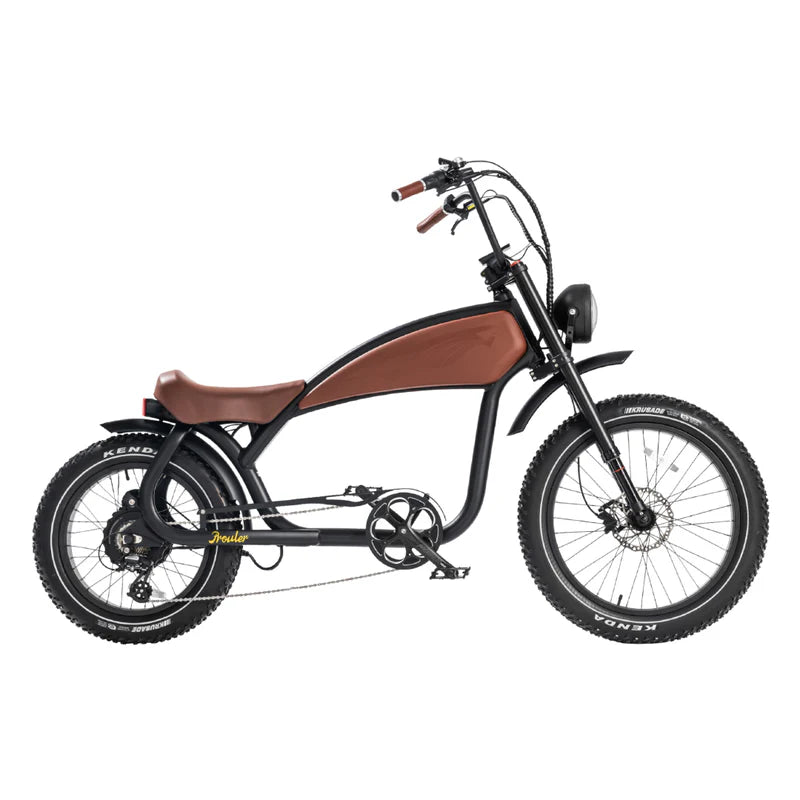

REVI BIKES Prowler | 1000W Vintage Cafe Racer Electric Bike

The REVI BIKES Prowler is a high-performance cafe racer-style e-bike that fuses vintage motorcycle aesthetics with modern electric power. It features a unique staggered wheel design (24" front/20" rear) and tall ape-hanger handlebars to deliver a commanding, upright riding position that reduces strain on the back and shoulders.

At its heart is a potent 1000W Bafang motor (peaking at 1500W) that provides a massive 85Nm of torque, allowing you to effortlessly tackle steep inclines and reach speeds of up to 28 MPH. Power is supplied by a premium 52V 20Ah Samsung battery, offering an impressive range of up to 70 miles on a single charge. Whether you're cruising city streets or hitting light trails, the air suspension fork and hydraulic disc brakes ensure a smooth, controlled, and safe journey.

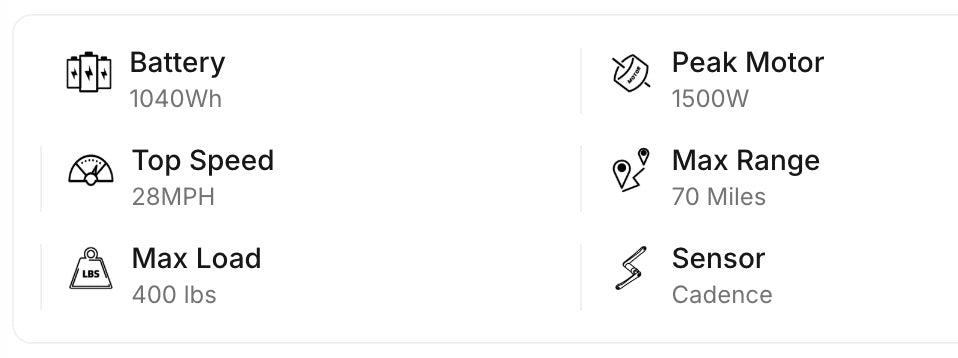

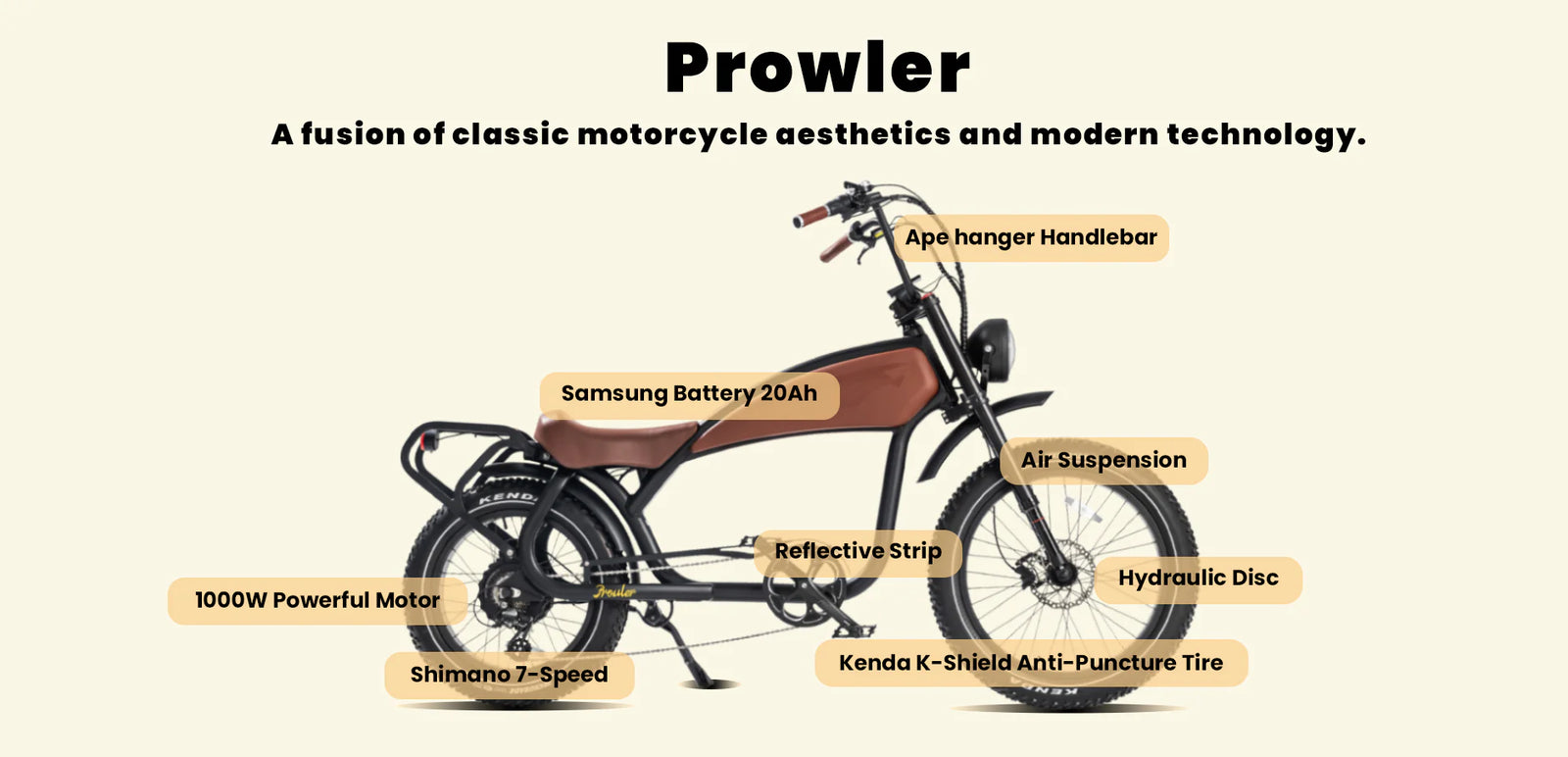

Key Specifications:

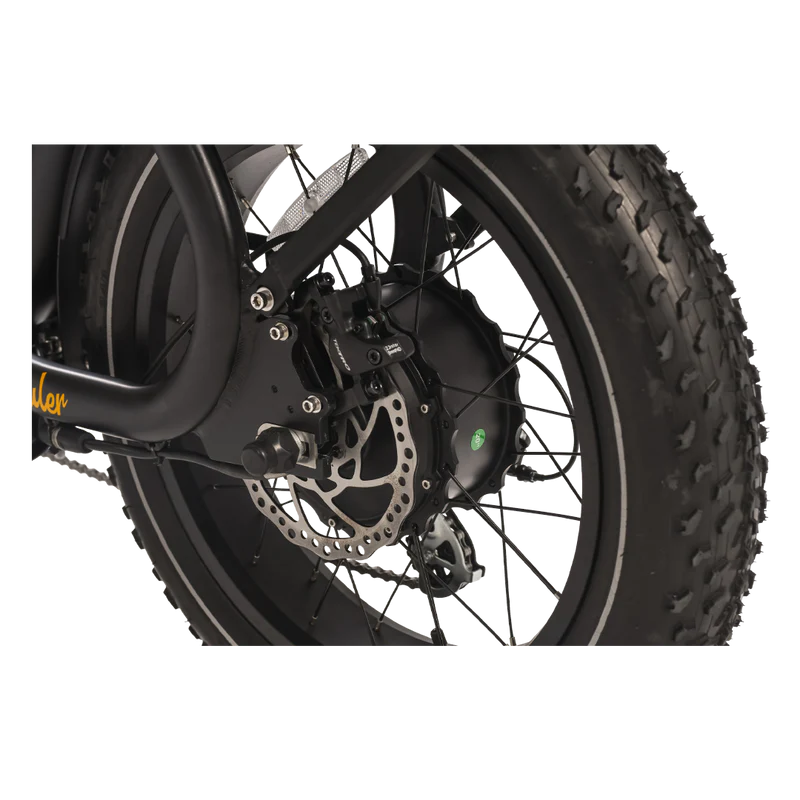

  • Motor: 1000W Rear Hub (1500W Peak) with 85Nm torque.

  • Battery: 52V 20Ah (1,040Wh) with Samsung lithium-ion cells.

  • Top Speed: 28 MPH (Class 3 performance).

  • Range: Up to 70 miles (Pedal Assist) / 45 miles (Throttle Only).

  • Tires: Kenda K-Shield anti-puncture fat tires (24"x4.0" Front / 20"x4.0" Rear).

  • Safety: 180mm hydraulic disc brakes and integrated brake lights.

    Payload: Heavy-duty 400 lb capacity with an included rear rack.

Free Gift with your order



Specs

Specification

  • Motor: 52V 1000W
  • Motor Peak Output: 1500W
  • Battery Cell: Samsung
  • Battery Type: Lithium-ion
  • Battery Capacity: 52V 20AH
  • Max Range: 70 Miles
  • Charging Time: 5 - 6 Hrs
  • Front Light: Included
  • Pedal Assist: 1-5 levels
  • Throttle: Yes
  • Brake: F/R Hydraulic Brake
  • Brake Brand: Tektro
  • Rotors: 180mm Front and Rear
  • Wheel Size: 24"F/20"R X 4.0
  • Display: Full Color with USB Port
  • Display Function: PAS Level, Current Speed, Max Speed, Odometer, Trip, Model selection
  • Frame Material: 6061 Aluminum Alloy
  • Shift: SHIMANO™ 7 Speed
  • Crank Wheel: 48T 170mm
  • Saddle: Leather
  • Chain: EPT Anti-Rust
  • Sensor: Cadence
  • Weight: 112 lbs with battery

Speed & Range

  • *A 120-lb rider using PAS 1 in Eco mode on flat roads.
  • Mode: Eco/ Normal/ Sport
  • Top Speed: 28 MPH
  • Throttle Range: 45 Miles
  • Pedal Assist Range: 70 Miles

Weight & Load

  • Weight: 112lbs with battery
  • Payload Capacity: 400Ibs
  • Rear Rack Load Capacity: 45lbs

Tutorial Video

Bike Assembly Tutorial

LCD Display Tutorial

Package Included

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

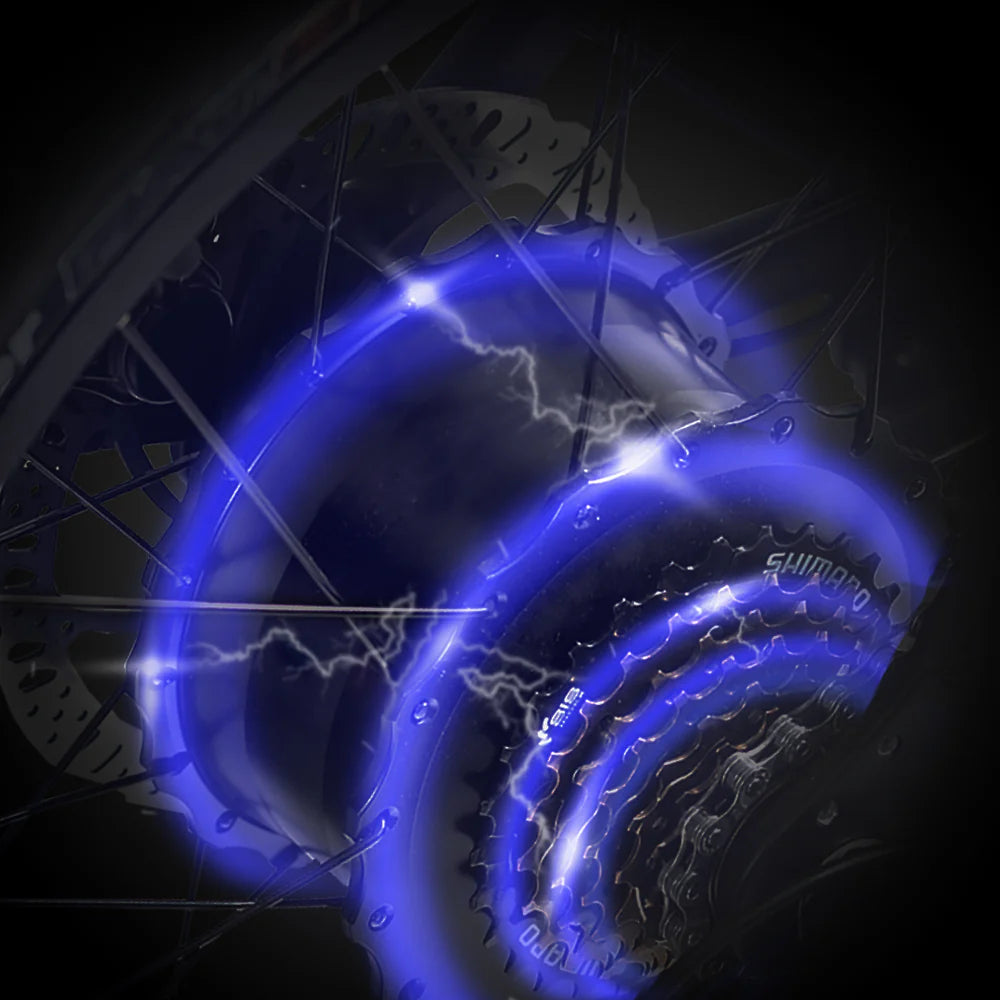

52V 1000W Motor

Up to 28 mph (unlocked) with 52V 1000W powerful motor, can reach a peak power of 1500W, torque 85 Nm. The 52V voltage rating provides ample electrical power to assist riders in pedaling. The increased wattage ensures that the motor can maintain a consistent and powerful output even when faced with challenging inclines.

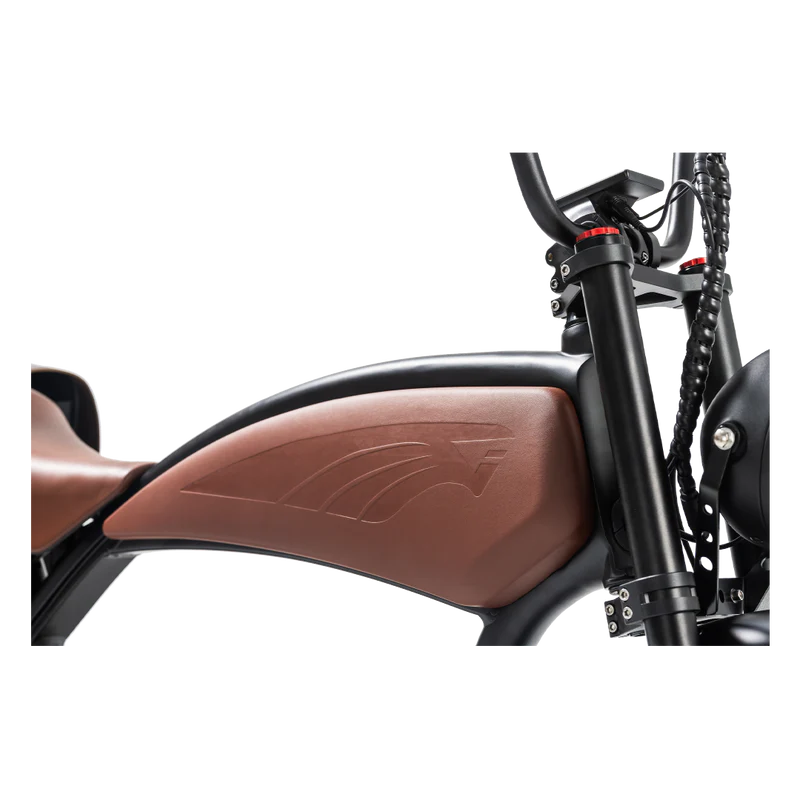

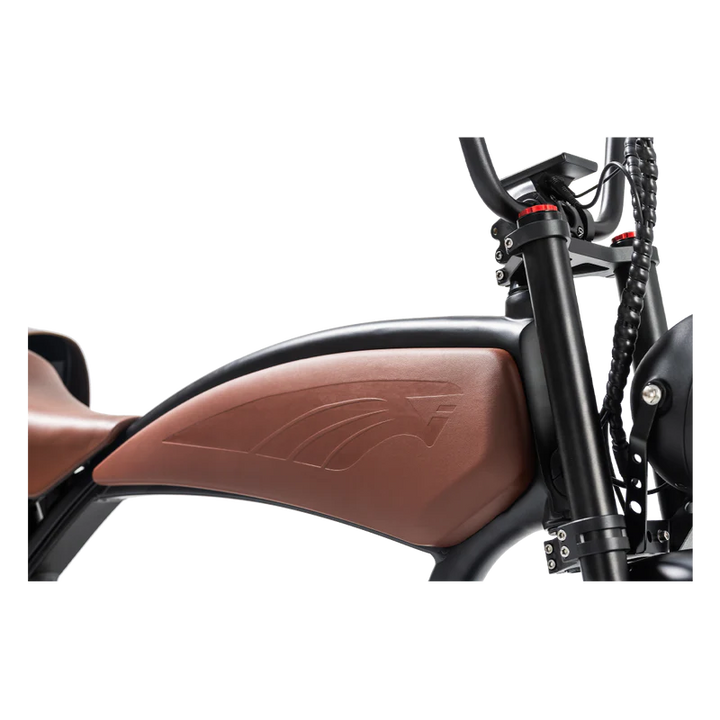

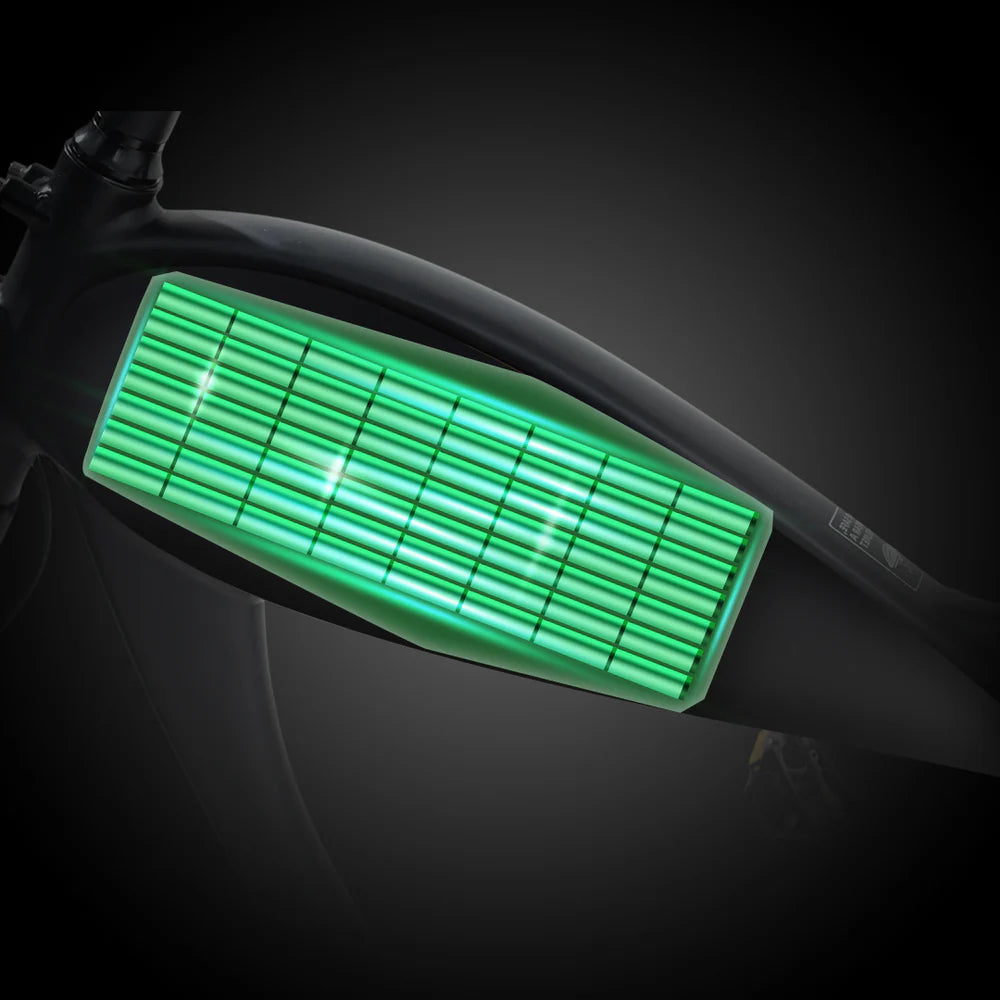

20AH Samsung Battery

With a capacity of 20ah, this high-capacity battery provides a substantial amount of energy storage. Ride up to 70 miles on pedal-assisted fun. With a Samsung battery, you can have confidence in the e-bike's performance and longevity.

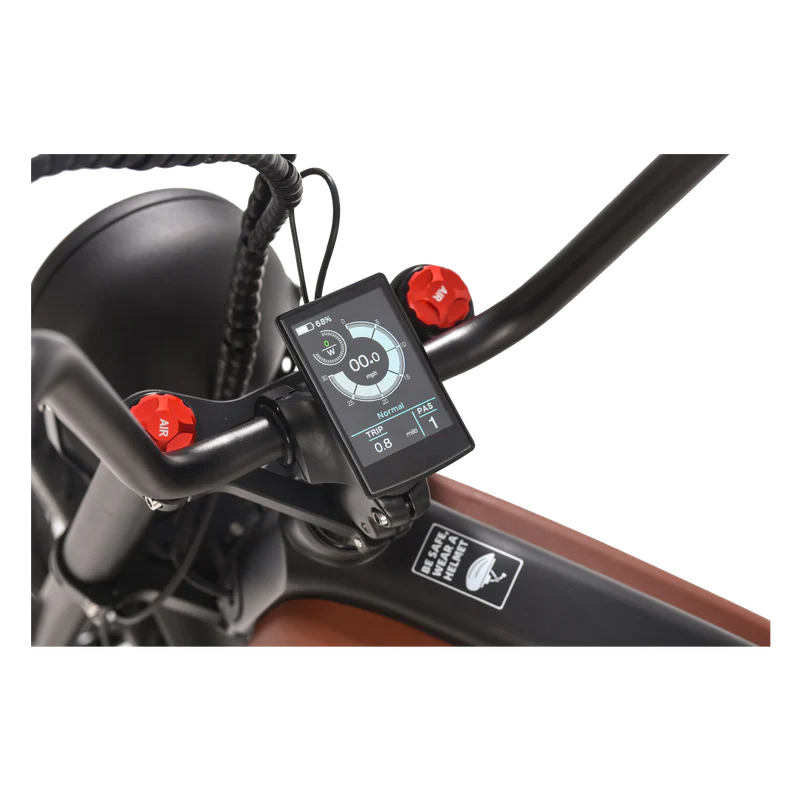

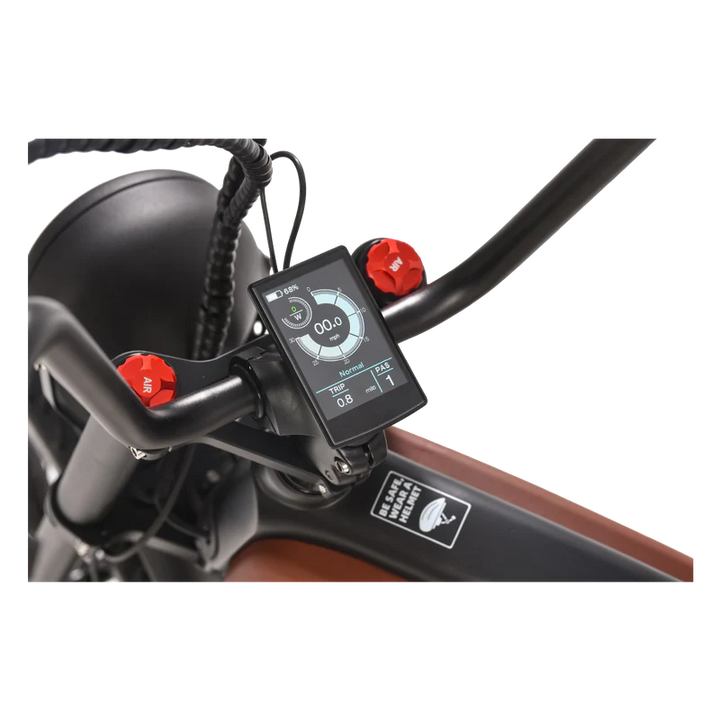

LCD Display

Switch between Eco,Normal and Power, control your entire ride with the display by choosing between 1-5 levels of pedal assist power, check your battery life, operation status, speed and trip distance.

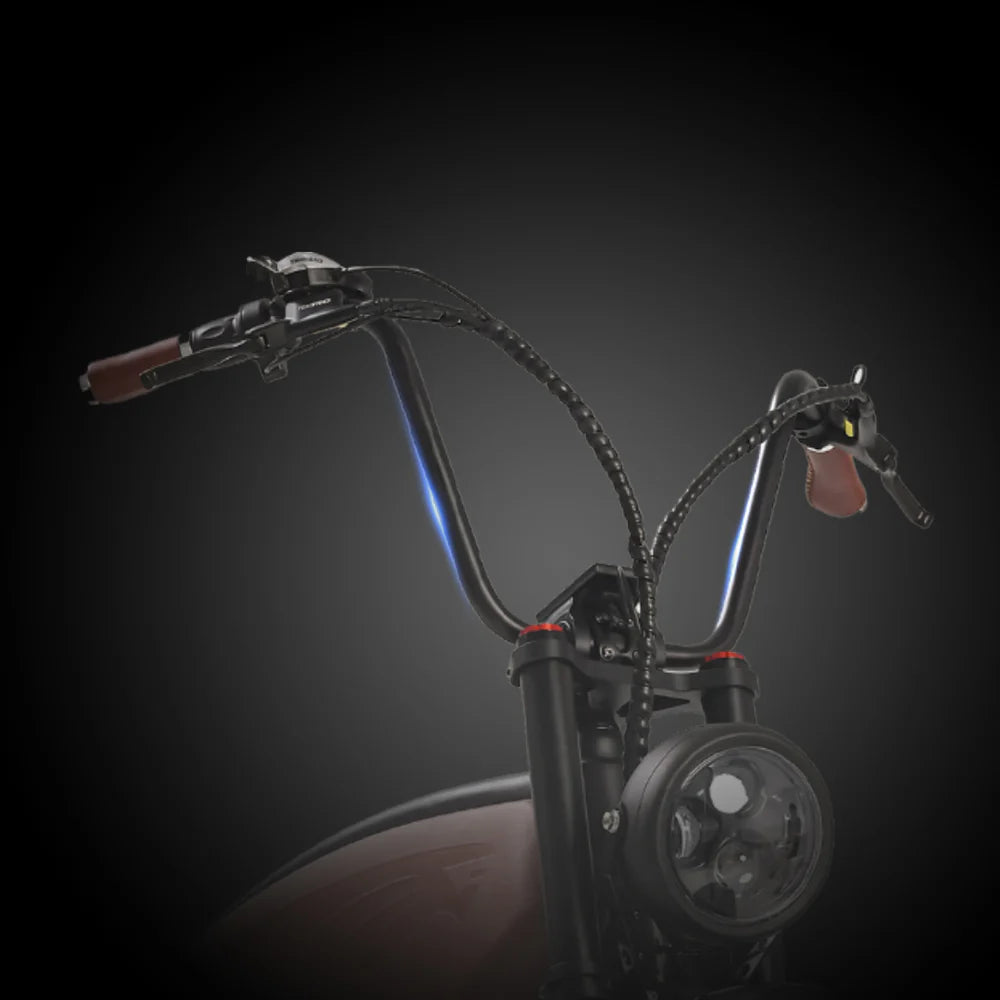

A Unique Handlebar Style

Ape hangers are characterized by their tall, upward-sloping handlebars. These elongated bars not only provide a striking visual effect but also offer a unique riding experience. They are an vintage style statement. Riders often find that the elevated handlebars reduce strain on their wrists and shoulders, making long journeys more enjoyable.

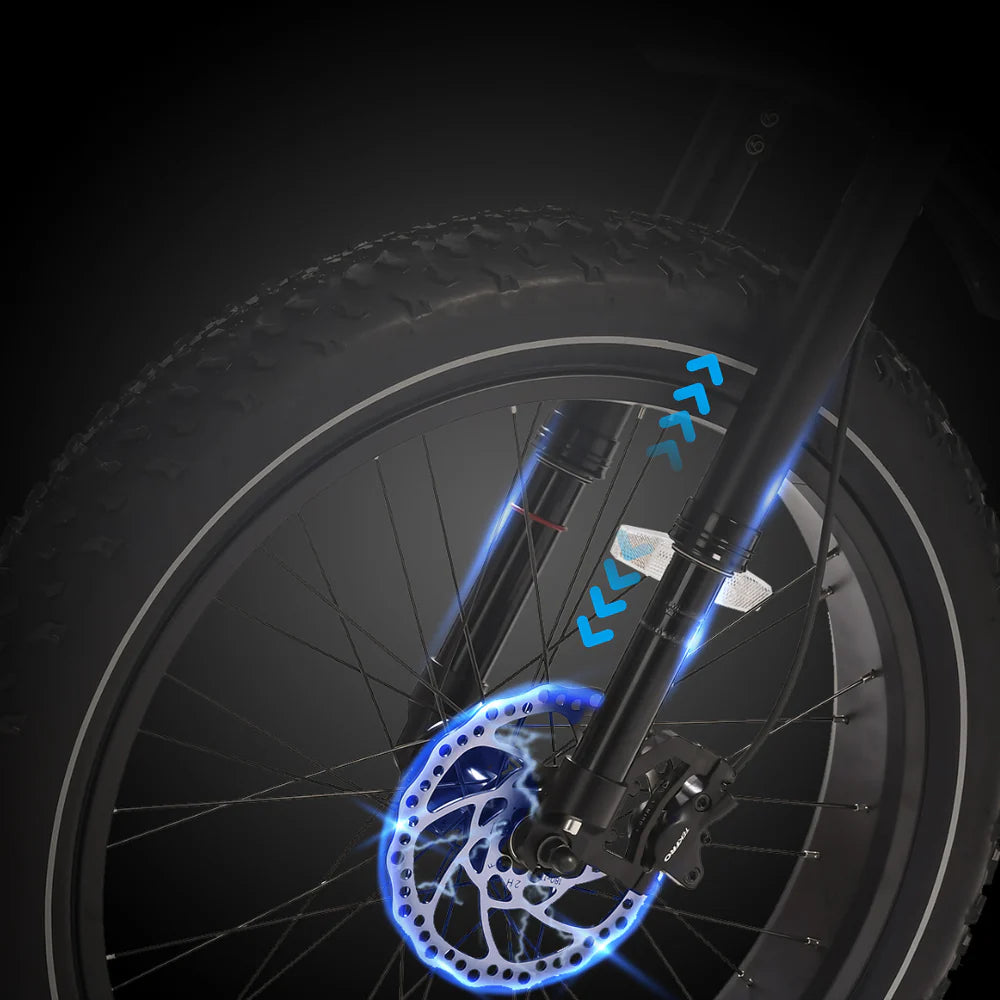

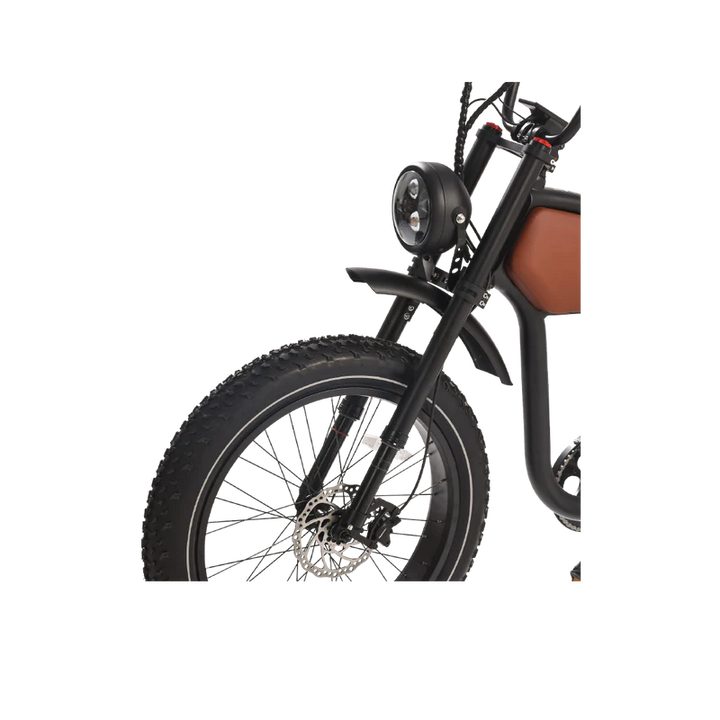

Suspension

Air Suspension & Hydraulic Disc

The 180mm hydraulic disc brakes provide reliable and sensitive braking performance. The front air suspension helps smooth bumps and improves off-road performance, makes the ride more stable, comfortable, and controllable.

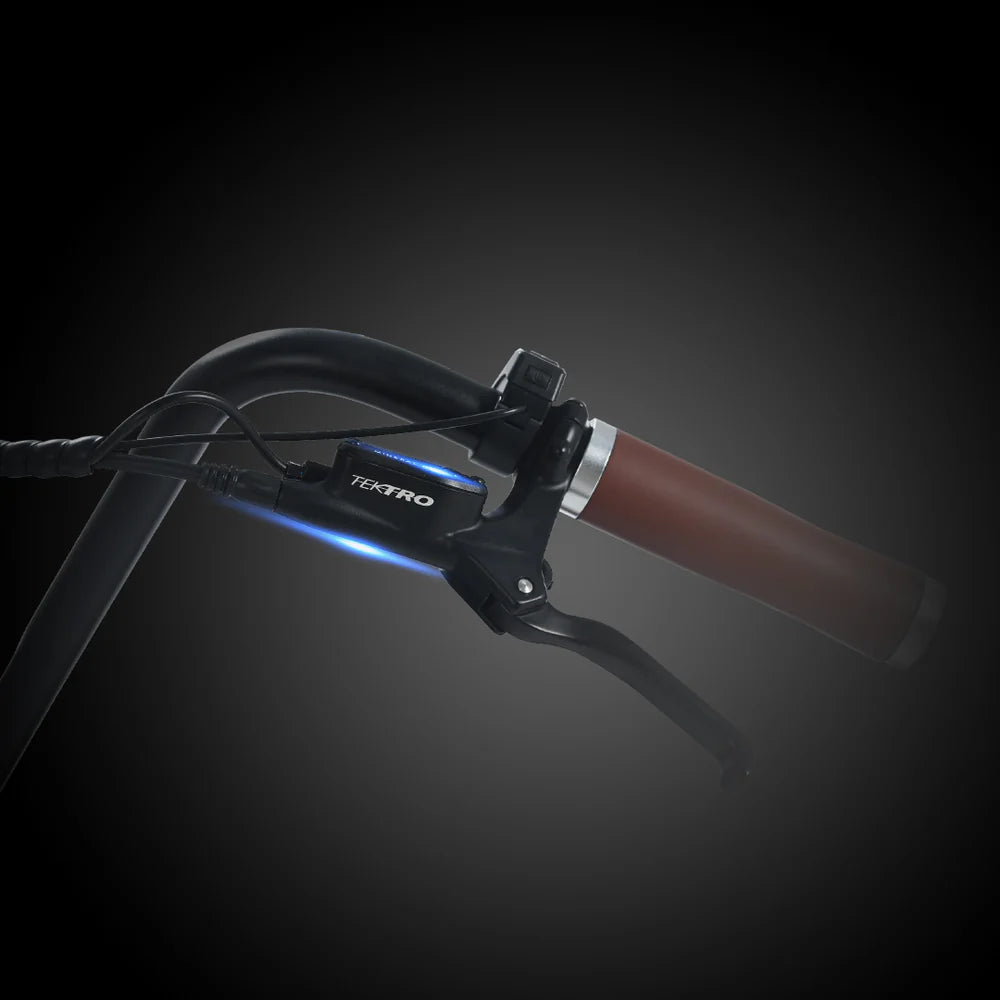

Brake

Tektro E395

The heightened thickness of the Tektro E395 disc brake and brake pads augments their stopping power significantly. This means that when you engage the brakes, you can expect a more robust and efficient response, such as downhill descents or sudden obstacles.

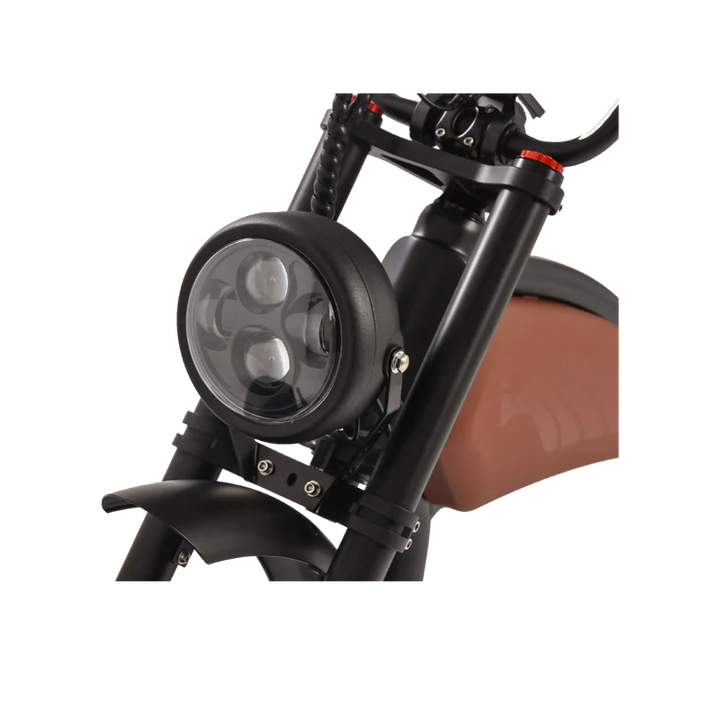

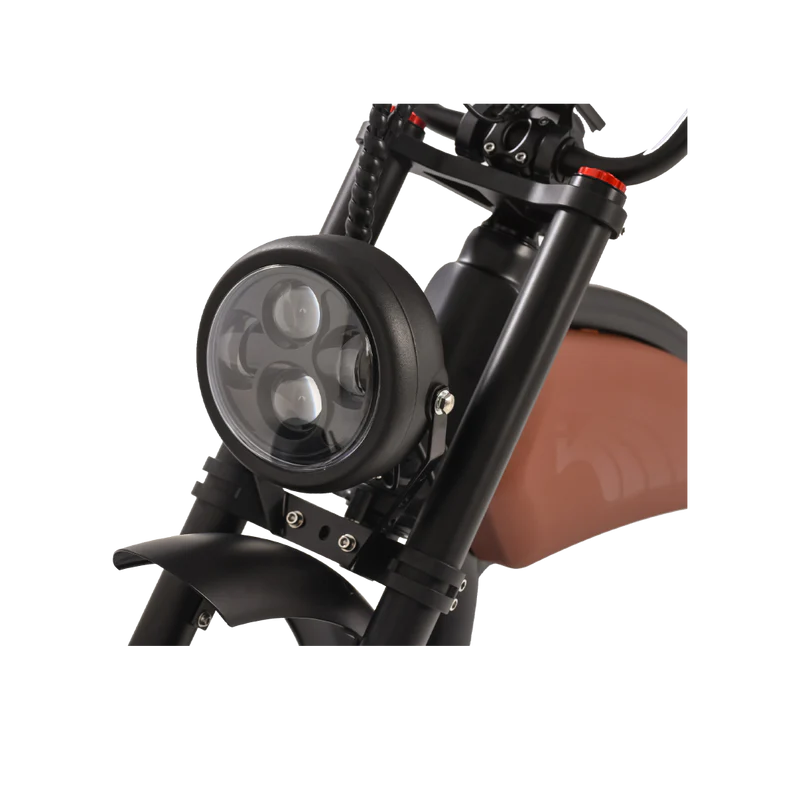

Lights

Integrated F/R Lights

Integrated taillights with brake lights, provides a safer and more enjoyable environment for night riding. The light will highlight to remind the cars and pedestrians behind you when braking.

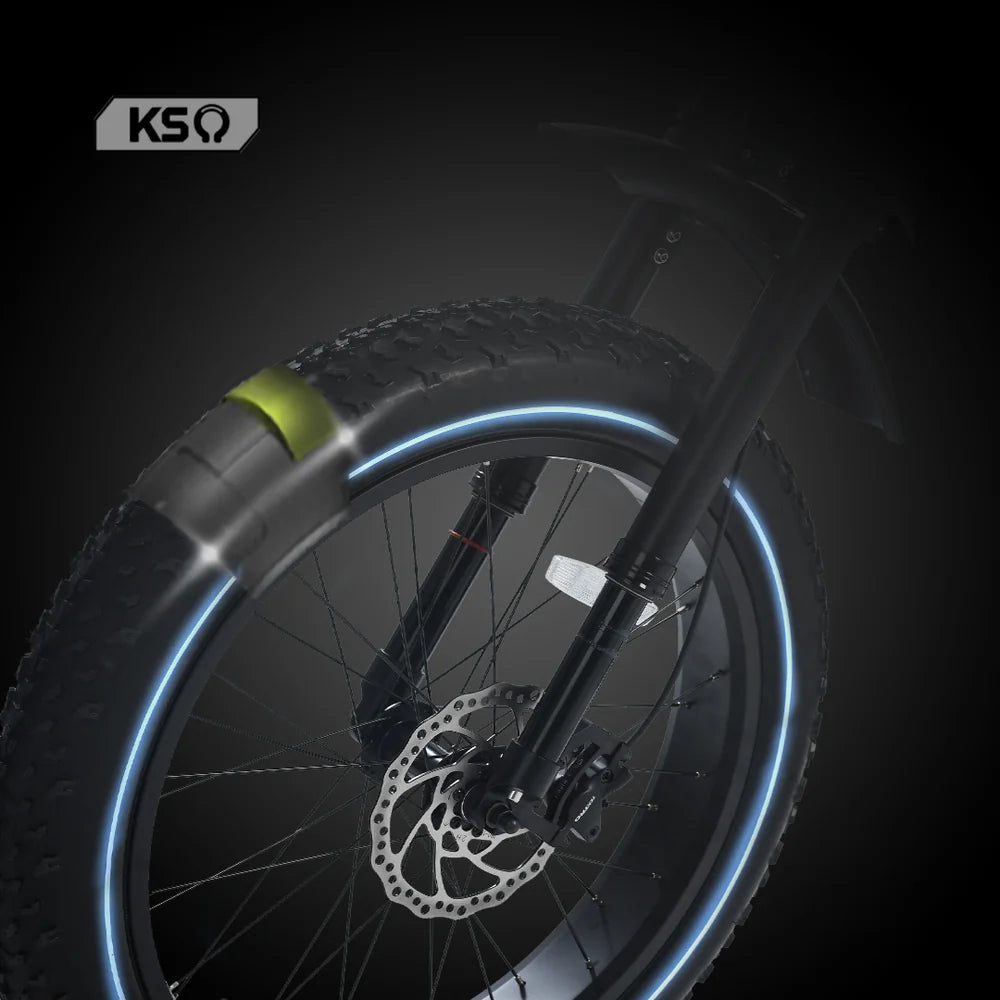

Tires

K-Shield Anti-Puncture Tires

The 26×4.0 fat tire, built for superior traction and stability on any terrain, now features the revolutionary K-Shield anti-puncture technology.

Inspired by the self-healing properties of a living body, the K-Shield layer acts as an intelligent safety system. When punctured, a high-density gel instantly seals the breach, preventing air loss.

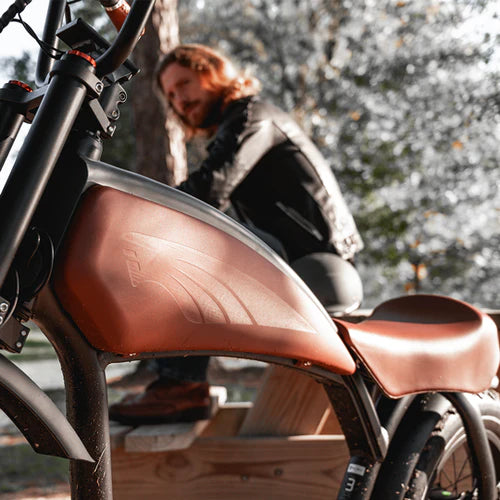

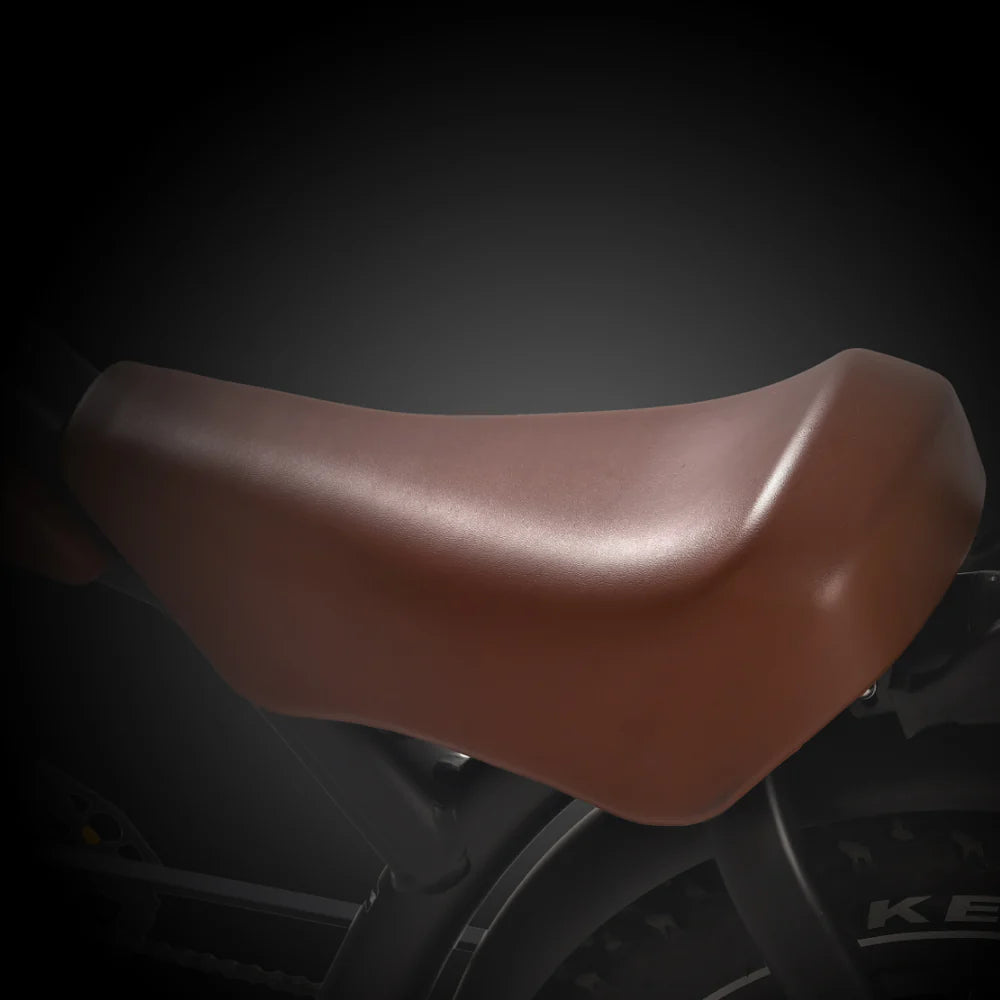

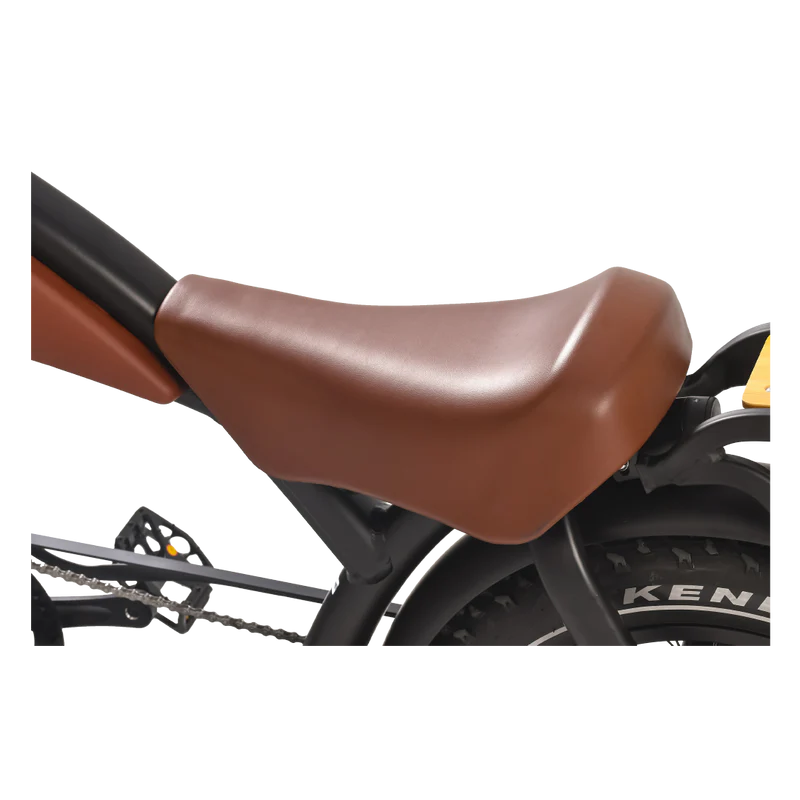

Seat

Hump Seat Design

Cafe racer style seats are known for their hump or cowl-like design at the rear. which adds a retro and sporty appearance. Brown seat is made of high-quality synthetic leather and filled with thick sponge, providing a wider and more comfortable seating area for riders.

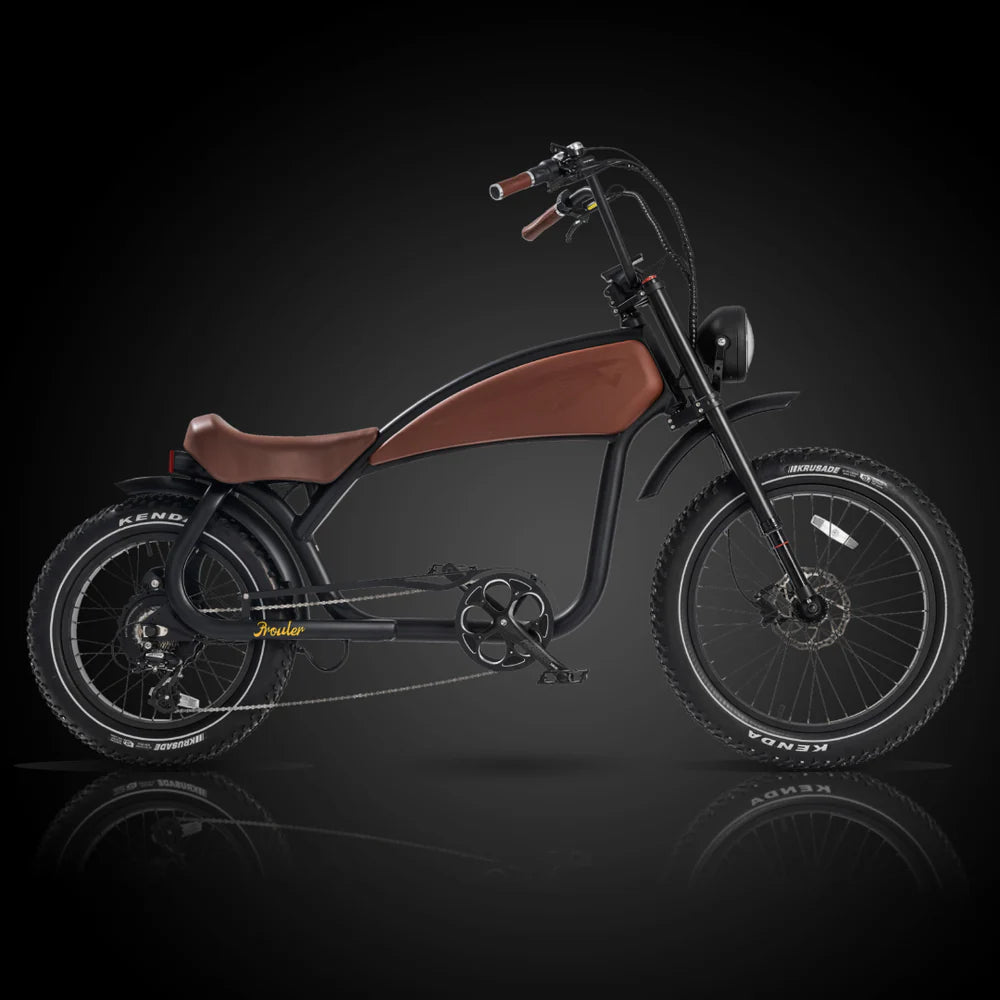

Design

Different Tire Size

Having a larger 24" front tire and a smaller 20" rear tire can create a visually striking profile, emphasizing the bike's power and dynamism. This design choice can enhance the bike's overall vintage look. Antipuncture tires to provide enhanced protection.
