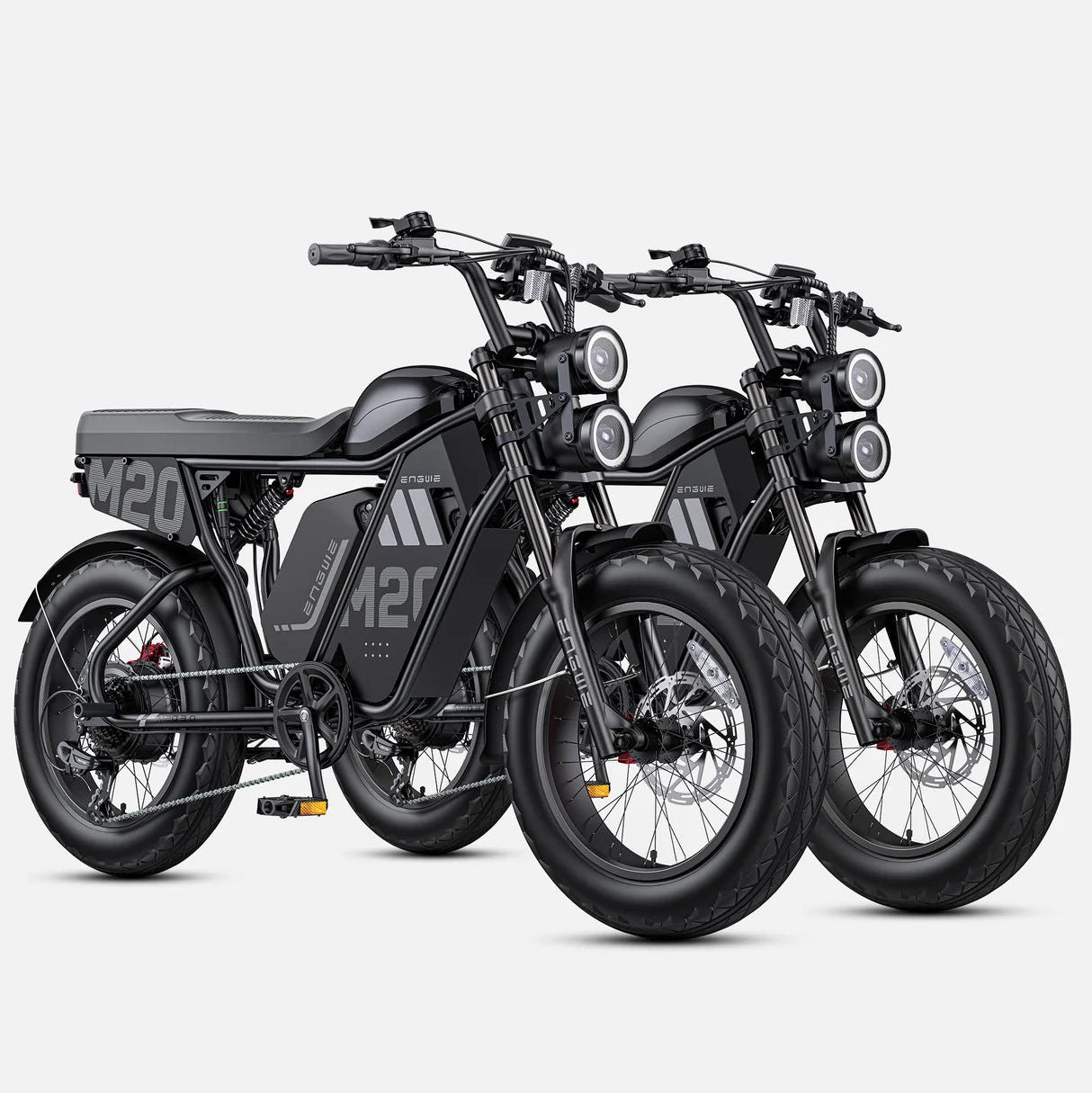

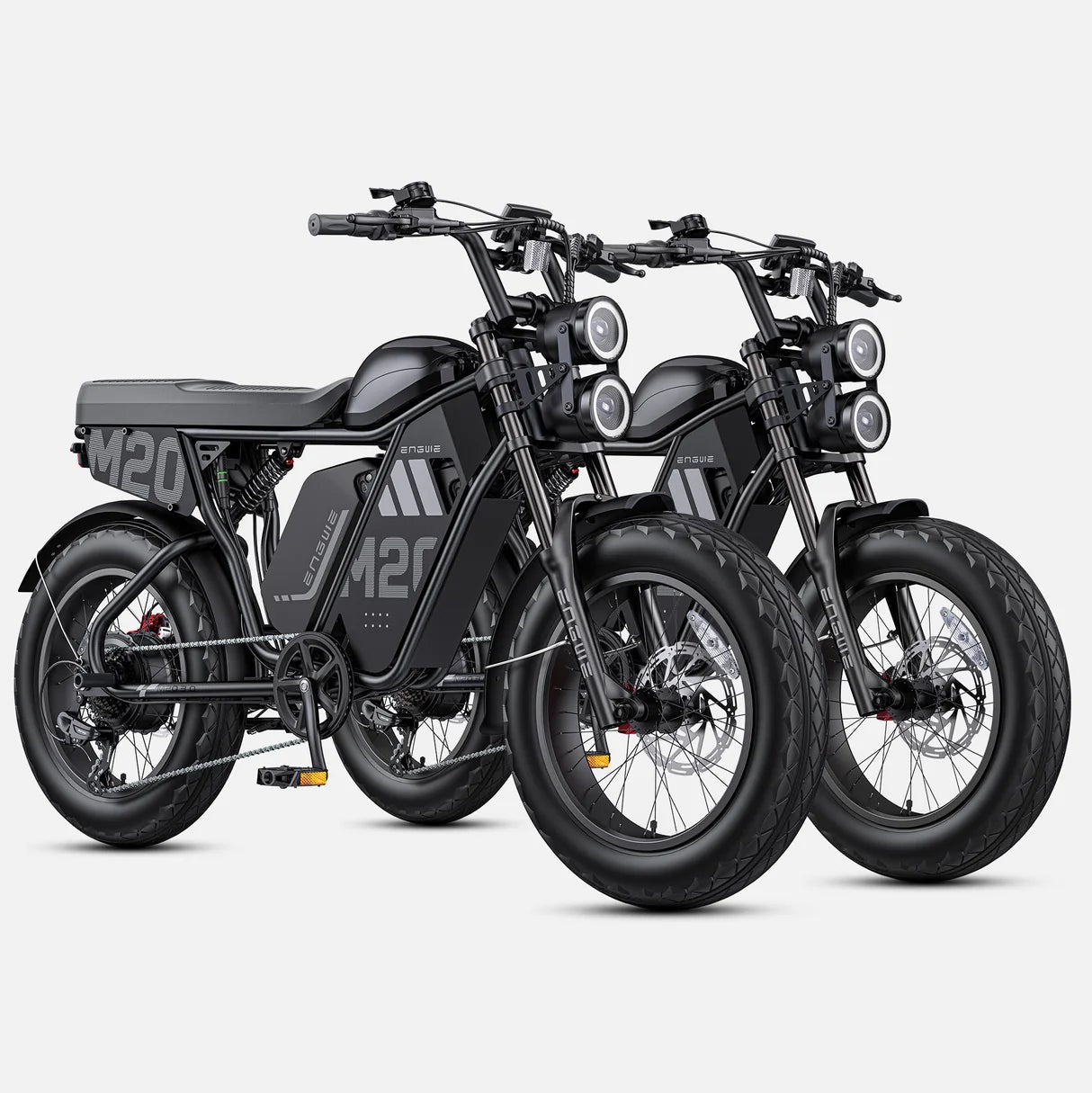

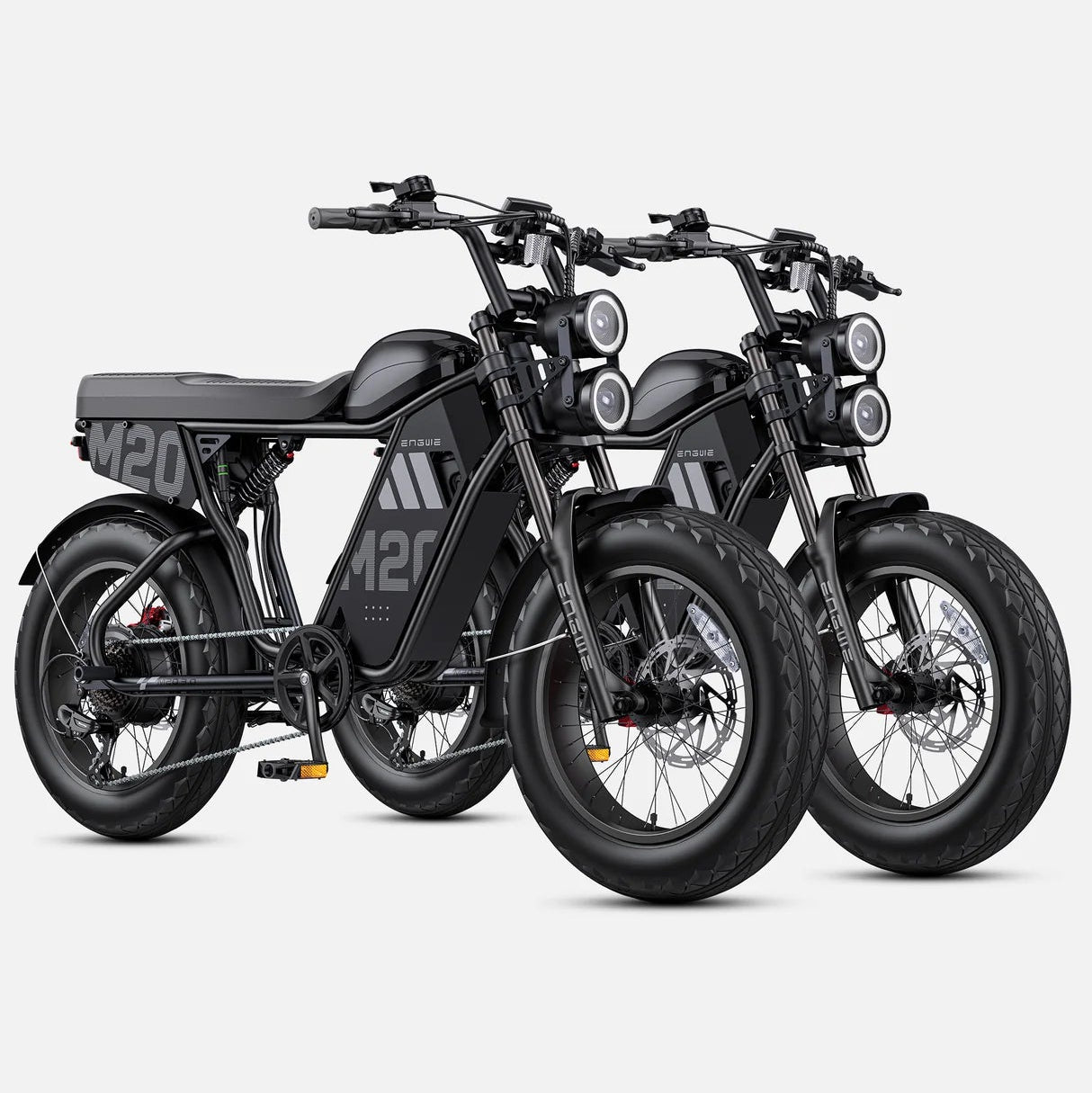

ENGWE M20 3.0| 3300W Moped-Style E-Bike- Combo
- No Tax
- Free Shipping
- In stock, ready to ship
ENGWE M20 3.0| 3300W Peak Output 120Nm Torque Moped-Style E-Bike-Combo
Specs
Performance
| Top Speed |
40 MPH |
| Acceleration |
0–15 mph in 2.15s |
| Range（Pedal Assist） |
90 miles (single battery) / 180 miles (dual battery） |
| Range（Throttle Only） |
40 miles（single battery）/ 85 miles （dual battery） |
| Charge Time |
2.5-3 hrs |
| Throttle |
Half Twist Throttle |
| Gearing&Rear Derailleur |
7 speed
|
*Factory default top speed is 20 mph in compliance with local regulations. Off-road mode allows higher speed. Please contact customer support for details.
*Range measured in Mode 2, Level 1 pedal assist.
*Actual Range varies based on rider weight, speed, temperature, wind, tire pressure, terrain, and incline.
Battery & Power System
| Battery | Single 1200Wh(60V 20Ah)/ Dual 2400Wh(60V 40Ah) |
| Motor | 3300w Peak Hub Motor |
| Charging | 8A Fast Charger, 0-80% in 2H (Smart BMS) |
Frameset & Components
| Frame |
Aluminum Alloy |
| Suspension |
Full/ Front 100 mm Adjustable / Rear DNM 55 mm Adjustable Travel |
| Brakes |
203mm /4-piston Hydraulic Brake |
| Tires | 20×4.0"" puncture-resistant / supports 20×5.0"" rear upgrade |
Light & Smart
| Headlight |
Integrated Horn, 60V |
| Trail Light |
Integrated left/right turn signals and brake light, 60V |
| Display |
3.5" Full-Color TFT Display |
| Cruise Control | Yes |
What's in the Box?
| M20 3.0 E-bike | *1 |
| 20Ah Battery Version | 60V 20Ah Lithium-Ion*1 |
| 40Ah Battery Version | 60V 20Ah Lithium-Ion*2 |
| 8A Fast Battery Charger | *1 |
| Assembly Tools | *1 |
| Pedals | *2 |
| Handle Bars Shipped and Installed On Bike | *1 |
| User Manual | *1 |
Note: The product you receive is based on the option you selected to order.
click here to view the M20 3.0 User Manual
click here to watch the assembly and unpacking video tutorial for the M20 3.0!
Size
| Rider Height | 5.3 (ft) -6.8 (ft) |
| Payload Capacity | 150 kg (330 lbs) |
| A - Handlebar Height | 41 in |
| B - Total Length | 71 in |
| C - Handlebar Reach | Adjustable |
| D - Seat Height | 31 in |
| E - Wheelbase | 48 in |
| F - Standover Height | 31 in |
Please note: There may be a difference of 0~1.9 inches (0~5cm) between measured and actual data.
FAQ
1. Order processing times:
In Stock: Upon receiving your order confirmation email, we will begin processing your order within 2 business days, and your shipment will be dispatched on the third business day.
Your order will be shipped from the warehouse closest to your address, with an estimated delivery time of 2 to 10 days.
*Please note: Delivery may not be available to remote areas or islands. For special requests or urgent delivery needs, please contact our customer service team, and we will do our best to accommodate you.
Q2: M20 3.0 User Manual
Please click here to view the M20 3.0 User Manual.
Q3: How to assemble an M20 3.0?
Please click here to watch the assembly and unpacking video tutorial for the M20 3.0!
Q4: Has the ENGWE M20 3.0 passed UL certification?
Yes, please click the link to view TÜV Rheinland's UL 2849 / UL 2271 certification for the ENGWE M20 3.0.
