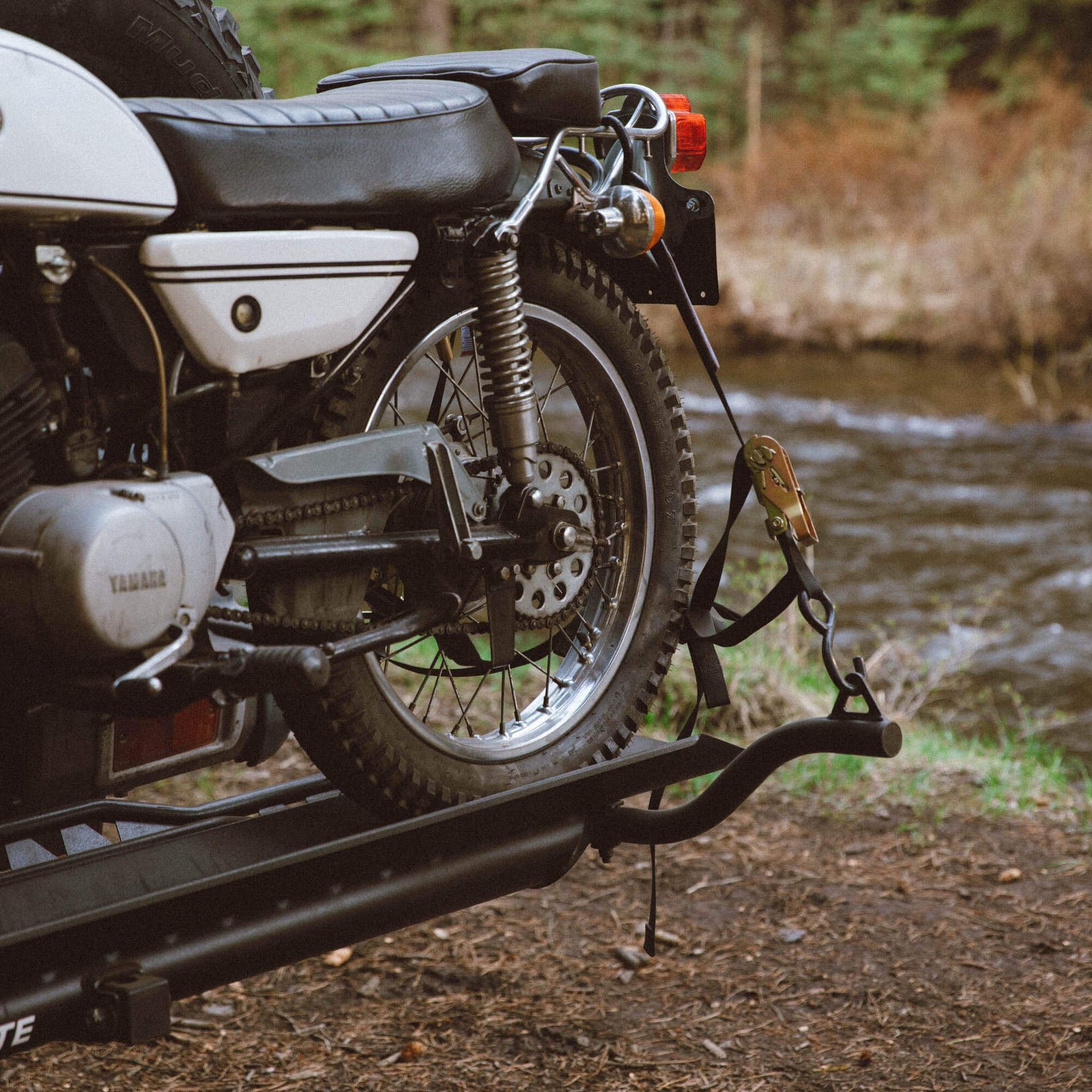

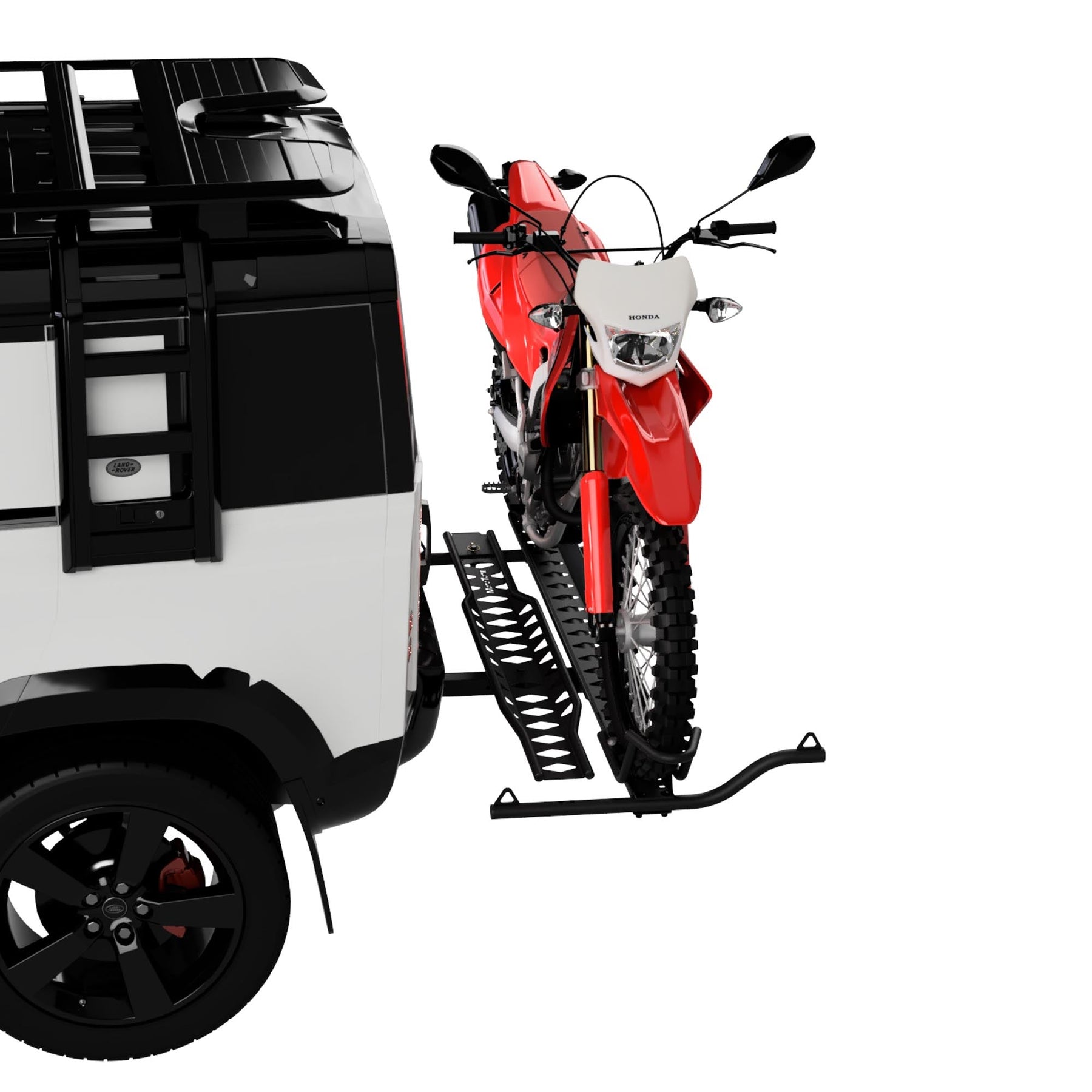

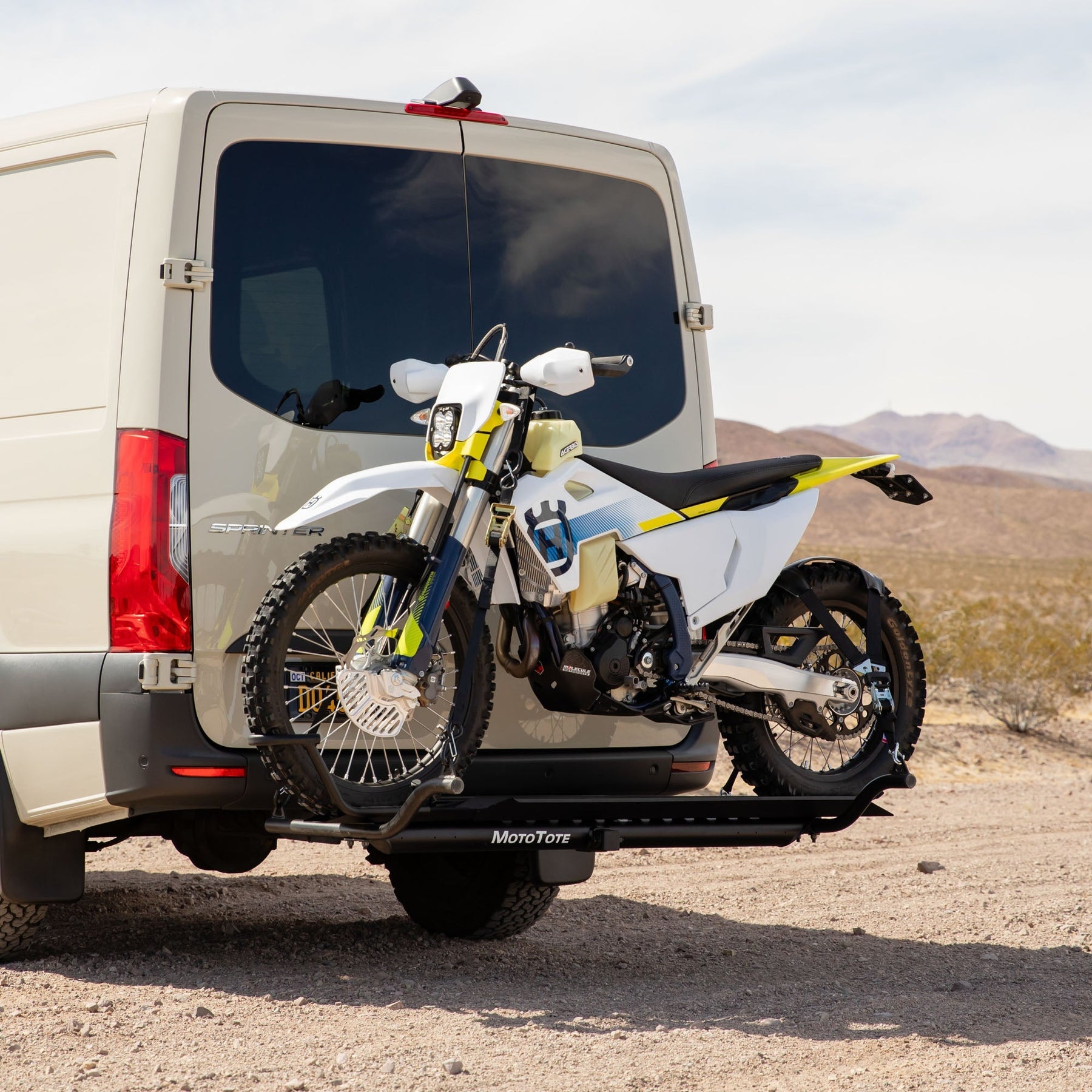

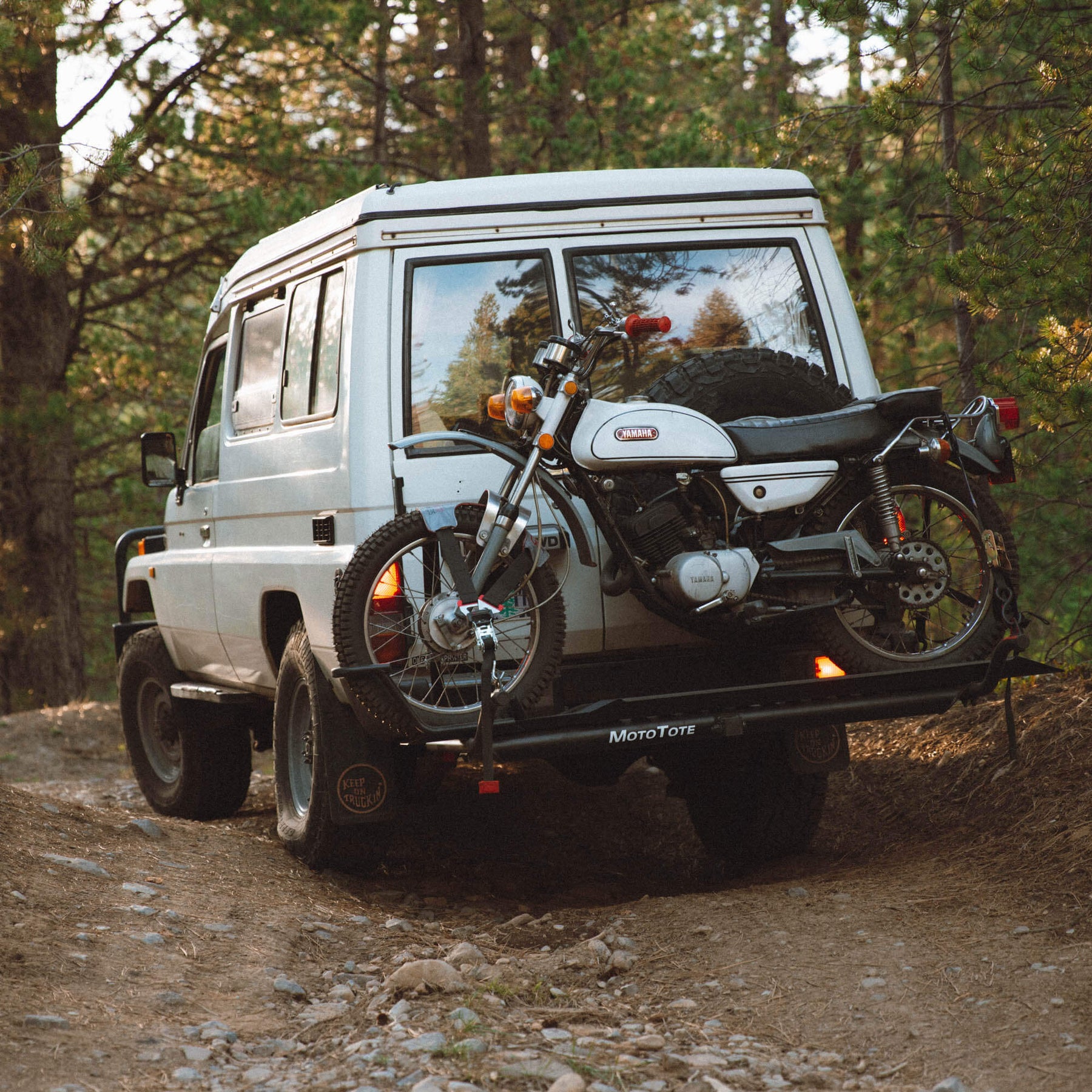

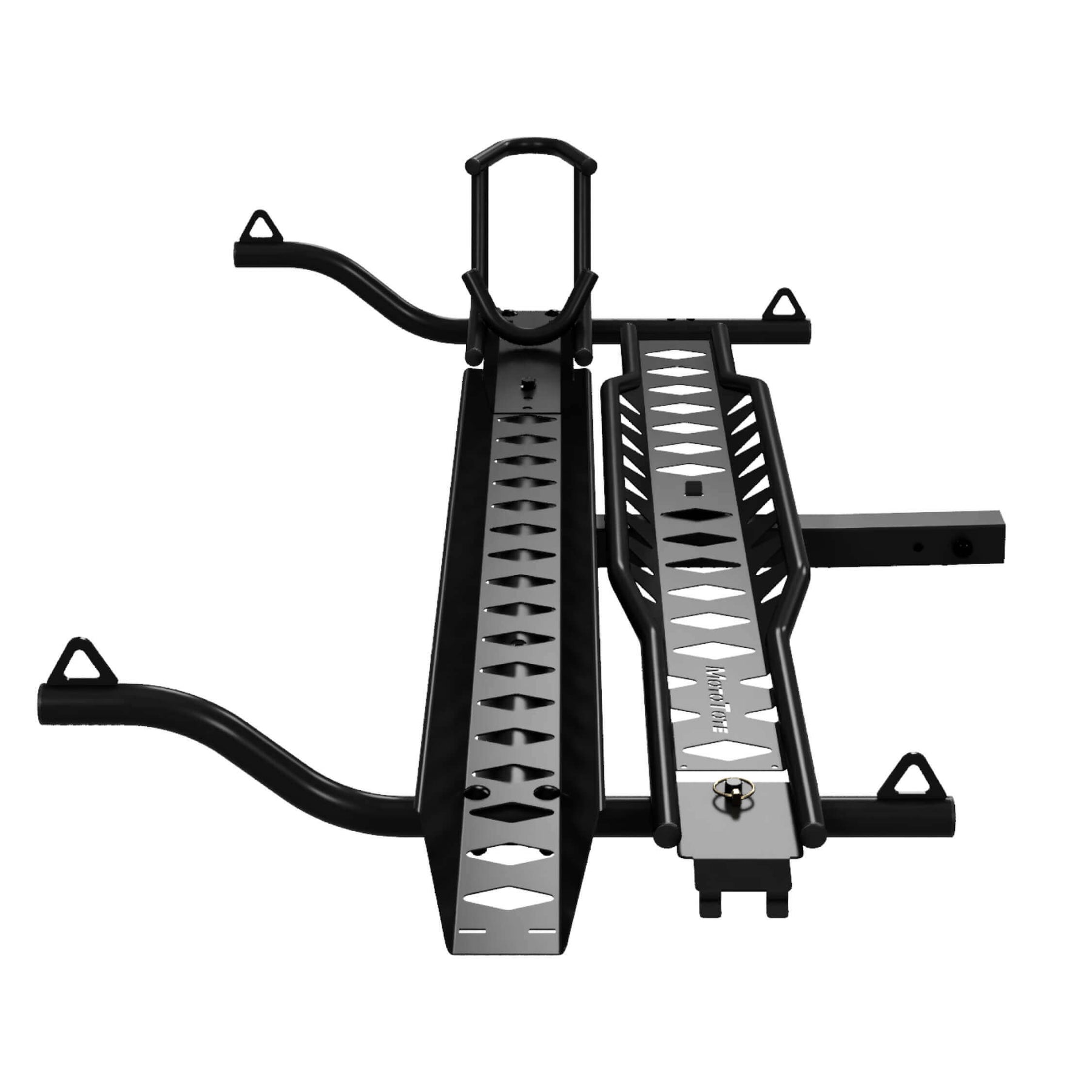

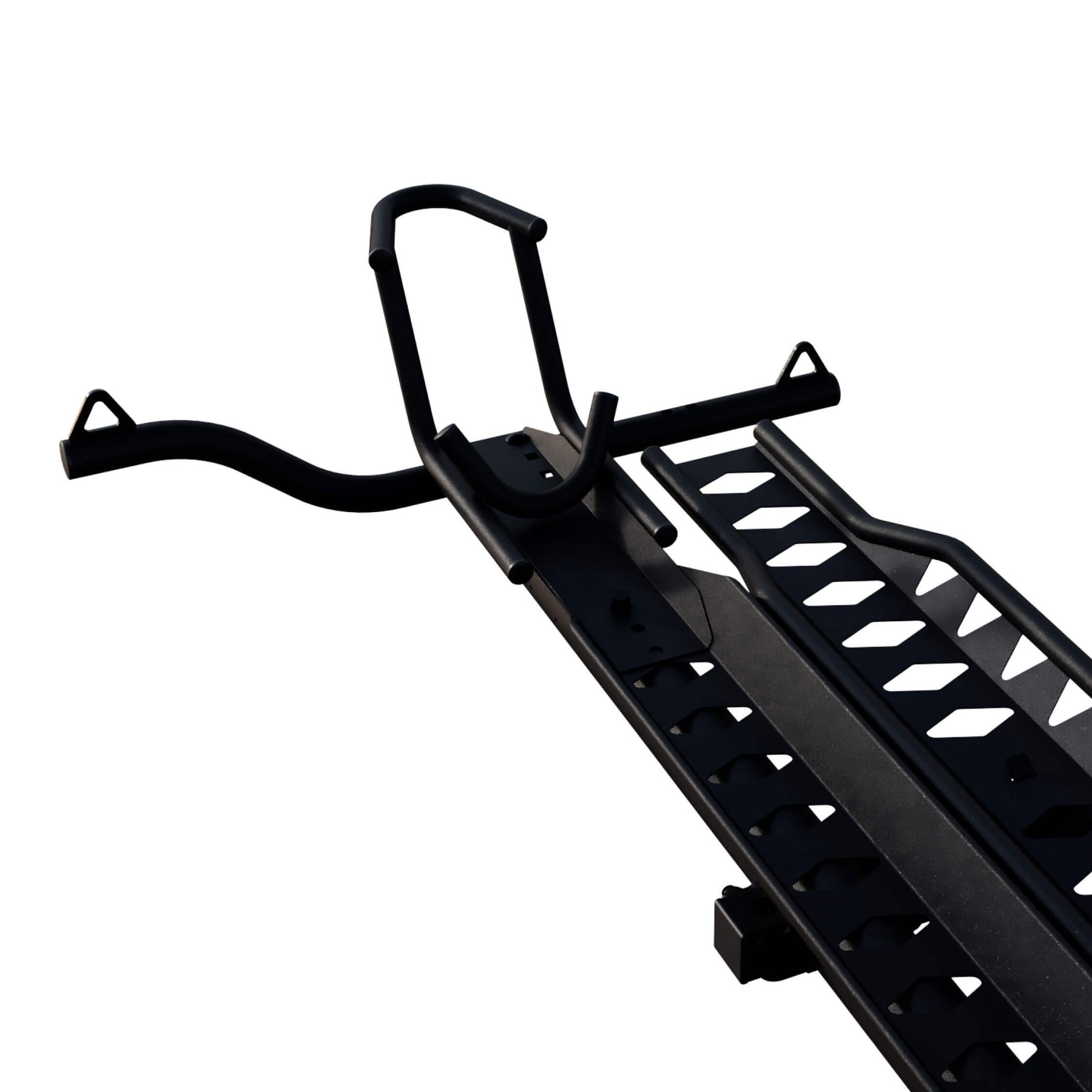

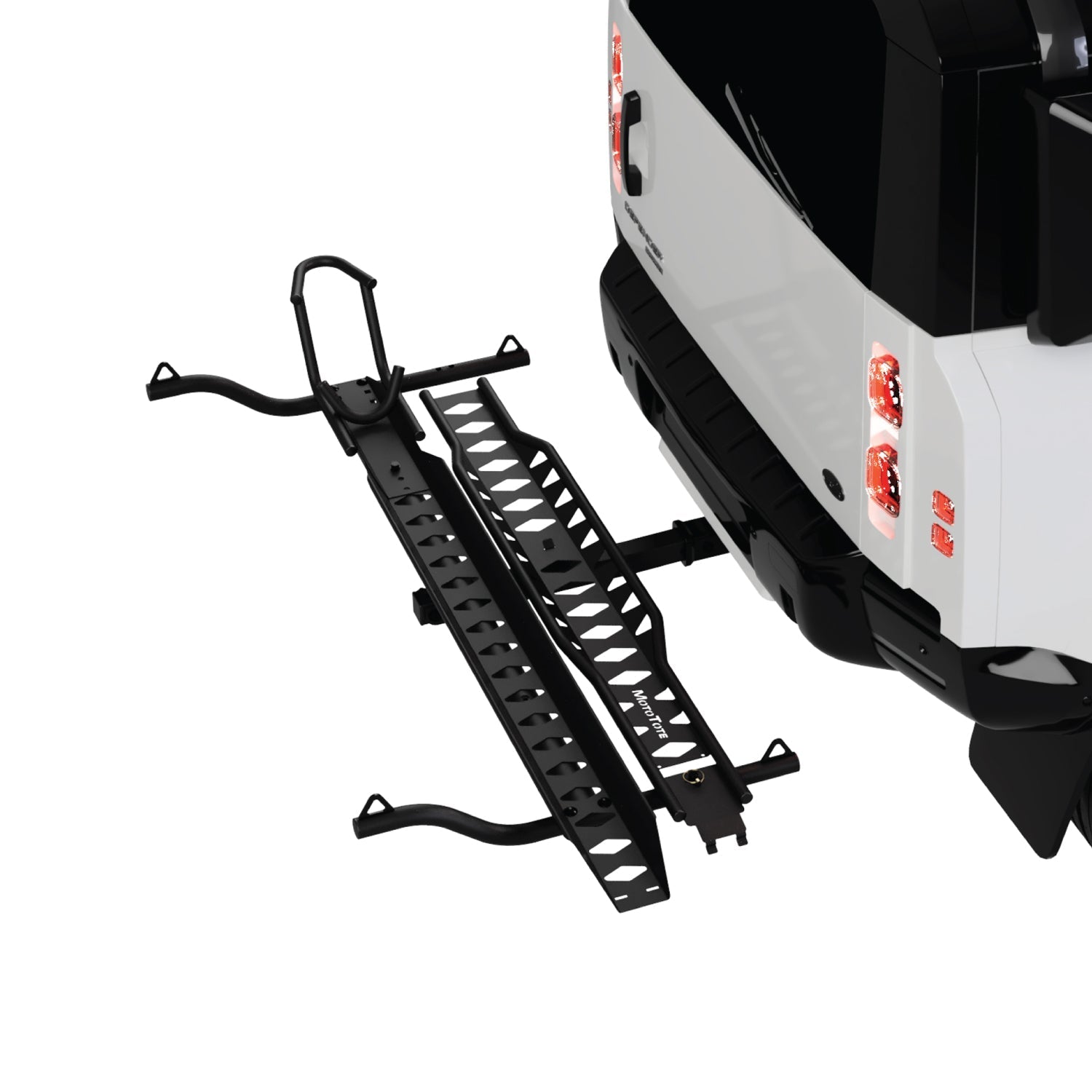

MotoTote Max Motorcycle Hitch Carrier
Maximum-stability motorcycle carrier for bikes up to 600 lbs.; dirt bikes, scooters & more.
Motorcycle Compatibility
Motorcycle Types: : Dirt Bikes, Scooters, Vintage Bikes
Weight: Up to 600 lbs. (272 kgs.)
Tire Sizes Up to 4.75" (120 mm) front, 6" (152 mm) rear
Wheelbase: Up to 65" (165 cm)
Dimensions
Wheelbase: Up to 65” (165 cm)

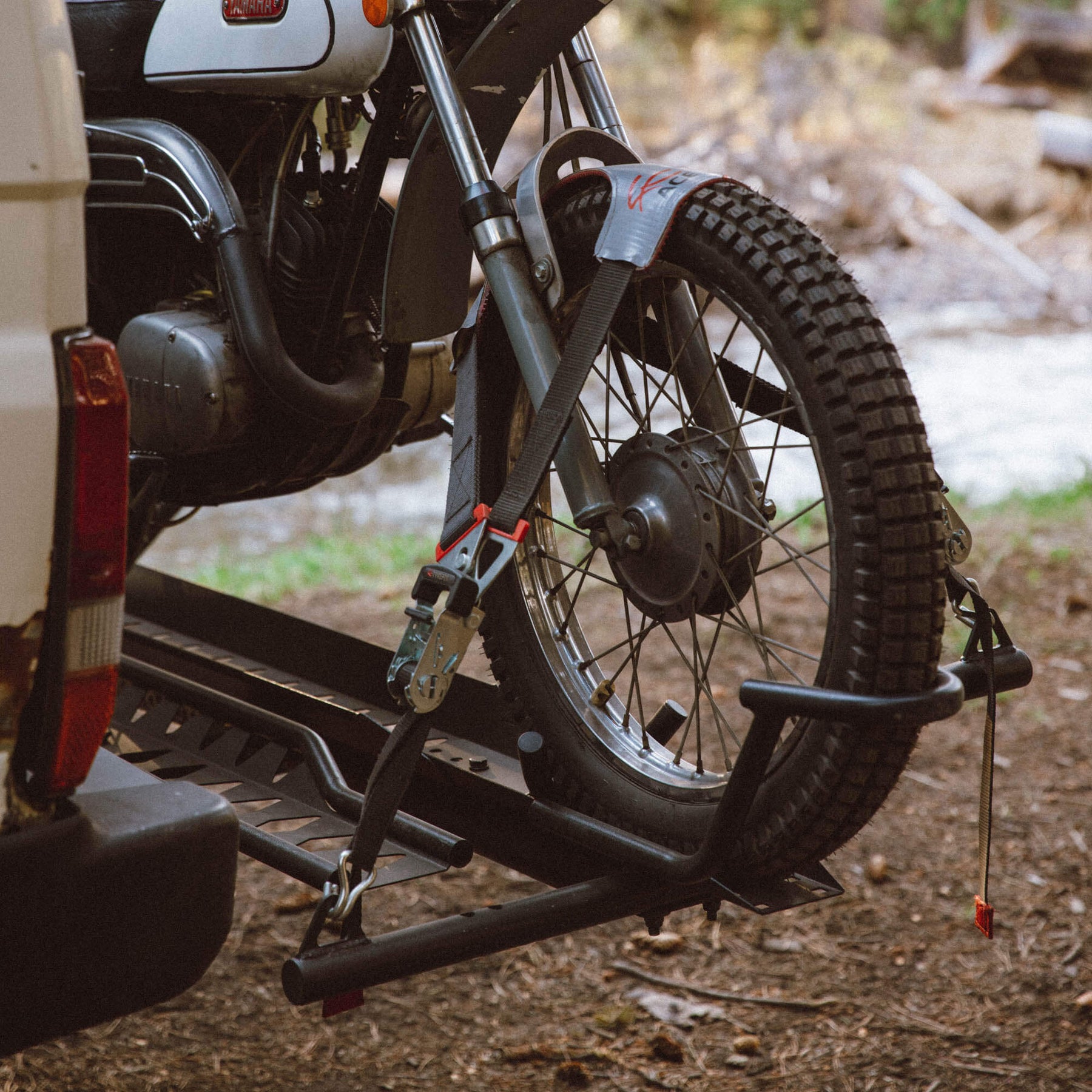

Front Wheel Chock Width: 4.75” (120 mm.)
Tire Track Width: 6" (152 mm)
Track Distance from Vehicle: Adjustable at 16”, 18” or 20”
Total Length: 72.5" - 78.5" (184 cm - 199 cm)

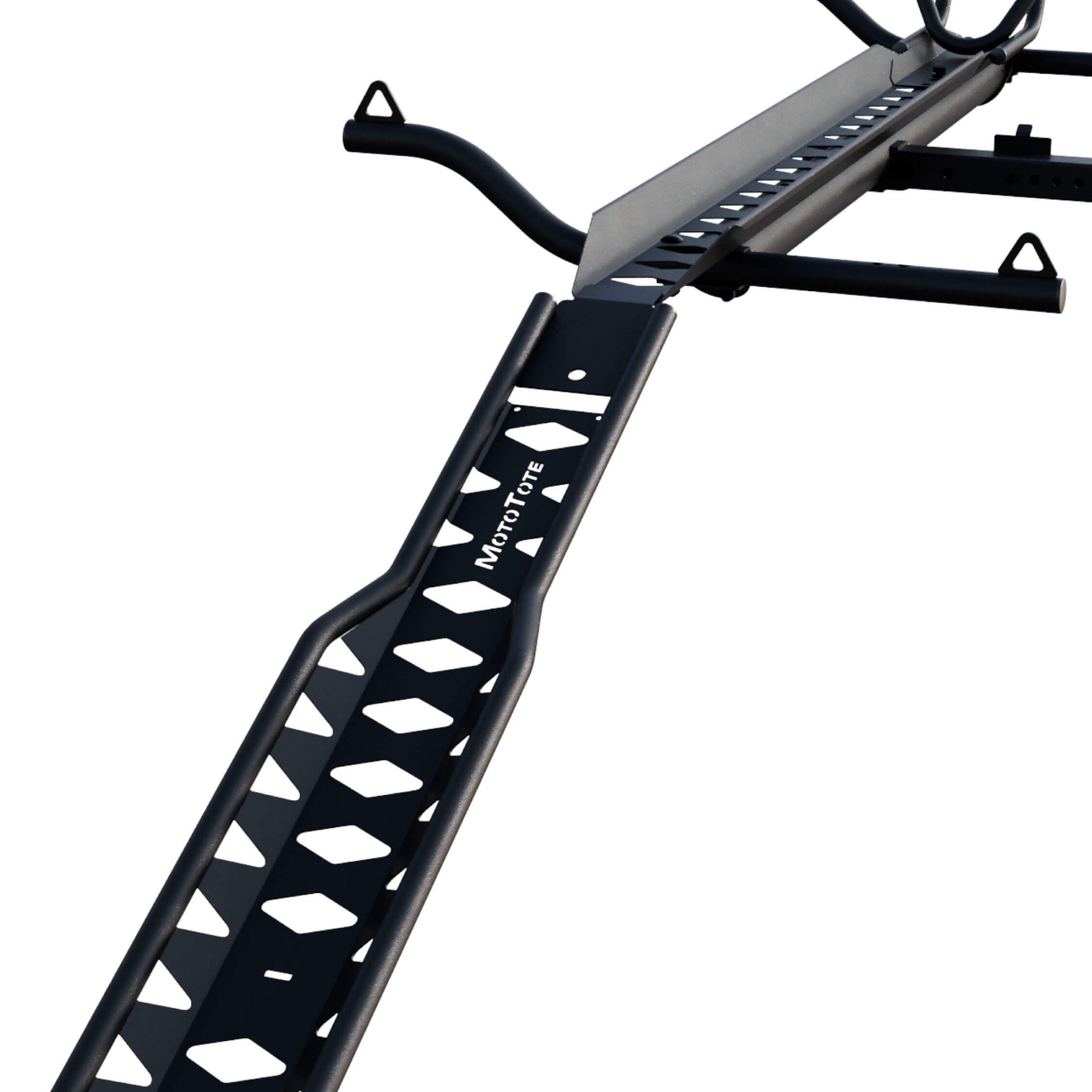

Loading Ramp Length: 56” L (142 cm.)
Front Tie Down Width:29” (73.5 cm)

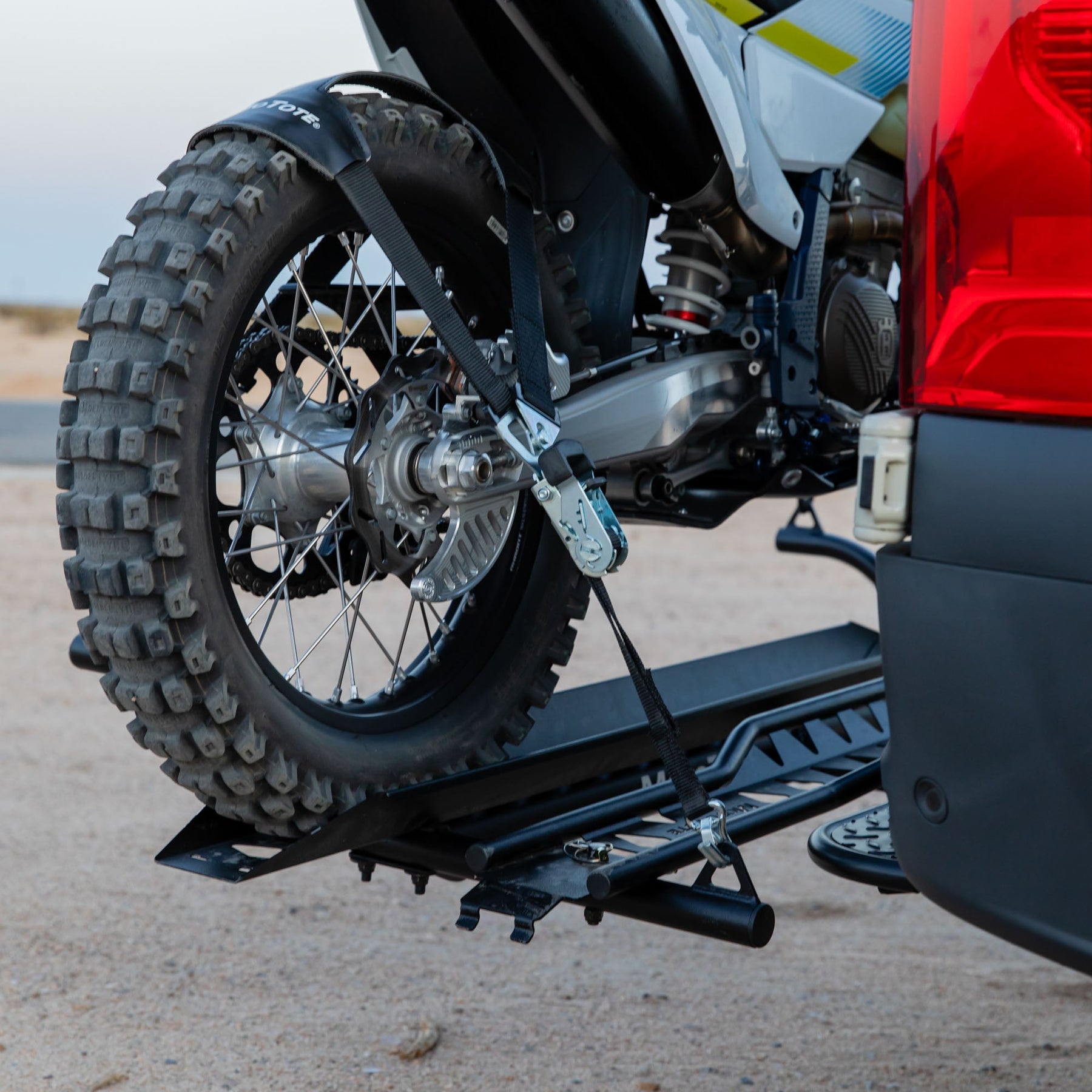

Rear Tie Down Width:29” (73.5 cm)
Loading Ramp Slope: v17 ° (On Average)
Weight
Weight Capacity: 600 lbs. (272 kgs.)
Carrier Weight: 59 lbs. (27 kgs.)
Material
Material: Powder Coated Steel
Finish: Textured Black Powder Coating
Hardware: Black Zinc Coated
Assembly
Straightforward by design. Assembly usually takes 30–60 minutes, depending on proficiency, and requires only a few basic tools. Click here for step-by-step instructions.
